Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

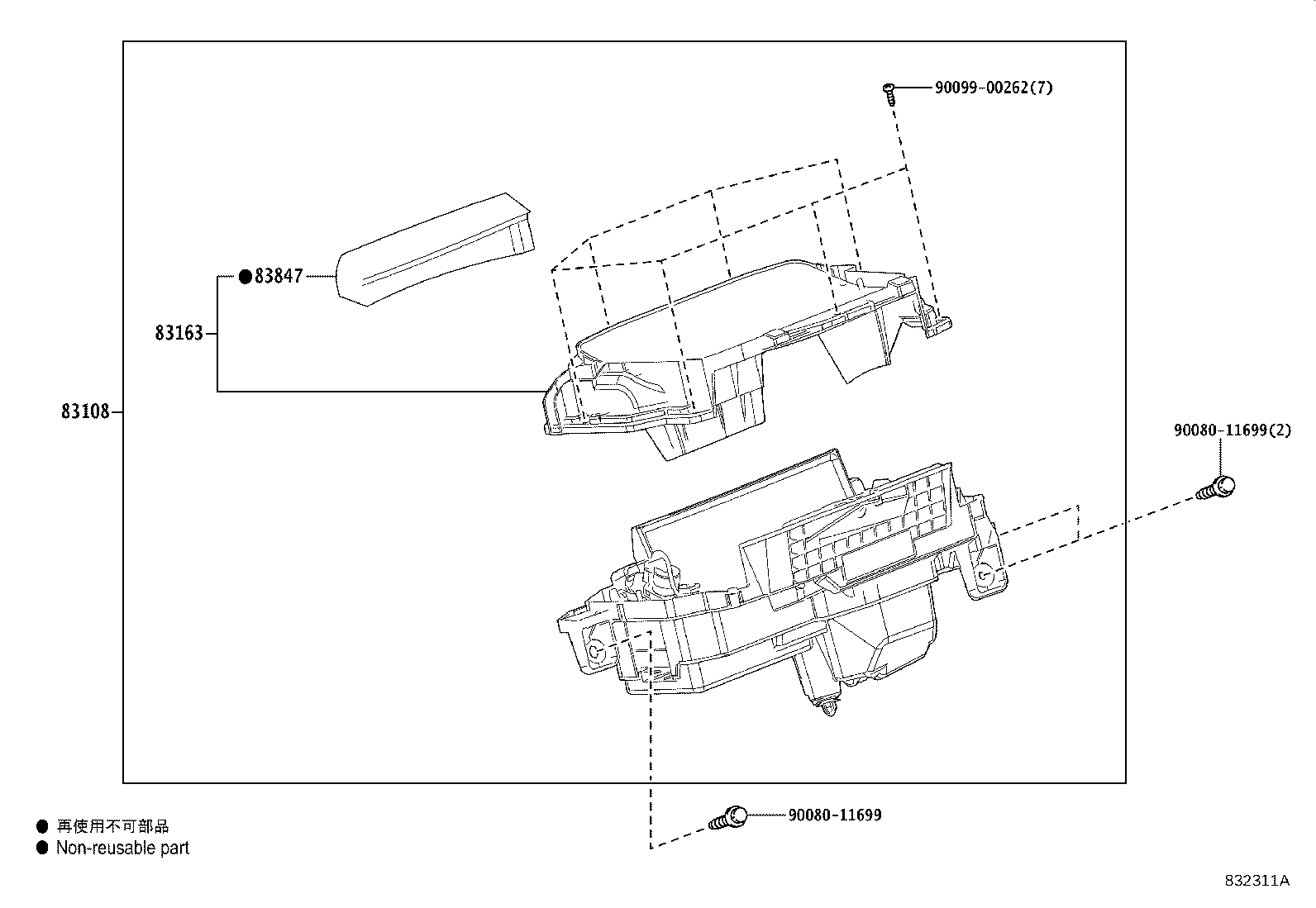

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-0E040 |
Mirror Sub-assy, Meter
2020-02 → 2020-11
ended
|
AXUH7#,GSU75 LIMD | — | |
| 83108-0E050 note |
Mirror Sub-assy, Meter
2020-11 → 2021-09
ended
|
AXUH78 RHD LIMD EUR | — | |
| 83108-0E050 |
Mirror Sub-assy, Meter
2020-12 → 2021-09
ended
|
AXUH78,GSU7# LIMD ARL | — | |
| 83108-0E051 |
Mirror Sub-assy, Meter
2021-10 → 2022-10
ended
|
AXUH78,GSU7# LIMD ARL | — | |
| 83108-0E051 note |
Mirror Sub-assy, Meter
2021-10 → 2022-10
ended
|
AXUH78 RHD LIMD EUR | — | |
| 83108-0E110 |
Mirror Sub-assy, Meter
2020-11 → 2021-09
ended
|
AXUH7#,GSU75 LIMD (GCC,RUS) | — | |
| 83108-0E110 note |
Mirror Sub-assy, Meter
2020-11 → 2021-09
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83108-0E111 |
Mirror Sub-assy, Meter
2021-10 → 2022-10
ended
|
AXUH7#,GSU75 LIMD (GCC,RUS) | — | |
| 83108-0E111 note |
Mirror Sub-assy, Meter
2021-10 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83108-0E070 |
Mirror Sub-assy, Meter
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# LIMD ARL | — | |
| 83108-0E070 note |
Mirror Sub-assy, Meter
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 83108-0E180 |
Mirror Sub-assy, Meter
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LIMD (GCC,RUS) | — | |
| 83108-0E180 note |
Mirror Sub-assy, Meter
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83108-0E200 |
Mirror Sub-assy, Meter
2024-01 → 2024-05
ended
|
AXUH78,TXUA7# LIMD ARL | — | |
| 83108-0E200 note |
Mirror Sub-assy, Meter
2024-01 → 2024-05
ended
|
AXUH78 RHD EUR | — | |
| 83108-0E201 note |
Mirror Sub-assy, Meter
2024-06 → —
|
AXUH78 RHD EUR | — | |
| 83108-0E201 |
Mirror Sub-assy, Meter
2024-06 → —
|
AXUH78,TXUA7# LIMD ARL | — | |
| 83108-0E210 |
Mirror Sub-assy, Meter
2023-11 → 2024-05
ended
|
AXUH7#,TXUA75 LIMD (GCC,RUS) | — | |
| 83108-0E210 note |
Mirror Sub-assy, Meter
2023-11 → 2024-05
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83108-0E211 |
Mirror Sub-assy, Meter
2024-06 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 83108-0E211 |
Mirror Sub-assy, Meter
2024-06 → —
|
AXUH78,TXUA75 LIMD (GCC,RUS) | — | |
| 83108-0E211 note |
Mirror Sub-assy, Meter
2024-06 → —
|
AXUH78 LHD LIMD EUR | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-0E040 |
Plate, Combination Meter Mirror, NO.1
2020-02 → 2021-10
ended
|
AXUH7#,GSU75 LIMD (GCC,RUS) | — | |
| 83163-0E040 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2021-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83163-0E050 note |
Plate, Combination Meter Mirror, NO.1
2020-11 → 2022-10
ended
|
AXUH78 RHD LIMD EUR | — | |
| 83163-0E050 |
Plate, Combination Meter Mirror, NO.1
2020-12 → 2022-10
ended
|
AXUH78,GSU7# LIMD ARL | — | |
| 83163-0E111 |
Plate, Combination Meter Mirror, NO.1
2021-10 → 2022-10
ended
|
AXUH7#,GSU75 LIMD (GCC,RUS) | — | |
| 83163-0E111 note |
Plate, Combination Meter Mirror, NO.1
2021-10 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83163-0E050 |
Plate, Combination Meter Mirror, NO.1
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# LIMD ARL | — | |
| 83163-0E050 note |
Plate, Combination Meter Mirror, NO.1
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 83163-0E111 |
Plate, Combination Meter Mirror, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LIMD (GCC,RUS) | — | |
| 83163-0E111 note |
Plate, Combination Meter Mirror, NO.1
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83163-0E050 note |
Plate, Combination Meter Mirror, NO.1
2024-01 → 2024-06
ended
|
AXUH78 RHD EUR | — | |
| 83163-0E050 |
Plate, Combination Meter Mirror, NO.1
2024-01 → 2024-06
ended
|
AXUH78,TXUA7# LIMD ARL | — | |
| 83163-0E111 note |
Plate, Combination Meter Mirror, NO.1
2023-11 → 2024-06
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83163-0E111 |
Plate, Combination Meter Mirror, NO.1
2023-11 → 2024-06
ended
|
AXUH7#,TXUA75 LIMD (GCC,RUS) | — | |
| 83847 — Cushion, Combination Speedometer, NO.1 | ||||
| 83847-0E040 |
Cushion, Combination Speedometer, NO.1
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# LIMD (ARL,GCC,RUS) | — | |
| 83847-0E040 note |
Cushion, Combination Speedometer, NO.1
2020-11 → 2022-10
ended
|
AXUH78 LIMD EUR | — | |
| 83847-0E040 |
Cushion, Combination Speedometer, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LIMD (GCC,RUS) | — | |
| 83847-0E040 note |
Cushion, Combination Speedometer, NO.1
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83847-0E040 |
Cushion, Combination Speedometer, NO.1
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# LIMD ARL | — | |
| 83847-0E040 note |
Cushion, Combination Speedometer, NO.1
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 83847-0E040 |
Cushion, Combination Speedometer, NO.1
2023-11 → 2024-06
ended
|
AXUH7#,TXUA7# LIMD (ARL,GCC,RUS) | — | |
| 83847-0E040 note |
Cushion, Combination Speedometer, NO.1
2023-11 → 2024-06
ended
|
AXUH78 LIMD EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
