Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

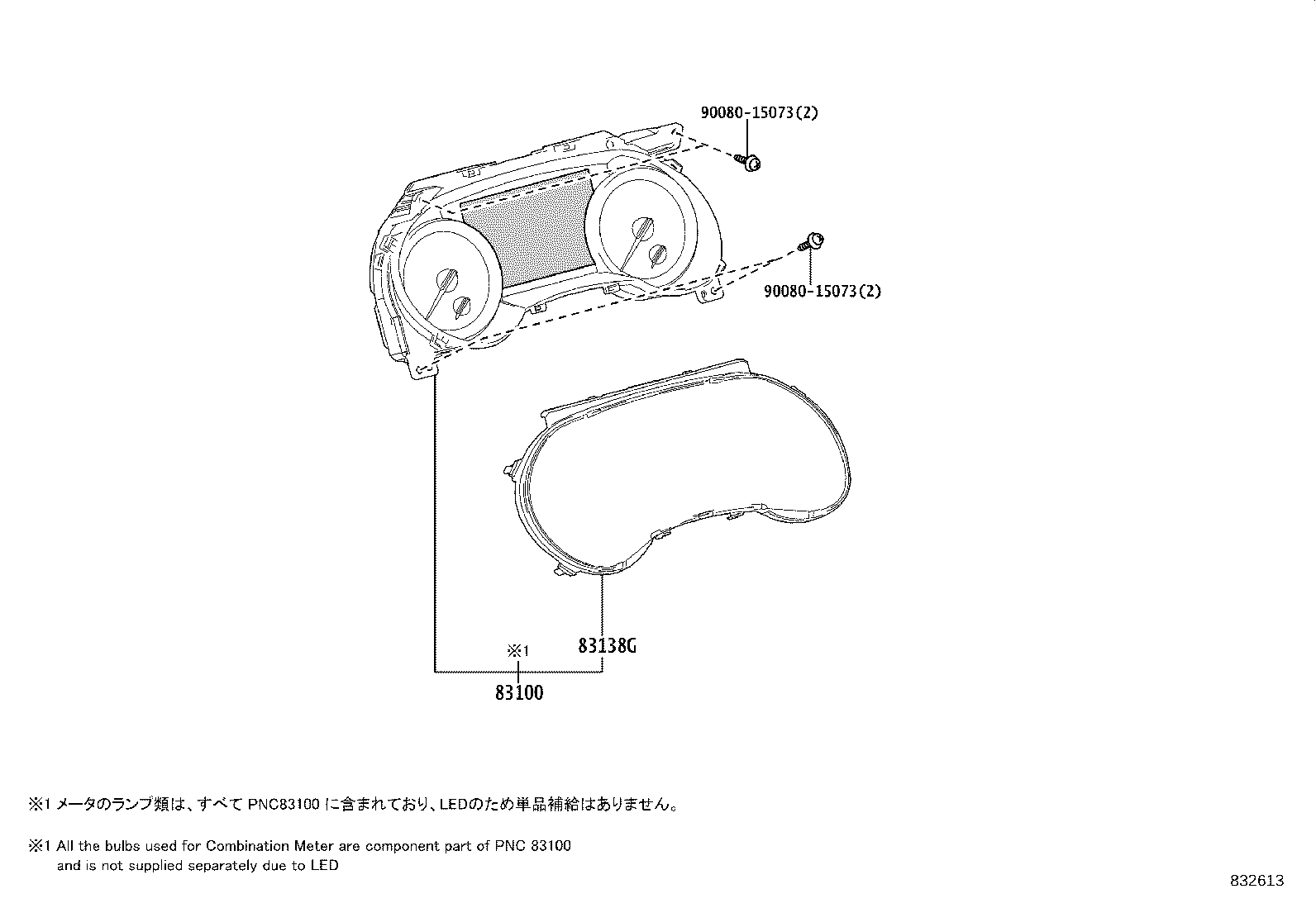

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-0ED21 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
GSU7# LE ARL | — | |
| 83800-0ED31 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
GSU7# LE ARL | — | |
| 83800-0ED31 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
GSU7# LIMD ARL | — | |
| 83800-0ED50 note |
Meter Assy, Combination
2020-03 → 2020-06
ended
|
GSU75 | — | |
| 83800-0ED51 note |
Meter Assy, Combination
2020-06 → 2020-11
ended
|
GSU75 | — | |
| 83800-0ED60 note |
Meter Assy, Combination
2020-02 → 2020-11
ended
|
AXUH7# LE,XLE | — | |
| 83800-0ED70 note |
Meter Assy, Combination
2020-02 → 2020-11
ended
|
AXUH7# LIMD | — | |
| 83800-0ED80 note |
Meter Assy, Combination
2020-11 → 2021-10
ended
|
AXUH78 EUR | — | |
| 83800-0ED90 note |
Meter Assy, Combination
2020-11 → 2021-10
ended
|
AXUH78 RHD EUR | — | |
| 83800-0EJ30 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
AXUH78 LE ARL | — | |
| 83800-0EJ40 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
AXUH78 LIMD ARL | — | |
| 83800-0EJ40 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
AXUH78 LE ARL | — | |
| 83800-0EP80 note |
Meter Assy, Combination
2020-11 → 2020-12
ended
|
GSU75 | — | |
| 83800-0EP81 note |
Meter Assy, Combination
2020-12 → 2021-10
ended
|
GSU75 RUS | — | |
| 83800-0EP90 note |
Meter Assy, Combination
2020-11 → 2021-10
ended
|
AXUH7# (LE,XLE) GCC | — | |
| 83800-0EQ00 note |
Meter Assy, Combination
2020-11 → 2021-10
ended
|
AXUH7# LIMD GCC | — | |
| 83800-0EQ80 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
GSU7# LE ARL | — | |
| 83800-0EQ90 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
GSU7# LIMD ARL | — | |
| 83800-0EQ90 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
GSU7# LE ARL | — | |
| 83800-0ER00 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH78 LE ARL | — | |
| 83800-0ER20 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH78 EUR | — | |
| 83800-0ER30 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH78 RHD EUR | — | |
| 83800-0ES90 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
GSU75 RUS | — | |
| 83800-0ET00 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH7# (LE,XLE) GCC | — | |
| 83800-0ET10 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH7# LIMD GCC | — | |
| 83800-0ET20 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH78 LIMD ARL | — | |
| 83800-0ET20 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH78 LE ARL | — | |
| 83800-0EX50 note |
Meter Assy, Combination
2021-10 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 83800-0EY60 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
TXUA7# LIMD ARL | — | |
| 83800-0EY61 note |
Meter Assy, Combination
2023-06 → 2023-12
ended
|
TXUA7# LIMD ARL | — | |
| 83800-0EY70 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
AXUH78 LIMD ARL | — | |
| 83800-0EY71 note |
Meter Assy, Combination
2023-06 → 2023-12
ended
|
AXUH78 LIMD ARL | — | |
| 83800-0EY80 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
TXUA75 LIMD RUS | — | |
| 83800-0EY81 note |
Meter Assy, Combination
2023-06 → 2023-11
ended
|
TXUA75 LIMD RUS | — | |
| 83800-0EY90 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
AXUH7# LIMD GCC | — | |
| 83800-0EY91 note |
Meter Assy, Combination
2023-06 → 2023-11
ended
|
AXUH7# LIMD GCC | — | |
| 83800-0EZ00 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
AXUH78 LIMD EUR | — | |
| 83800-0EZ01 note |
Meter Assy, Combination
2023-06 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83800-0EZ01 note |
Meter Assy, Combination
2023-06 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 83800-0EZ10 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
AXUH78 RHD EUR | — | |
| 83800-0EZ11 note |
Meter Assy, Combination
2023-06 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 83800-0EZ20 note |
Meter Assy, Combination
2022-10 → 2023-05
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83800-0EZ21 note |
Meter Assy, Combination
2023-06 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 83A00-0E050 note |
Meter Assy, Combination
2022-10 → 2023-12
ended
|
TXUA7# LE ARL | — | |
| 83A00-0E060 note |
Meter Assy, Combination
2022-10 → 2023-12
ended
|
AXUH78 LE ARL | — | |
| 83A00-0E070 note |
Meter Assy, Combination
2022-10 → 2023-11
ended
|
AXUH7# (LE,XLE) GCC | — | |
| 83A00-0E120 note |
Meter Assy, Combination
2022-10 → 2023-11
ended
|
AXUH78 XLE EUR | — | |
| 83A00-0E140 note |
Meter Assy, Combination
2022-10 → 2023-11
ended
|
AXUH78 XLE EUR | — | |
| 83A00-0E150 note |
Meter Assy, Combination
2022-10 → 2023-11
ended
|
TXUA75 LE RUS | — | |
| 83A00-0E500 note |
Meter Assy, Combination
2024-01 → 2024-11
ended
|
TXUA7# LE ARL | — | |
| 83A00-0E510 note |
Meter Assy, Combination
2024-01 → 2024-07
ended
|
TXUA7# LIMD ARL | — | |
| 83A00-0E511 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
TXUA7# LIMD ARL | — | |
| 83A00-0E520 note |
Meter Assy, Combination
2024-01 → 2024-11
ended
|
AXUH78 LE ARL | — | |
| 83A00-0E530 note |
Meter Assy, Combination
2024-01 → 2024-07
ended
|
AXUH78 LIMD ARL | — | |
| 83A00-0E531 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
AXUH78 LIMD ARL | — | |
| 83A00-0E540 note |
Meter Assy, Combination
2023-11 → 2024-07
ended
|
TXUA75 LIMD RUS | — | |
| 83A00-0E541 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
TXUA75 LIMD RUS | — | |
| 83A00-0E550 note |
Meter Assy, Combination
2023-11 → 2024-11
ended
|
AXUH7# (LE,XLE) GCC | — | |
| 83A00-0E560 note |
Meter Assy, Combination
2023-11 → 2024-07
ended
|
AXUH7# LIMD GCC | — | |
| 83A00-0E561 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
AXUH78 LIMD GCC | — | |
| 83A00-0E561 note |
Meter Assy, Combination
2024-07 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 83A00-0E570 note |
Meter Assy, Combination
2023-11 → 2024-07
ended
|
AXUH78 EUR | — | |
| 83A00-0E571 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
AXUH78 EUR | — | |
| 83A00-0E580 note |
Meter Assy, Combination
2024-01 → 2024-07
ended
|
AXUH78 RHD EUR | — | |
| 83A00-0E581 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
AXUH78 RHD EUR | — | |
| 83A00-0E590 note |
Meter Assy, Combination
2023-11 → 2024-07
ended
|
AXUH78 LHD EUR | — | |
| 83A00-0E591 note |
Meter Assy, Combination
2024-07 → 2024-11
ended
|
AXUH78 LHD EUR | — | |
| 83A00-0E650 note |
Meter Assy, Combination
2023-11 → 2024-11
ended
|
TXUA75 LE RUS | — | |
| 83A00-0EC30 note |
Meter Assy, Combination
2024-11 → —
|
TXUA7# ARL | — | |
| 83A00-0EC40 note |
Meter Assy, Combination
2024-11 → —
|
AXUH78 ARL | — | |
| 83A00-0EC50 note |
Meter Assy, Combination
2024-11 → —
|
TXUA75 LIMD RUS | — | |
| 83A00-0EC60 note |
Meter Assy, Combination
2024-11 → —
|
AXUH78 LIMD GCC | — | |
| 83A00-0EC70 note |
Meter Assy, Combination
2024-11 → —
|
AXUH78 EUR | — | |
| 83A00-0EC80 note |
Meter Assy, Combination
2024-11 → —
|
AXUH78 RHD EUR | — | |
| 83A00-0EC90 note |
Meter Assy, Combination
2024-11 → —
|
AXUH78 LHD EUR | — | |
| 83A00-0ED70 note |
Meter Assy, Combination
2024-11 → —
|
AXUH7# (LE,XLE) GCC | — | |
| 83A00-0EE30 note |
Meter Assy, Combination
2024-11 → —
|
TXUA75 LE RUS | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-0EC20 |
Glass, Combination Meter
2020-02 → 2021-10
ended
|
GSU75 LE RUS;AXUH78 LIMD +4 | — | |
| 83852-0EC20 note |
Glass, Combination Meter
2020-12 → 2021-10
ended
|
AXUH78,GSU7# LE ARL | — | |
| 83852-0EC40 |
Glass, Combination Meter
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# (LE,XLE) (ARL,GCC) | — | |
| 83852-0EC40 |
Glass, Combination Meter
2021-10 → 2022-10
ended
|
GSU75 LE RUS;AXUH78 LIMD +4 | — | |
| 83852-0EC40 |
Glass, Combination Meter
2022-10 → 2023-12
ended
|
AXUH7#,TXUA7# LE,XLE | — | |
| 83852-0EX60 |
Glass, Combination Meter
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# LIMD | — | |
| 83852-0EC40 |
Glass, Combination Meter
2023-11 → 2024-11
ended
|
AXUH78,TXUA7# LE ARL | — | |
| 83852-0EC40 |
Glass, Combination Meter
2023-11 → —
|
AXUH7#,TXUA75 (LE,XLE) (GCC,RUS) | — | |
| 83852-0EX60 |
Glass, Combination Meter
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 83852-0EX60 |
Glass, Combination Meter
2023-11 → —
|
AXUH78 XLE EUR;AXUH78,TXUA7# LIMD | — | |
| 83852-0EX60 |
Glass, Combination Meter
2024-11 → —
|
AXUH78,TXUA7# LE ARL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
