Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

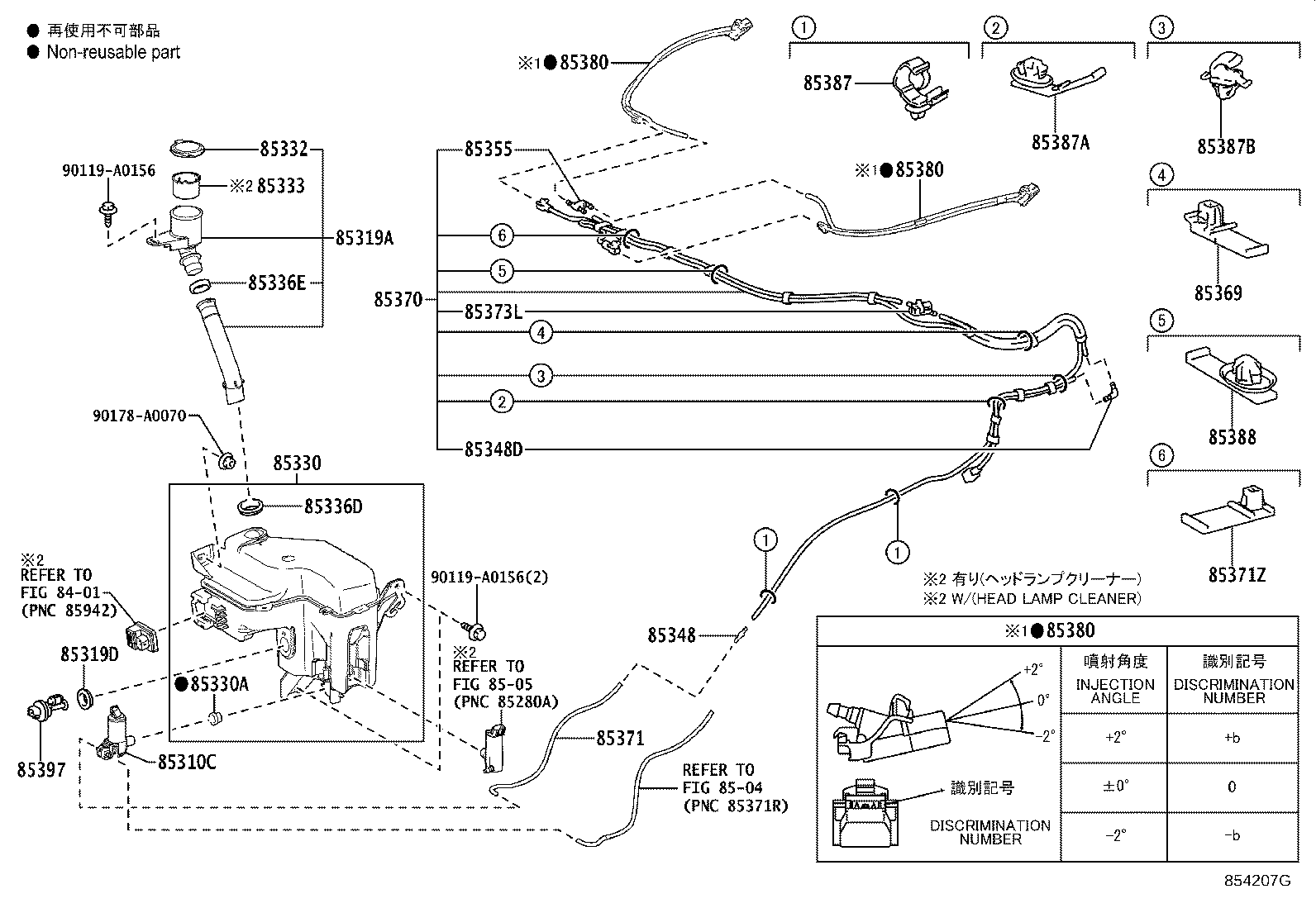

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85310C — Motor & Pump Assy, Washer | ||||
| 85330-0E031 |
Motor & Pump Assy, Washer
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 85330-0E031 |
Motor & Pump Assy, Washer
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 85330-0E031 |
Motor & Pump Assy, Washer
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 85330-0E031 |
Motor & Pump Assy, Washer
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85330-0E031 |
Motor & Pump Assy, Washer
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85319A — Hose, Inlet | ||||
| 85301-0E030 |
Hose, Inlet
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 85301-0E030 |
Hose, Inlet
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 85301-0E030 |
Hose, Inlet
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 85301-0E030 |
Hose, Inlet
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85301-0E030 |
Hose, Inlet
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85319D — Packing, Front Washer | ||||
| 85319-AA020 |
Packing, Front Washer
2020-03 → 2022-10
ended
|
AXUH78,GSU75 EUR,RUS | — | |
| 85319-AA020 |
Packing, Front Washer
2022-10 → 2023-11
ended
|
AXUH78,TXUA75 LHD (EUR,RUS) | — | |
| 85319-AA020 |
Packing, Front Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85319-AA020 |
Packing, Front Washer
2023-11 → —
|
AXUH78,TXUA75 EUR,RUS | — | |
| 85330 — Jar Assy, Windshield Washer | ||||
| 85315-0E150 |
Jar Assy, Windshield Washer
2020-11 → 2022-10
ended
|
AXUH78 XLE EUR | — | |
| 85315-0E160 |
Jar Assy, Windshield Washer
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# ARL,GCC | — | |
| 85355-0E080 |
Jar Assy, Windshield Washer
2020-03 → 2022-10
ended
|
AXUH78,GSU75 (LE,LIMD) (EUR,RUS) | — | |
| 85315-0E150 |
Jar Assy, Windshield Washer
2022-10 → 2023-11
ended
|
AXUH78 XLE EUR | — | |
| 85315-0E160 |
Jar Assy, Windshield Washer
2022-10 → 2023-11
ended
|
AXUH7# GCC | — | |
| 85315-0E160 |
Jar Assy, Windshield Washer
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 85355-0E080 |
Jar Assy, Windshield Washer
2022-10 → 2023-11
ended
|
AXUH78,TXUA75 LHD (LE,LIMD) (EUR,RUS) | — | |
| 85355-0E080 |
Jar Assy, Windshield Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85315-0E150 |
Jar Assy, Windshield Washer
2023-11 → —
|
AXUH78 XLE EUR | — | |
| 85315-0E160 |
Jar Assy, Windshield Washer
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85315-0E160 |
Jar Assy, Windshield Washer
2023-11 → —
|
AXUH70 LE,XLE;AXUH78,TXUA7# ARL,GCC | — | |
| 85355-0E080 |
Jar Assy, Windshield Washer
2023-11 → —
|
AXUH78,TXUA75 (LE,LIMD) (EUR,RUS) | — | |
| 85330A — Bush, Windshield Washer Jar | ||||
| 90099-32089 |
Bush, Windshield Washer Jar
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90099-32089 |
Bush, Windshield Washer Jar
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90099-32089 |
Bush, Windshield Washer Jar
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90099-32089 |
Bush, Windshield Washer Jar
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90099-32089 |
Bush, Windshield Washer Jar
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85332 — Cap, Windshield Washer Jar | ||||
| 85316-0E030 |
Cap, Windshield Washer Jar
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 85316-0E030 |
Cap, Windshield Washer Jar
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 85316-0E030 |
Cap, Windshield Washer Jar
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 85316-0E030 |
Cap, Windshield Washer Jar
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85316-0E030 |
Cap, Windshield Washer Jar
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85333 — Filter, Windshield Washer Jar | ||||
| 85312-60050 |
Filter, Windshield Washer Jar
2020-03 → 2022-10
ended
|
AXUH78,GSU75 (LE,LIMD) (EUR,RUS) | — | |
| 85312-60050 |
Filter, Windshield Washer Jar
2022-10 → 2023-11
ended
|
AXUH78,TXUA75 LHD (LE,LIMD) (EUR,RUS) | — | |
| 85312-60050 |
Filter, Windshield Washer Jar
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85312-60050 |
Filter, Windshield Washer Jar
2023-11 → —
|
AXUH78,TXUA75 (LE,LIMD) (EUR,RUS) | — | |
| 85336D — Packing, Windshield Washer Jar | ||||
| 85336-30160 |
Packing, Windshield Washer Jar
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 85336-30160 |
Packing, Windshield Washer Jar
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 85336-30160 |
Packing, Windshield Washer Jar
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 85336-30160 |
Packing, Windshield Washer Jar
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85336-30160 |
Packing, Windshield Washer Jar
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85336E — Packing, Windshield Washer Inlet Hose | ||||
| 85336-42320 |
Packing, Windshield Washer Inlet Hose
2022-10 → 2023-11
ended
|
AXUH7# GCC;AXUH78 XLE EUR | — | |
| 85336-42320 |
Packing, Windshield Washer Inlet Hose
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 85336-42320 |
Packing, Windshield Washer Inlet Hose
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85336-42320 |
Packing, Windshield Washer Inlet Hose
2023-11 → —
|
AXUH70 LE,XLE;AXUH78 XLE EUR;AXUH78,TXUA7# +1 | — | |
| 85348 — Joint, Windshield Washer Hose, NO.1 | ||||
| 85375-0E010 |
Joint, Windshield Washer Hose, NO.1
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 85375-0E010 |
Joint, Windshield Washer Hose, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 85375-0E010 |
Joint, Windshield Washer Hose, NO.1
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 85375-0E010 |
Joint, Windshield Washer Hose, NO.1
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85375-0E010 |
Joint, Windshield Washer Hose, NO.1
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85348D — Joint, Windshield Washer Elbow, NO.1 | ||||
| 85355-20200 |
Joint, Windshield Washer Elbow, NO.1
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85355-20200 note |
Joint, Windshield Washer Elbow, NO.1
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85355-20200 note |
Joint, Windshield Washer Elbow, NO.1
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85375-02260 |
Joint, Windshield Washer Elbow, NO.1
2020-02 → 2022-10
ended
|
AXUH78 LHD EUR;AXUH7#,GSU7# ARL,GCC | — | |
| 85355-20200 note |
Joint, Windshield Washer Elbow, NO.1
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85355-20200 note |
Joint, Windshield Washer Elbow, NO.1
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85355-20200 |
Joint, Windshield Washer Elbow, NO.1
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85355-20200 |
Joint, Windshield Washer Elbow, NO.1
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85375-02260 |
Joint, Windshield Washer Elbow, NO.1
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 85375-02260 |
Joint, Windshield Washer Elbow, NO.1
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 85355-20200 |
Joint, Windshield Washer Elbow, NO.1
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85355-20200 note |
Joint, Windshield Washer Elbow, NO.1
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85355-20200 note |
Joint, Windshield Washer Elbow, NO.1
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85375-02260 |
Joint, Windshield Washer Elbow, NO.1
2023-11 → —
|
AXUH70 LE,XLE;AXUH78 LHD EUR;AXUH78,TXUA7# +1 | — | |
| 85375-02260 |
Joint, Windshield Washer Elbow, NO.1
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85355 — Valve, Windshield Washer Hose | ||||
| 85321-28020 |
Valve, Windshield Washer Hose
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 85321-28020 |
Valve, Windshield Washer Hose
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 85321-28020 |
Valve, Windshield Washer Hose
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 85321-28020 |
Valve, Windshield Washer Hose
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85321-28020 |
Valve, Windshield Washer Hose
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85369 — Clamp | ||||
| 82711-3A640 |
Clamp
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 82711-3A640 note |
Clamp
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 82711-3A640 note |
Clamp
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 82711-3A640 |
Clamp
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 82711-3A640 note |
Clamp
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 82711-3A640 |
Clamp
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 82711-3A640 note |
Clamp
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 82711-3A640 |
Clamp
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 82711-3A640 note |
Clamp
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 82711-3A640 note |
Clamp
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85370 — Hose Assy, Windshield Washer | ||||
| 85370-0E410 |
Hose Assy, Windshield Washer
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85370-0E410 note |
Hose Assy, Windshield Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85370-0E410 note |
Hose Assy, Windshield Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85370-0E410 |
Hose Assy, Windshield Washer
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85370-0E410 note |
Hose Assy, Windshield Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85370-0E410 note |
Hose Assy, Windshield Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85370-0E410 |
Hose Assy, Windshield Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85370-0E410 |
Hose Assy, Windshield Washer
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85370-0E410 note |
Hose Assy, Windshield Washer
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85370-0E410 note |
Hose Assy, Windshield Washer
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT) | ||||
| 90068-33360 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90068-33360 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90068-33360 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90068-33360 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90068-33360 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85371Z — Clamp, Washer Hose | ||||
| 85387-22540 |
Clamp, Washer Hose
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85387-22540 note |
Clamp, Washer Hose
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85387-22540 note |
Clamp, Washer Hose
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85387-22540 |
Clamp, Washer Hose
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85387-22540 note |
Clamp, Washer Hose
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85387-22540 |
Clamp, Washer Hose
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85387-22540 note |
Clamp, Washer Hose
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85387-22540 note |
Clamp, Washer Hose
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85387-22540 |
Clamp, Washer Hose
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85387-22540 note |
Clamp, Washer Hose
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85373L — Grommet, Washer | ||||
| 85373-12050 |
Grommet, Washer
2020-02 → 2022-10
ended
|
AXUH78 LHD EUR;AXUH7#,GSU7# ARL,GCC | — | |
| 85379-0E410 |
Grommet, Washer
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85379-0E410 note |
Grommet, Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85379-0E410 note |
Grommet, Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85373-12050 |
Grommet, Washer
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 85373-12050 |
Grommet, Washer
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 85379-0E410 |
Grommet, Washer
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85379-0E410 note |
Grommet, Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85379-0E410 note |
Grommet, Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85379-0E410 |
Grommet, Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85373-12050 |
Grommet, Washer
2023-11 → —
|
AXUH70 LE,XLE;AXUH78 LHD EUR;AXUH78,TXUA7# +1 | — | |
| 85373-12050 |
Grommet, Washer
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85379-0E410 |
Grommet, Washer
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85379-0E410 note |
Grommet, Washer
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85379-0E410 note |
Grommet, Washer
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85380 — Nozzle & Hose Assy, FR Washer | ||||
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E270 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E280 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85380-0E290 note |
Nozzle & Hose Assy, FR Washer
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85387 — Clamp NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E350 |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82711-1E350 |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 82711-1E350 |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 82711-1E350 |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 82711-1E350 |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 85387A — Clamp, Washer, NO.2 | ||||
| 82711-48070 |
Clamp, Washer, NO.2
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 82711-48070 note |
Clamp, Washer, NO.2
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 82711-48070 note |
Clamp, Washer, NO.2
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 85371-12040 |
Clamp, Washer, NO.2
2020-02 → 2022-10
ended
|
AXUH78 LHD EUR;AXUH7#,GSU7# ARL,GCC | — | |
| 82711-48070 |
Clamp, Washer, NO.2
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 82711-48070 note |
Clamp, Washer, NO.2
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 82711-48070 note |
Clamp, Washer, NO.2
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 82711-48070 |
Clamp, Washer, NO.2
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85371-12040 |
Clamp, Washer, NO.2
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 85371-12040 |
Clamp, Washer, NO.2
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 82711-48070 |
Clamp, Washer, NO.2
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 82711-48070 note |
Clamp, Washer, NO.2
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 82711-48070 note |
Clamp, Washer, NO.2
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85371-12040 |
Clamp, Washer, NO.2
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 85371-12040 |
Clamp, Washer, NO.2
2023-11 → —
|
AXUH70 LE,XLE;AXUH78 LHD EUR;AXUH78,TXUA7# +1 | — | |
| 85387B — Clamp, Washer, NO.3 | ||||
| 82711-3A640 |
Clamp, Washer, NO.3
2020-02 → 2022-10
ended
|
AXUH78 LHD EUR;AXUH7#,GSU7# ARL,GCC | — | |
| 85371-12040 |
Clamp, Washer, NO.3
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 85371-12040 note |
Clamp, Washer, NO.3
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85371-12040 note |
Clamp, Washer, NO.3
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 82711-3A640 |
Clamp, Washer, NO.3
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 82711-3A640 |
Clamp, Washer, NO.3
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 85371-12040 note |
Clamp, Washer, NO.3
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 85371-12040 note |
Clamp, Washer, NO.3
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 85371-12040 |
Clamp, Washer, NO.3
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85371-12040 |
Clamp, Washer, NO.3
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 82711-3A640 |
Clamp, Washer, NO.3
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 82711-3A640 |
Clamp, Washer, NO.3
2023-11 → —
|
AXUH70 LE,XLE;AXUH78 LHD EUR;AXUH78,TXUA7# +1 | — | |
| 85371-12040 |
Clamp, Washer, NO.3
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 85371-12040 note |
Clamp, Washer, NO.3
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 85371-12040 note |
Clamp, Washer, NO.3
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85388 — Clamp NO.2 (FOR WINDSEIELD WASHER) | ||||
| 82711-48070 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-02 → 2022-10
ended
|
AXUH78 LHD EUR;AXUH7#,GSU7# ARL,GCC | — | |
| 82711-52090 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-03 → 2022-10
ended
|
GSU75 RUS;AXUH78 RHD EUR | — | |
| 82711-52090 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-11 → 2022-10
ended
|
AXUH78 LHD LIMD EUR | — | |
| 82711-52090 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 82711-48070 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 82711-48070 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 82711-52090 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2022-10 → 2023-11
ended
|
AXUH78 LHD LIMD EUR | — | |
| 82711-52090 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 82711-52090 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 82711-52090 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 82711-48070 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 82711-48070 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2023-11 → —
|
AXUH70 LE,XLE;AXUH78 LHD EUR;AXUH78,TXUA7# +1 | — | |
| 82711-52090 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2023-11 → —
|
TXUA75 RUS;AXUH78 RHD EUR | — | |
| 82711-52090 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2023-11 → —
|
AXUH78 LHD LIMD EUR | — | |
| 82711-52090 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 85397 — Switch Assy,Level Warning | ||||
| 85397-AA040 |
Switch Assy,Level Warning
2020-03 → 2022-10
ended
|
AXUH78,GSU75 EUR,RUS | — | |
| 85397-AA040 |
Switch Assy,Level Warning
2022-10 → 2023-11
ended
|
AXUH78,TXUA75 LHD (EUR,RUS) | — | |
| 85397-AA040 |
Switch Assy,Level Warning
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 85397-AA040 |
Switch Assy,Level Warning
2023-11 → —
|
AXUH78,TXUA75 EUR,RUS | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
