Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

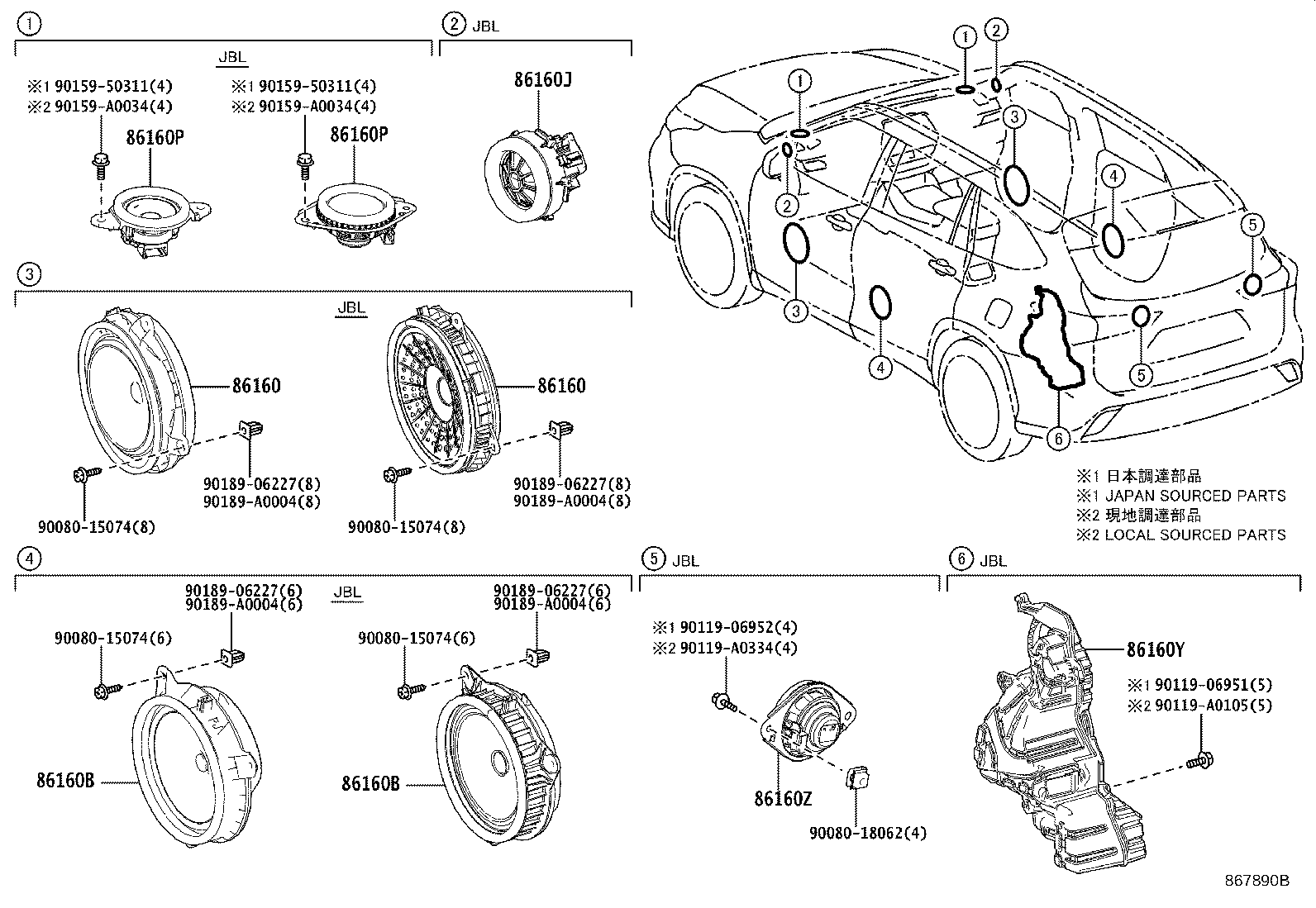

Exploded illustration 867890B 9015950311 — not listed in this catalogue 90159A0034 — not listed in this catalogue 86160J — SPEAKER ASSY, FRONT NO.3 (10 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (22 parts) 9008015074 — not listed in this catalogue 9018906227 — not listed in this catalogue 86160B — SPEAKER ASSY, REAR (15 parts) 9008015074 — not listed in this catalogue 9018906227 — not listed in this catalogue 86160B — SPEAKER ASSY, REAR (15 parts) 86160P — SPEAKER ASSY, FRONT NO.2 (15 parts) 9015950311 — not listed in this catalogue 90159A0034 — not listed in this catalogue 9011906952 — not listed in this catalogue 90119A0334 — not listed in this catalogue 9011906951 — not listed in this catalogue 90119A0105 — not listed in this catalogue 9008018062 — not listed in this catalogue 86160P — SPEAKER ASSY, FRONT NO.2 (15 parts) 9008015074 — not listed in this catalogue 9018906227 — not listed in this catalogue 86160 — SPEAKER ASSY, FRONT NO.1 (22 parts) 9008015074 — not listed in this catalogue 9018906227 — not listed in this catalogue 86160Z — SPEAKER ASSY, REAR NO.3 (10 parts) 86160Y — SPEAKER ASSY, REAR NO.2 (10 parts) 90189A0004 — not listed in this catalogue 90189A0004 — not listed in this catalogue 90189A0004 — not listed in this catalogue 90189A0004 — not listed in this catalogue
867890B · 9 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
82 parts on this figure
Part number Description Fitment Price
86160 — Speaker Assy, Front NO.1
86160-06850 note Speaker Assy, Front NO.1
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,RUS) —
86160-06850 note Speaker Assy, Front NO.1
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
86160-06850 note Speaker Assy, Front NO.1
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
86160-0E340 Speaker Assy, Front NO.1
2020-02 → 2022-10 ended
AXUH7# EUR,GCC;AXUH78,GSU7# LE (ARL,RUS) —
86160-06850 note Speaker Assy, Front NO.1
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86160-06850 note Speaker Assy, Front NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86160-06850 note Speaker Assy, Front NO.1
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86160-06850 note Speaker Assy, Front NO.1
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86160-0E340 Speaker Assy, Front NO.1
2022-10 → 2023-11 ended
AXUH7# LHD;TXUA75 LE RUS —
86160-0E340 Speaker Assy, Front NO.1
2022-10 → 2023-12 ended
AXUH78 RHD EUR;AXUH78,TXUA7# LE +1 —
86160-33A10 note Speaker Assy, Front NO.1
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86160-33A10 note Speaker Assy, Front NO.1
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86160-33A10 note Speaker Assy, Front NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86160-33A10 note Speaker Assy, Front NO.1
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86160-06850 note Speaker Assy, Front NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-06850 note Speaker Assy, Front NO.1
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
86160-06850 note Speaker Assy, Front NO.1
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86160-0E340 Speaker Assy, Front NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-0E340 Speaker Assy, Front NO.1
2023-11 → —
AXUH78 EUR,GCC;AXUH78 LE ARL;AXUH70,TXUA7# +1 —
86160-33A10 note Speaker Assy, Front NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-33A10 note Speaker Assy, Front NO.1
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86160-33A10 note Speaker Assy, Front NO.1
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
86160B — Speaker Assy, Rear
86160-02B40 Speaker Assy, Rear
2020-02 → 2022-10 ended
AXUH7# EUR,GCC;AXUH78,GSU7# LE (ARL,RUS) —
86160-0WY50 Speaker Assy, Rear
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,RUS) —
86160-0WY50 note Speaker Assy, Rear
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
86160-0WY50 note Speaker Assy, Rear
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
86160-02B40 Speaker Assy, Rear
2022-10 → 2023-11 ended
AXUH7# LHD;TXUA75 LE RUS —
86160-02B40 Speaker Assy, Rear
2022-10 → 2023-12 ended
AXUH78 RHD EUR;AXUH78,TXUA7# LE +1 —
86160-0WY50 Speaker Assy, Rear
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86160-0WY50 note Speaker Assy, Rear
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86160-0WY50 Speaker Assy, Rear
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86160-0WY50 note Speaker Assy, Rear
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86160-02B40 Speaker Assy, Rear
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-02B40 Speaker Assy, Rear
2023-11 → —
AXUH78 EUR,GCC;AXUH78 LE ARL;AXUH70,TXUA7# +1 —
86160-0WY50 note Speaker Assy, Rear
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-0WY50 note Speaker Assy, Rear
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
86160-0WY50 Speaker Assy, Rear
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86160J — Speaker Assy, Front NO.3
86150-07100 Speaker Assy, Front NO.3
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,RUS) —
86150-07100 note Speaker Assy, Front NO.3
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
86150-07100 note Speaker Assy, Front NO.3
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
86150-07100 note Speaker Assy, Front NO.3
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86150-07100 note Speaker Assy, Front NO.3
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86150-07100 Speaker Assy, Front NO.3
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86150-07100 Speaker Assy, Front NO.3
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86150-07100 note Speaker Assy, Front NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
86150-07100 Speaker Assy, Front NO.3
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86150-07100 note Speaker Assy, Front NO.3
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
86160P — Speaker Assy, Front NO.2
86160-06380 Speaker Assy, Front NO.2
2020-02 → 2022-10 ended
AXUH7# EUR,GCC;AXUH78,GSU7# LE (ARL,RUS) —
86160-06A40 Speaker Assy, Front NO.2
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,RUS) —
86160-06A40 note Speaker Assy, Front NO.2
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
86160-06A40 note Speaker Assy, Front NO.2
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
86160-06380 Speaker Assy, Front NO.2
2022-10 → 2023-11 ended
AXUH7# LHD;TXUA75 LE RUS —
86160-06380 Speaker Assy, Front NO.2
2022-10 → 2023-12 ended
AXUH78 RHD EUR;AXUH78,TXUA7# LE +1 —
86160-06A40 note Speaker Assy, Front NO.2
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86160-06A40 note Speaker Assy, Front NO.2
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86160-06A40 Speaker Assy, Front NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86160-06A40 Speaker Assy, Front NO.2
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86160-06380 Speaker Assy, Front NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-06380 Speaker Assy, Front NO.2
2023-11 → —
AXUH78 EUR,GCC;AXUH78 LE ARL;AXUH70,TXUA7# +1 —
86160-06A40 note Speaker Assy, Front NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-06A40 Speaker Assy, Front NO.2
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86160-06A40 note Speaker Assy, Front NO.2
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
86160Y — Speaker Assy, Rear NO.2
86150-0E060 Speaker Assy, Rear NO.2
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,RUS) —
86150-0E060 note Speaker Assy, Rear NO.2
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
86150-0E060 note Speaker Assy, Rear NO.2
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
86150-0E060 Speaker Assy, Rear NO.2
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86150-0E060 note Speaker Assy, Rear NO.2
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86150-0E060 Speaker Assy, Rear NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86150-0E060 note Speaker Assy, Rear NO.2
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86150-0E060 note Speaker Assy, Rear NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
86150-0E060 Speaker Assy, Rear NO.2
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86150-0E060 note Speaker Assy, Rear NO.2
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
86160Z — Speaker Assy, Rear NO.3
86160-06A40 note Speaker Assy, Rear NO.3
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
86160-06A40 note Speaker Assy, Rear NO.3
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
86160-06A40 Speaker Assy, Rear NO.3
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,RUS) —
86160-06A40 Speaker Assy, Rear NO.3
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
86160-06A40 note Speaker Assy, Rear NO.3
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
86160-06A40 Speaker Assy, Rear NO.3
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
86160-06A40 note Speaker Assy, Rear NO.3
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
86160-06A40 note Speaker Assy, Rear NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
86160-06A40 Speaker Assy, Rear NO.3
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
86160-06A40 note Speaker Assy, Rear NO.3
2023-11 → —
AXUH78 LIMD (EUR,GCC) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
