Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

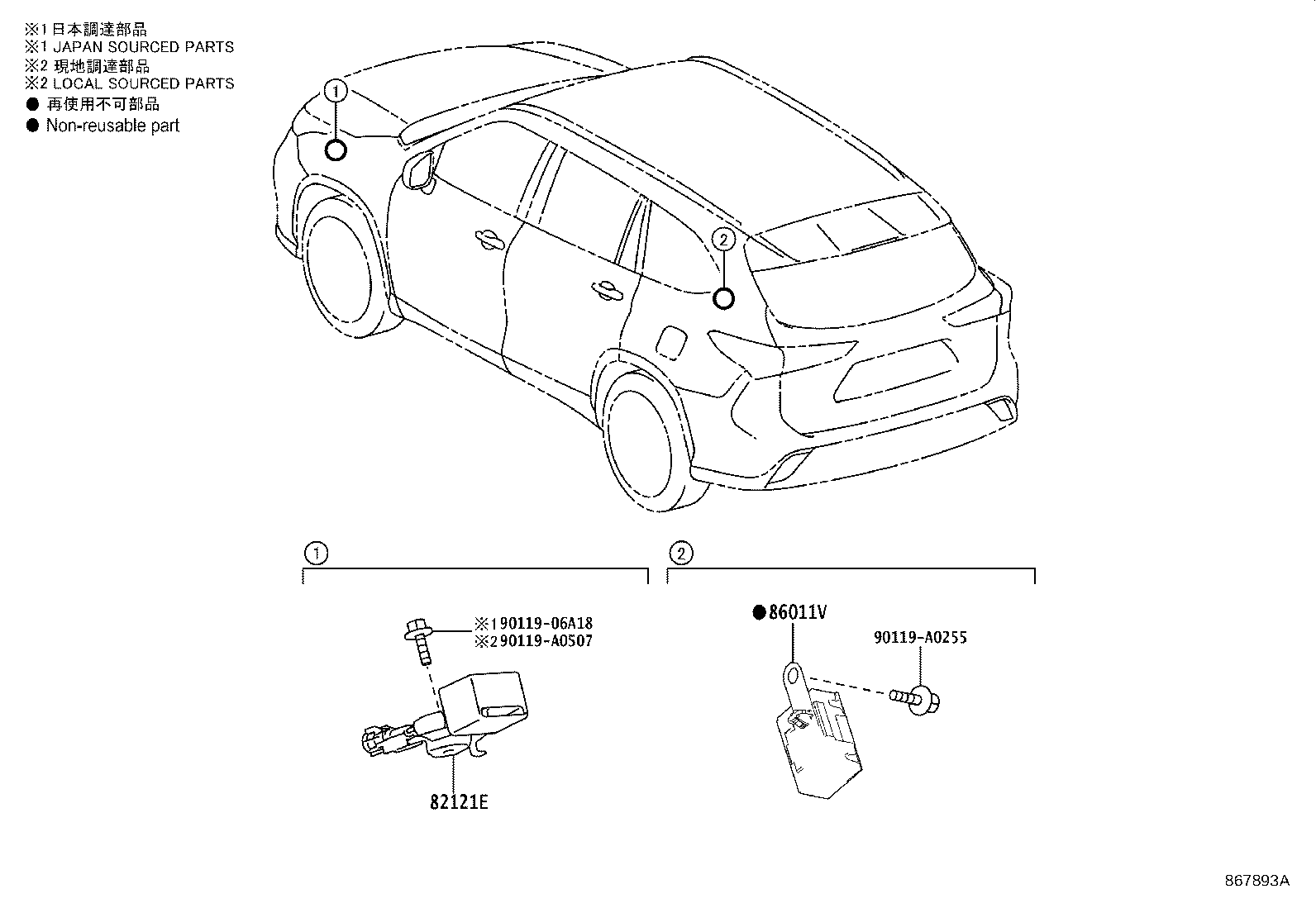

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121E — Condenser | ||||
| 82930-48050 |
Condenser
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82930-48050 |
Condenser
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 82930-48050 |
Condenser
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 82930-48050 |
Condenser
2023-11 → —
|
TXUA7# | — | |
| 86011V — Condenser, Radio Setting | ||||
| 90980-04204 |
Condenser, Radio Setting
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90980-04204 |
Condenser, Radio Setting
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90980-04204 |
Condenser, Radio Setting
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90980-04204 |
Condenser, Radio Setting
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90980-04204 |
Condenser, Radio Setting
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
