Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

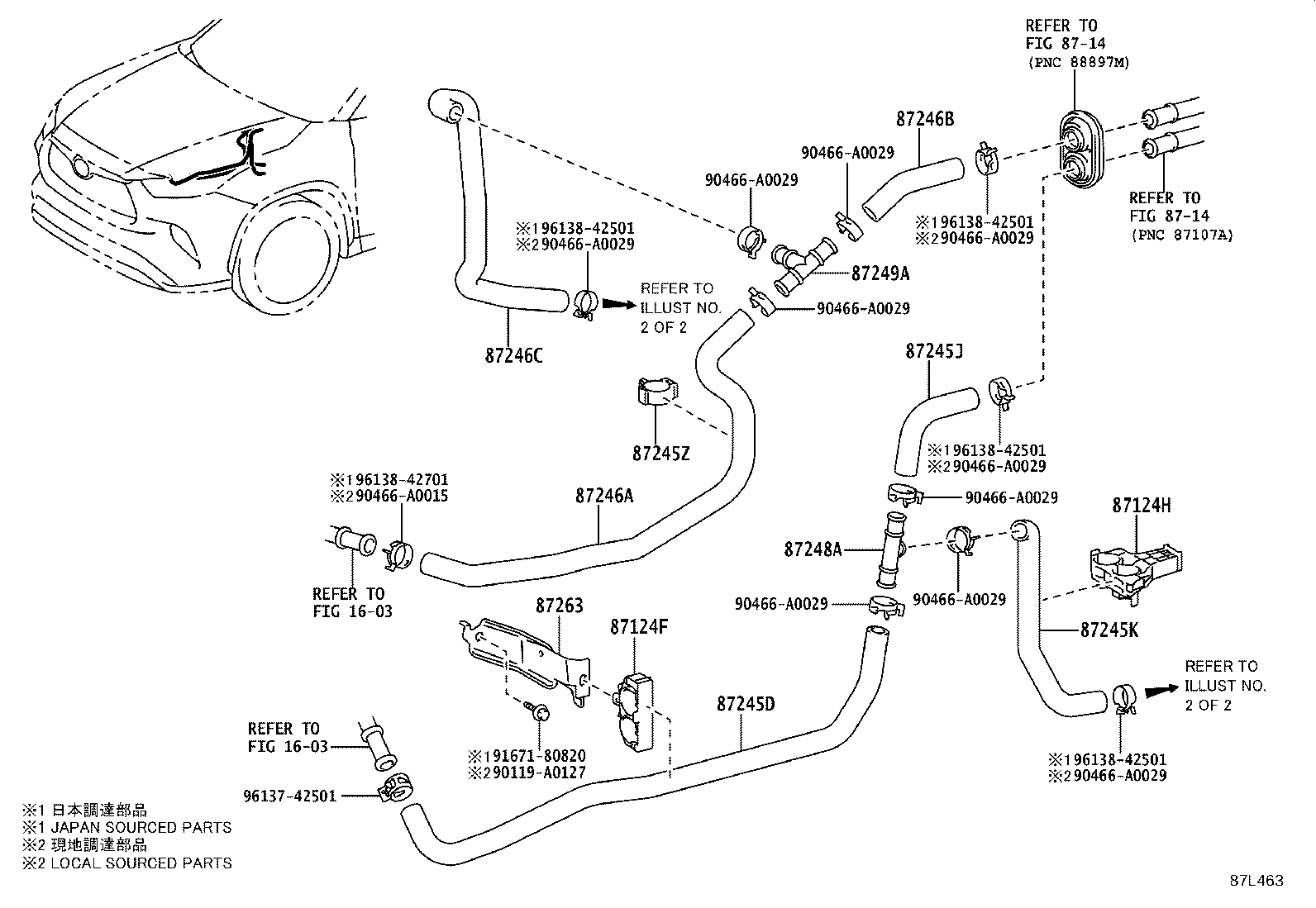

Exploded illustration 87L463 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 9613742501 — not listed in this catalogue 87245K — HOSE, HEATER WATER, INLET K (3 parts) 87124H — CLAMP, HEATER HOSE, NO.3 (3 parts) 87246C — HOSE, HEATER WATER, OUTLET C (8 parts) 87245D — HOSE, HEATER WATER, INLET D (3 parts) 87124F — CLAMP, HEATER HOSE, NO.1 (3 parts) 87263 — BRACKET, HEATER WATER PIPE, NO.1 (3 parts) 87248A — PIPE, HEATER WATER INLET, A (8 parts) 87249A — PIPE, HEATER WATER OUTLET, A (8 parts) 87245J — HOSE, HEATER WATER, INLET J (3 parts) 87246B — HOSE, HEATER WATER, OUTLET B (8 parts) 87246A — HOSE, HEATER WATER, OUTLET A (8 parts) 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (8 parts) 90466A0015 — not listed in this catalogue 9613842701 — not listed in this catalogue 90466A0029 — not listed in this catalogue 9613842501 — not listed in this catalogue 90466A0029 — not listed in this catalogue 9613842501 — not listed in this catalogue 90466A0029 — not listed in this catalogue 9613842501 — not listed in this catalogue 90466A0029 — not listed in this catalogue 9613842501 — not listed in this catalogue 9167180820 — not listed in this catalogue 90119A0127 — not listed in this catalogue 1603 — not listed in this catalogue 8714 — not listed in this catalogue 8714 — not listed in this catalogue 1603 — not listed in this catalogue
87L463 · 12 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
87124F — Clamp, Heater Hose, NO.1
16581-36140 Clamp, Heater Hose, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
16581-36140 Clamp, Heater Hose, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
16581-36140 Clamp, Heater Hose, NO.1
2023-11 → —
TXUA7# —
87124H — Clamp, Heater Hose, NO.3
88718-0E600 Clamp, Heater Hose, NO.3
2022-10 → 2023-11 ended
TXUA75 RUS —
88718-0E600 Clamp, Heater Hose, NO.3
2022-10 → 2023-12 ended
TXUA7# ARL —
88718-0E600 Clamp, Heater Hose, NO.3
2023-11 → —
TXUA7# —
87245D — Hose, Heater Water, Inlet D
87245-0E760 Hose, Heater Water, Inlet D
2022-10 → 2023-11 ended
TXUA75 RUS —
87245-0E760 Hose, Heater Water, Inlet D
2022-10 → 2023-12 ended
TXUA7# ARL —
87245-0E760 Hose, Heater Water, Inlet D
2023-11 → —
TXUA7# —
87245J — Hose, Heater Water, Inlet J
87245-0EC70 Hose, Heater Water, Inlet J
2022-10 → 2023-11 ended
TXUA75 RUS —
87245-0EC70 Hose, Heater Water, Inlet J
2022-10 → 2023-12 ended
TXUA7# ARL —
87245-0EC70 Hose, Heater Water, Inlet J
2023-11 → —
TXUA7# —
87245K — Hose, Heater Water, Inlet K
87245-0EC80 Hose, Heater Water, Inlet K
2022-10 → 2023-11 ended
TXUA75 RUS —
87245-0EC80 Hose, Heater Water, Inlet K
2022-10 → 2023-12 ended
TXUA7# ARL —
87245-0EC80 Hose, Heater Water, Inlet K
2023-11 → —
TXUA7# —
87245Z — Clip OR Clamp (FOR HEATER WATER HOSE)
16581-70060 Clip OR Clamp (FOR HEATER WATER HOSE)
2020-02 → 2022-10 ended
AXUH7# —
16581-70060 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → 2023-11 ended
AXUH7# LHD —
16581-70060 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → 2023-12 ended
AXUH78 RHD —
16581-77030 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → 2023-11 ended
TXUA75 RUS —
16581-77030 Clip OR Clamp (FOR HEATER WATER HOSE)
2022-10 → 2023-12 ended
TXUA7# ARL —
16581-70060 Clip OR Clamp (FOR HEATER WATER HOSE)
2023-11 → 2024-10 ended
AXUH70 LIMD —
16581-70060 Clip OR Clamp (FOR HEATER WATER HOSE)
2023-11 → —
AXUH78;AXUH70 LE,XLE —
16581-77030 Clip OR Clamp (FOR HEATER WATER HOSE)
2023-11 → —
TXUA7# —
87246A — Hose, Heater Water, Outlet A
87245-0E530 Hose, Heater Water, Outlet A
2020-02 → 2022-10 ended
AXUH7# —
87245-0E530 Hose, Heater Water, Outlet A
2022-10 → 2023-11 ended
AXUH7# LHD —
87245-0E530 Hose, Heater Water, Outlet A
2022-10 → 2023-12 ended
AXUH78 RHD —
87245-0EC90 Hose, Heater Water, Outlet A
2022-10 → 2023-11 ended
TXUA75 RUS —
87245-0EC90 Hose, Heater Water, Outlet A
2022-10 → 2023-12 ended
TXUA7# ARL —
87245-0E530 Hose, Heater Water, Outlet A
2023-11 → 2024-10 ended
AXUH70 LIMD —
87245-0E530 Hose, Heater Water, Outlet A
2023-11 → —
AXUH78;AXUH70 LE,XLE —
87245-0EC90 Hose, Heater Water, Outlet A
2023-11 → —
TXUA7# —
87246B — Hose, Heater Water, Outlet B
87209-0E650 Hose, Heater Water, Outlet B
2020-02 → 2022-10 ended
AXUH7# —
87209-0E650 Hose, Heater Water, Outlet B
2022-10 → 2023-11 ended
AXUH7# LHD —
87209-0E650 Hose, Heater Water, Outlet B
2022-10 → 2023-12 ended
AXUH78 RHD —
87245-0ED00 Hose, Heater Water, Outlet B
2022-10 → 2023-11 ended
TXUA75 RUS —
87245-0ED00 Hose, Heater Water, Outlet B
2022-10 → 2023-12 ended
TXUA7# ARL —
87209-0E650 Hose, Heater Water, Outlet B
2023-11 → 2024-10 ended
AXUH70 LIMD —
87209-0E650 Hose, Heater Water, Outlet B
2023-11 → —
AXUH78;AXUH70 LE,XLE —
87245-0ED00 Hose, Heater Water, Outlet B
2023-11 → —
TXUA7# —
87246C — Hose, Heater Water, Outlet C
87245-0E540 Hose, Heater Water, Outlet C
2020-02 → 2022-10 ended
AXUH7# —
87245-0E540 Hose, Heater Water, Outlet C
2022-10 → 2023-11 ended
AXUH7# LHD —
87245-0E540 Hose, Heater Water, Outlet C
2022-10 → 2023-12 ended
AXUH78 RHD —
87245-0ED10 Hose, Heater Water, Outlet C
2022-10 → 2023-11 ended
TXUA75 RUS —
87245-0ED10 Hose, Heater Water, Outlet C
2022-10 → 2023-12 ended
TXUA7# ARL —
87245-0E540 Hose, Heater Water, Outlet C
2023-11 → 2024-10 ended
AXUH70 LIMD —
87245-0E540 Hose, Heater Water, Outlet C
2023-11 → —
AXUH78;AXUH70 LE,XLE —
87245-0ED10 Hose, Heater Water, Outlet C
2023-11 → —
TXUA7# —
87248A — Pipe, Heater Water Inlet, A
87248-0E170 Pipe, Heater Water Inlet, A
2020-02 → 2022-10 ended
AXUH7# —
87248-0E170 Pipe, Heater Water Inlet, A
2022-10 → 2023-12 ended
AXUH78 RHD —
87248-0E170 Pipe, Heater Water Inlet, A
2022-10 → 2023-11 ended
AXUH7# LHD —
87248-0E350 Pipe, Heater Water Inlet, A
2022-10 → 2023-12 ended
TXUA7# ARL —
87248-0E350 Pipe, Heater Water Inlet, A
2022-10 → 2023-11 ended
TXUA75 RUS —
87248-0E170 Pipe, Heater Water Inlet, A
2023-11 → 2024-10 ended
AXUH70 LIMD —
87248-0E170 Pipe, Heater Water Inlet, A
2023-11 → —
AXUH78;AXUH70 LE,XLE —
87248-0E350 Pipe, Heater Water Inlet, A
2023-11 → —
TXUA7# —
87249A — Pipe, Heater Water Outlet, A
87248-0E170 Pipe, Heater Water Outlet, A
2020-02 → 2022-10 ended
AXUH7# —
87248-0E170 Pipe, Heater Water Outlet, A
2022-10 → 2023-11 ended
AXUH7# LHD —
87248-0E170 Pipe, Heater Water Outlet, A
2022-10 → 2023-12 ended
AXUH78 RHD —
87248-0E350 Pipe, Heater Water Outlet, A
2022-10 → 2023-11 ended
TXUA75 RUS —
87248-0E350 Pipe, Heater Water Outlet, A
2022-10 → 2023-12 ended
TXUA7# ARL —
87248-0E170 Pipe, Heater Water Outlet, A
2023-11 → 2024-10 ended
AXUH70 LIMD —
87248-0E170 Pipe, Heater Water Outlet, A
2023-11 → —
AXUH78;AXUH70 LE,XLE —
87248-0E350 Pipe, Heater Water Outlet, A
2023-11 → —
TXUA7# —
87263 — Bracket, Heater Water Pipe, NO.1
87263-78010 Bracket, Heater Water Pipe, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
87263-78010 Bracket, Heater Water Pipe, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
87263-78010 Bracket, Heater Water Pipe, NO.1
2023-11 → —
TXUA7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
