Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

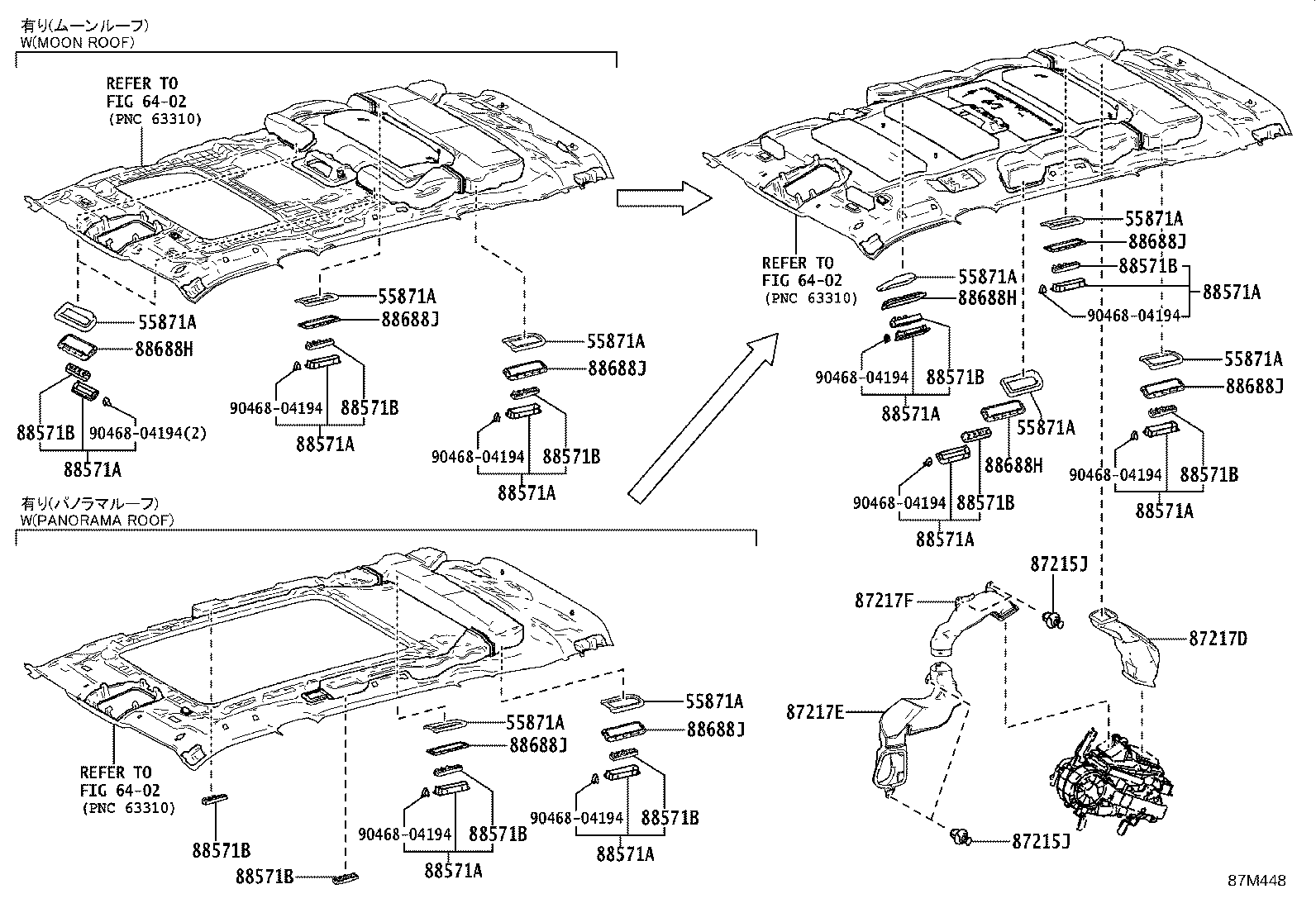

Exploded illustration 87M448 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 88688J — BRACKET, COOLER AIR DUCT, NO.2 (6 parts) 88688J — BRACKET, COOLER AIR DUCT, NO.2 (6 parts) 88688H — BRACKET, COOLER AIR DUCT, NO.1 (2 parts) 88688H — BRACKET, COOLER AIR DUCT, NO.1 (2 parts) 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 88688H — BRACKET, COOLER AIR DUCT, NO.1 (2 parts) 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 87217D — DUCT, AIR, REAR SIDE NO.1 (5 parts) 87215J — CLIP (FOR AIR REAR DUCT) (5 parts) 87215J — CLIP (FOR AIR REAR DUCT) (5 parts) 87217E — DUCT, AIR, REAR SIDE NO.2 (5 parts) 87217F — DUCT, AIR, REAR SIDE NO.3 (5 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 88688J — BRACKET, COOLER AIR DUCT, NO.2 (6 parts) 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 88688J — BRACKET, COOLER AIR DUCT, NO.2 (6 parts) 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 88688J — BRACKET, COOLER AIR DUCT, NO.2 (6 parts) 88571A — GRILLE, AIR OUTLET (37 parts) 88571B — GRILLE, AIR OUTLET (18 parts) 9046804194 — not listed in this catalogue 55871A — SEAL, AIR DUCT, NO.1 (6 parts) 88688J — BRACKET, COOLER AIR DUCT, NO.2 (6 parts)
87M448 · 43 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
89 parts on this figure
Part number Description Fitment Price
55871A — Seal, Air Duct, NO.1
55871-0E030 Seal, Air Duct, NO.1
2020-02 → 2022-10 ended
GSU75 LE RUS;AXUH7#,GSU7# ARL,EUR,GCC —
55871-0E030 note Seal, Air Duct, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
55871-0E030 Seal, Air Duct, NO.1
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
55871-0E030 Seal, Air Duct, NO.1
2022-10 → 2023-09 ended
TXUA75 LIMD RUS —
55871-0E030 note Seal, Air Duct, NO.1
2022-10 → 2023-09 ended
AXUH7#,TXUA7# LIMD (ARL,EUR,GCC) —
55871-0E030 Seal, Air Duct, NO.1
2022-10 → 2023-09 ended
TXUA75 LE RUS;AXUH7#,TXUA7# ARL,EUR,GCC —
87215J — Clip (FOR AIR REAR DUCT)
90467-07220 Clip (FOR AIR REAR DUCT)
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90467-07220 Clip (FOR AIR REAR DUCT)
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90467-07220 Clip (FOR AIR REAR DUCT)
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90467-07220 Clip (FOR AIR REAR DUCT)
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-07220 Clip (FOR AIR REAR DUCT)
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
87217D — Duct, Air, Rear Side NO.1
62974-0E050 Duct, Air, Rear Side NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
62974-0E050 Duct, Air, Rear Side NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
62974-0E050 Duct, Air, Rear Side NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
62974-0E050 Duct, Air, Rear Side NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
62974-0E050 Duct, Air, Rear Side NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
87217E — Duct, Air, Rear Side NO.2
87211-0E120 Duct, Air, Rear Side NO.2
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
87211-0E120 Duct, Air, Rear Side NO.2
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
87211-0E120 Duct, Air, Rear Side NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
87211-0E120 Duct, Air, Rear Side NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
87211-0E120 Duct, Air, Rear Side NO.2
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
87217F — Duct, Air, Rear Side NO.3
87217-0E060 Duct, Air, Rear Side NO.3
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
87217-0E060 Duct, Air, Rear Side NO.3
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
87217-0E060 Duct, Air, Rear Side NO.3
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
87217-0E060 Duct, Air, Rear Side NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
87217-0E060 Duct, Air, Rear Side NO.3
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
88571A — Grille, Air Outlet
63610-0E010-B0 note Grille, Air Outlet
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63610-0E010-B0 note Grille, Air Outlet
2020-11 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,EUR) —
63610-0E010-B0 note Grille, Air Outlet
2020-11 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,EUR) —
63610-0E010-B0 note Grille, Air Outlet
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,XLE) +1 —
63610-0E010-B0 note Grille, Air Outlet
2020-02 → 2022-10 ended
AXUH7# (LE,XLE) GCC —
63610-0E010-B0 note Grille, Air Outlet
2020-02 → 2022-10 ended
AXUH7# LIMD GCC —
63610-0E010-C0 note Grille, Air Outlet
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63610-0E010-C0 note Grille, Air Outlet
2020-11 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,EUR) —
63610-0E010-C0 note Grille, Air Outlet
2020-11 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,EUR) —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH7# LIMD GCC;AXUH78,TXUA75 (LE,XLE) +1 —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH7# (LE,XLE) GCC —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH7# LIMD GCC —
63610-0E010-B0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63610-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63610-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63610-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63610-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63610-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → —
AXUH78,TXUA7# (LE,XLE) (ARL,EUR,RUS) —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → —
AXUH7# (LE,XLE) GCC —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → —
TXUA75 LIMD RUS —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → 2024-10 ended
AXUH70 LIMD —
63610-0E010-B0 note Grille, Air Outlet
2023-11 → 2024-10 ended
AXUH70 LIMD —
63610-0E010-C0 note Grille, Air Outlet
2023-11 → —
TXUA75 LIMD RUS —
63610-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78 LIMD GCC —
63610-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78 LIMD EUR —
63610-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78 LIMD GCC —
63610-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78 LIMD EUR —
63610-0E010-C0 note Grille, Air Outlet
2024-01 → —
AXUH78,TXUA7# LIMD ARL —
63610-0E010-C0 note Grille, Air Outlet
2024-01 → —
AXUH78,TXUA7# LIMD ARL —
88571B — Grille, Air Outlet
88571-0E010-B1 note Grille, Air Outlet
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,EUR,RUS) —
88571-0E010-B1 note Grille, Air Outlet
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,XLE) +1 —
88571-0E010-B1 note Grille, Air Outlet
2020-02 → 2022-10 ended
AXUH7# (LE,XLE) GCC —
88571-0E010-C0 note Grille, Air Outlet
2020-03 → 2022-10 ended
AXUH78,GSU7# LIMD (ARL,EUR,RUS) —
88571-0E010-B1 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH7# (LE,XLE) GCC —
88571-0E010-B1 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH78,TXUA75 LHD LIMD (EUR,RUS) —
88571-0E010-B1 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH7# LIMD GCC;AXUH78,TXUA75 (LE,XLE) +1 —
88571-0E010-B1 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
88571-0E010-B1 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
88571-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-11 ended
AXUH78,TXUA75 LHD LIMD (EUR,RUS) —
88571-0E010-C0 note Grille, Air Outlet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
88571-0E010-B1 note Grille, Air Outlet
2023-11 → —
AXUH78,TXUA7# LIMD —
88571-0E010-B1 note Grille, Air Outlet
2023-11 → —
AXUH78,TXUA7# (LE,XLE) (ARL,EUR,RUS) —
88571-0E010-B1 note Grille, Air Outlet
2023-11 → —
AXUH7# (LE,XLE) GCC —
88571-0E010-B1 note Grille, Air Outlet
2023-11 → 2024-10 ended
AXUH70 LIMD —
88571-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78 LIMD GCC —
88571-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78 LIMD EUR —
88571-0E010-C0 note Grille, Air Outlet
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,RUS) —
88688H — Bracket, Cooler Air Duct, NO.1
63613-0E020 Bracket, Cooler Air Duct, NO.1
2020-02 → 2022-10 ended
GSU75 LE RUS;AXUH7#,GSU7# ARL,EUR,GCC —
63613-0E020 Bracket, Cooler Air Duct, NO.1
2022-10 → 2023-09 ended
TXUA75 LE RUS;AXUH7#,TXUA7# ARL,EUR,GCC —
88688J — Bracket, Cooler Air Duct, NO.2
63613-0E010 Bracket, Cooler Air Duct, NO.2
2020-02 → 2022-10 ended
GSU75 LE RUS;AXUH7#,GSU7# ARL,EUR,GCC —
63613-0E020 note Bracket, Cooler Air Duct, NO.2
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63613-0E020 Bracket, Cooler Air Duct, NO.2
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63613-0E010 Bracket, Cooler Air Duct, NO.2
2022-10 → 2023-09 ended
TXUA75 LE RUS;AXUH7#,TXUA7# ARL,EUR,GCC —
63613-0E020 Bracket, Cooler Air Duct, NO.2
2022-10 → 2023-09 ended
TXUA75 LIMD RUS —
63613-0E020 note Bracket, Cooler Air Duct, NO.2
2022-10 → 2023-09 ended
AXUH7#,TXUA7# LIMD (ARL,EUR,GCC) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
