Toyota Lexus NX Series
2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · General
Supported model
Data version 2024-05

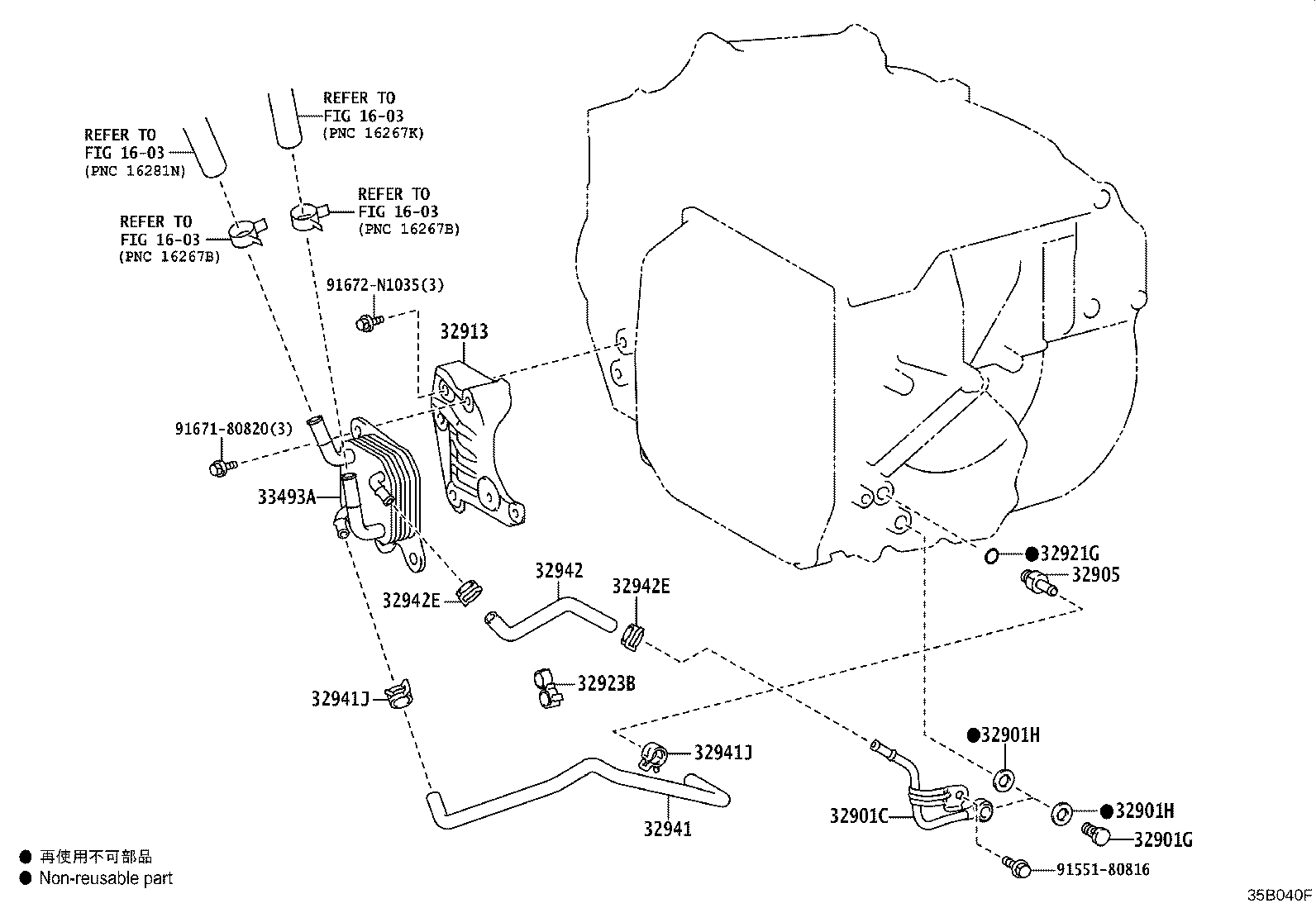

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32901C — Union Sub-assy, Oil Cooler | ||||
| 32901-48020 |
Union Sub-assy, Oil Cooler
2024-03 → —
|
TAZA25 | — | |
| 32901-48020 |
Union Sub-assy, Oil Cooler
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 32901-48020 |
Union Sub-assy, Oil Cooler
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32901-48020 |
Union Sub-assy, Oil Cooler
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 32901G — Bolt, Union(FOR OIL COOLER) | ||||
| 90401-14003 |
Bolt, Union(FOR OIL COOLER)
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 90401-14003 |
Bolt, Union(FOR OIL COOLER)
2024-03 → —
|
TAZA25 | — | |
| 90401-14003 |
Bolt, Union(FOR OIL COOLER)
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 90401-14003 |
Bolt, Union(FOR OIL COOLER)
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32901H — Gasket(FOR OIL COOLER UNION) | ||||
| 90430-14016 |
Gasket(FOR OIL COOLER UNION)
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 90430-14016 |
Gasket(FOR OIL COOLER UNION)
2024-03 → —
|
TAZA25 | — | |
| 90430-14016 |
Gasket(FOR OIL COOLER UNION)
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 90430-14016 |
Gasket(FOR OIL COOLER UNION)
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32905 — Tube Sub-assy, Oil Cooler Outlet, NO.1 | ||||
| 90404-14030 |
Tube Sub-assy, Oil Cooler Outlet, NO.1
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 90404-14030 |
Tube Sub-assy, Oil Cooler Outlet, NO.1
2024-03 → —
|
TAZA25 | — | |
| 90404-14030 |
Tube Sub-assy, Oil Cooler Outlet, NO.1
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 90404-14030 |
Tube Sub-assy, Oil Cooler Outlet, NO.1
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32913 — Bracket, Oil Cooler | ||||
| 32913-78061 |
Bracket, Oil Cooler
2024-03 → —
|
TAZA25 | — | |
| 32913-78060 |
Bracket, Oil Cooler
2021-11 → 2022-01
ended
|
TAZA25 | — | |
| 32913-78061 |
Bracket, Oil Cooler
2022-02 → 2024-03
ended
|
TAZA25 EUR,GEN | — | |
| 32913-78061 |
Bracket, Oil Cooler
2022-02 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32921G — Ring, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11031 |
Ring, O(FOR OIL COOLER TUBE UNION)
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 90301-11031 |
Ring, O(FOR OIL COOLER TUBE UNION)
2024-03 → —
|
TAZA25 | — | |
| 90301-11031 |
Ring, O(FOR OIL COOLER TUBE UNION)
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 90301-11031 |
Ring, O(FOR OIL COOLER TUBE UNION)
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32923B — Clamp, Automatic Transmission Oil Cooler Tube, NO.1 | ||||
| 32923-48100 |
Clamp, Automatic Transmission Oil Cooler Tube, NO.1
2024-03 → —
|
TAZA25 | — | |
| 32923-48100 |
Clamp, Automatic Transmission Oil Cooler Tube, NO.1
2021-11 → 2024-03
ended
|
TAZA25 EUR,GEN | — | |
| 32923-48100 |
Clamp, Automatic Transmission Oil Cooler Tube, NO.1
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32941 — Hose, Oil Cooler Inlet, NO.1 | ||||
| 32941-42170 |
Hose, Oil Cooler Inlet, NO.1
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 32941-78020 |
Hose, Oil Cooler Inlet, NO.1
2024-03 → —
|
TAZA25 | — | |
| 32941-42170 |
Hose, Oil Cooler Inlet, NO.1
2021-11 → 2024-03
ended
|
AAZA2# | — | |
| 32941-78020 |
Hose, Oil Cooler Inlet, NO.1
2021-11 → 2024-03
ended
|
TAZA25 EUR,GEN | — | |
| 32941-78020 |
Hose, Oil Cooler Inlet, NO.1
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32941J — Clip, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
Clip, NO.1(FOR OIL COOLER HOSE)
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 90466-16004 |
Clip, NO.1(FOR OIL COOLER HOSE)
2024-03 → —
|
TAZA25 | — | |
| 90466-16004 |
Clip, NO.1(FOR OIL COOLER HOSE)
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 90466-16004 |
Clip, NO.1(FOR OIL COOLER HOSE)
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32942 — Hose, Oil Cooler Outlet, NO.1 | ||||
| 32942-33230 |
Hose, Oil Cooler Outlet, NO.1
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 32942-78020 |
Hose, Oil Cooler Outlet, NO.1
2024-03 → —
|
TAZA25 | — | |
| 32942-33230 |
Hose, Oil Cooler Outlet, NO.1
2021-11 → 2024-03
ended
|
AAZA2# | — | |
| 32942-78020 |
Hose, Oil Cooler Outlet, NO.1
2021-11 → 2024-03
ended
|
TAZA25 EUR,GEN | — | |
| 32942-78020 |
Hose, Oil Cooler Outlet, NO.1
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 32942E — Clip, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
Clip, NO.2(FOR OIL COOLER HOSE)
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 90466-16004 |
Clip, NO.2(FOR OIL COOLER HOSE)
2024-03 → —
|
TAZA25 | — | |
| 90466-16004 |
Clip, NO.2(FOR OIL COOLER HOSE)
2021-11 → 2024-03
ended
|
AAZA2#,TAZA25 CHI,EUR,GEN | — | |
| 90466-16004 |
Clip, NO.2(FOR OIL COOLER HOSE)
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 33493A — Cooler, Transmission Oil(ATF WARMER) | ||||
| 33493-33061 |
Cooler, Transmission Oil(ATF WARMER)
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 33493-78030 |
Cooler, Transmission Oil(ATF WARMER)
2024-03 → —
|
TAZA25 | — | |
| 33493-33061 |
Cooler, Transmission Oil(ATF WARMER)
2021-11 → 2024-03
ended
|
AAZA2# | — | |
| 33493-78030 |
Cooler, Transmission Oil(ATF WARMER)
2021-11 → 2024-03
ended
|
TAZA25 EUR,GEN | — | |
| 33493-78030 |
Cooler, Transmission Oil(ATF WARMER)
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
