Toyota Lexus NX Series
2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · General
Supported model
Data version 2024-05

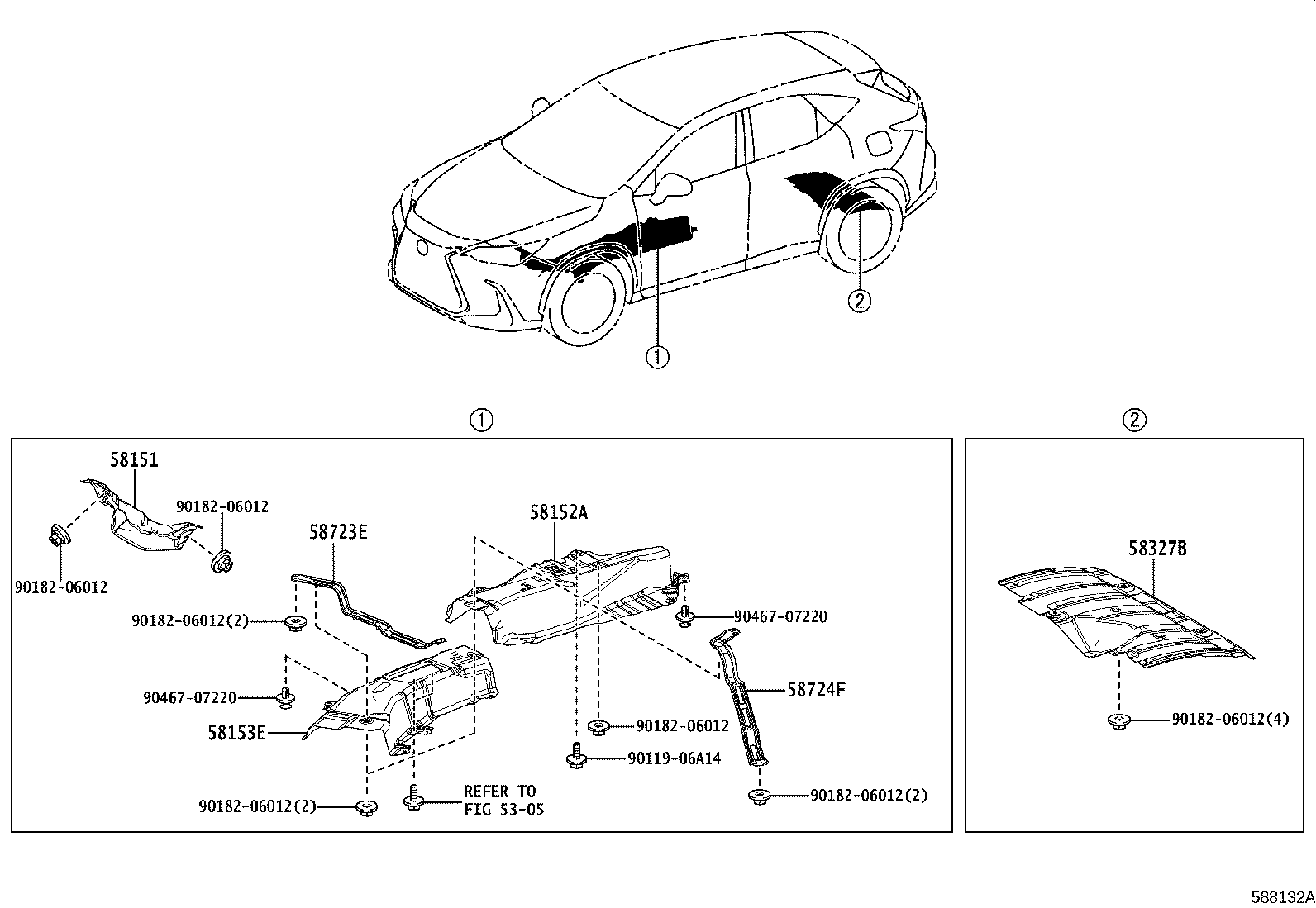

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-42060 |
Insulator, Front Floor Heat, NO.1
2024-03 → —
|
AAZH20,25,MAZA20 | — | |
| 58151-42060 |
Insulator, Front Floor Heat, NO.1
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 58151-42070 |
Insulator, Front Floor Heat, NO.1
2024-03 → —
|
AAZH21,26 | — | |
| 58151-78010 |
Insulator, Front Floor Heat, NO.1
2024-03 → —
|
TAZA25 | — | |
| 58151-42060 |
Insulator, Front Floor Heat, NO.1
2021-11 → 2024-03
ended
|
AAZA2#,AAZH20,25,MAZA20 CHI,EUR,GEN | — | |
| 58151-42060 |
Insulator, Front Floor Heat, NO.1
2021-11 → 2024-05
ended
|
AAZH25 GCC | — | |
| 58151-42070 |
Insulator, Front Floor Heat, NO.1
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| 58151-78010 |
Insulator, Front Floor Heat, NO.1
2021-11 → 2024-03
ended
|
TAZA25 EUR,GEN | — | |
| 58151-78010 |
Insulator, Front Floor Heat, NO.1
2021-11 → 2024-05
ended
|
TAZA25 GCC | — | |
| 58152A — Insulator, Front Floor Heat, NO.1 Lower | ||||
| 58152-42050 |
Insulator, Front Floor Heat, NO.1 Lower
2024-03 → —
|
AAZH20,25 | — | |
| 58152-42080 |
Insulator, Front Floor Heat, NO.1 Lower
2024-03 → —
|
AAZH21,26 | — | |
| 58152-42050 |
Insulator, Front Floor Heat, NO.1 Lower
2021-11 → 2024-03
ended
|
AAZH20,25 CHI,EUR,GEN | — | |
| 58152-42050 |
Insulator, Front Floor Heat, NO.1 Lower
2021-11 → 2024-05
ended
|
AAZH25 GCC | — | |
| 58152-42080 |
Insulator, Front Floor Heat, NO.1 Lower
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| 58153E — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-78030 |
Insulator, Front Floor Heat, NO.2
2024-03 → —
|
AAZH20,25 | — | |
| 58153-78040 |
Insulator, Front Floor Heat, NO.2
2024-03 → —
|
AAZH21,26 | — | |
| 58153-42020 |
Insulator, Front Floor Heat, NO.2
2021-11 → 2023-03
ended
|
AAZH20,25 | — | |
| 58153-42030 |
Insulator, Front Floor Heat, NO.2
2021-11 → 2023-03
ended
|
AAZH21,26 | — | |
| 58153-78030 |
Insulator, Front Floor Heat, NO.2
2023-03 → 2024-03
ended
|
AAZH20,25 CHI,EUR,GEN | — | |
| 58153-78030 |
Insulator, Front Floor Heat, NO.2
2023-03 → 2024-05
ended
|
AAZH25 GCC | — | |
| 58153-78040 |
Insulator, Front Floor Heat, NO.2
2023-03 → 2024-03
ended
|
AAZH21,26 | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-42040 |
Insulator, Main Muffler Heat
2024-03 → —
|
AAZH21,26 | — | |
| 58327-78070 |
Insulator, Main Muffler Heat
2024-03 → 2025-06
ended
|
AAZA2# | — | |
| 58327-78070 |
Insulator, Main Muffler Heat
2024-03 → —
|
AAZH20,25,MAZA20,TAZA25 | — | |
| 58327-42040 |
Insulator, Main Muffler Heat
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| 58327-78070 |
Insulator, Main Muffler Heat
2021-11 → 2024-03
ended
|
AAZA2#,AAZH20,25,MAZA20,TAZA25 CHI,EUR,GEN | — | |
| 58327-78070 |
Insulator, Main Muffler Heat
2021-11 → 2024-05
ended
|
AAZH25,TAZA25 GCC | — | |
| 58723E — Cushion, Engine Service Cover | ||||
| 58723-42040 |
Cushion, Engine Service Cover
2024-03 → —
|
AAZH20,25 | — | |
| 58723-42040 |
Cushion, Engine Service Cover
2021-11 → 2024-03
ended
|
AAZH20,25 CHI,EUR,GEN | — | |
| 58723-42040 |
Cushion, Engine Service Cover
2021-11 → 2024-05
ended
|
AAZH25 GCC | — | |
| 58724F — Cushion, Engine Service Cover, NO.2 | ||||
| 58724-42040 |
Cushion, Engine Service Cover, NO.2
2024-03 → —
|
AAZH20,25 | — | |
| 58724-42040 |
Cushion, Engine Service Cover, NO.2
2021-11 → 2024-03
ended
|
AAZH20,25 CHI,EUR,GEN | — | |
| 58724-42040 |
Cushion, Engine Service Cover, NO.2
2021-11 → 2024-05
ended
|
AAZH25 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
