Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

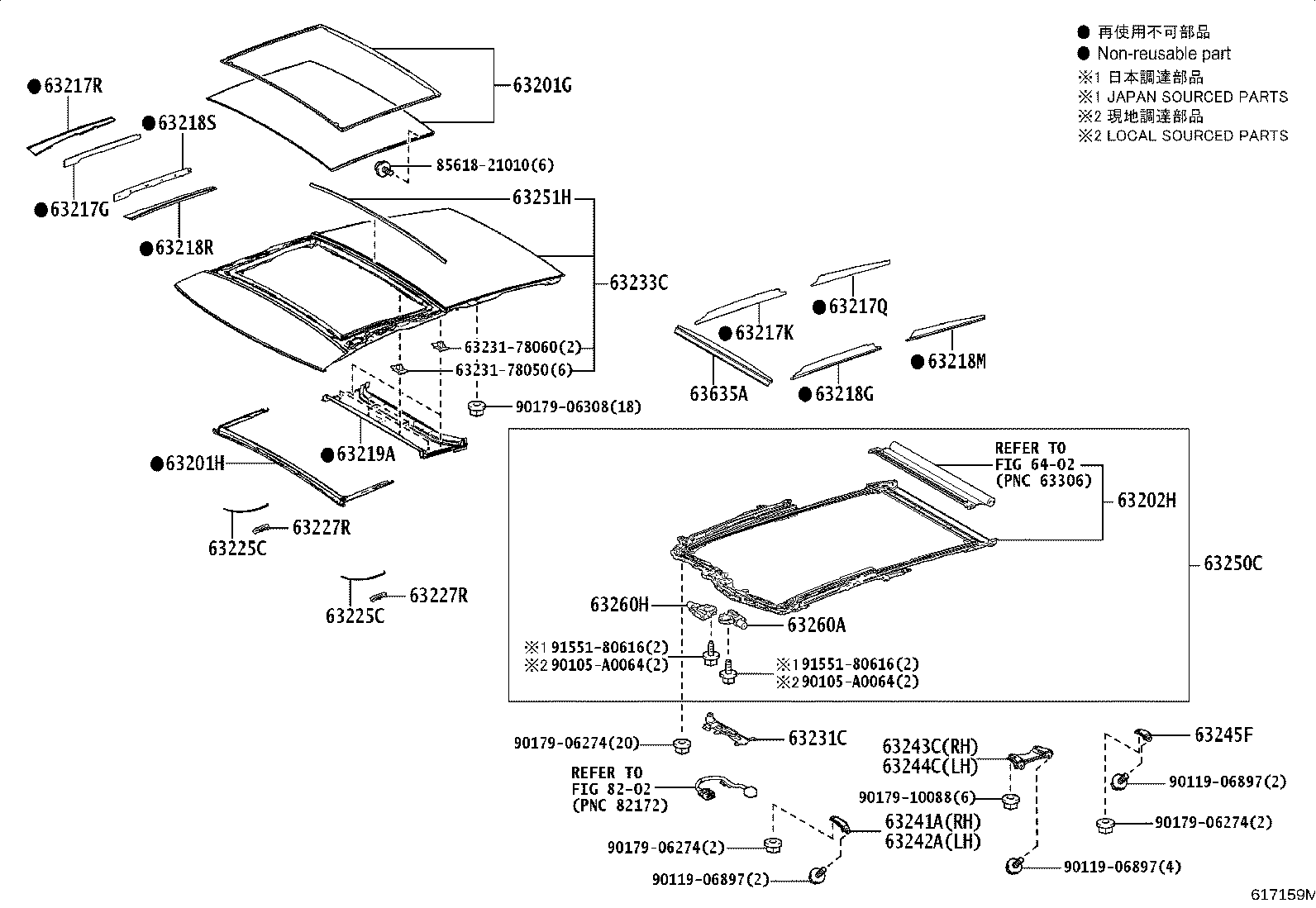

Exploded illustration 617159M 63202H — RAIL SUB-ASSY, SLIDE ROOF (15 parts) 63260H — GEAR ASSY, SLIDING ROOF DRIVE (8 parts) 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (3 parts) 63233C — PANEL, SLIDING ROOF HOUSING (6 parts) 63231C — BRACKET, ROOM LAMP (3 parts) 63201H — PANEL SUB-ASSY, SLIDE ROOF (9 parts) 8202 — not listed in this catalogue 90105A0064 — not listed in this catalogue 9017906274 — not listed in this catalogue 63217R — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (9 parts) 63218R — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 63218S — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 9017906308 — not listed in this catalogue 63219A — GARNISH, SLIDING ROOF, REAR (3 parts) 63217Q — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 9017906274 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9017910088 — not listed in this catalogue 9011906897 — not listed in this catalogue 9017906274 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (4 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (4 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (4 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (4 parts) 63245F — BRACKET, SLIDING REAR MOUNTING (4 parts) 9155180616 — not listed in this catalogue 90105A0064 — not listed in this catalogue 9155180616 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (10 parts) 8561821010 — not listed in this catalogue 6323178060 — not listed in this catalogue 6323178050 — not listed in this catalogue 63251H — WEATHERSTRIP, SLIDING ROOF (4 parts) 6402 — not listed in this catalogue 63250C — HOUSING ASSY, SLIDING ROOF (9 parts) 63225C — SPRING, ROOF WIND DEFLECTOR (2 parts) 63225C — SPRING, ROOF WIND DEFLECTOR (2 parts) 63227R — CASE, WIND DEFLECTOR ARM (2 parts) 63227R — CASE, WIND DEFLECTOR ARM (2 parts) 63635A — GARNISH, SLIDING ROOF, FRONT (2 parts)
617159M · 28 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-78081 note Glass Sub-assy, Sliding Roof
2024-03 → —
AAZH2#,TAZA25 —
63201-78081 note Glass Sub-assy, Sliding Roof
2024-03 → 2025-06 ended
AAZA2# —
63201-78121 note Glass Sub-assy, Sliding Roof
2024-03 → —
AAZH25,26 LHD GEN —
63201-78142 note Glass Sub-assy, Sliding Roof
2024-03 → —
AAZH25,26 LHD GEN —
63201-78080 note Glass Sub-assy, Sliding Roof
2021-11 → 2022-10 ended
AAZA2#,AAZH20,25,TAZA25 —
63201-78081 note Glass Sub-assy, Sliding Roof
2022-10 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63201-78120 note Glass Sub-assy, Sliding Roof
2021-11 → 2022-08 ended
AAZH25 LHD GEN —
63201-78121 note Glass Sub-assy, Sliding Roof
2022-09 → 2024-03 ended
AAZH25 LHD GEN —
63201-78140 note Glass Sub-assy, Sliding Roof
2021-11 → 2022-09 ended
AAZH25 LHD GEN —
63201-78142 note Glass Sub-assy, Sliding Roof
2022-09 → 2024-03 ended
AAZH25 LHD GEN —
63201H — Panel Sub-assy, Slide Roof
63201-78070 note Panel Sub-assy, Slide Roof
2024-03 → 2025-06 ended
AAZA2# —
63201-78070 note Panel Sub-assy, Slide Roof
2024-03 → —
AAZH2#,TAZA25 —
63201-78110 note Panel Sub-assy, Slide Roof
2024-03 → 2025-06 ended
AAZA2# —
63201-78110 Panel Sub-assy, Slide Roof
2024-03 → —
AAZH21 —
63201-78110 note Panel Sub-assy, Slide Roof
2024-03 → —
AAZH20,25,26,MAZA20,TAZA25 —
63201-78110 note Panel Sub-assy, Slide Roof
2024-03 → —
AAZH21 —
63201-78070 note Panel Sub-assy, Slide Roof
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63201-78110 Panel Sub-assy, Slide Roof
2021-11 → 2024-03 ended
AAZH21 —
63201-78110 note Panel Sub-assy, Slide Roof
2021-11 → 2024-05 ended
AAZH26 RHD;AAZH26 LHD EUR;AAZA2#,AAZH20,25,MAZA20,TAZA25 —
63202H — Rail Sub-assy, Slide Roof
63202-78040 note Rail Sub-assy, Slide Roof
2024-03 → 2025-06 ended
AAZA2# —
63202-78040-A1 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH21 —
63202-78040-A1 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH20,25;AAZH26 EUR;TAZA25 GCC —
63202-78040-A1 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH26 GEN —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH21 —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2024-03 → —
TAZA25 EUR,GEN —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH26 RHD;AAZH26 LHD EUR;AAZH25 +1 —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH20;AAZH26 LHD GEN;AAZH25,TAZA25 GCC —
63202-78040-E0 note Rail Sub-assy, Slide Roof
2024-03 → —
AAZH2#,TAZA25 —
63202-78040-A0 note Rail Sub-assy, Slide Roof
2021-11 → 2024-03 ended
AAZA2# —
63202-78040-A0 note Rail Sub-assy, Slide Roof
2021-11 → 2024-05 ended
AAZH20,25;TAZA25 GCC —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2021-11 → 2024-03 ended
TAZA25 EUR,GEN —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2021-11 → 2024-03 ended
AAZA2# —
63202-78040-C1 note Rail Sub-assy, Slide Roof
2021-11 → 2024-05 ended
AAZH20,25;TAZA25 GCC —
63202-78040-E0 note Rail Sub-assy, Slide Roof
2021-11 → 2024-05 ended
TAZA25 GCC;AAZA2#,AAZH20,25 —
63217G — Garnish, Sliding Roof Side, RH
63217-47020 Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH21 —
63217-47020 note Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH20,25,26,MAZA20,TAZA25 —
63217-47020 note Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH21 —
63217-47020 note Garnish, Sliding Roof Side, RH
2024-03 → 2025-06 ended
AAZA2# —
63217-78030 note Garnish, Sliding Roof Side, RH
2024-03 → 2025-06 ended
AAZA2# —
63217-78030 note Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH2#,TAZA25 —
63217-47020 Garnish, Sliding Roof Side, RH
2021-11 → 2024-03 ended
AAZH21 —
63217-47020 note Garnish, Sliding Roof Side, RH
2021-11 → 2024-05 ended
AAZH26 RHD;AAZH26 LHD EUR;AAZA2#,AAZH20,25,MAZA20,TAZA25 —
63217-78030 note Garnish, Sliding Roof Side, RH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63217K — Garnish, Sliding Roof Side, RH
63217-78040 note Garnish, Sliding Roof Side, RH
2024-03 → 2025-06 ended
AAZA2# —
63217-78040 note Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH2#,TAZA25 —
63217-78040 note Garnish, Sliding Roof Side, RH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63217Q — Garnish, Sliding Roof Side, RH
63217-78050 note Garnish, Sliding Roof Side, RH
2024-03 → 2025-06 ended
AAZA2# —
63217-78050 note Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH2#,TAZA25 —
63217-78050 note Garnish, Sliding Roof Side, RH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63217R — Garnish, Sliding Roof Side, RH
63217-78060 note Garnish, Sliding Roof Side, RH
2024-03 → 2025-06 ended
AAZA2# —
63217-78060 note Garnish, Sliding Roof Side, RH
2024-03 → —
AAZH2#,TAZA25 —
63217-78060 note Garnish, Sliding Roof Side, RH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63218G — Garnish, Sliding Roof Side, LH
63218-78040 note Garnish, Sliding Roof Side, LH
2024-03 → 2025-06 ended
AAZA2# —
63218-78040 note Garnish, Sliding Roof Side, LH
2024-03 → —
AAZH2#,TAZA25 —
63218-78040 note Garnish, Sliding Roof Side, LH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63218M — Garnish, Sliding Roof Side, LH
63218-78050 note Garnish, Sliding Roof Side, LH
2024-03 → 2025-06 ended
AAZA2# —
63218-78050 note Garnish, Sliding Roof Side, LH
2024-03 → —
AAZH2#,TAZA25 —
63218-78050 note Garnish, Sliding Roof Side, LH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63218R — Garnish, Sliding Roof Side, LH
63218-78060 note Garnish, Sliding Roof Side, LH
2024-03 → 2025-06 ended
AAZA2# —
63218-78060 note Garnish, Sliding Roof Side, LH
2024-03 → —
AAZH2#,TAZA25 —
63218-78060 note Garnish, Sliding Roof Side, LH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63218S — Garnish, Sliding Roof Side, LH
63218-78030 note Garnish, Sliding Roof Side, LH
2024-03 → 2025-06 ended
AAZA2# —
63218-78030 note Garnish, Sliding Roof Side, LH
2024-03 → —
AAZH2#,TAZA25 —
63218-78030 note Garnish, Sliding Roof Side, LH
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63219A — Garnish, Sliding Roof, Rear
63219-78020 note Garnish, Sliding Roof, Rear
2024-03 → —
AAZH2#,TAZA25 —
63219-78020 note Garnish, Sliding Roof, Rear
2024-03 → 2025-06 ended
AAZA2# —
63219-78020 note Garnish, Sliding Roof, Rear
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63225C — Spring, Roof Wind Deflector
63225-78010 note Spring, Roof Wind Deflector
2024-03 → 2025-06 ended
AAZA2# —
63225-78010 note Spring, Roof Wind Deflector
2024-03 → —
AAZH2#,TAZA25 —
63227R — Case, Wind Deflector Arm
63227-78020 note Case, Wind Deflector Arm
2024-03 → 2025-06 ended
AAZA2# —
63227-78020 note Case, Wind Deflector Arm
2024-03 → —
AAZH2#,TAZA25 —
63231C — Bracket, Room Lamp
63231-78040 note Bracket, Room Lamp
2024-03 → 2025-06 ended
AAZA2# —
63231-78040 note Bracket, Room Lamp
2024-03 → —
AAZH2#,TAZA25 —
63231-78040 note Bracket, Room Lamp
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63233C — Panel, Sliding Roof Housing
63233-78030 note Panel, Sliding Roof Housing
2024-03 → 2025-06 ended
AAZA20 CHI —
63233-78030 note Panel, Sliding Roof Housing
2024-03 → —
AAZH20,21,25 CHI —
63233-78040 note Panel, Sliding Roof Housing
2024-03 → 2025-06 ended
AAZA2# EUR,GEN —
63233-78040 note Panel, Sliding Roof Housing
2024-03 → —
AAZH20,25,26,TAZA25 EUR,GCC,GEN —
63233-78030 note Panel, Sliding Roof Housing
2021-11 → 2024-03 ended
AAZA20,AAZH20,25 CHI —
63233-78040 note Panel, Sliding Roof Housing
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 EUR,GCC,GEN —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-78040 note Bracket, Sliding Roof Housing Front Mounting, RH
2024-03 → 2025-06 ended
AAZA2# —
63241-78040 note Bracket, Sliding Roof Housing Front Mounting, RH
2024-03 → —
AAZH2#,TAZA25 —
63241-78040 note Bracket, Sliding Roof Housing Front Mounting, RH
2021-11 → 2024-03 ended
AAZA2#,AAZH20,25,TAZA25 CHI,EUR,GEN —
63241-78040 note Bracket, Sliding Roof Housing Front Mounting, RH
2021-11 → 2024-05 ended
AAZH25,TAZA25 GCC —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-78040 note Bracket, Sliding Roof Housing Front Mounting, LH
2024-03 → 2025-06 ended
AAZA2# —
63242-78040 note Bracket, Sliding Roof Housing Front Mounting, LH
2024-03 → —
AAZH2#,TAZA25 —
63242-78040 note Bracket, Sliding Roof Housing Front Mounting, LH
2021-11 → 2024-03 ended
AAZA2#,AAZH20,25,TAZA25 CHI,EUR,GEN —
63242-78040 note Bracket, Sliding Roof Housing Front Mounting, LH
2021-11 → 2024-05 ended
AAZH25,TAZA25 GCC —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-78020 note Bracket, Sliding Roof Housing Center Mounting, RH
2024-03 → 2025-06 ended
AAZA2# —
63243-78020 note Bracket, Sliding Roof Housing Center Mounting, RH
2024-03 → —
AAZH2#,TAZA25 —
63243-78020 note Bracket, Sliding Roof Housing Center Mounting, RH
2021-11 → 2024-03 ended
AAZA2#,AAZH20,25,TAZA25 CHI,EUR,GEN —
63243-78020 note Bracket, Sliding Roof Housing Center Mounting, RH
2021-11 → 2024-05 ended
AAZH25,TAZA25 GCC —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-78020 note Bracket, Sliding Roof Housing Center Mounting, LH
2024-03 → 2025-06 ended
AAZA2# —
63244-78020 note Bracket, Sliding Roof Housing Center Mounting, LH
2024-03 → —
AAZH2#,TAZA25 —
63244-78020 note Bracket, Sliding Roof Housing Center Mounting, LH
2021-11 → 2024-05 ended
AAZH25,TAZA25 GCC —
63244-78020 note Bracket, Sliding Roof Housing Center Mounting, LH
2021-11 → 2024-03 ended
AAZA2#,AAZH20,25,TAZA25 CHI,EUR,GEN —
63245F — Bracket, Sliding Rear Mounting
63245-78040 note Bracket, Sliding Rear Mounting
2024-03 → 2025-06 ended
AAZA2# —
63245-78040 note Bracket, Sliding Rear Mounting
2024-03 → —
AAZH2#,TAZA25 —
63245-78040 note Bracket, Sliding Rear Mounting
2021-11 → 2024-03 ended
AAZA2#,AAZH20,25,TAZA25 CHI,EUR,GEN —
63245-78040 note Bracket, Sliding Rear Mounting
2021-11 → 2024-05 ended
AAZH25,TAZA25 GCC —
63250C — Housing Assy, Sliding Roof
63250-78020 note Housing Assy, Sliding Roof
2024-03 → 2025-06 ended
AAZA2# —
63250-78020-A0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH21 —
63250-78020-A0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH20,25;AAZH26 EUR;TAZA25 GCC —
63250-78020-A0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH26 GEN —
63250-78020-C0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH21 —
63250-78020-C0 note Housing Assy, Sliding Roof
2024-03 → —
TAZA25 EUR,GEN —
63250-78020-C0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH26 RHD;AAZH26 LHD EUR;AAZH25 +1 —
63250-78020-C0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH20;AAZH26 LHD GEN;AAZH25,TAZA25 GCC —
63250-78020-E0 note Housing Assy, Sliding Roof
2024-03 → —
AAZH2#,TAZA25 —
63251H — Weatherstrip, Sliding Roof
63251-78020 note Weatherstrip, Sliding Roof
2024-03 → —
AAZH2#,TAZA25 —
63251-78020 note Weatherstrip, Sliding Roof
2024-03 → 2025-06 ended
AAZA2# —
63251-78020 note Weatherstrip, Sliding Roof
2021-11 → 2024-03 ended
AAZA2#,AAZH20,25,TAZA25 CHI,EUR,GEN —
63251-78020 note Weatherstrip, Sliding Roof
2021-11 → 2024-05 ended
AAZH25,TAZA25 GCC —
63260A — Gear Sub-assy, Sliding Roof Drive
63260-78030 note Gear Sub-assy, Sliding Roof Drive
2024-03 → 2025-06 ended
AAZA2# —
63260-78030 note Gear Sub-assy, Sliding Roof Drive
2024-03 → —
AAZH2#,TAZA25 —
63260-78030 note Gear Sub-assy, Sliding Roof Drive
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63260H — Gear Assy, Sliding Roof Drive
63260-78040 note Gear Assy, Sliding Roof Drive
2024-03 → 2025-06 ended
AAZA2# —
63260-78040 note Gear Assy, Sliding Roof Drive
2024-03 → —
AAZH2#,TAZA25 —
63260-78050 note Gear Assy, Sliding Roof Drive
2024-03 → 2025-06 ended
AAZA2# —
63260-78050 Gear Assy, Sliding Roof Drive
2024-03 → —
AAZH21 —
63260-78050 note Gear Assy, Sliding Roof Drive
2024-03 → —
AAZH20,25,26,MAZA20,TAZA25 —
63260-78040 note Gear Assy, Sliding Roof Drive
2021-11 → 2024-05 ended
AAZA2#,AAZH20,25,TAZA25 —
63260-78050 Gear Assy, Sliding Roof Drive
2021-11 → 2024-03 ended
AAZH21 —
63260-78050 note Gear Assy, Sliding Roof Drive
2021-11 → 2024-05 ended
AAZH26 RHD;AAZH26 LHD EUR;AAZA2#,AAZH20,25,MAZA20,TAZA25 —
63635A — Garnish, Sliding Roof, Front
63635-78010 note Garnish, Sliding Roof, Front
2024-03 → 2025-06 ended
AAZA2# —
63635-78010 note Garnish, Sliding Roof, Front
2024-03 → —
AAZH2#,TAZA25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
