Toyota Lexus NX Series
2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · General
Supported model
Data version 2024-05

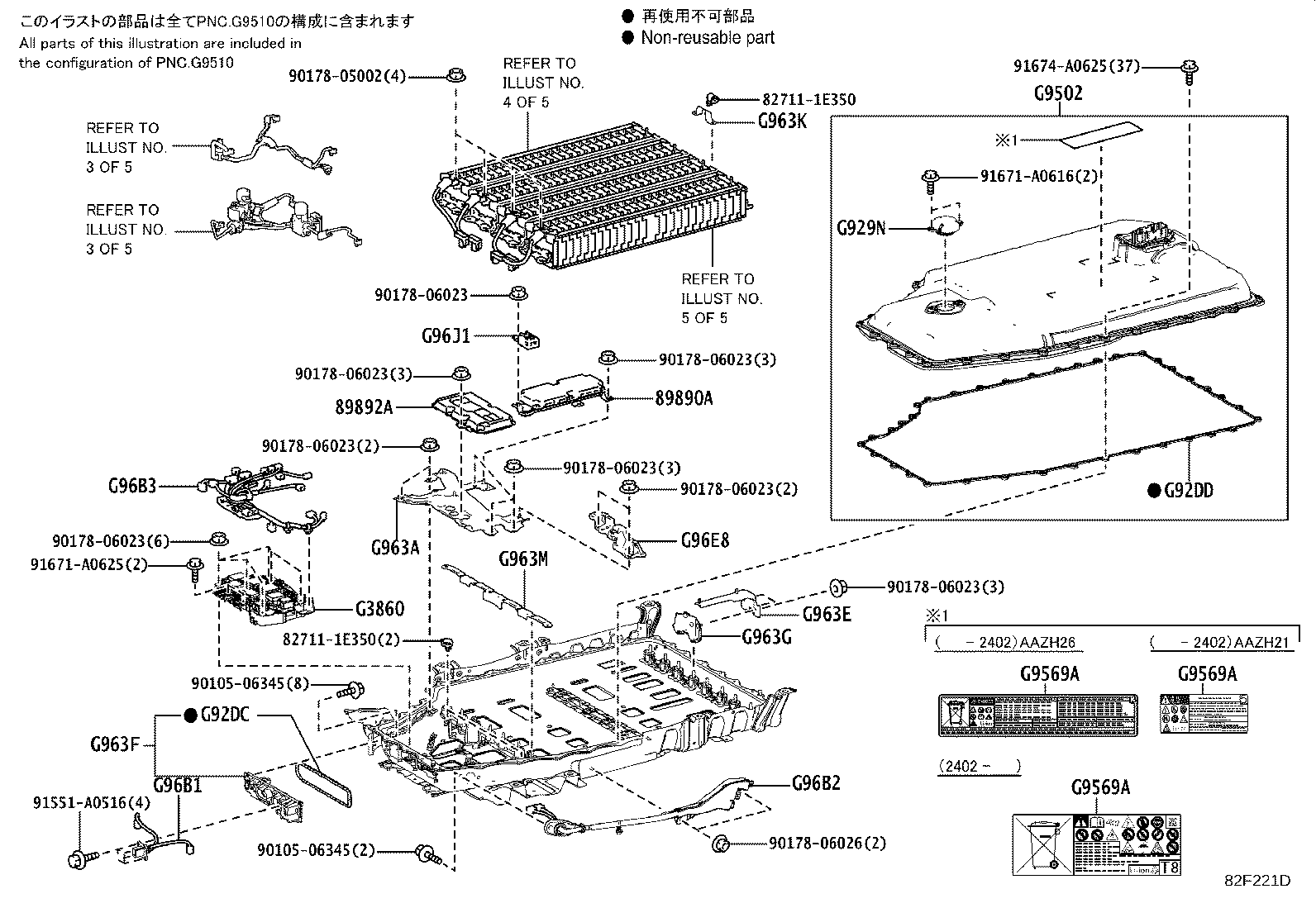

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89890A — Computer Assy, Battery | ||||
| 89890-42073 note |
Computer Assy, Battery
2024-03 → —
|
AAZH21,26 | — | |
| 89890-78020 note |
Computer Assy, Battery
2024-03 → —
|
AAZH20,25 | — | |
| 89890-42070 note |
Computer Assy, Battery
2021-11 → 2022-01
ended
|
AAZH21,26 | — | |
| 89890-42071 note |
Computer Assy, Battery
2022-02 → 2023-06
ended
|
AAZH21,26 | — | |
| 89890-42072 note |
Computer Assy, Battery
2023-07 → 2023-12
ended
|
AAZH21,26 | — | |
| 89890-42073 note |
Computer Assy, Battery
2024-01 → 2024-03
ended
|
AAZH21,26 | — | |
| 89890-78010 note |
Computer Assy, Battery
2021-11 → 2024-05
ended
|
AAZH20,25 | — | |
| 89892A — Sensor, Battery Voltage | ||||
| 89892-42040 |
Sensor, Battery Voltage
2024-03 → —
|
AAZH21,26 | — | |
| 89892-42040 |
Sensor, Battery Voltage
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G3860 — Box Assy, Traction Battery Device, NO.2 | ||||
| G3860-42010 |
Box Assy, Traction Battery Device, NO.2
2024-03 → —
|
AAZH21,26 | — | |
| G3860-42010 |
Box Assy, Traction Battery Device, NO.2
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G929N — Plug, Battery Drain | ||||
| G929N-10010 |
Plug, Battery Drain
2024-03 → —
|
AAZH21,26 | — | |
| G929N-10010 |
Plug, Battery Drain
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G92DC — Seal, HV Battery, NO.2 | ||||
| G92DC-42010 |
Seal, HV Battery, NO.2
2024-03 → —
|
AAZH21,26 | — | |
| G92DC-42010 |
Seal, HV Battery, NO.2
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G92DD — Seal, HV Battery Upr Cover | ||||
| G92DD-42010 |
Seal, HV Battery Upr Cover
2024-03 → —
|
AAZH21,26 | — | |
| G92DD-42010 |
Seal, HV Battery Upr Cover
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G9502 — Battery Sub-assy, EV Supply, Upr | ||||
| G9502-48011 |
Battery Sub-assy, EV Supply, Upr
2024-03 → —
|
AAZH21,26 | — | |
| G9502-48011 |
Battery Sub-assy, EV Supply, Upr
2024-02 → 2024-03
ended
|
AAZH21,26 | — | |
| G9502-78010 |
Battery Sub-assy, EV Supply, Upr
2021-11 → 2024-01
ended
|
AAZH21,26 | — | |
| G9569A — Label, Lithium Ion Battery Caution | ||||
| G9569-11011 |
Label, Lithium Ion Battery Caution
2024-03 → 2025-07
ended
|
AAZH20,25 CHI | — | |
| G9569-11030 |
Label, Lithium Ion Battery Caution
2024-05 → 2025-07
ended
|
AAZH25 GCC | — | |
| G9569-48040 |
Label, Lithium Ion Battery Caution
2024-03 → 2025-06
ended
|
AAZH20,25 EUR,GEN | — | |
| G9569-48050 |
Label, Lithium Ion Battery Caution
2024-03 → —
|
AAZH21,26 | — | |
| G9569-11011 |
Label, Lithium Ion Battery Caution
2021-11 → 2024-03
ended
|
AAZH20,25 CHI | — | |
| G9569-11011 |
Label, Lithium Ion Battery Caution
2021-11 → 2024-02
ended
|
AAZH21 | — | |
| G9569-11030 |
Label, Lithium Ion Battery Caution
2021-11 → 2024-05
ended
|
AAZH25 GCC | — | |
| G9569-47120 |
Label, Lithium Ion Battery Caution
2021-11 → 2024-03
ended
|
AAZH20,25 EUR,GEN | — | |
| G9569-47120 |
Label, Lithium Ion Battery Caution
2021-11 → 2024-02
ended
|
AAZH26 | — | |
| G9569-48050 |
Label, Lithium Ion Battery Caution
2024-02 → 2024-03
ended
|
AAZH21,26 | — | |
| G963A — Bracket, Traction Battery, NO.10 | ||||
| G963A-42010 |
Bracket, Traction Battery, NO.10
2024-03 → —
|
AAZH21,26 | — | |
| G963A-42010 |
Bracket, Traction Battery, NO.10
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G963E — Bracket, Traction Battery, NO.14 | ||||
| G963E-42010 |
Bracket, Traction Battery, NO.14
2024-03 → —
|
AAZH21,26 | — | |
| G963E-42010 |
Bracket, Traction Battery, NO.14
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G963F — Bracket, Traction Battery, NO.15 | ||||
| G963F-42010 |
Bracket, Traction Battery, NO.15
2024-03 → —
|
AAZH21,26 | — | |
| G963F-42010 |
Bracket, Traction Battery, NO.15
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G963G — Bracket, Traction Battery, NO.16 | ||||
| G963G-42010 |
Bracket, Traction Battery, NO.16
2024-03 → —
|
AAZH21,26 | — | |
| G963G-42010 |
Bracket, Traction Battery, NO.16
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G963K — Bracket, Traction Battery, NO.19 | ||||
| G963K-42010 |
Bracket, Traction Battery, NO.19
2024-03 → —
|
AAZH21,26 | — | |
| G963K-42010 |
Bracket, Traction Battery, NO.19
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G963M — Bracket, Traction Battery, NO.21 | ||||
| G963M-42010 |
Bracket, Traction Battery, NO.21
2024-03 → —
|
AAZH21,26 | — | |
| G963M-42010 |
Bracket, Traction Battery, NO.21
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G96B1 — Wire, Traction Battery, NO.1 | ||||
| G96B1-42010 |
Wire, Traction Battery, NO.1
2024-03 → —
|
AAZH21,26 | — | |
| G96B1-42010 |
Wire, Traction Battery, NO.1
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G96B2 — Wire, Traction Battery, NO.2 | ||||
| G96B2-42010 |
Wire, Traction Battery, NO.2
2024-03 → —
|
AAZH21,26 | — | |
| G96B2-42010 |
Wire, Traction Battery, NO.2
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G96B3 — Wire, Traction Battery, NO.3 | ||||
| G96B3-42010 |
Wire, Traction Battery, NO.3
2024-03 → —
|
AAZH21,26 | — | |
| G96B3-42010 |
Wire, Traction Battery, NO.3
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G96E8 — Cover, Traction Battery Wire, NO.3 | ||||
| G96E8-42010 |
Cover, Traction Battery Wire, NO.3
2024-03 → —
|
AAZH21,26 | — | |
| G96E8-42010 |
Cover, Traction Battery Wire, NO.3
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
| G96J1 — Relay, Traction Battery Heater, NO.1 | ||||
| G96J1-42010 |
Relay, Traction Battery Heater, NO.1
2024-03 → —
|
AAZH21,26 | — | |
| G96J1-42010 |
Relay, Traction Battery Heater, NO.1
2021-11 → 2024-03
ended
|
AAZH21,26 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
