Toyota Lexus NX Series
2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · General
Supported model
Data version 2024-05

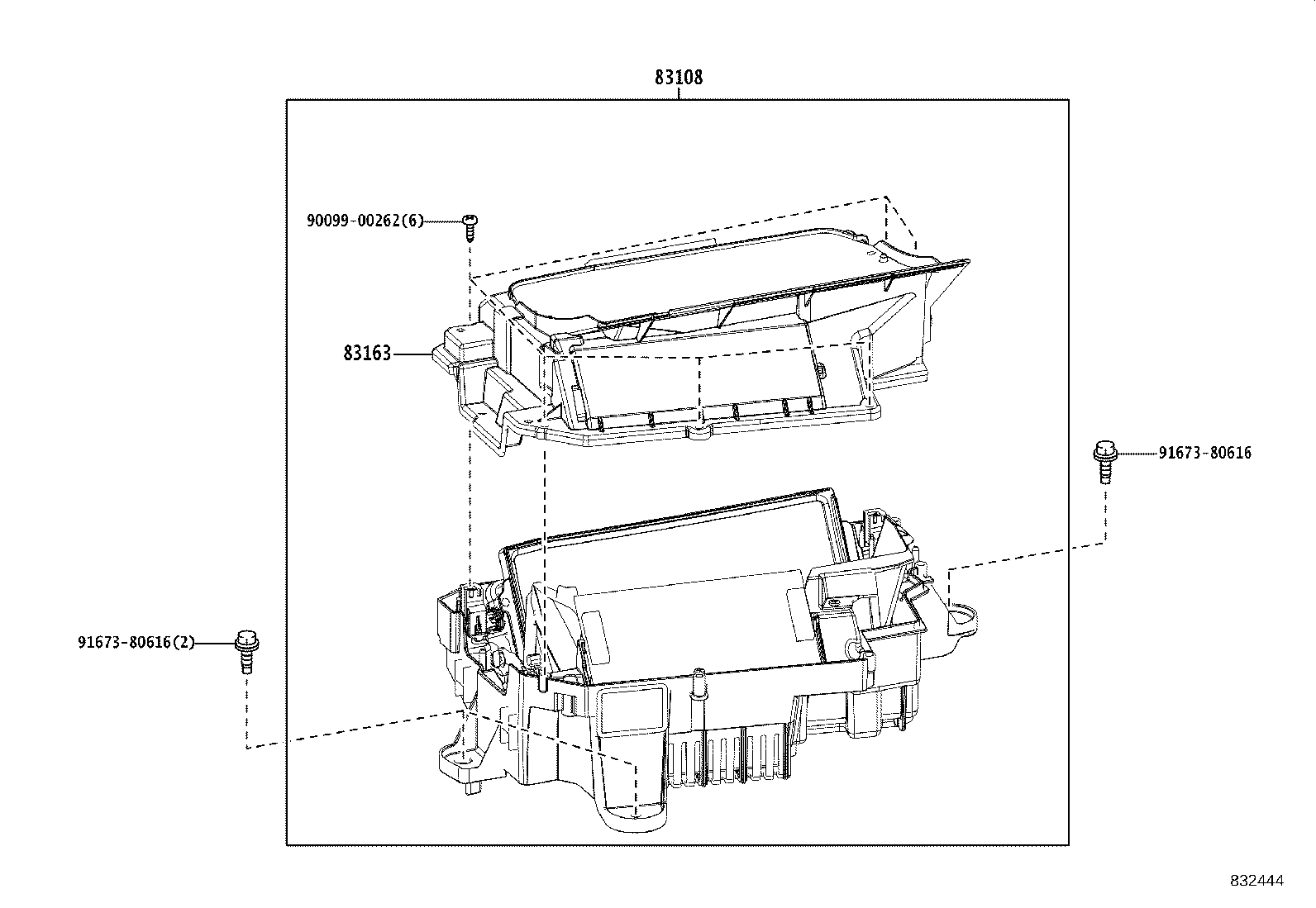

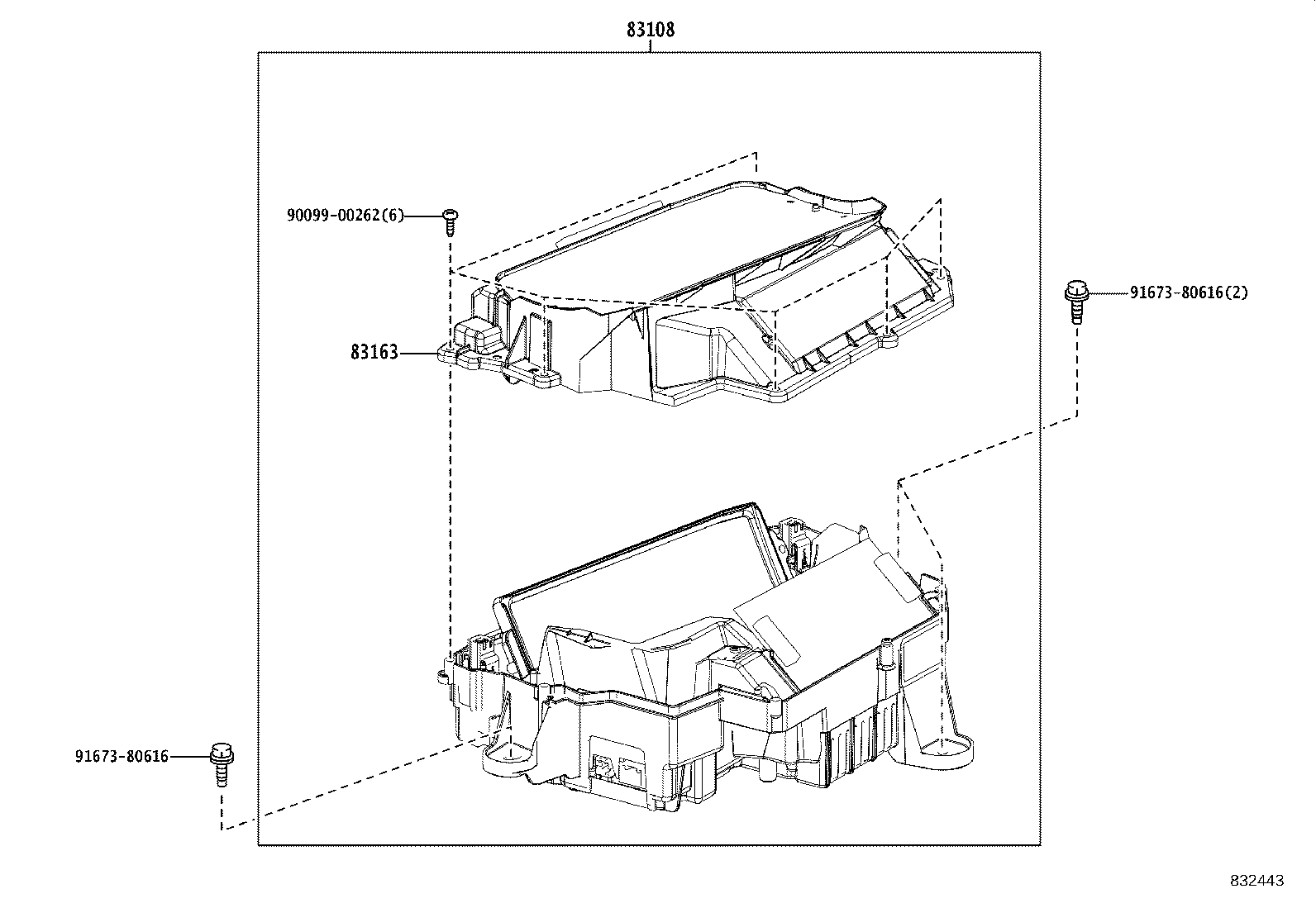

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20 CHI | — | |
| 83108-78170 |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
TAZA25 LHD (EUR,GEN) | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH21,26 LHD;AAZA25,AAZH25 LHD GEN | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20,25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZA2# CHI,EUR;AAZH20,25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZA2# CHI,EUR;AAZH20,25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZA2#,AAZH20,25 LHD EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20 CHI | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH25 CHI | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 LHD EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20 CHI | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 LHD EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 LHD EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20 CHI | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH25 CHI | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 LHD EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH25 CHI | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH25 LHD EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
TAZA25 GCC;AAZH21,26 LHD;AAZH25 LHD +1 | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH25 CHI | — | |
| 83108-78171 |
Mirror Sub-assy, Meter
2024-05 → —
|
TAZA25 LHD (EUR,GEN) | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → 2025-06
ended
|
AAZA25 LHD GEN | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → 2025-06
ended
|
AAZA2# EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → 2025-06
ended
|
AAZA2# CHI,EUR | — | |
| 83108-78171 note |
Mirror Sub-assy, Meter
2024-05 → 2025-06
ended
|
AAZA2# CHI,EUR | — | |
| 83108-78180 |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
TAZA25 RHD | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH26 RHD;AAZA2#,AAZH20,25 RHD GEN | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2024-03 → 2024-04
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → 2025-06
ended
|
AAZA2# RHD | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH26 RHD;AAZH20,25 RHD GEN | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH25 RHD EUR | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 RHD EUR | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 RHD EUR | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 RHD EUR | — | |
| 83108-78181 |
Mirror Sub-assy, Meter
2024-05 → —
|
TAZA25 RHD | — | |
| 83108-78181 note |
Mirror Sub-assy, Meter
2024-05 → —
|
AAZH20,25 RHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2023-03 → 2024-03
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2023-03 → 2024-03
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2023-03 → 2024-03
ended
|
AAZH25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2023-03 → 2024-03
ended
|
AAZH20 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2023-03 → 2024-03
ended
|
AAZH20 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2023-03 → 2024-03
ended
|
AAZH20 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2024-05
ended
|
AAZH26 LHD EUR;AAZH21,TAZA25 CHI,GCC;AAZA25,AAZH25 +2 | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZH20,25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZA2#,AAZH20,25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZA2# CHI,EUR;AAZH20,25 LHD EUR | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZA2# CHI,EUR;AAZH20,25 LHD EUR | — | |
| 83108-78170 |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
TAZA25 LHD (EUR,GEN) | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2023-03
ended
|
AAZH20,25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2023-03
ended
|
AAZH20,25 CHI | — | |
| 83108-78170 note |
Mirror Sub-assy, Meter
2021-11 → 2023-03
ended
|
AAZH20,25 CHI | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZH26 RHD;AAZA2#,AAZH20,25 RHD GEN | — | |
| 83108-78180 |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
TAZA25 RHD | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83108-78180 note |
Mirror Sub-assy, Meter
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
TAZA25 GCC;AAZH21,26 LHD;AAZH25 LHD +1 | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20 CHI | — | |
| 83163-78170 |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
TAZA25 LHD (EUR,GEN) | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → 2025-06
ended
|
AAZA25 LHD GEN | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → 2025-06
ended
|
AAZA2# EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → 2025-06
ended
|
AAZA2# CHI,EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → 2025-06
ended
|
AAZA2# CHI,EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH26 RHD;AAZH20,25 RHD GEN | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
TAZA25 RHD | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → 2025-06
ended
|
AAZA2# RHD | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2024-03 → —
|
AAZH20,25 RHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-05
ended
|
AAZH26 LHD EUR;AAZH21,TAZA25 CHI,GCC;AAZA25,AAZH25 +2 | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2023-03 → 2024-03
ended
|
AAZH20 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2023-03 → 2024-03
ended
|
AAZH20 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2023-03 → 2024-03
ended
|
AAZH20 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2023-03 → 2024-03
ended
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2023-03 → 2024-03
ended
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2023-03 → 2024-03
ended
|
AAZH25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZA2#,AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZA2# CHI,EUR;AAZH20,25 LHD EUR | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZA2# CHI,EUR;AAZH20,25 LHD EUR | — | |
| 83163-78170 |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
TAZA25 LHD (EUR,GEN) | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2023-03
ended
|
AAZH20,25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2023-03
ended
|
AAZH20,25 CHI | — | |
| 83163-78170 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2023-03
ended
|
AAZH20,25 CHI | — | |
| 83163-78180 |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
TAZA25 RHD | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZH20,25 RHD EUR | — | |
| 83163-78180 note |
Plate, Combination Meter Mirror, NO.1
2021-11 → 2024-03
ended
|
AAZH26 RHD;AAZA2#,AAZH20,25 RHD GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
