Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

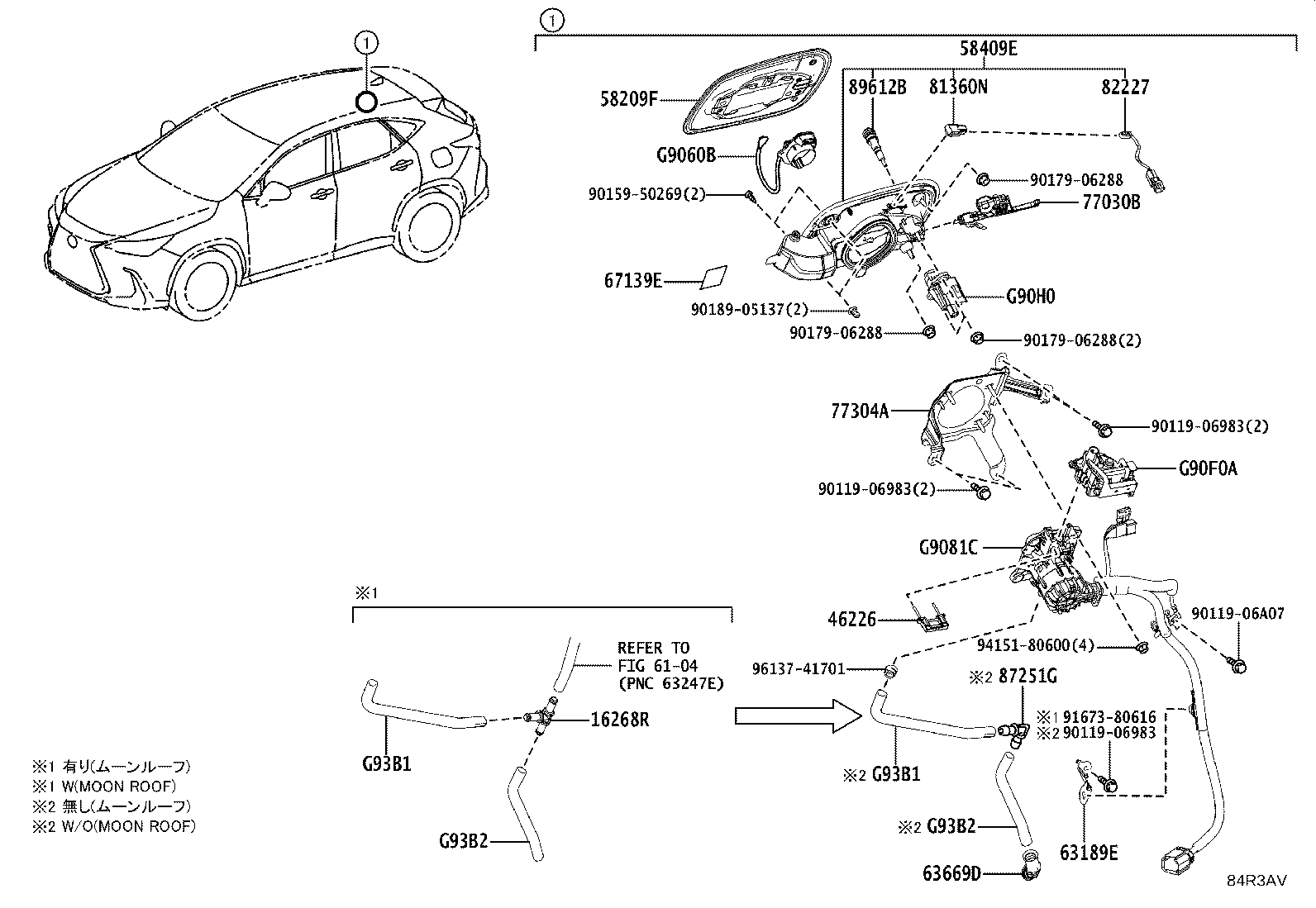

Exploded illustration 84R3AV 58209F — LID SUB-ASSY, BATTERY SERVICE OPENING (2 parts) 82227 — WIRE, SPOT LAMP (2 parts) 77304A — LID SUB-ASSY, BATTERY CHARGE PORT (2 parts) 46226 — PIN, CONNECTOR (2 parts) G9081C — CABLE, AC CHARGER INLET (17 parts) G93B2 — HOSE, EV CHARGE CONNECTOR DRAIN, NO.2 (8 parts) 16268R — PIPE, WATER BY-PASS (9 parts) G93B1 — HOSE, EV CHARGE CONNECTOR DRAIN, NO.1 (9 parts) G90F0A — LOCK ASSY, CABLE EV CHARGER (8 parts) 63189E — BRACKET, WIRING HARNESS CONNECTOR (1 parts) G9060B — COVER, CONNECTOR (12 parts) 67139E — SHEET, AC CHARGING PORT OPENING LID (2 parts) 89612B — LIFTER, PUSH (2 parts) 58409E — LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING (2 parts) 81360N — LAMP ASSY, SPOT (2 parts) 9011906983 — not listed in this catalogue 9011906983 — not listed in this catalogue 9167380616 — not listed in this catalogue 9011906A07 — not listed in this catalogue 9415180600 — not listed in this catalogue 9011906983 — not listed in this catalogue 9015950269 — not listed in this catalogue 9018905137 — not listed in this catalogue 9017906288 — not listed in this catalogue 9017906288 — not listed in this catalogue G90H0 — INDICATOR ASSY, EV CHARGER LID (2 parts) 77030B — LOCK ASSY, CHARGE LID W/MOTOR (2 parts) 9017906288 — not listed in this catalogue 6104 — not listed in this catalogue G93B2 — HOSE, EV CHARGE CONNECTOR DRAIN, NO.2 (8 parts) 87251G — JOINT, WATER (3 parts) G93B1 — HOSE, EV CHARGE CONNECTOR DRAIN, NO.1 (9 parts) 63669D — GROMMET, DRAIN HOSE (3 parts) 9613741701 — not listed in this catalogue
84R3AV · 21 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
16268R — Pipe, Water By-pass
16268-37100 Pipe, Water By-pass
2024-03 → —
A25AFXS AAZH21 —
16268-37100 note Pipe, Water By-pass
2024-03 → 2025-07 ended
A25AFXS AAZH26 LHD EUR —
16268-37100 note Pipe, Water By-pass
2024-03 → —
A25AFXS AAZH26 —
16268-37100 note Pipe, Water By-pass
2021-11 → 2023-03 ended
A25AFXS AAZH26 LHD —
16268-37100 note Pipe, Water By-pass
2021-11 → 2023-03 ended
A25AFXS AAZH26 LHD —
16268-37100 note Pipe, Water By-pass
2021-11 → 2023-03 ended
A25AFXS AAZH26 LHD —
16268-37100 Pipe, Water By-pass
2021-11 → 2024-03 ended
A25AFXS AAZH21 —
16268-37100 note Pipe, Water By-pass
2021-11 → 2024-03 ended
A25AFXS AAZH26 —
16268-37100 note Pipe, Water By-pass
2023-03 → 2024-03 ended
A25AFXS AAZH26 LHD —
46226 — Pin, Connector
46226-47010 Pin, Connector
2024-03 → —
AAZH21,26 —
46226-47010 Pin, Connector
2021-11 → 2024-03 ended
AAZH21,26 —
58209F — Lid Sub-assy, Battery Service Opening
58209-78010 Lid Sub-assy, Battery Service Opening
2024-03 → —
AAZH21,26 —
58209-78010 Lid Sub-assy, Battery Service Opening
2021-11 → 2024-03 ended
AAZH21,26 —
58409E — Lid Sub-assy, Battery Charger Connector Opening
58409-78030 Lid Sub-assy, Battery Charger Connector Opening
2024-03 → —
AAZH21,26 —
58409-78030 Lid Sub-assy, Battery Charger Connector Opening
2021-11 → 2024-03 ended
AAZH21,26 —
63189E — Bracket, Wiring Harness Connector
63189-42011 Bracket, Wiring Harness Connector
2021-11 → 2024-03 ended
AAZH21,26 —
63669D — Grommet, Drain Hose
63669-30040 Grommet, Drain Hose
2024-03 → —
AAZH21,26 —
63669-30040 Grommet, Drain Hose
2023-12 → 2024-02 ended
AAZH21,26 —
63669-78010 Grommet, Drain Hose
2021-11 → 2023-12 ended
AAZH21,26 —
67139E — Sheet, AC Charging Port Opening Lid
67139-76030 Sheet, AC Charging Port Opening Lid
2024-03 → —
AAZH21,26 —
67139-76030 Sheet, AC Charging Port Opening Lid
2021-11 → 2024-03 ended
AAZH21,26 —
77030B — Lock Assy, Charge Lid W/Motor
77030-78040 Lock Assy, Charge Lid W/Motor
2024-03 → —
AAZH21,26 —
77030-78040 Lock Assy, Charge Lid W/Motor
2021-11 → 2024-03 ended
AAZH21,26 —
77304A — Lid Sub-assy, Battery Charge Port
77304-78010 Lid Sub-assy, Battery Charge Port
2024-03 → —
AAZH21,26 —
77304-78010 Lid Sub-assy, Battery Charge Port
2021-11 → 2024-03 ended
AAZH21,26 —
81360N — Lamp Assy, Spot
81360-47010 Lamp Assy, Spot
2024-03 → —
AAZH21,26 —
81360-47010 Lamp Assy, Spot
2021-11 → 2024-03 ended
AAZH21,26 —
82227 — Wire, Spot Lamp
82227-78010 Wire, Spot Lamp
2024-03 → —
AAZH21,26 —
82227-78010 Wire, Spot Lamp
2021-11 → 2024-03 ended
AAZH21,26 —
87251G — Joint, Water
87251-78020 Joint, Water
2024-03 → —
AAZH26 —
87251-78020 note Joint, Water
2024-03 → —
AAZH21 —
87251-78020 Joint, Water
2023-12 → 2024-02 ended
AAZH26 —
89612B — Lifter, Push
89612-42010 Lifter, Push
2024-03 → —
AAZH21,26 —
89612-42010 Lifter, Push
2021-11 → 2024-03 ended
AAZH21,26 —
G9060B — Cover, Connector
82821-76200 Cover, Connector
2024-03 → —
AAZH26 —
82821-76250 Cover, Connector
2024-03 → —
AAZH21 —
82821-76270 note Cover, Connector
2024-03 → 2025-07 ended
AAZH26 LHD EUR —
82821-76270 note Cover, Connector
2024-03 → 2025-07 ended
AAZH26 LHD EUR —
82821-76200 Cover, Connector
2021-11 → 2024-03 ended
AAZH26 —
82821-76250 Cover, Connector
2021-11 → 2024-03 ended
AAZH21 —
82821-76270 note Cover, Connector
2023-03 → 2024-03 ended
AAZH26 LHD —
82821-76270 note Cover, Connector
2023-03 → 2024-03 ended
AAZH26 LHD —
82821-76270 note Cover, Connector
2021-11 → 2023-03 ended
AAZH26 LHD —
82821-76270 note Cover, Connector
2021-11 → 2023-03 ended
AAZH26 LHD —
82821-76270 note Cover, Connector
2021-11 → 2023-03 ended
AAZH26 LHD —
82821-76270 note Cover, Connector
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081C — Cable, AC Charger Inlet
G9081-78020 note Cable, AC Charger Inlet
2024-03 → 2025-07 ended
AAZH26 LHD EUR —
G9081-78020 note Cable, AC Charger Inlet
2024-03 → 2025-07 ended
AAZH26 LHD EUR —
G9081-78042 Cable, AC Charger Inlet
2024-03 → —
AAZH26 —
G9081-78050 Cable, AC Charger Inlet
2024-03 → —
AAZH21 —
G9081-78010 note Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78010 note Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78020 note Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78020 note Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78020 note Cable, AC Charger Inlet
2023-03 → 2024-03 ended
AAZH26 LHD —
G9081-78020 note Cable, AC Charger Inlet
2023-03 → 2024-03 ended
AAZH26 LHD —
G9081-78031 Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78041 note Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78041 Cable, AC Charger Inlet
2023-03 → 2023-07 ended
AAZH26 LHD —
G9081-78041 Cable, AC Charger Inlet
2021-11 → 2023-07 ended
AAZH26 RHD —
G9081-78041 note Cable, AC Charger Inlet
2021-11 → 2023-03 ended
AAZH26 LHD —
G9081-78042 Cable, AC Charger Inlet
2023-08 → 2024-03 ended
AAZH26 —
G9081-78050 Cable, AC Charger Inlet
2021-11 → 2024-03 ended
AAZH21 —
G90F0A — Lock Assy, Cable EV Charger
G90F0-76010 Lock Assy, Cable EV Charger
2024-03 → —
AAZH21 —
G90F0-76020 Lock Assy, Cable EV Charger
2024-03 → —
AAZH26 —
G90F0-76030 note Lock Assy, Cable EV Charger
2024-03 → —
AAZH26 LHD EUR —
G90F0-76010 Lock Assy, Cable EV Charger
2021-11 → 2024-03 ended
AAZH21 —
G90F0-76020 Lock Assy, Cable EV Charger
2021-11 → 2024-03 ended
AAZH26 —
G90F0-76030 note Lock Assy, Cable EV Charger
2021-11 → 2023-03 ended
AAZH26 LHD —
G90F0-76030 note Lock Assy, Cable EV Charger
2023-03 → 2024-03 ended
AAZH26 LHD —
G90F0-76030 note Lock Assy, Cable EV Charger
2021-11 → 2023-03 ended
AAZH26 LHD —
G90H0 — Indicator Assy, EV Charger Lid
G90H0-78010 Indicator Assy, EV Charger Lid
2024-03 → —
AAZH21,26 —
G90H0-78010 Indicator Assy, EV Charger Lid
2021-11 → 2024-03 ended
AAZH21,26 —
G93B1 — Hose, EV Charge Connector Drain, NO.1
G93B1-78021 Hose, EV Charge Connector Drain, NO.1
2024-03 → —
AAZH21,26 —
G93B1-78010 Hose, EV Charge Connector Drain, NO.1
2021-11 → 2023-12 ended
AAZH26 —
G93B1-78020 note Hose, EV Charge Connector Drain, NO.1
2021-11 → 2023-03 ended
AAZH26 LHD —
G93B1-78020 note Hose, EV Charge Connector Drain, NO.1
2021-11 → 2023-03 ended
AAZH26 LHD —
G93B1-78020 Hose, EV Charge Connector Drain, NO.1
2021-11 → 2023-11 ended
AAZH21 —
G93B1-78020 note Hose, EV Charge Connector Drain, NO.1
2021-11 → 2023-11 ended
AAZH26 —
G93B1-78020 note Hose, EV Charge Connector Drain, NO.1
2023-03 → 2023-11 ended
AAZH26 LHD —
G93B1-78020 note Hose, EV Charge Connector Drain, NO.1
2021-11 → 2023-03 ended
AAZH26 LHD —
G93B1-78021 Hose, EV Charge Connector Drain, NO.1
2023-12 → 2024-02 ended
AAZH21,26 —
G93B2 — Hose, EV Charge Connector Drain, NO.2
G93B2-78020 Hose, EV Charge Connector Drain, NO.2
2024-03 → —
AAZH21,26 —
G93B2-78010 note Hose, EV Charge Connector Drain, NO.2
2021-11 → 2023-03 ended
AAZH26 LHD —
G93B2-78010 note Hose, EV Charge Connector Drain, NO.2
2021-11 → 2023-03 ended
AAZH26 LHD —
G93B2-78010 note Hose, EV Charge Connector Drain, NO.2
2021-11 → 2023-03 ended
AAZH26 LHD —
G93B2-78010 Hose, EV Charge Connector Drain, NO.2
2021-11 → 2023-11 ended
AAZH21 —
G93B2-78010 note Hose, EV Charge Connector Drain, NO.2
2021-11 → 2023-11 ended
AAZH26 —
G93B2-78010 note Hose, EV Charge Connector Drain, NO.2
2023-03 → 2023-11 ended
AAZH26 LHD —
G93B2-78020 Hose, EV Charge Connector Drain, NO.2
2023-12 → 2024-02 ended
AAZH21,26 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
