Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

16 part groups · 3 illustrations

Illustrations

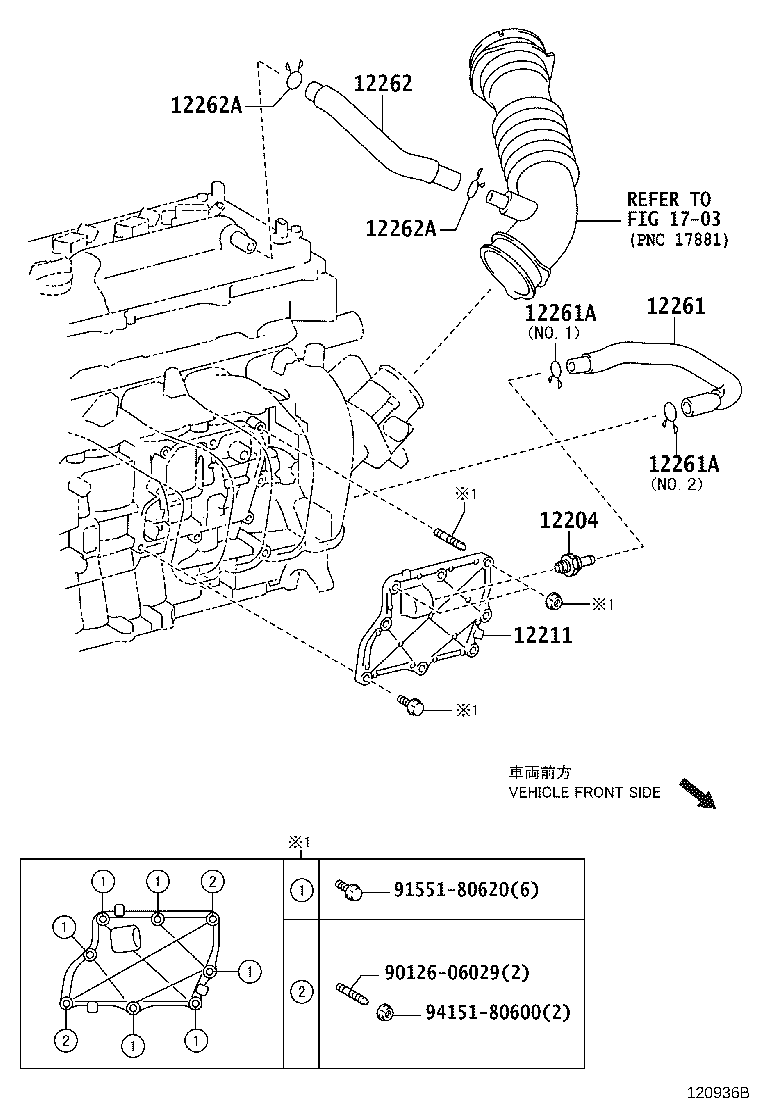

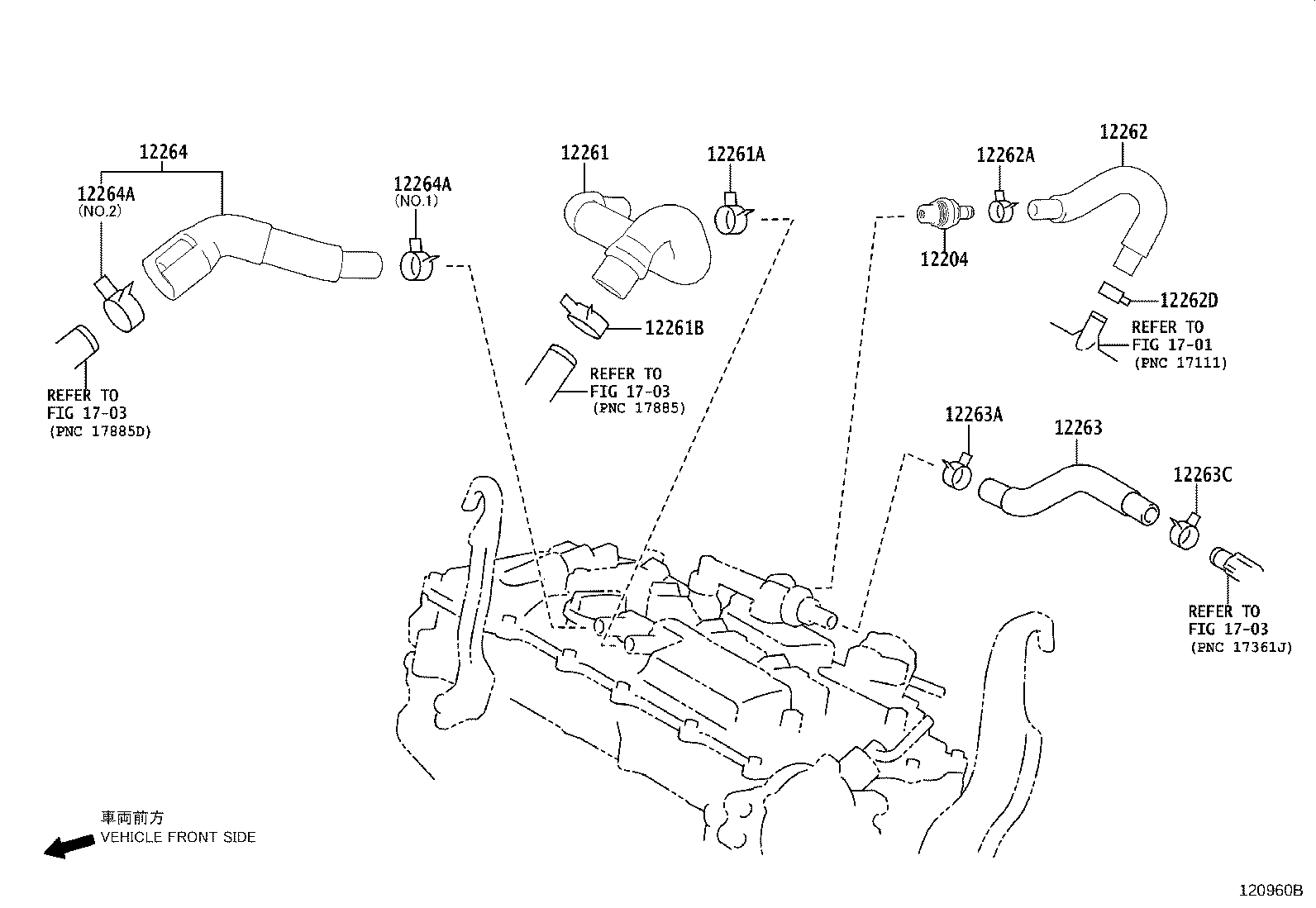

Figure 120961B 120961B 2014-07 → — Figure 120960B 120960B 2014-12 → — Figure 120936B 120936B 2014-12 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12205 Case Sub-assy, Ventilation
12205A Ring, O(FOR VENTILATION CASE)
12211 Case, Ventilation, NO.1
12215 Separator, Case
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12263C Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
