Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

30 part groups · 3 illustrations

Illustrations

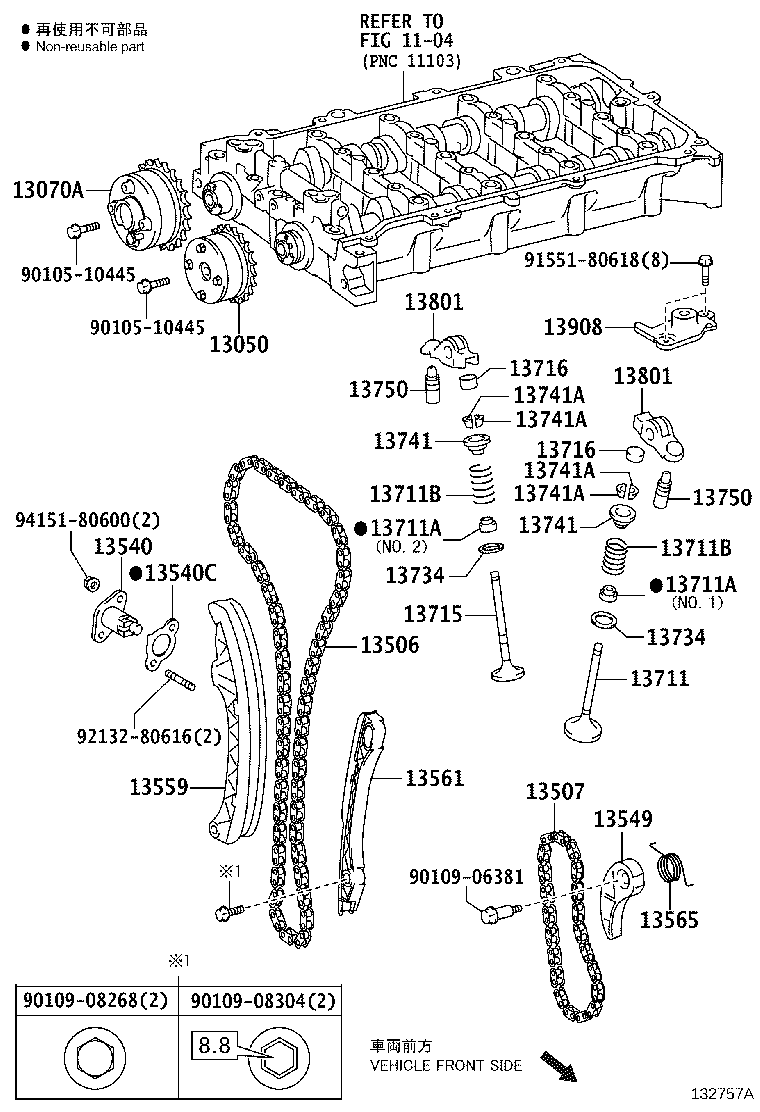

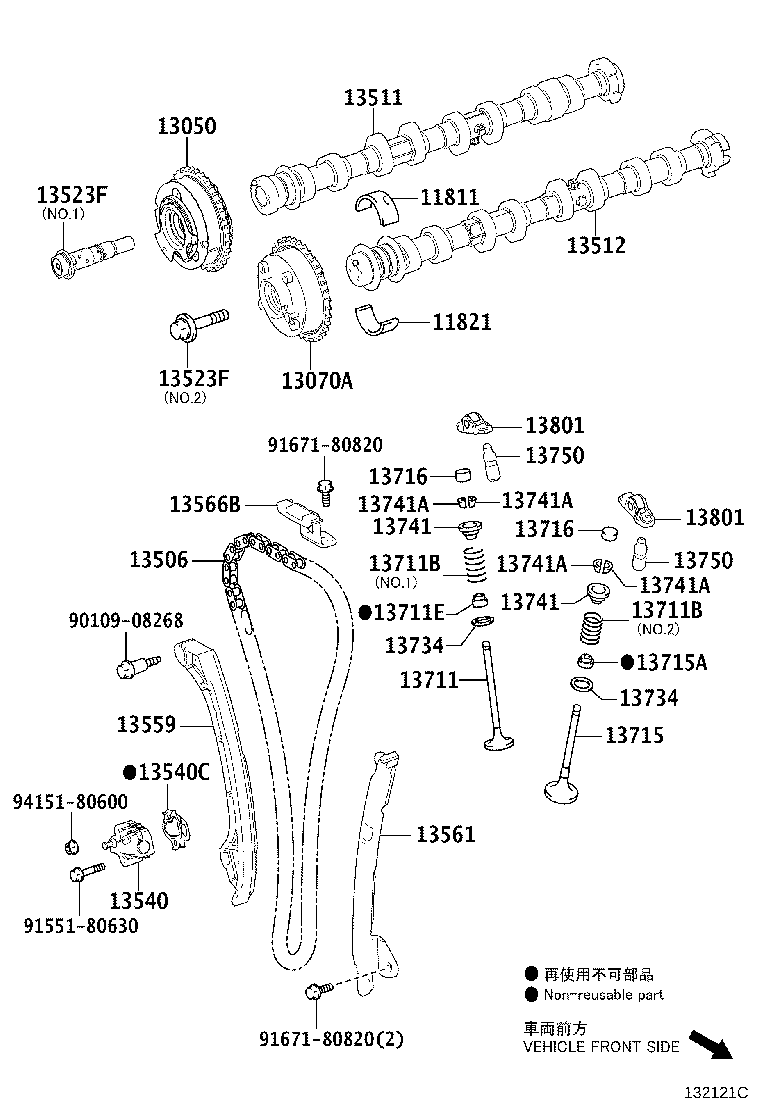

Figure 132120D 132120D 2014-07 → — Figure 132121C 132121C 2014-12 → — Figure 132757A 132757A 2014-12 → —

Part groups

PNCDescription
11811 Bearing, Camshaft, NO.1
11821 Bearing, Camshaft, NO.2
13050 Gear Assy, Camshaft Timing
13070A Gear Assy, Camshaft Timing Exhaust
13506 Chain Sub-assy
13507 Chain Sub-assy, NO.2
13511 Camshaft
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13523F Bolt(FOR CAMSHAFT TIMING GEAR)
13540 Tensioner Assy, Chain, NO.1
13540C Gasket(FOR CHAIN TENSIONER)
13549 Plate, Chain Tensioner
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13565 Spring, Chain Damper
13566B Guide, Timing Chain
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711E Seal, Intake Valve Stem Oil
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13801 Arm Sub-assy, Valve Rocker, NO.1
13908 Damper Sub-assy, Valve Rocker Arm Lost Motion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
