Factory parts data · Europe

Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

4 part groups · 3 illustrations

Illustrations

Figure 152196B

152196B 2014-07 → —

Figure 152197C

152197C 2014-12 → —

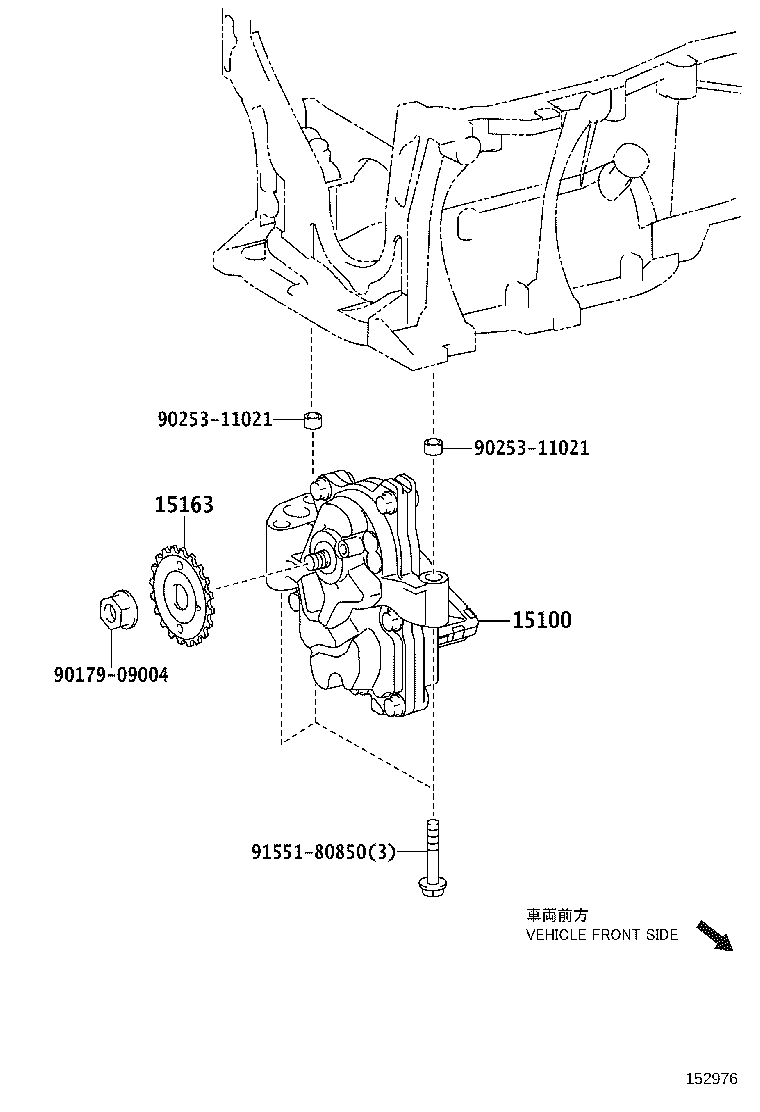

152976 2014-12 → —

Part groups

PNC	Description
15100	Pump Assy, Oil
15104	Strainer Sub-assy, Oil
15147	Gasket, Oil Strainer
15163	Gear, Oil Pump Drive Shaft

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
