Engine Oil Cooler

4 part groups · 2 illustrations

Illustrations

Figure 152214B

152214B 2014-07 → —

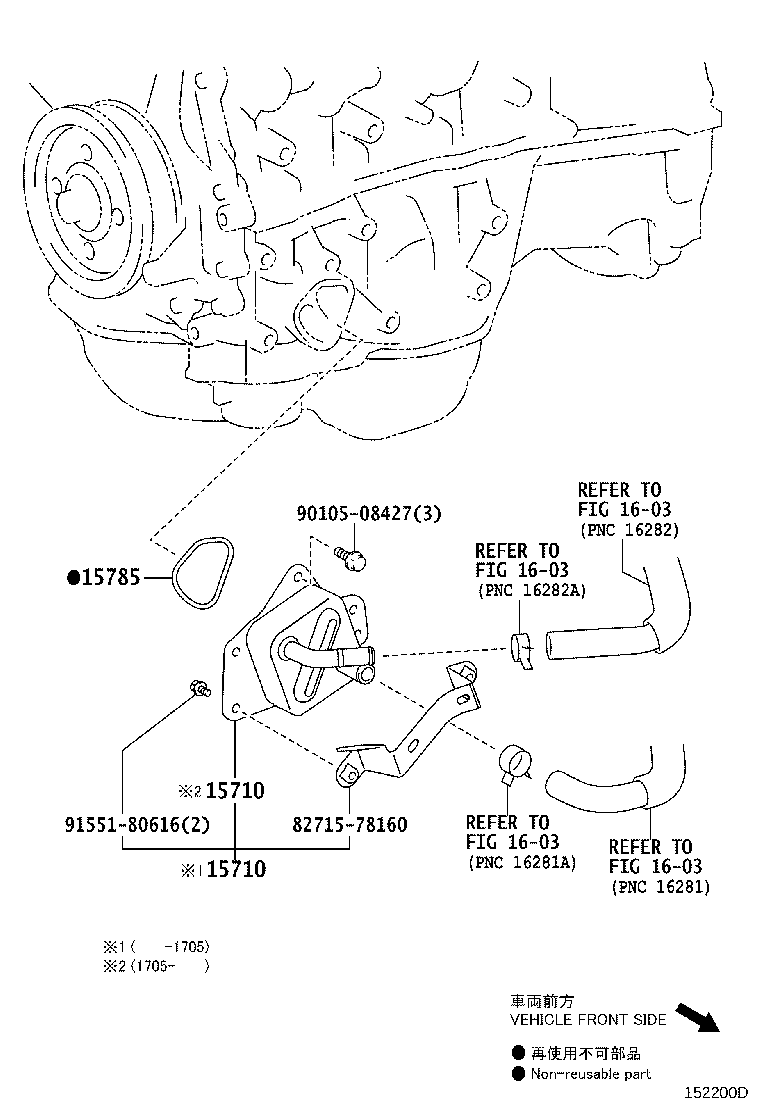

Figure 152200D

152200D 2014-12 → —

Part groups

PNC	Description
15695	Bolt, Oil Cooler Union
15710	Cooler Assy, Oil
15725	Gasket, Oil Cooler Cover
15785	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
