Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

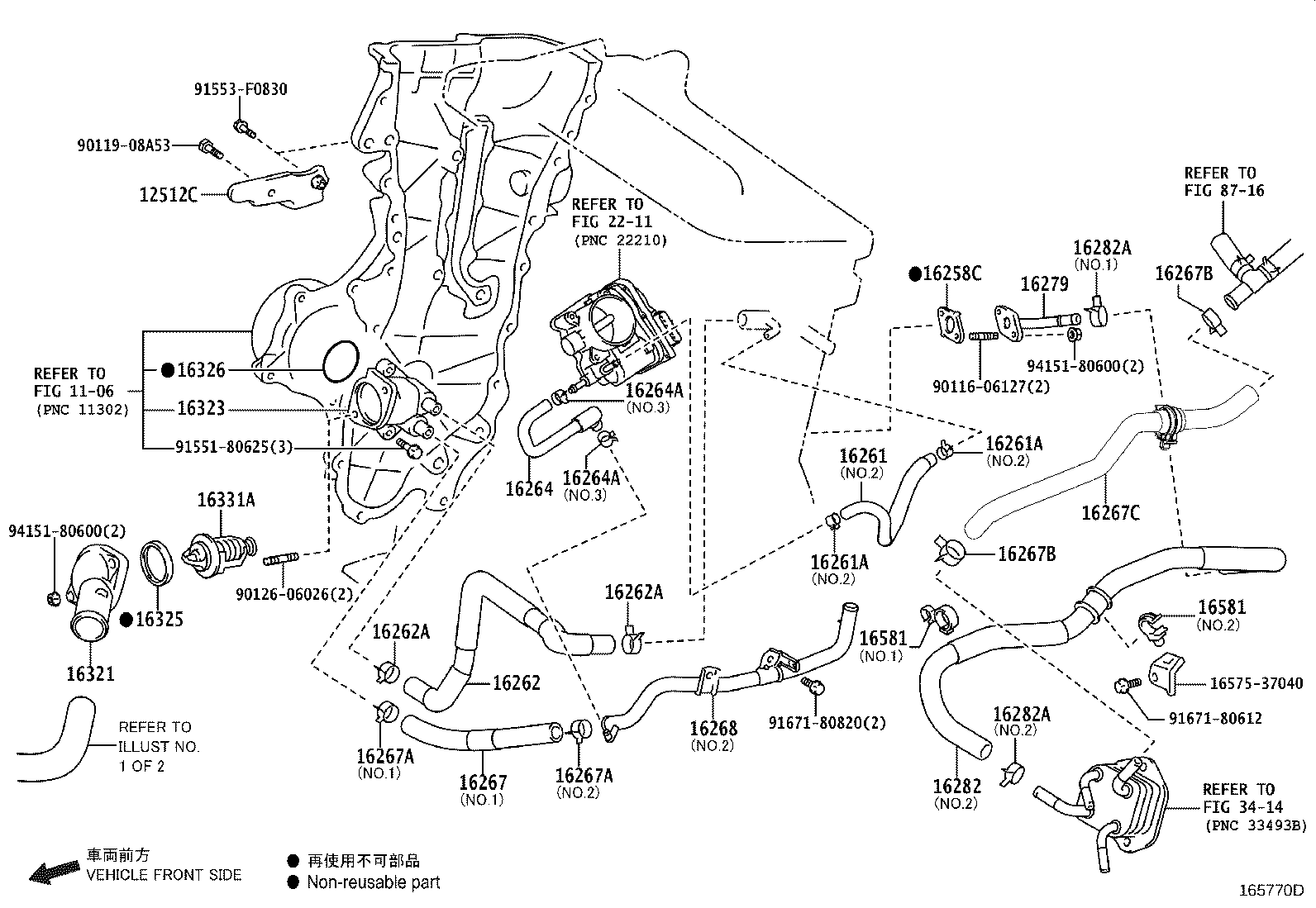

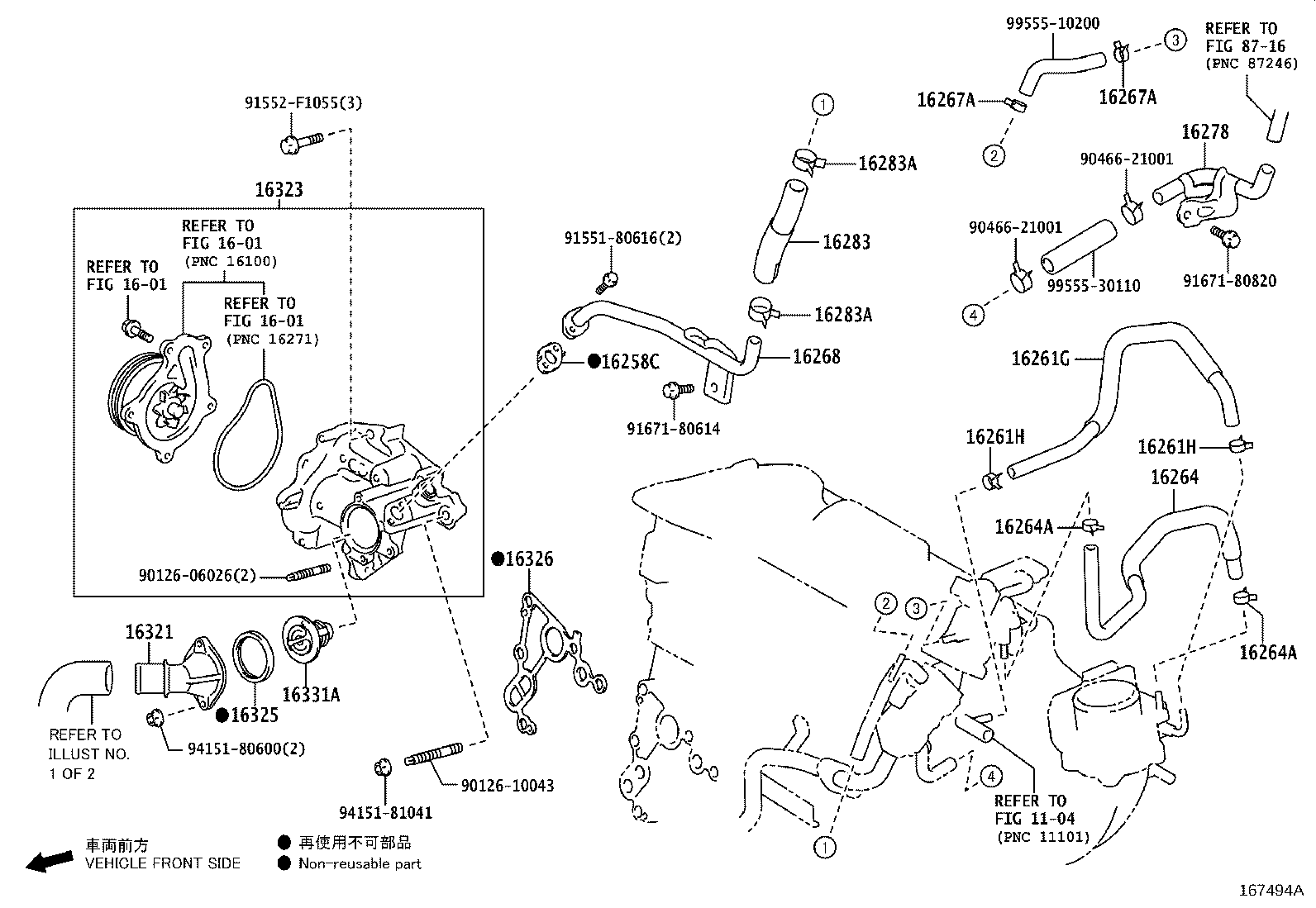

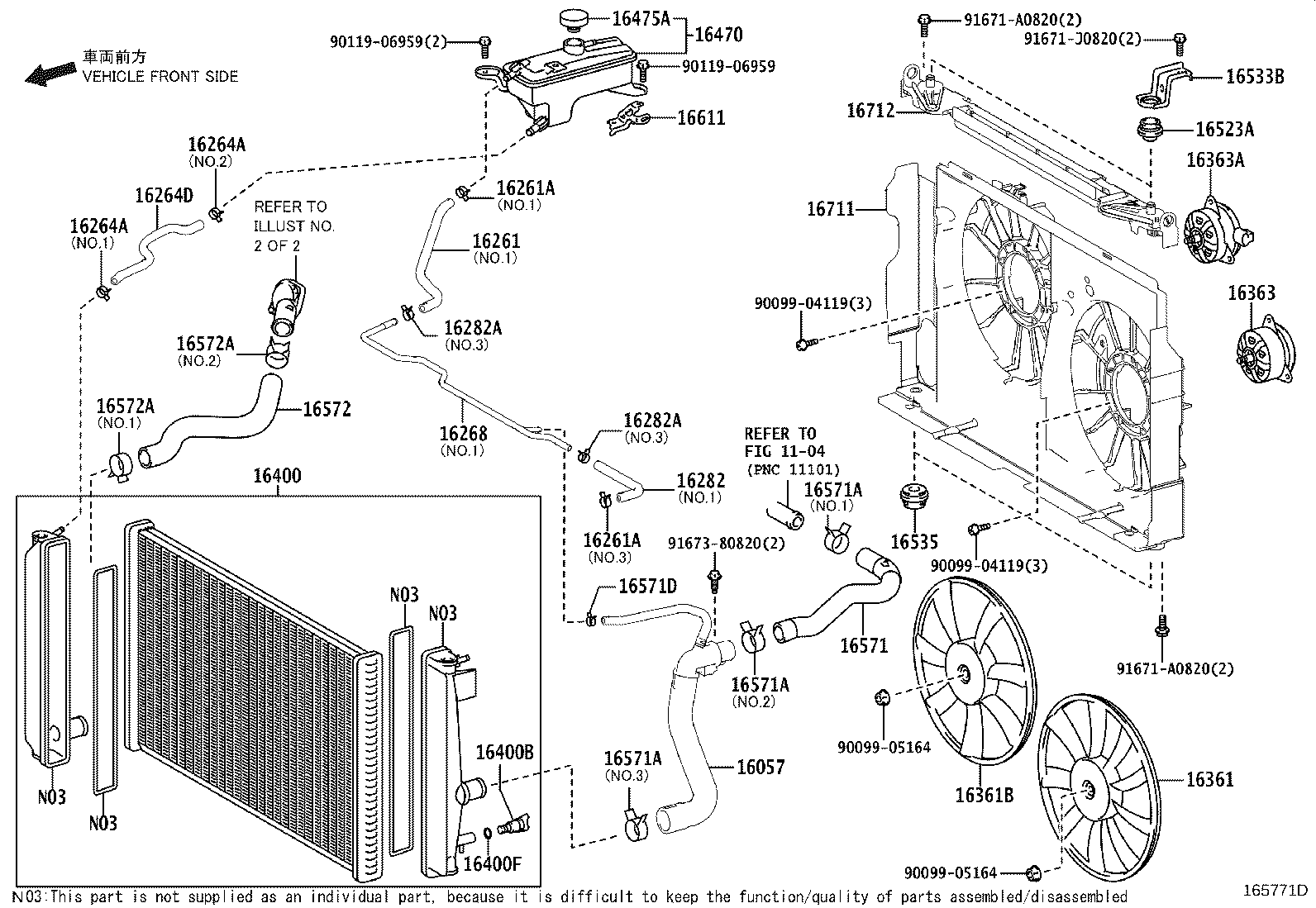

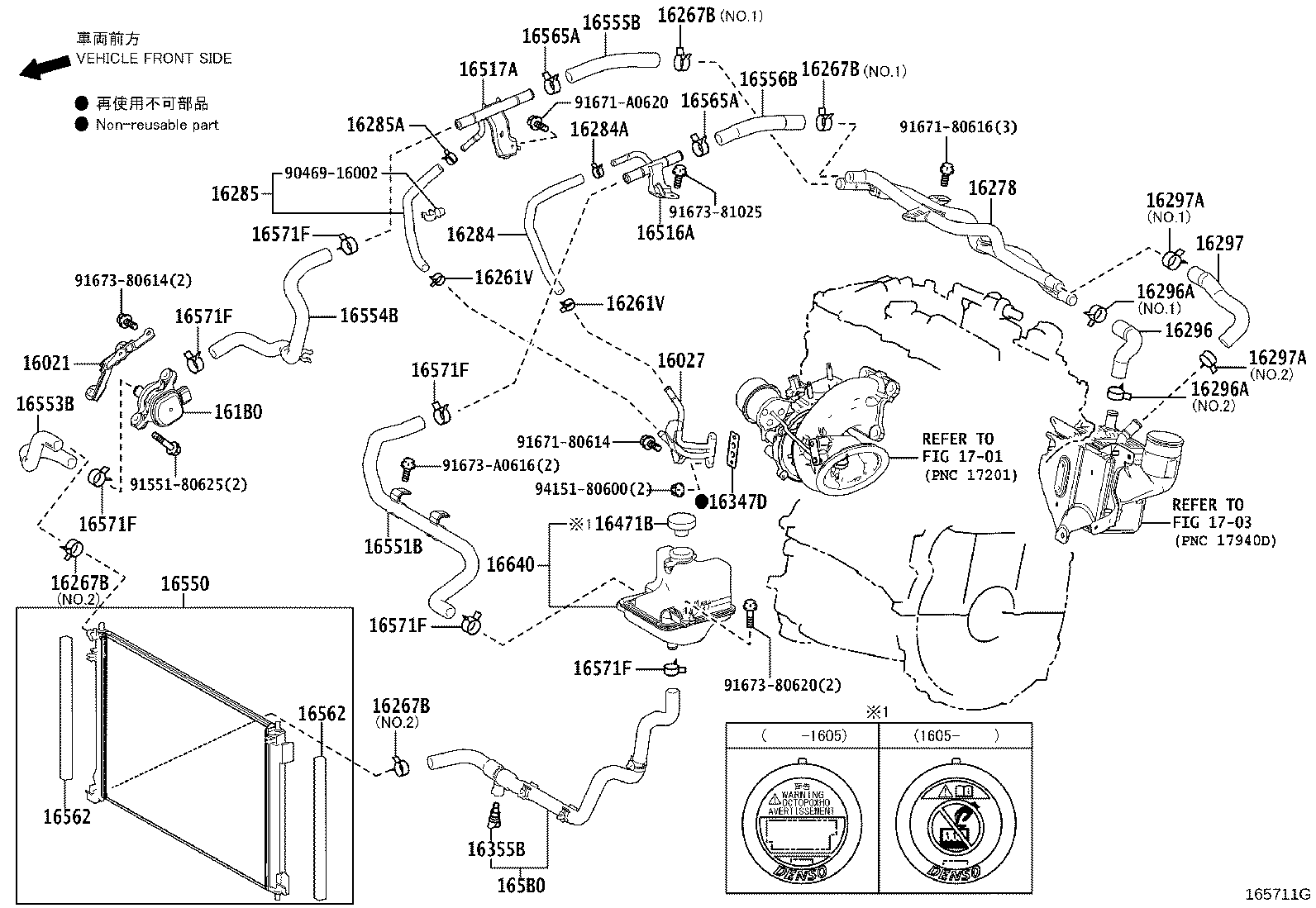

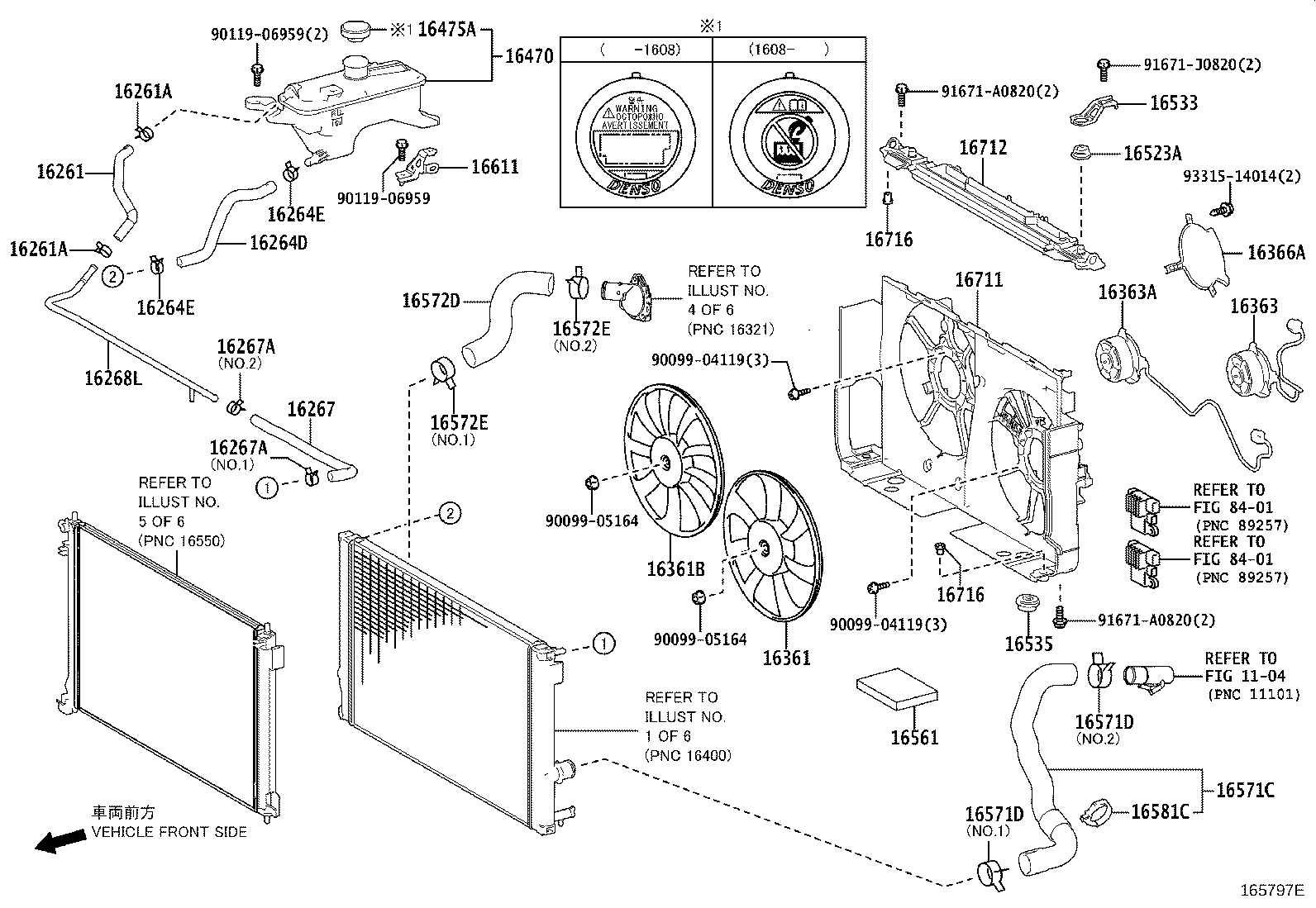

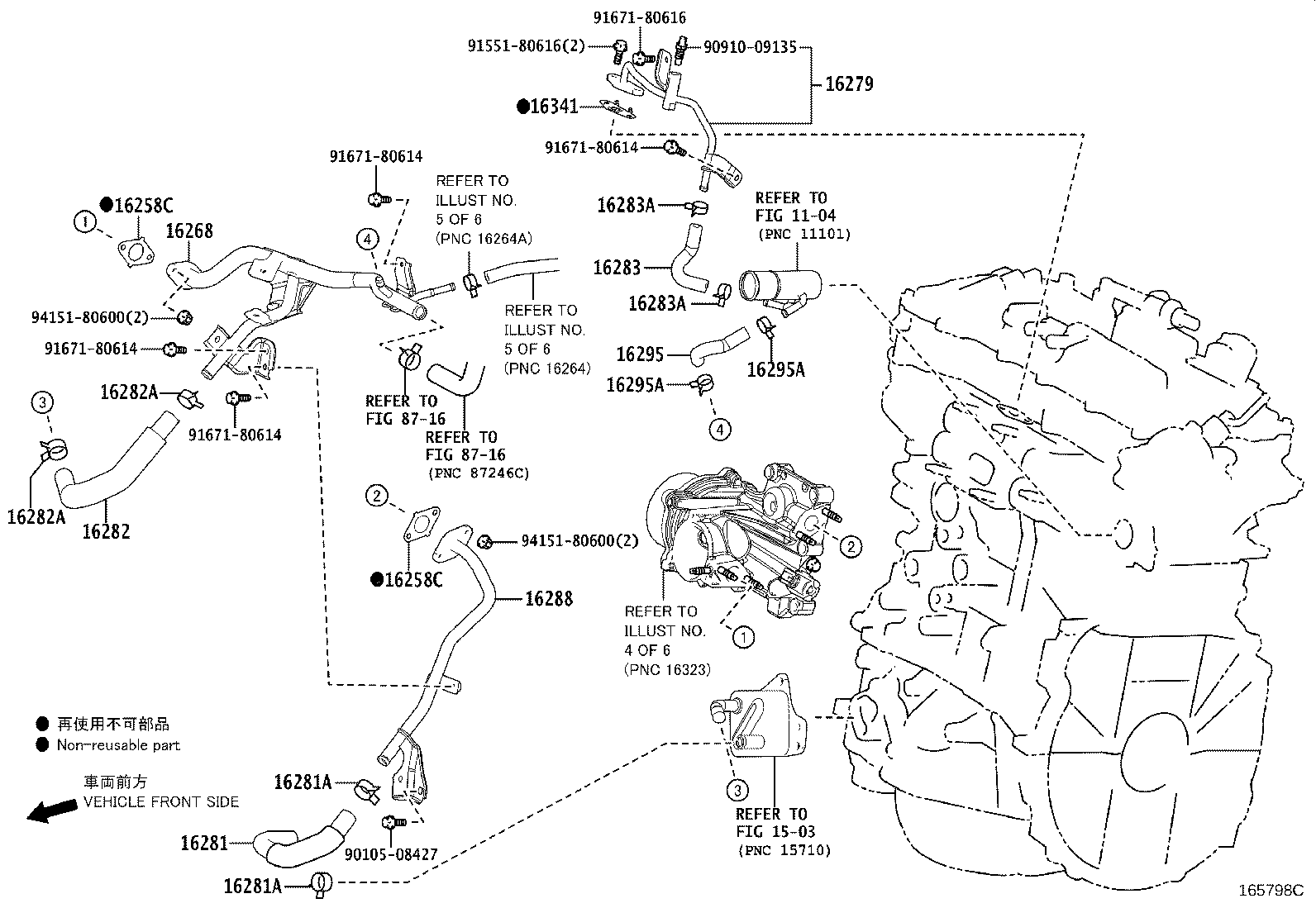

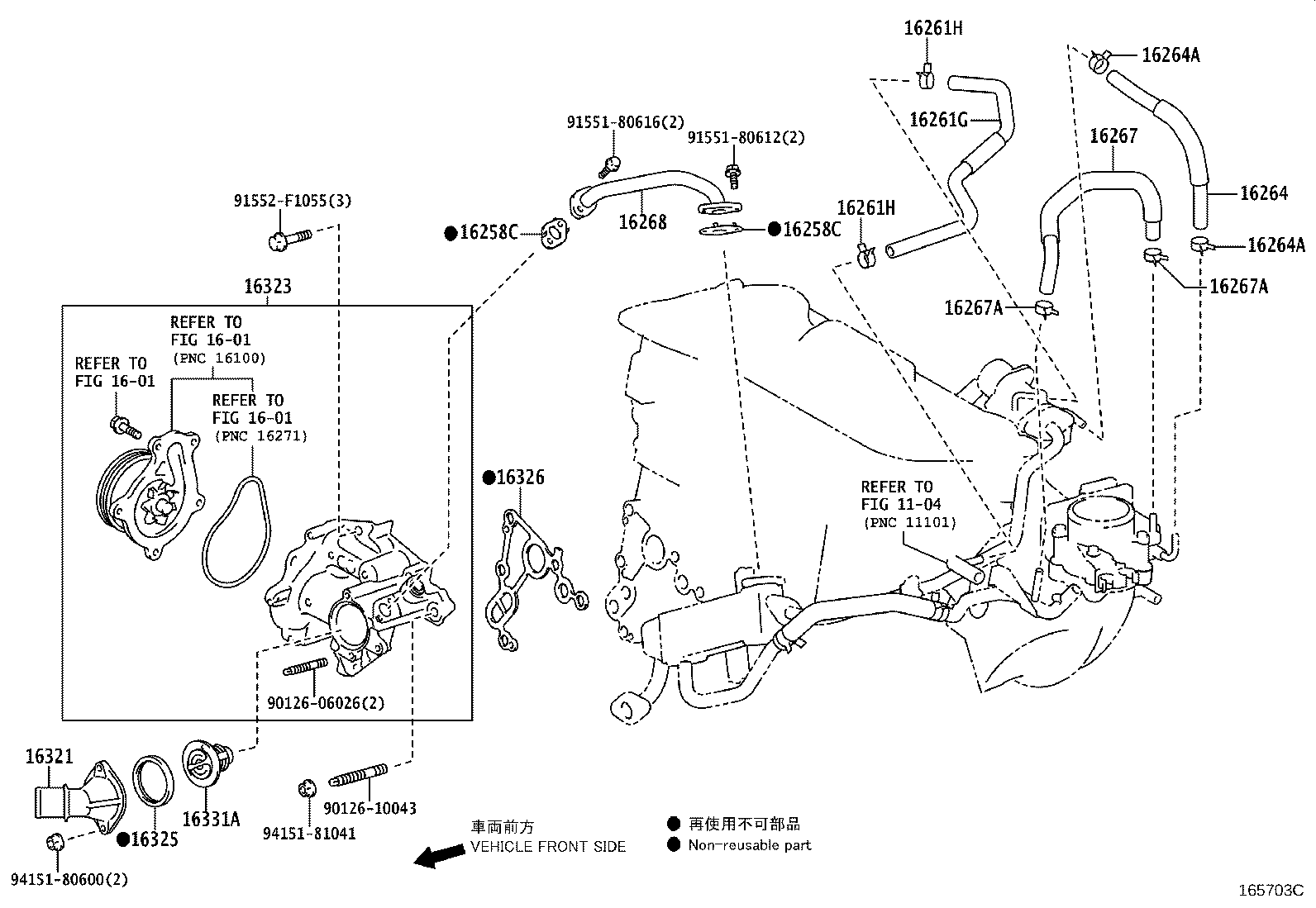

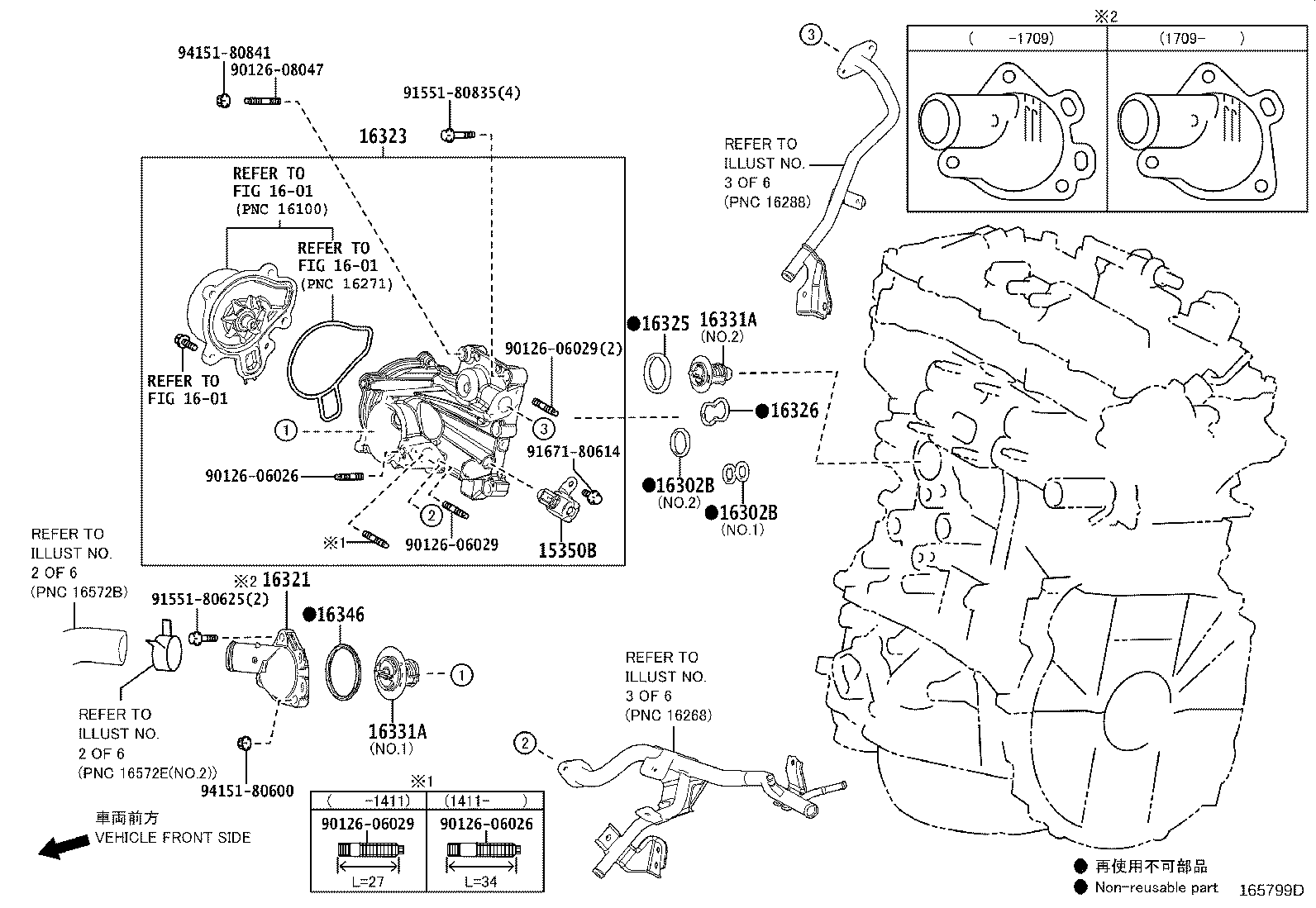

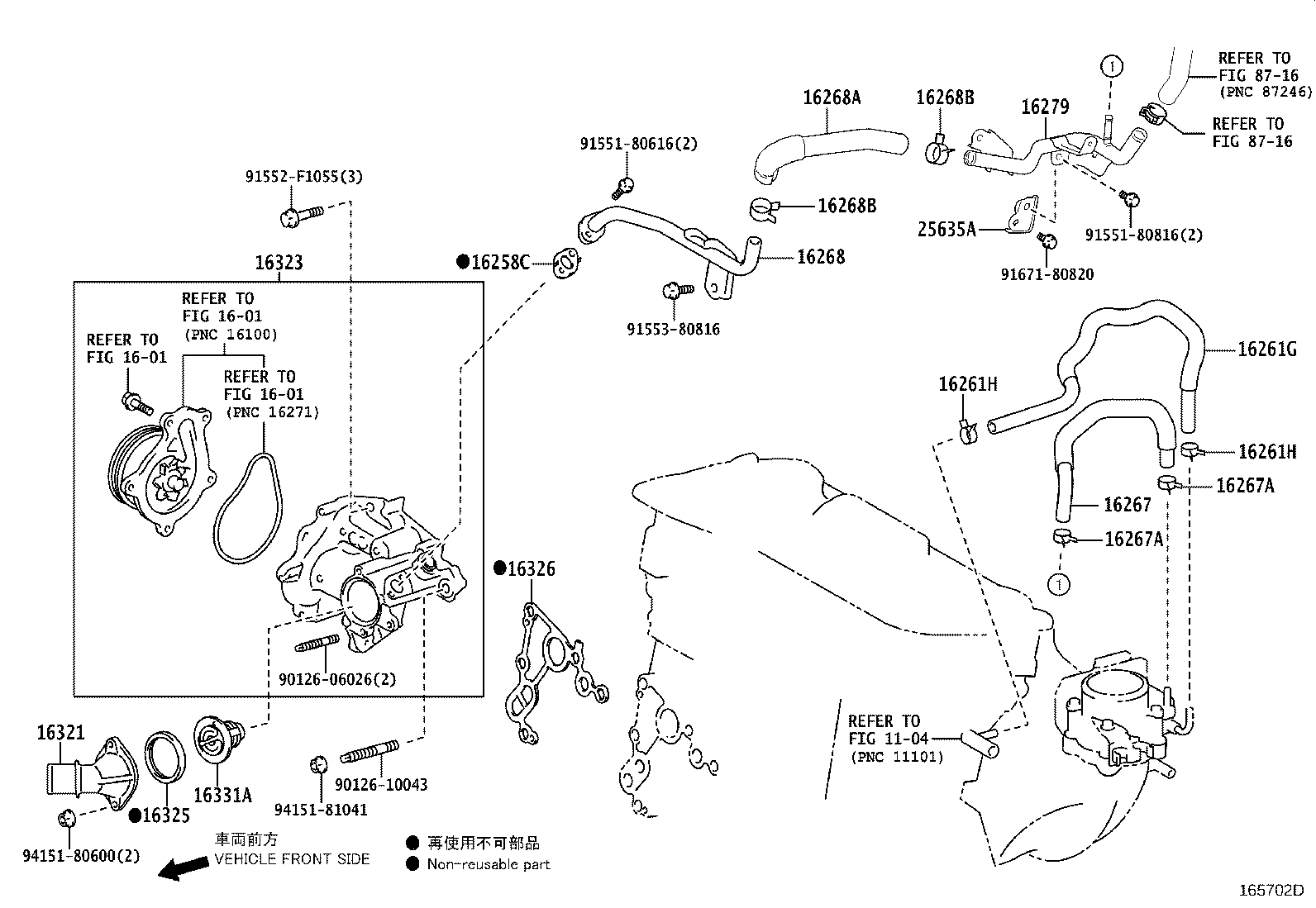

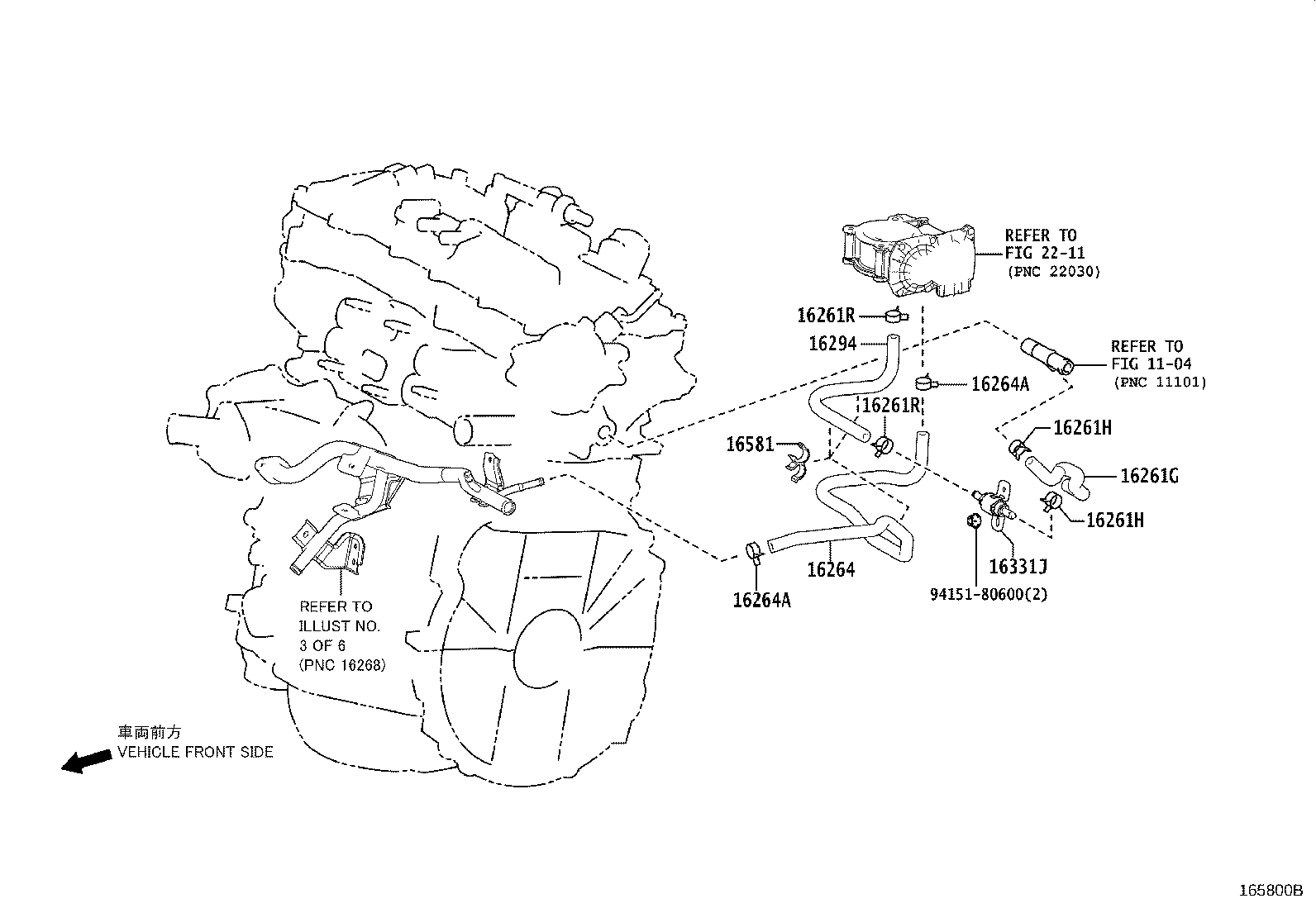

Radiator & Water Outlet
104 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 12512C | Bracket, Alternator, NO.2 |
| 15350B | Valve Assy, Oil Pressure Switching |
| 16021 | Bracket Sub-assy, Water Pump |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16057 | Hose Sub-assy, Radiator |
| 161B0 | Pump Assy, Electric Water |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261R | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267C | Hose, Water By-pass, NO.4 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268A | Hose(FOR WATER BY-PASS PIPE) |
| 16268B | Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) |
| 16268L | Pipe, Water By-pass |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16294 | Hose, Water By-pass, NO.11 |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16302B | Gasket(FOR WATER INLET HOUSING) |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331A | Thermostat |
| 16331J | Thermostat, Manifold |
| 16341 | Gasket, Water Outlet |
| 16346 | Gasket, Thermostat |
| 16347D | Gasket, Water By-pass |
| 16355B | Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT) |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16366A | Insulator, Cooling Fan Motor |

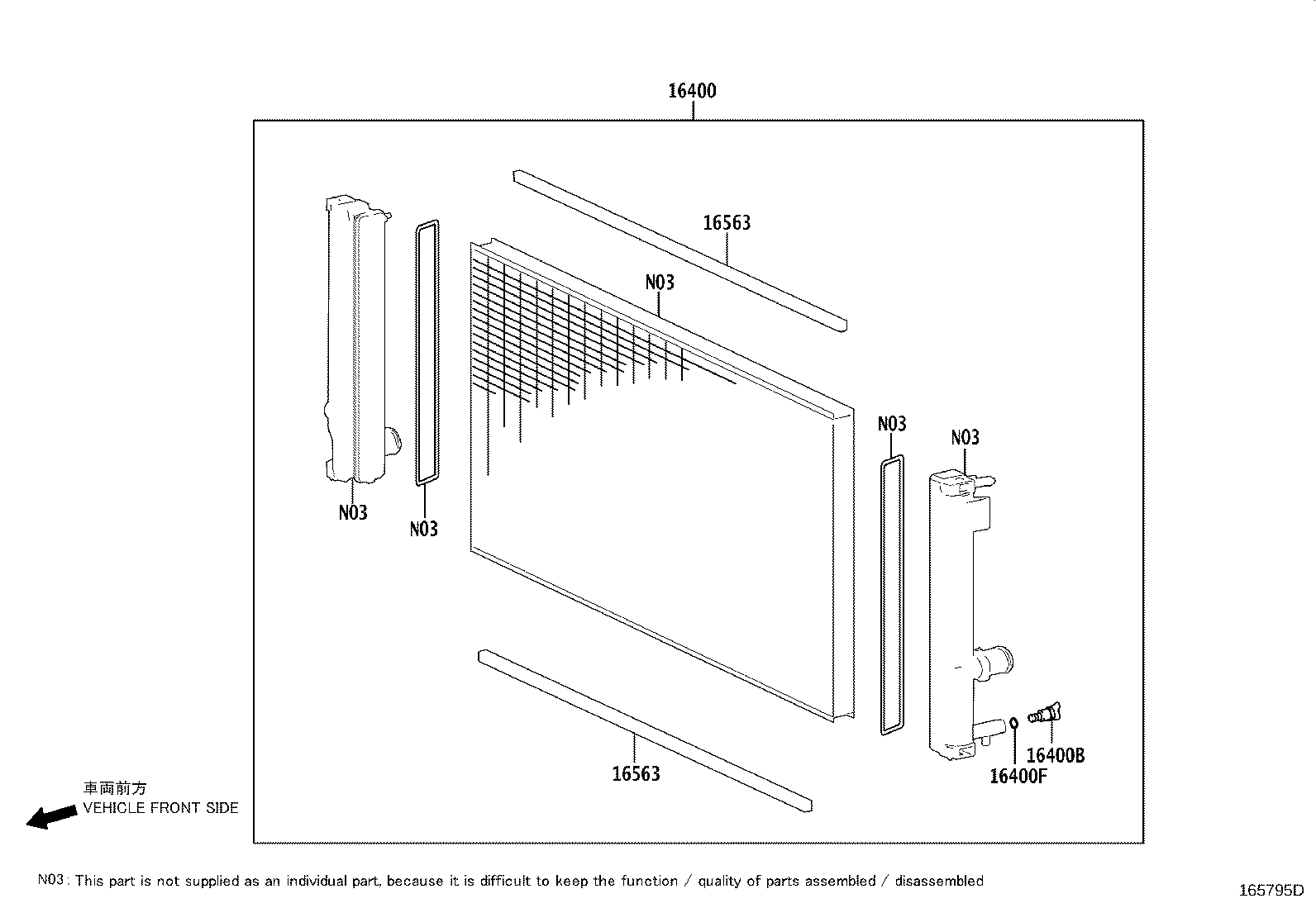

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16471B | Cap, Reserve Tank |
| 16475A | Cap, Reserve Tank |
| 16516A | Pipe, Intercooler Cooling Water, NO.2 |
| 16517A | Pipe, Intercooler Cooling Water, NO.3 |
| 16523A | Cushion, Radiator Support |
| 16533 | Support, Radiator, Upper |
| 16533B | Support, Radiator, NO.1 |
| 16535 | Support, Radiator, Lower |
| 16550 | Radiator Assy, Intercooler Cooling |
| 16551B | Hose, Sub-radiator, NO.1 |
| 16553B | Hose, Sub Radiator, NO.3 |
| 16554B | Hose, Sub Radiator, NO.4 |
| 16555B | Hose, Sub Radiator, NO.5 |
| 16556B | Hose, Sub-radiator, NO.6 |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16563 | Seal, Radiator TO Support, NO.3 |
| 16565A | Clip |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16571F | Clamp OR Clip(FOR WATER HOSE) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16581C | Clamp, Hose(FOR RADIATOR HOSE NO.2) |
| 165B0 | Hose Assy, Intercooler Cooling Water, NO.2 |
| 16611 | Bracket, Radiator Reserve Tank |
| 16640 | Tank Assy, Intercooler Reserve |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
| 16716 | Cushion, Fan Shroud |
| 25635A | Bracket, Egr Pipe, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
