Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11
Manifold
40 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

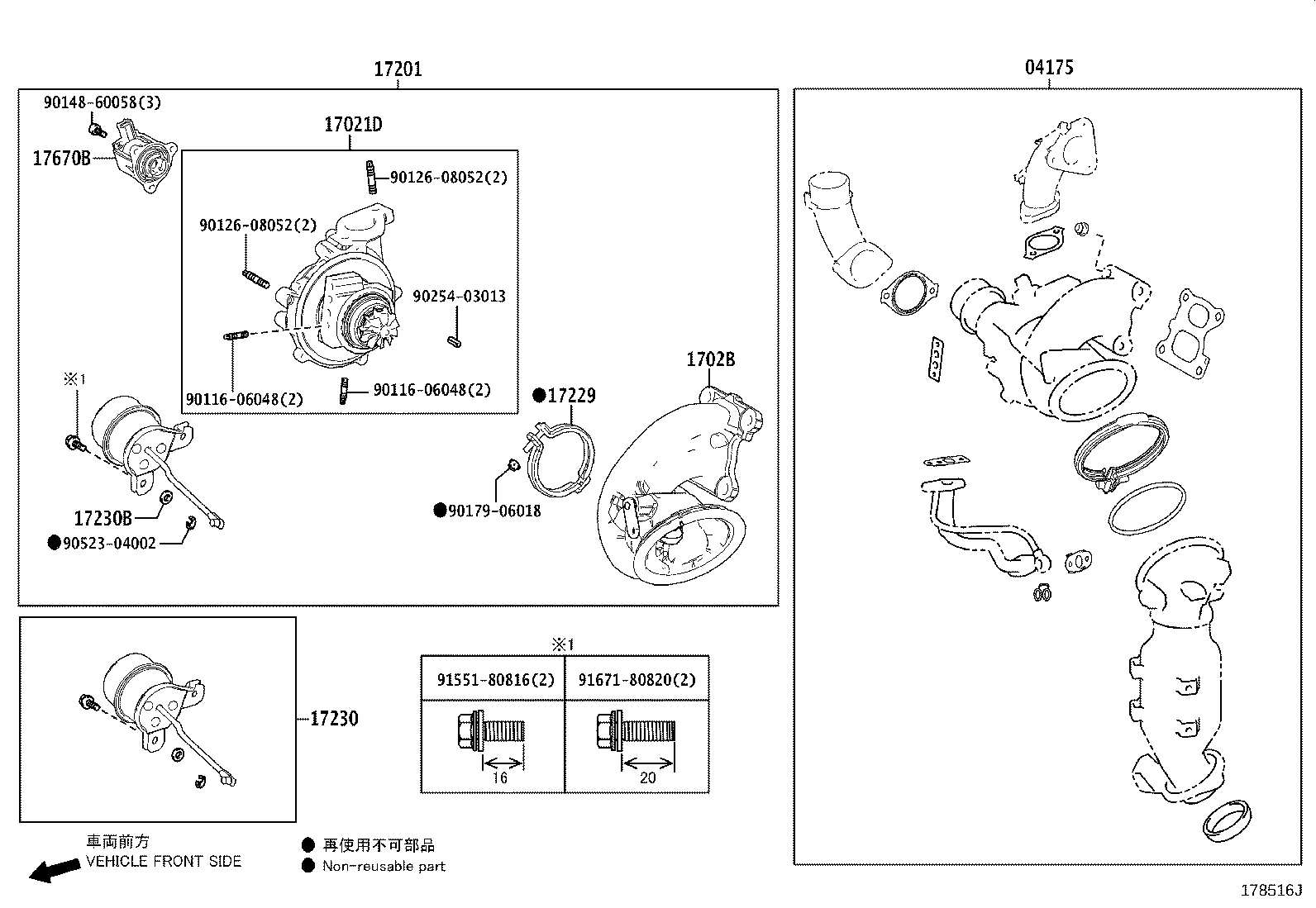

| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15481A | Bolt, Union, NO.1 |
| 15481B | Gasket(FOR UNION BOLT NO.1) |
| 17021D | Housing Sub-assy, Bearing, W/Compressor Housing |
| 1702B | Housing Sub-assy, Turbine W/Valve |

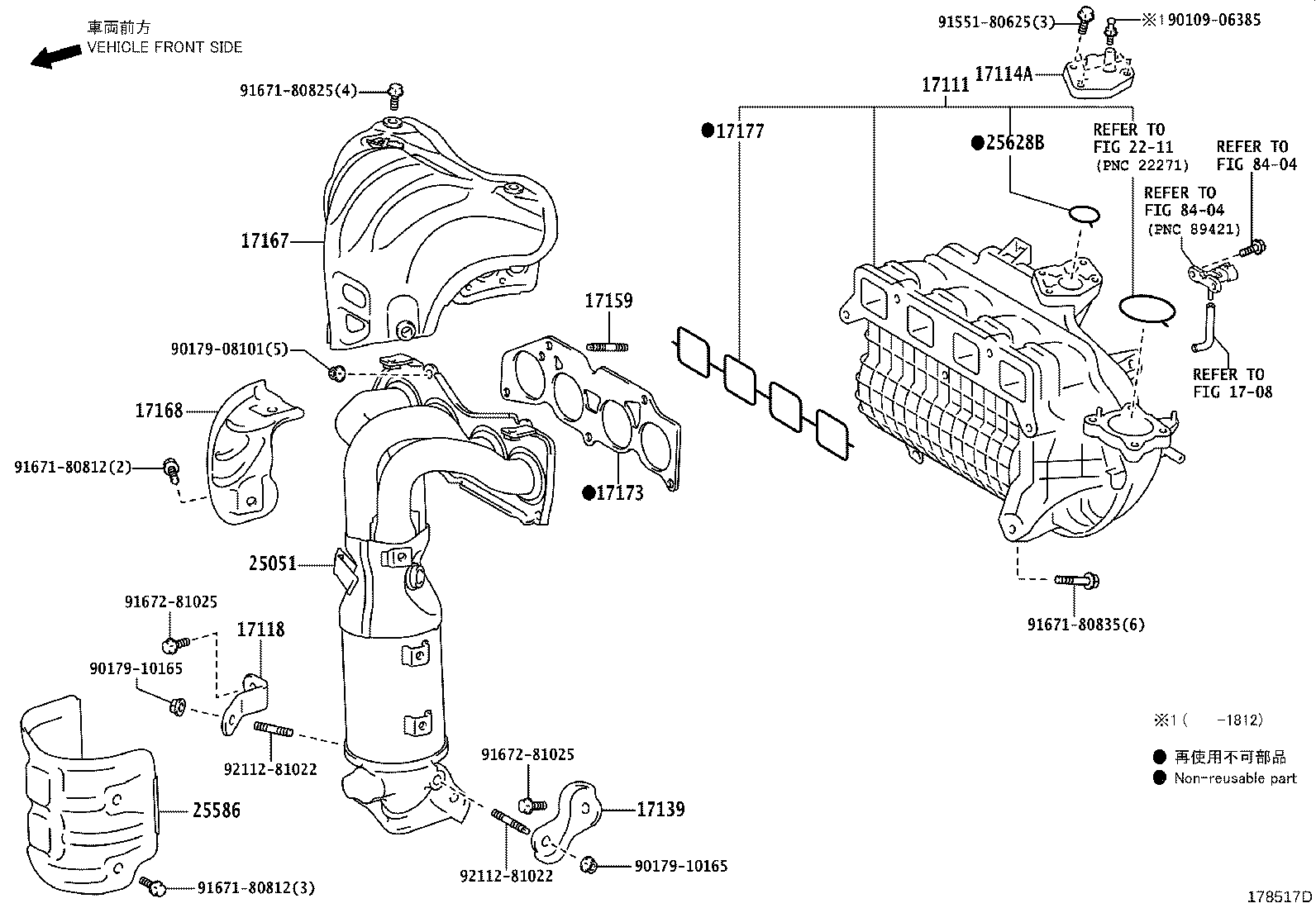

| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17114A | Flange, Intake |
| 17118 | Stay, Manifold |
| 17138B | Stay, Intake Manifold |
| 17139 | Stay, Manifold, NO.2 |

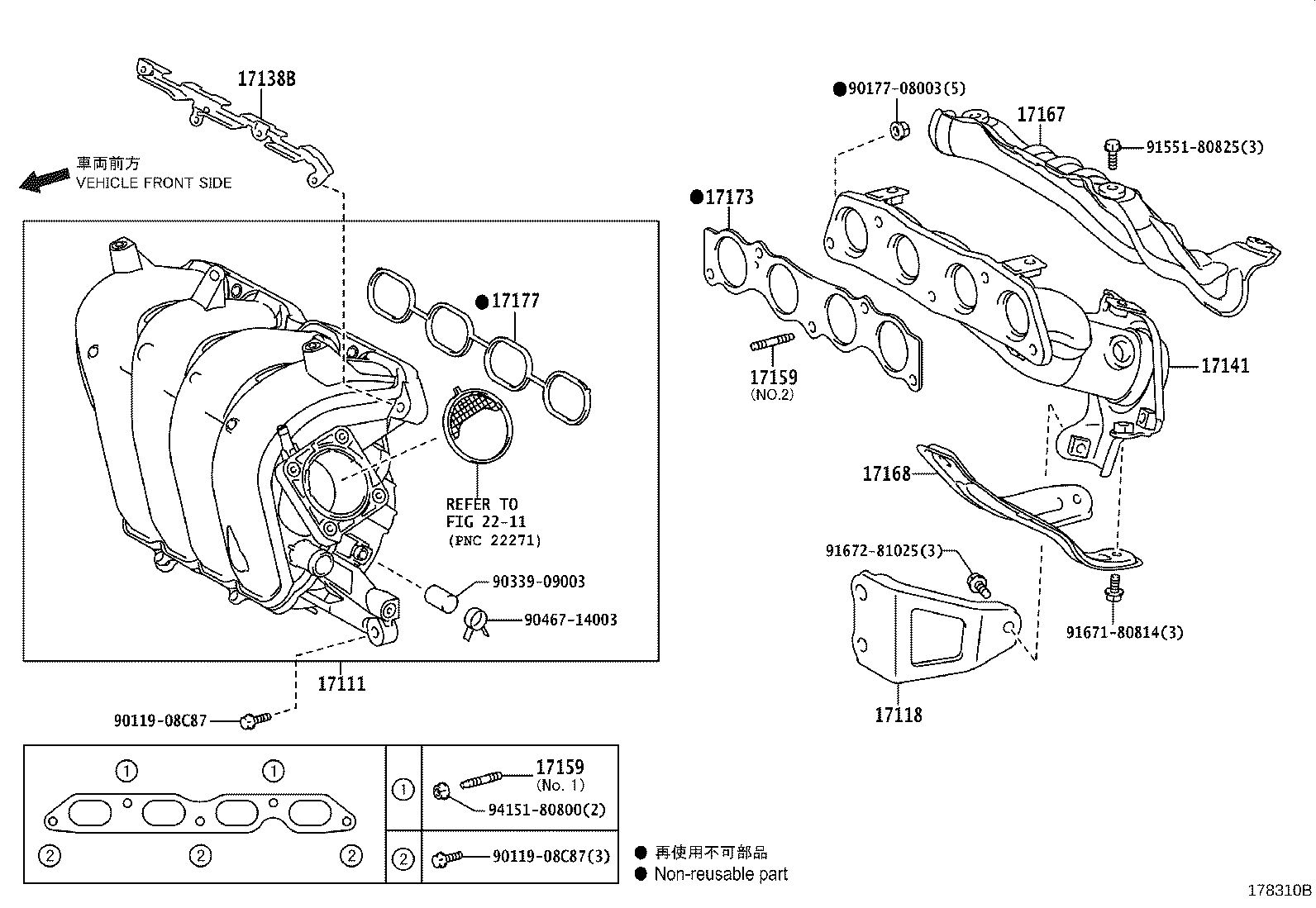

| 17141 | Manifold, Exhaust |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17155B | Insulator, Exhaust Manifold Heat, NO.5 |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17166 | Insulator, Exhaust Manifold Heat,NO.4 |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |

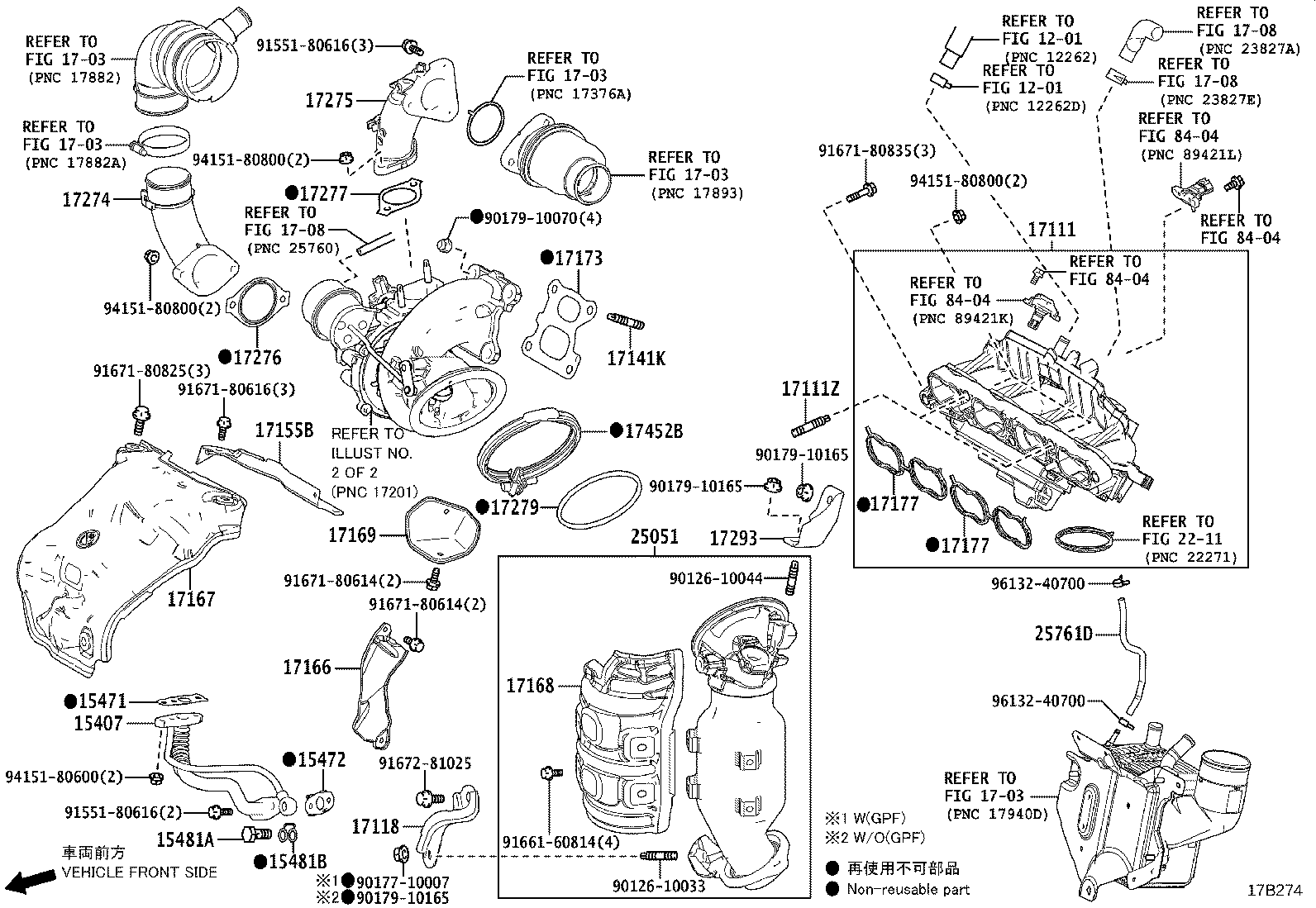

| 17201 | Turbocharger Sub-assy |
| 17229 | Band, V |
| 17230 | Actuator Assy, W/Bracket |
| 17230B | Washer, Plate(FOR REPAIR ACTUATOR SET) |
| 17274 | Elbow, Compressor Inlet |
| 17275 | Elbow, Compressor Outlet |
| 17276 | Gasket, Compressor Inlet |
| 17277 | Gasket, Compressor Outlet |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17293 | Stay, Turbocharger |
| 17452B | Clamp, Exhaust Pipe |
| 17670B | Valve Assy, Air By-pass |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25628B | Gasket, Egr Inlet |
| 25761D | Hose, Vaccum Transmitting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
