Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

18 part groups · 3 illustrations

Illustrations

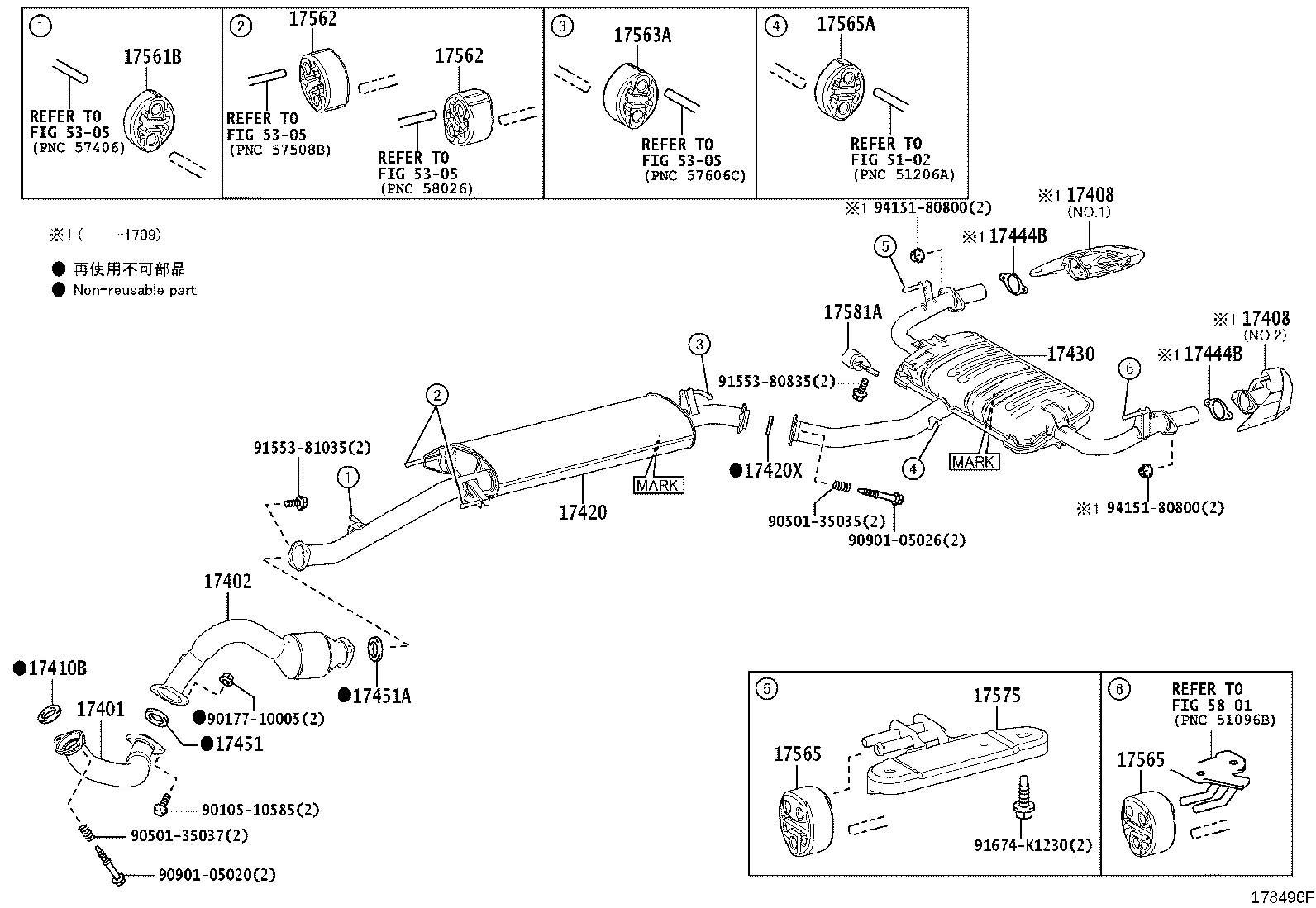

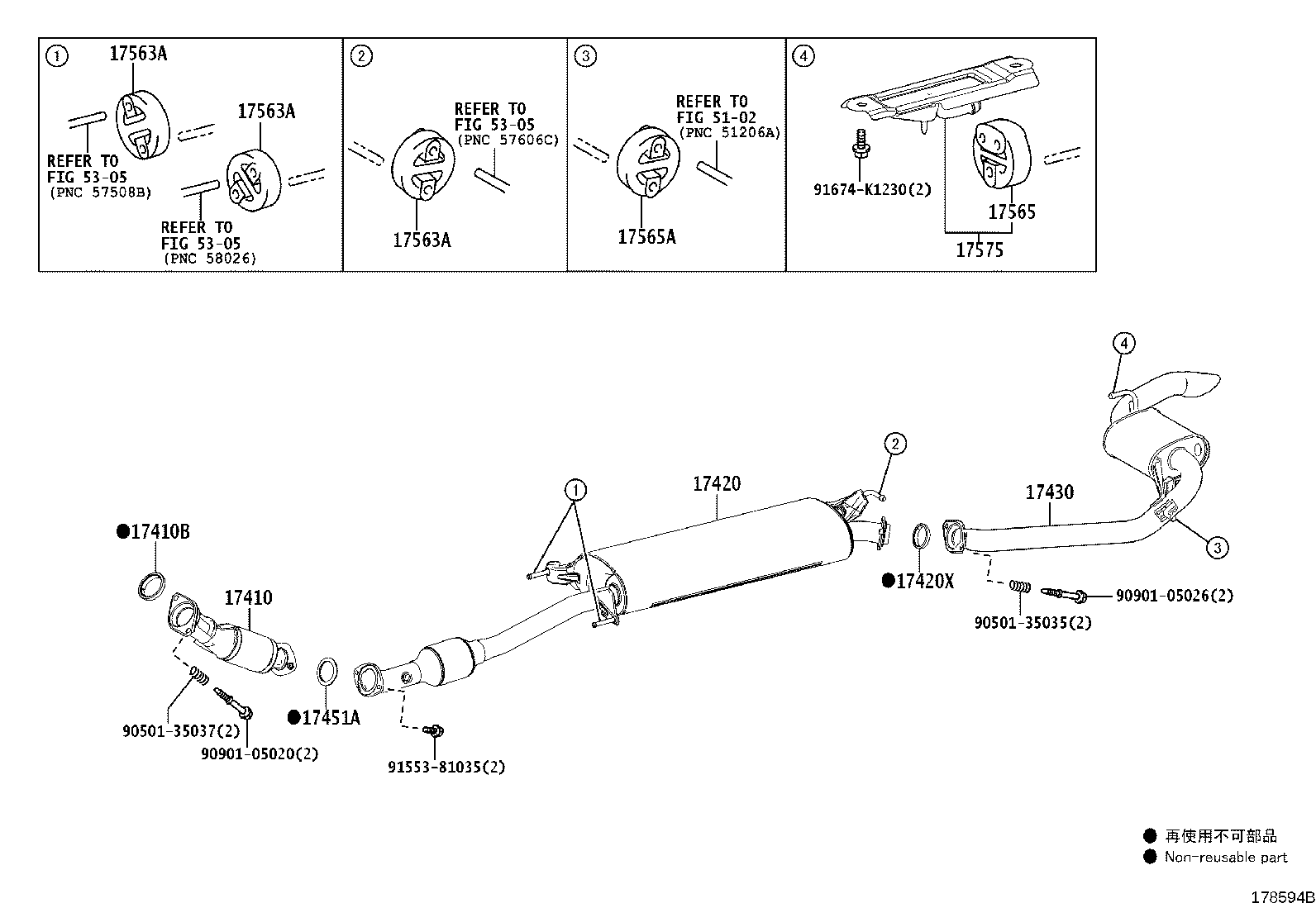

Figure 178497C 178497C 2014-07 → — Figure 178496F 178496F 2014-12 → — Figure 178594B 178594B 2014-12 → —

Part groups

PNCDescription
17401 Pipe Sub-assy, Exhaust, Front
17402 Pipe Sub-assy, Exhaust, Front NO.2
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17444B Spacer, Exhaust Pipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
