Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11
Fuel Injection System

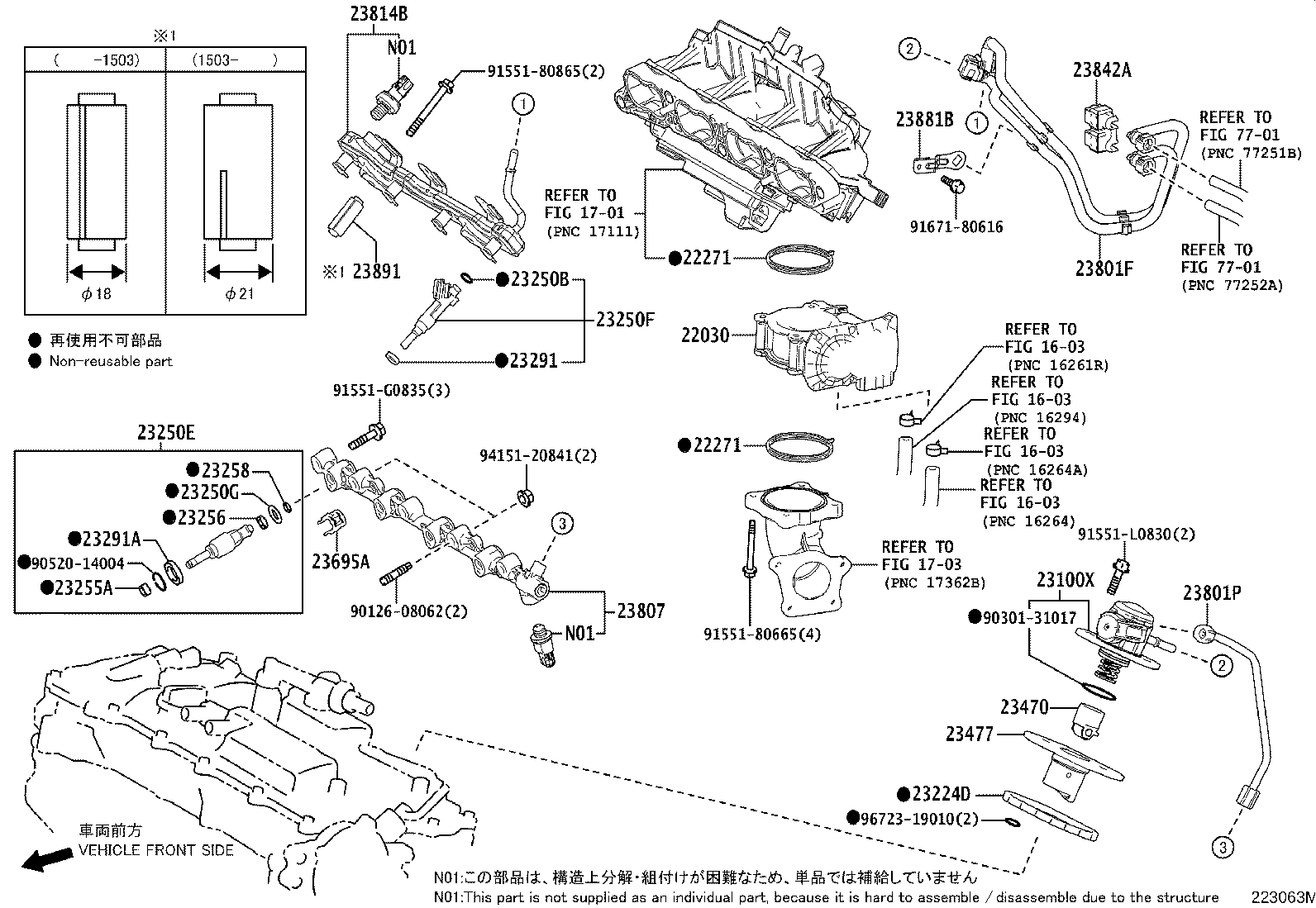

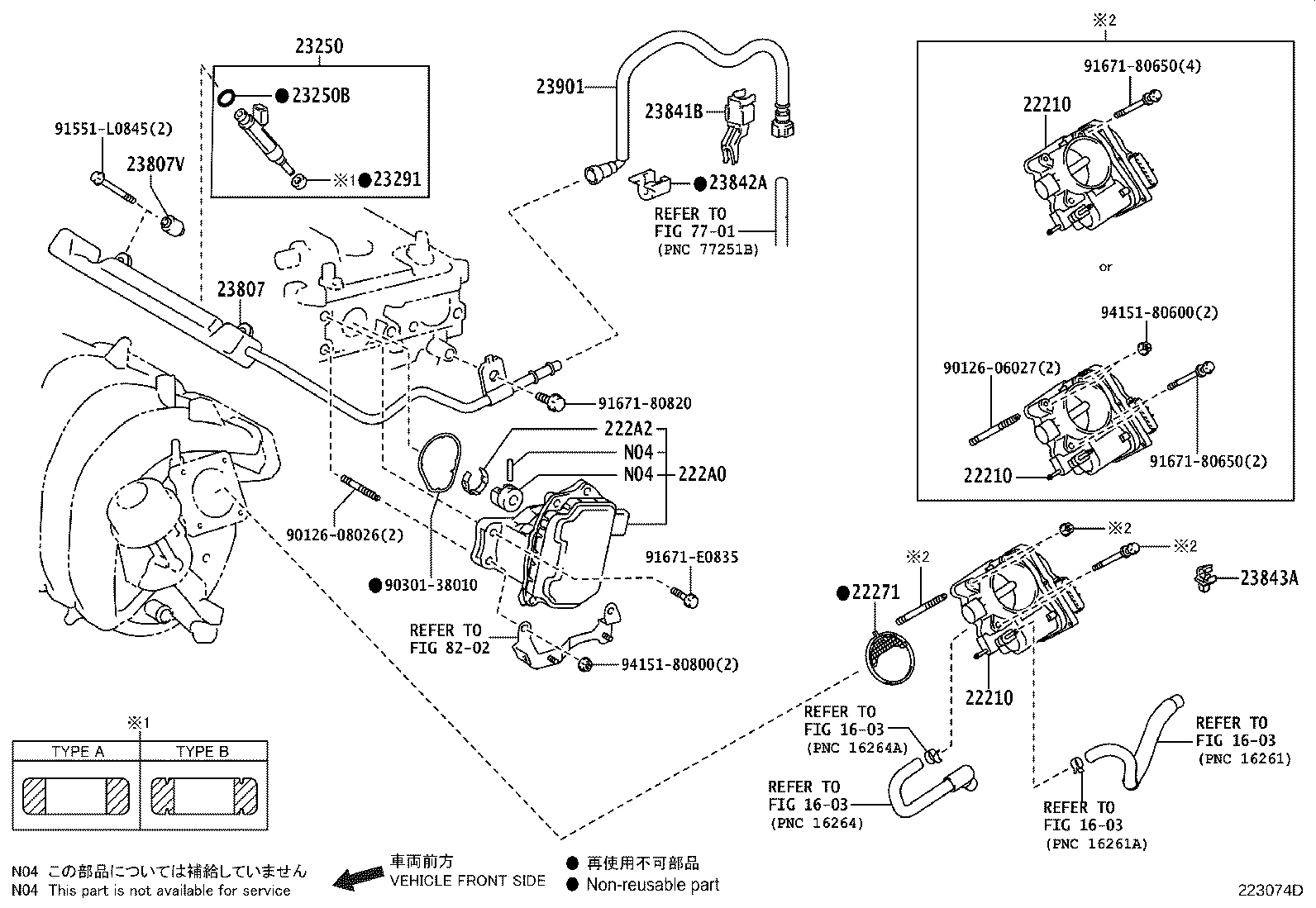

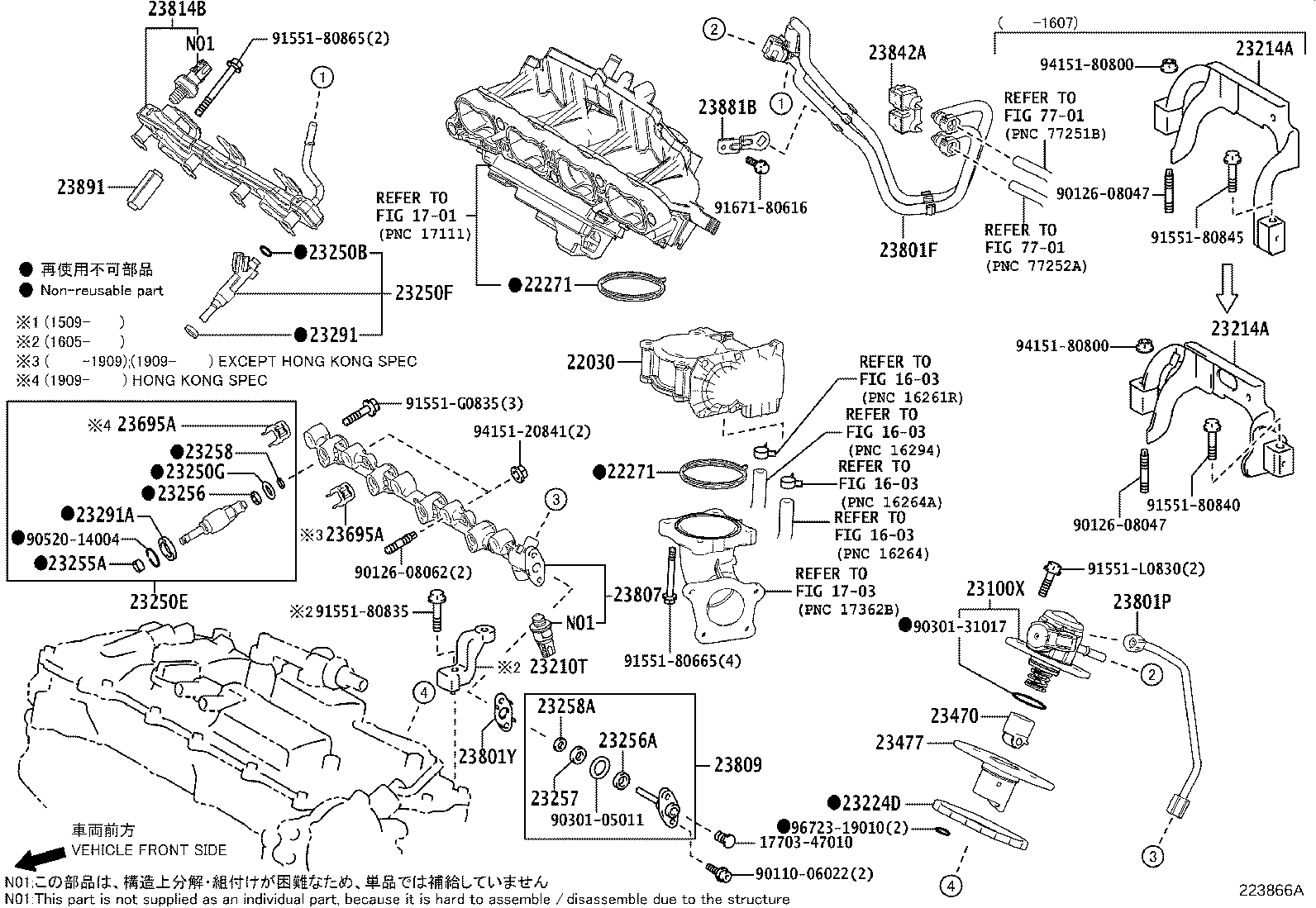

38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22210 | Body Assy, Throttle |
| 22271 | Gasket, Throttle Body |
| 222A0 | Controller Assy, Continuously Variable Valve Lift |
| 222A2 | Clip, Valve Lift Control Actuator Connector |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23210T | Bracket, Fuel Pump |
| 23214A | Protector, Fuel Pump |
| 23224D | Gasket, Fuel Pump Spacer |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250E | Injector Assy, Fuel(FOR DIRECT) |
| 23250F | Injector Assy, Fuel(FOR PORT) |
| 23250G | Ring, O, NO.2(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23256A | Ring, Fuel Pipe, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23258A | Ring, Fuel Pipe, NO.3 |
| 23291 | Insulator, Injector Vibration |
| 23291A | Insulator, Injector Vibration |
| 23470 | Lifter Assy, Fuel Pump |
| 23477 | Guide, Fuel Pump Lifter |
| 23695A | Clamp, Nozzle Holder |
| 23801F | Hose, Fuel, NO.1 |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23801Y | Gasket |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23809 | Support Sub-assy, Fuel Pipe |
| 23814B | Pipe, Fuel Delivery |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23843A | Clamp,Fuel Pipe, NO.3(FOR EFI) |
| 23881B | Bracket, Fuel Hose |
| 23891 | Spacer, Fuel Delivery |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
