Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

12 part groups · 4 illustrations

Illustrations

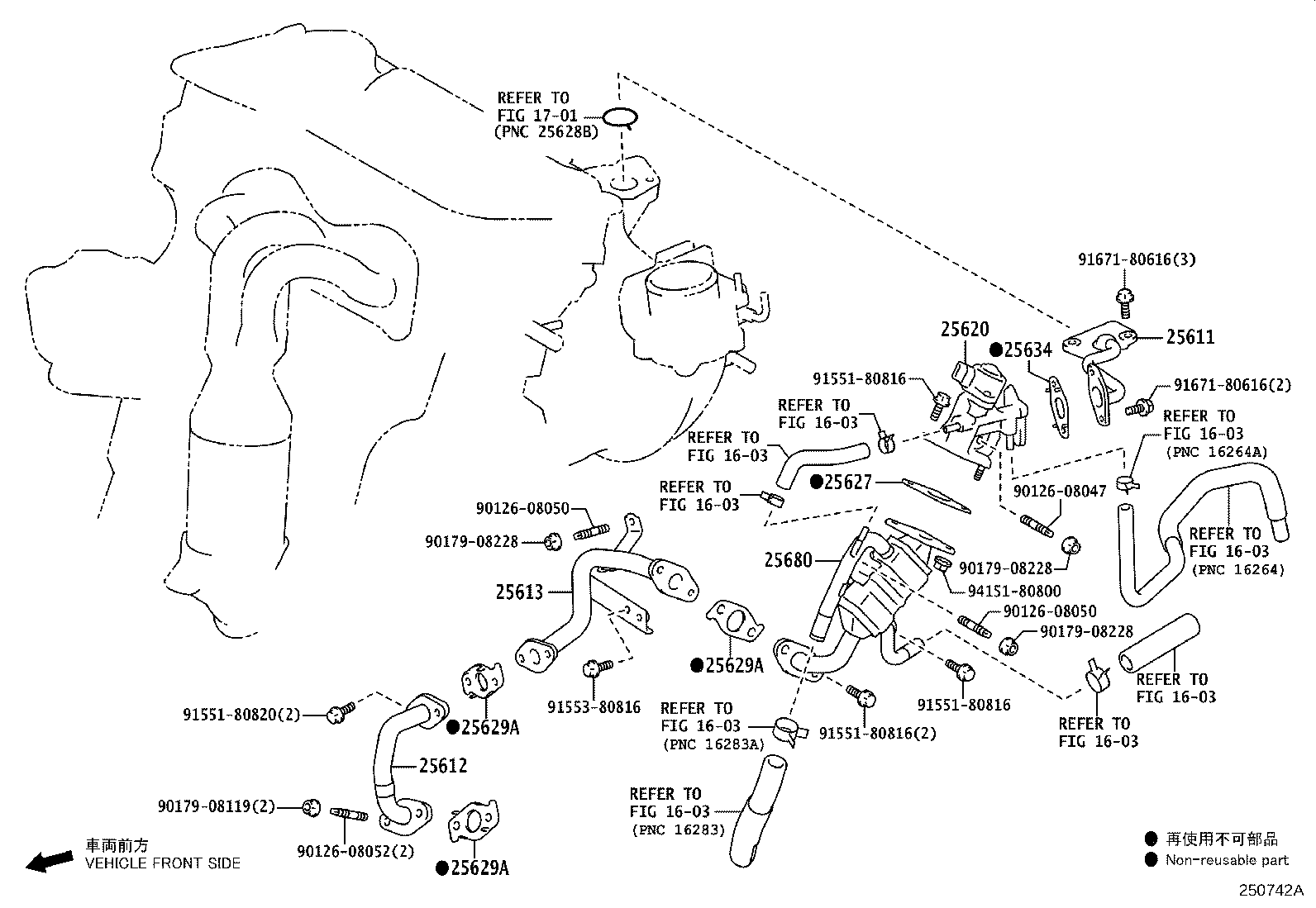

Figure 250520E 250520E 2014-07 → 2020-04 Figure 250520E 250520E 2020-04 → — Figure 250742A 250742A 2020-04 → — Figure 250737A 250737A 2019-05 → 2020-04

Part groups

PNCDescription
25611 Connector, Egr Pipe
25611A Pipe, Egr, NO.1
25612 Pipe, Egr, NO.2
25613 Pipe, Egr, NO.3
25620 Valve Assy, Egr
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25627 Gasket, Egr Valve
25629A Gasket, Egr Pipe, NO.2
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25680 Cooler Assy, Egr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
