Oil Cooler & Tube (ATM)

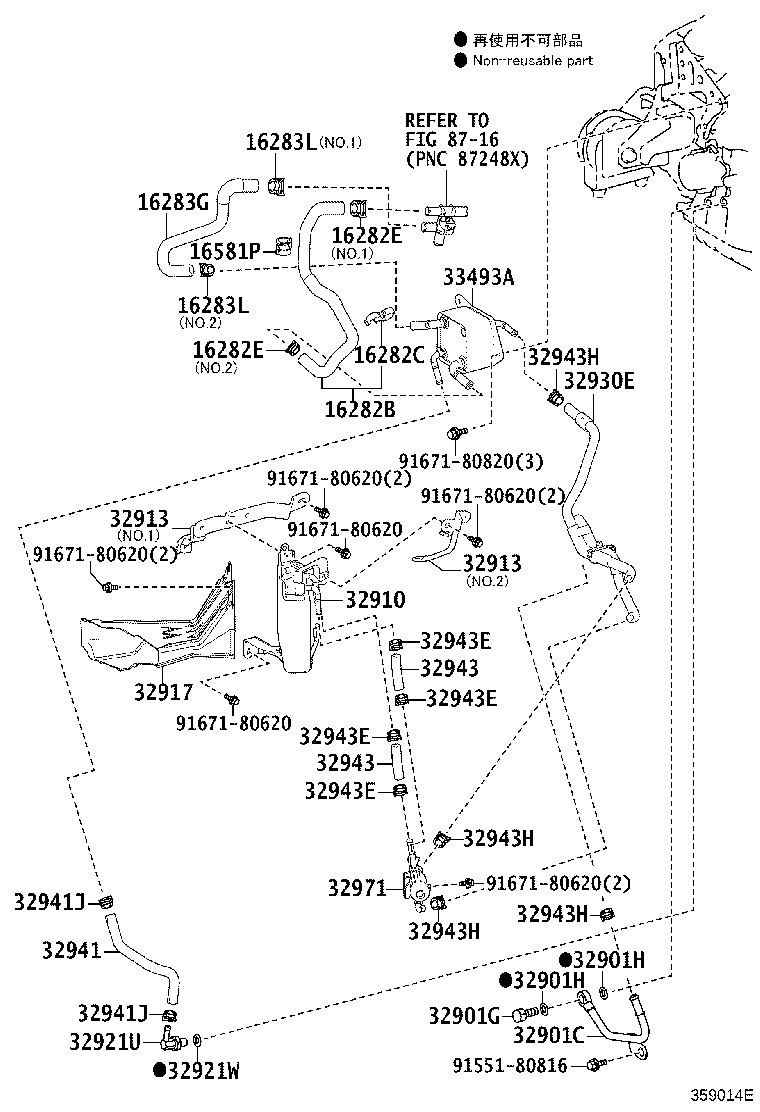

24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16282B | Hose, Water By-pass, NO.5 |
| 16282C | Clamp(FOR WATER BY-PASS HOSE NO.5) |
| 16282E | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283G | Hose, Water By-pass, NO.6 |
| 16283L | Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16581P | Clamp, Hose(FOR WATER BY-PASS HOSE NO.6) |
| 32901C | Union Sub-assy, Oil Cooler |
| 32901G | Bolt, Union(FOR OIL COOLER) |
| 32901H | Gasket(FOR OIL COOLER UNION) |
| 32910 | Cooler Assy, Oil |
| 32913 | Bracket, Oil Cooler |
| 32917 | Duct, Transmission Oil Cooler Air |
| 32921U | Elbow(FOR OIL COOLER TUBE) |
| 32921W | Ring, O(FOR OIL COOLER TUBE ELBOW) |
| 32930E | Hose Assy, Transmission Oil Cooler, NO.1 |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
| 32943H | Clip, NO.4(FOR OIL COOLER HOSE) |
| 32971 | Thermostat, Transmission Oil |
| 33493A | Cooler, Transmission Oil(ATF WARMER) |
