Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

17 part groups · 3 illustrations

Illustrations

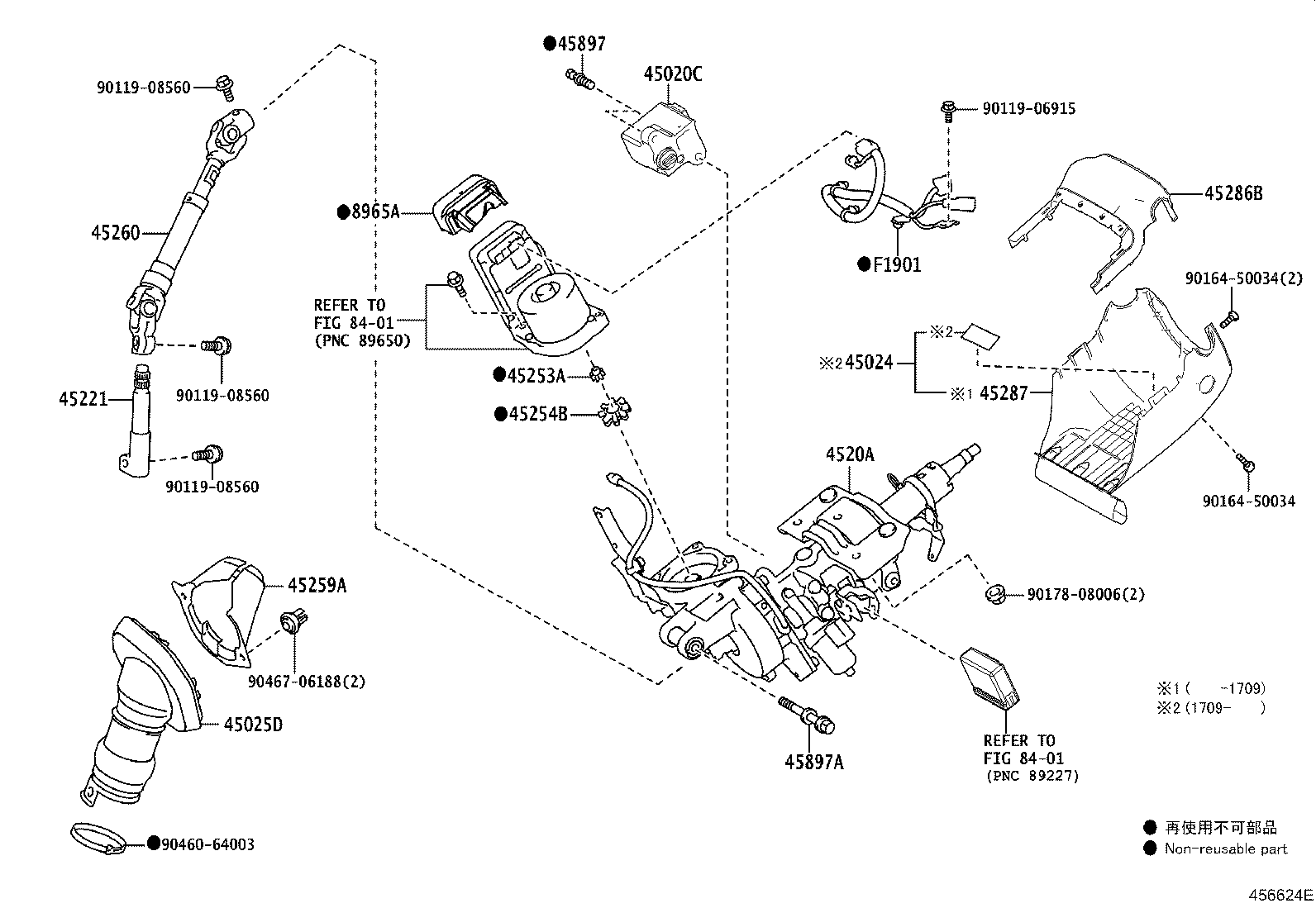

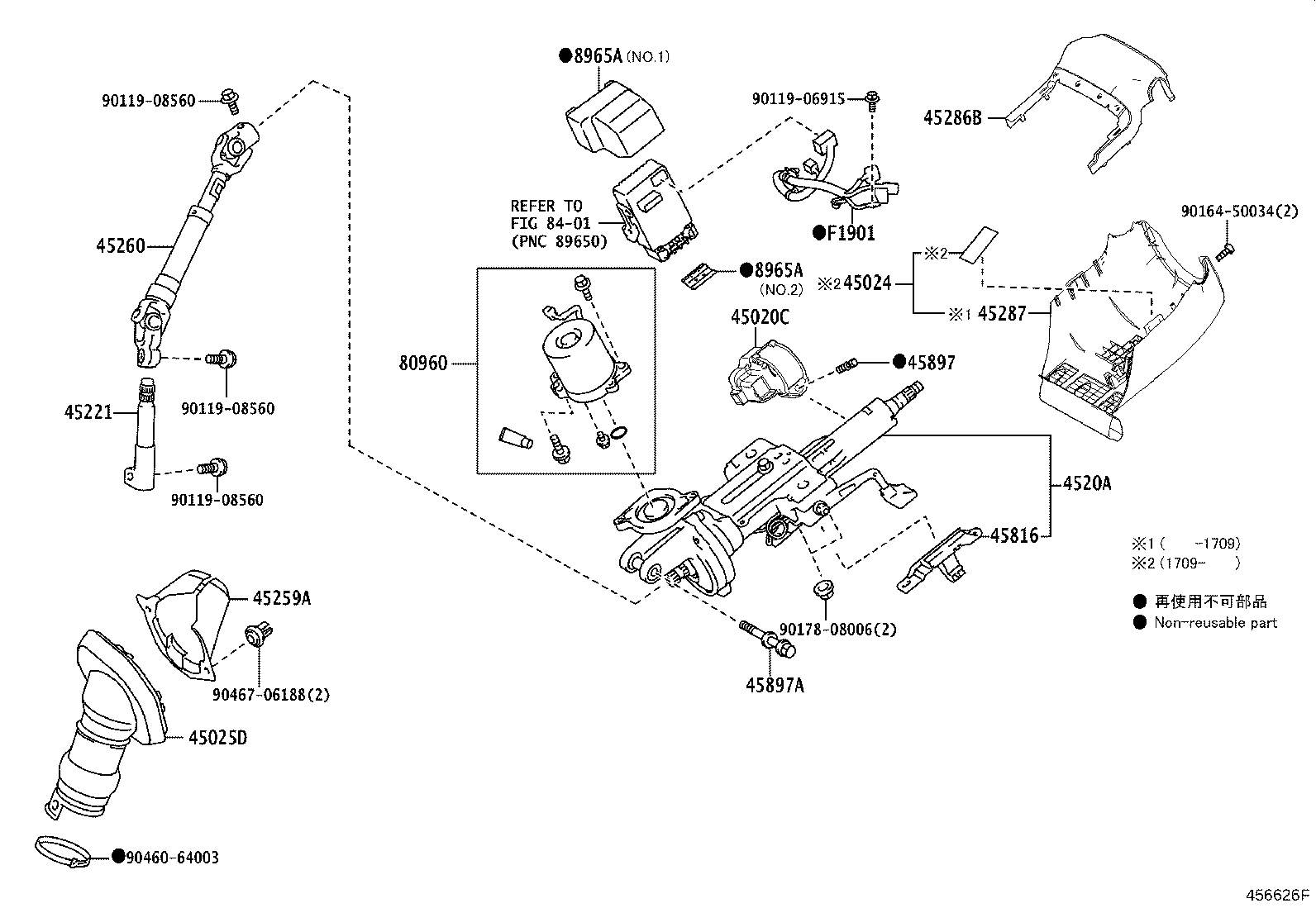

Figure 456632E 456632E 2014-07 → — Figure 456624E 456624E 2014-07 → — Figure 456626F 456626F 2014-07 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45221 Shaft, Steering Intermediate
45253A Spacer, Electric Power Steering Motor Shaft
45254B Damper, Electric Power Steering Motor Shaft
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45816 Bracket, Wire Harness
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
80960 Motor Assy, Power Steering
8965A Protector, Power Steering Computer
F1901 Wire Sub-assy, Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
