Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

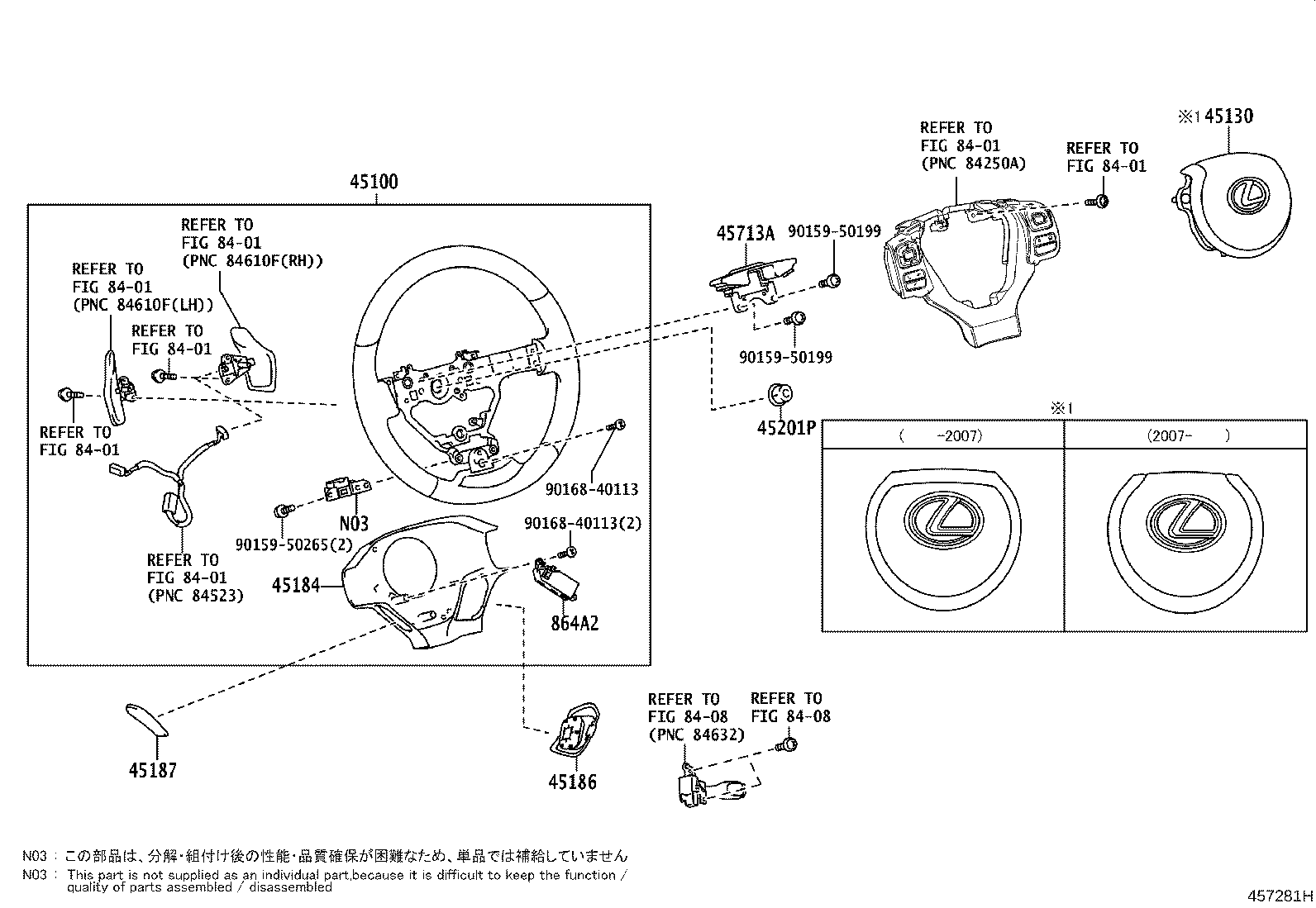

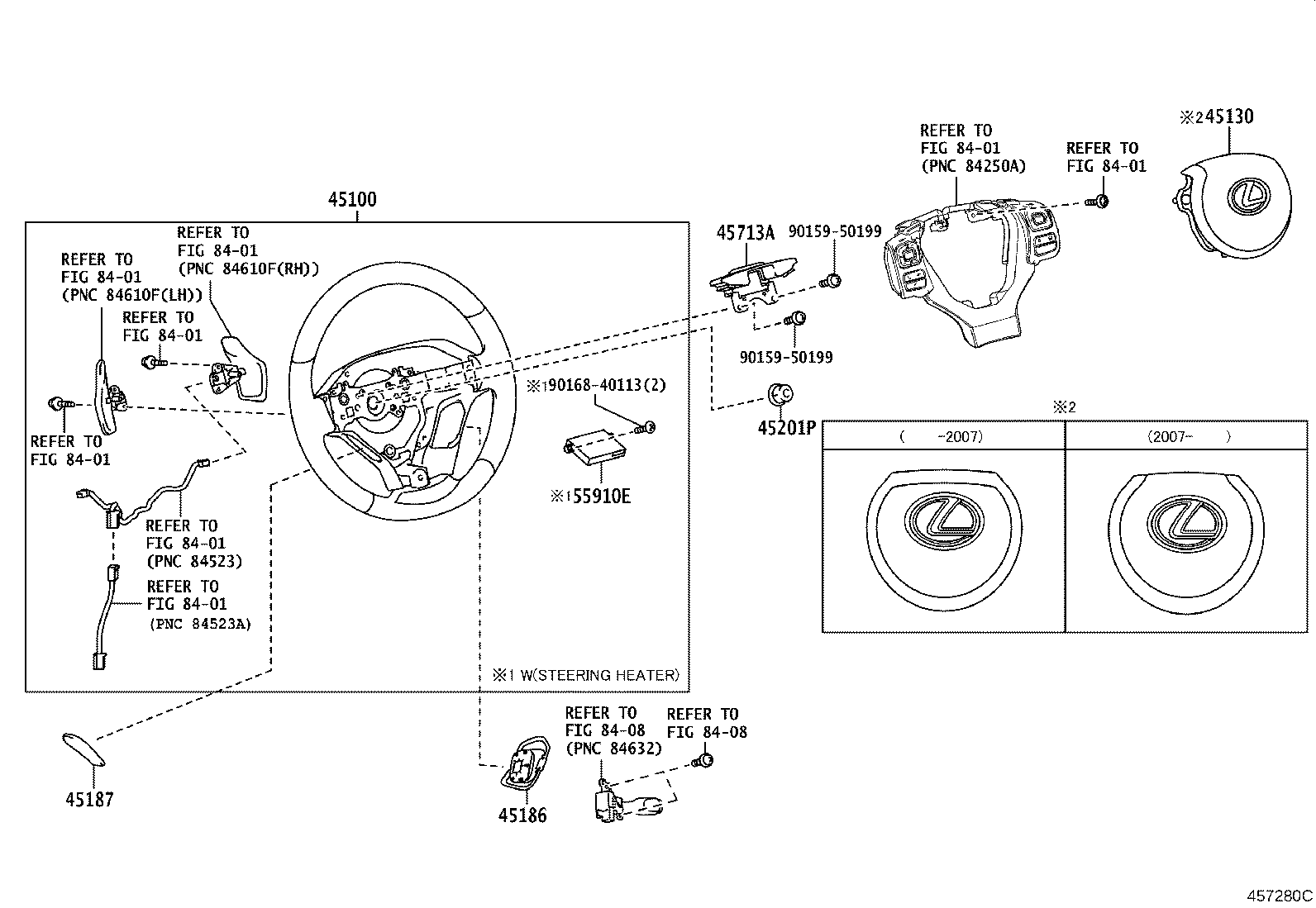

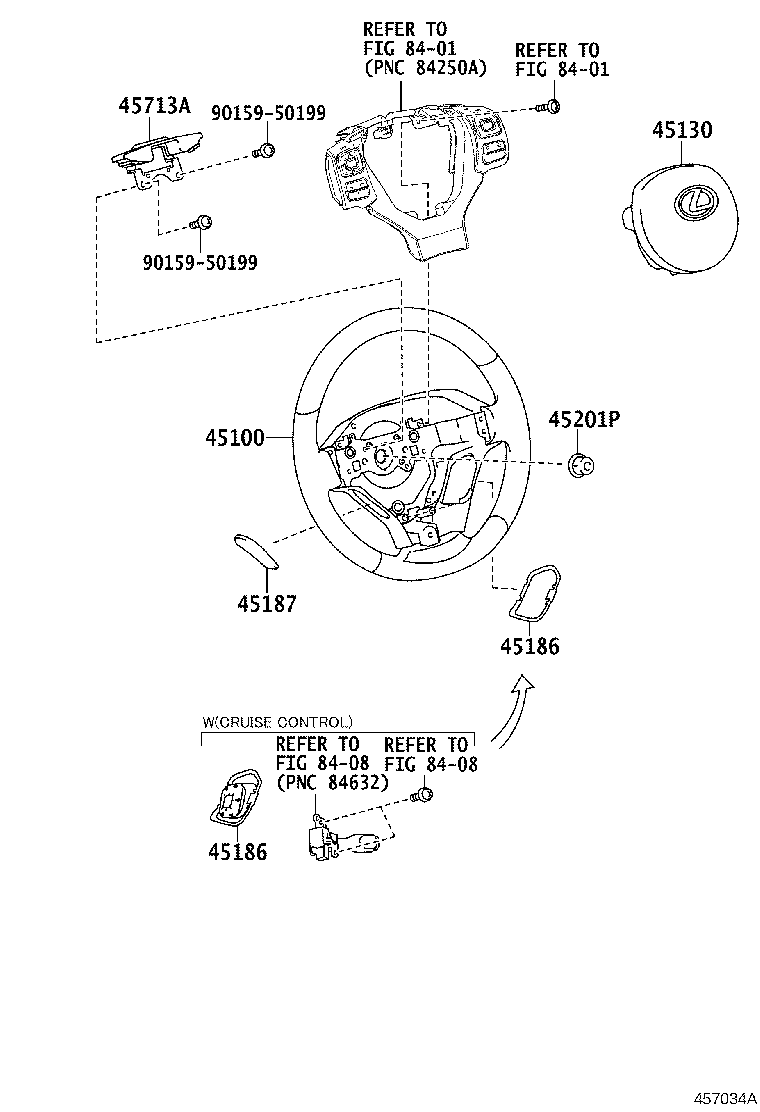

Steering Wheel
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45201P | Nut, Steering Wheel Set |
| 45713A | Damper, Steering Shake |
| 55910E | Control Assy, Steering Wheel Heater |
| 864A2 | Computer, Steering Vibration |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
