Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

3 part groups · 4 illustrations

Illustrations

Figure 479480A

479480A 2014-07 → —

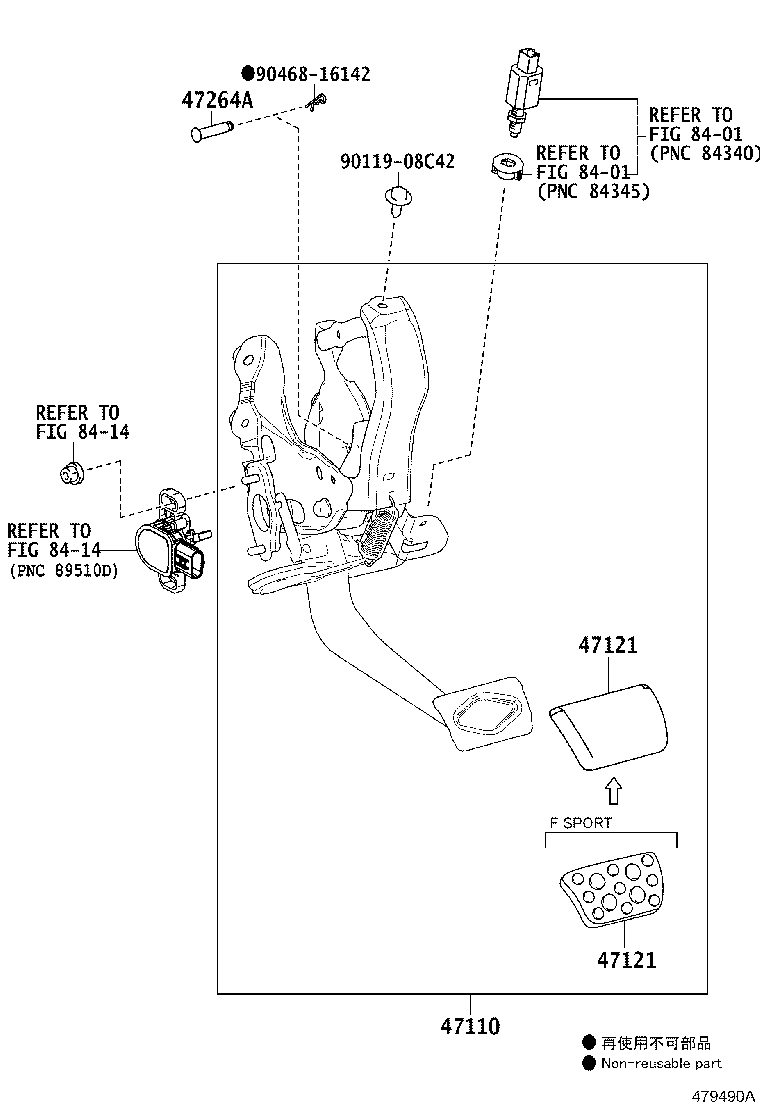

Figure 479490A

479490A 2014-07 → —

Figure 479476A

479476A 2014-12 → —

Figure 479586D

479586D 2014-12 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
