Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

17 part groups · 4 illustrations

Illustrations

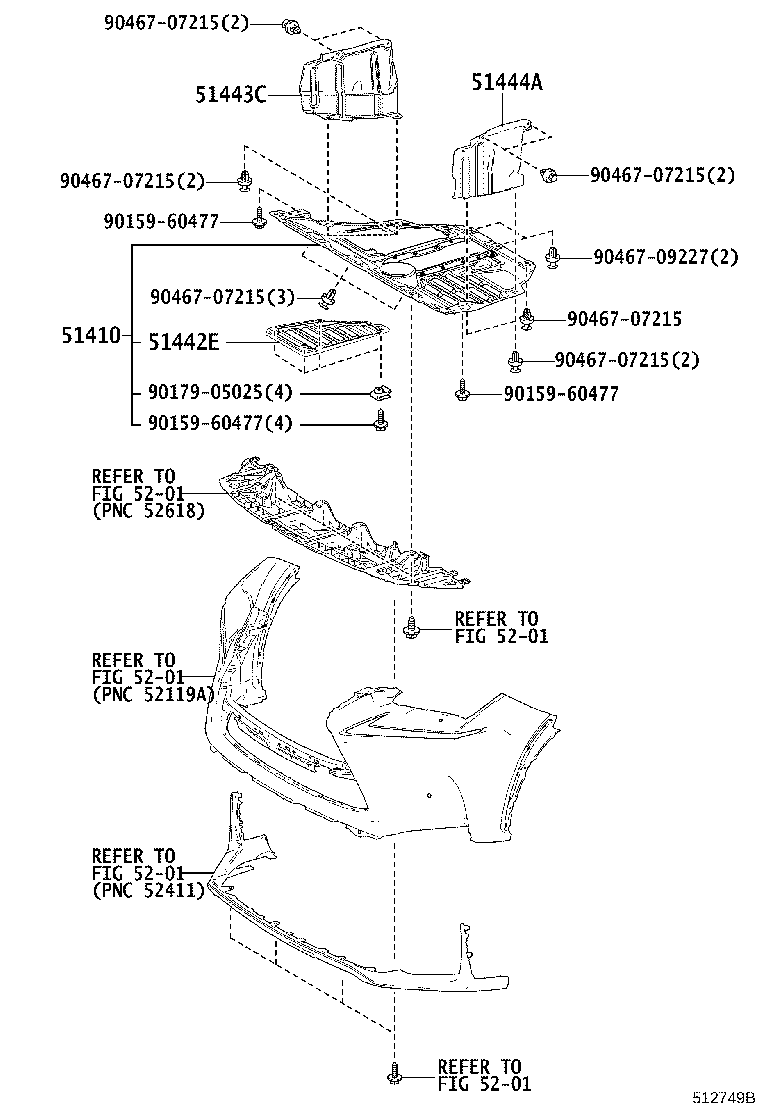

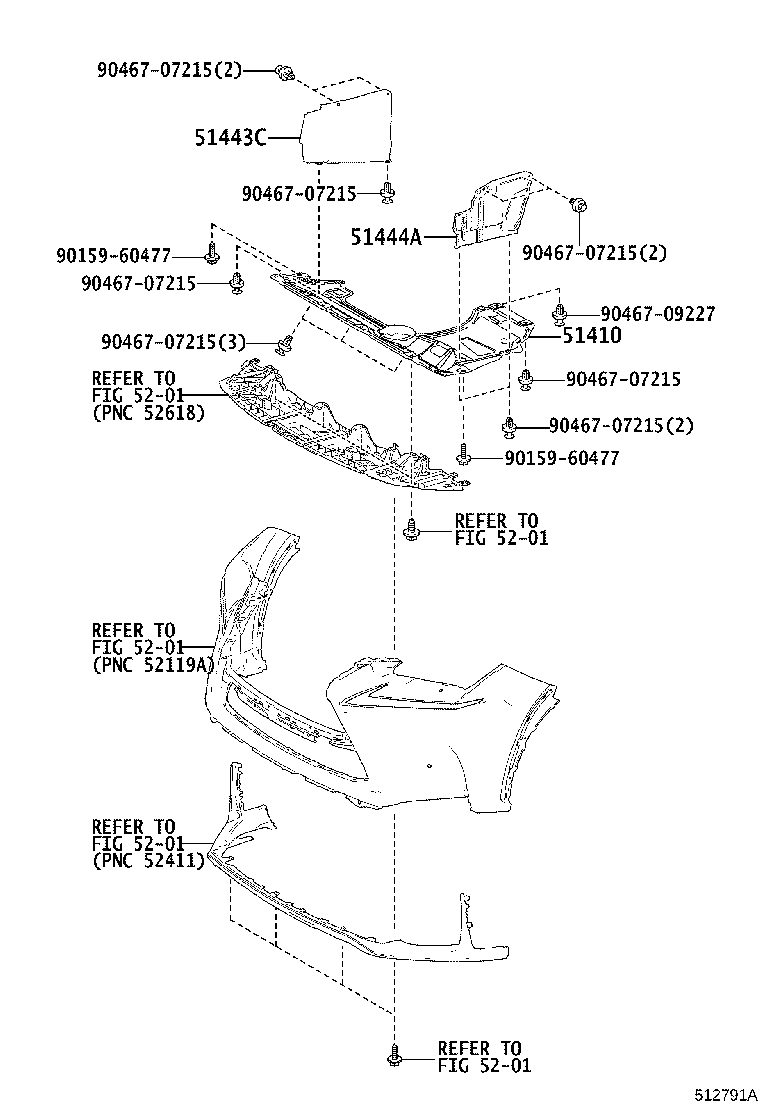

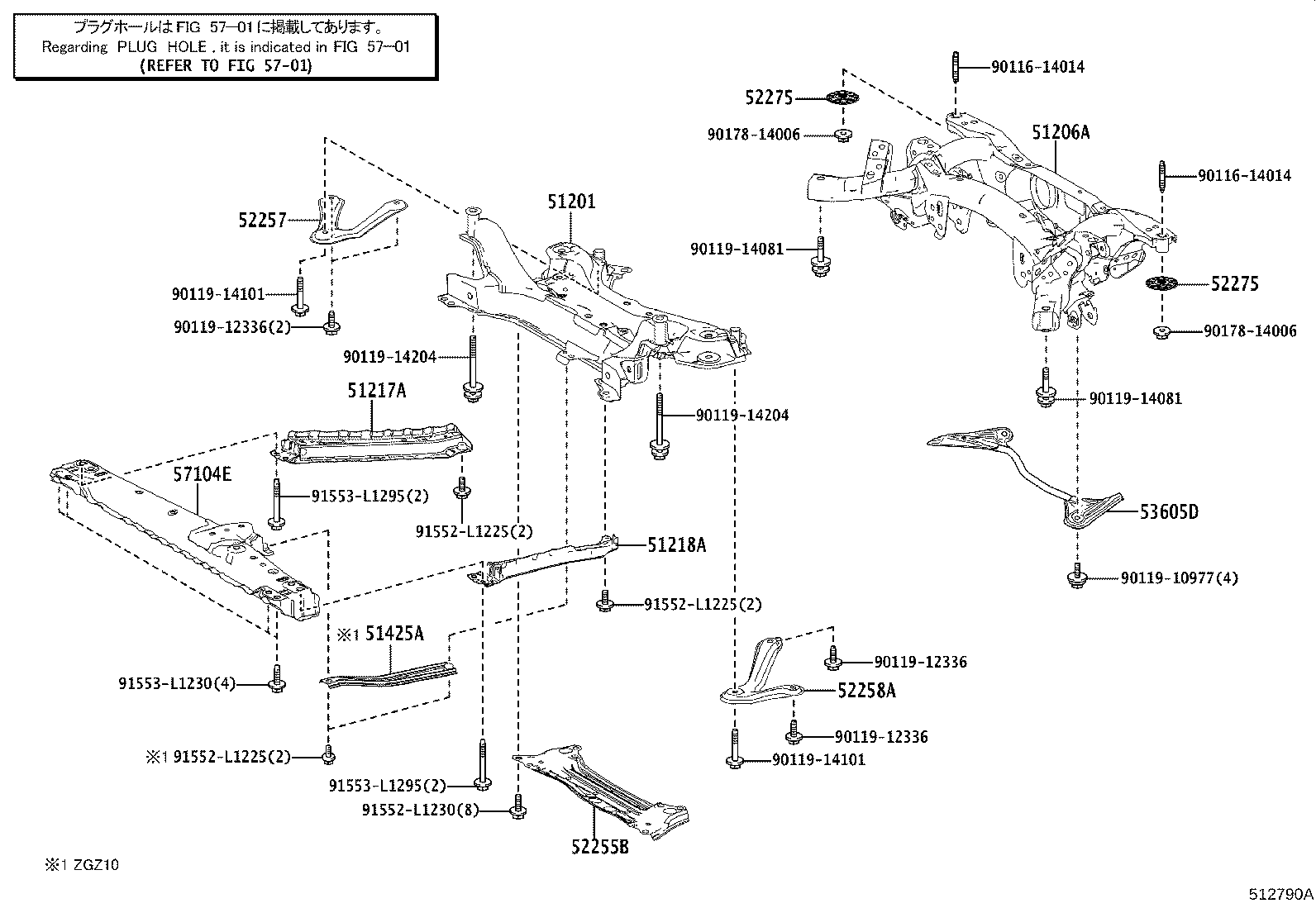

Figure 512747A 512747A 2014-07 → — Figure 512749B 512749B 2014-07 → — Figure 512790A 512790A 2014-12 → — Figure 512791A 512791A 2014-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51410 Cover Assy, Engine Under, NO.1
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51597A Bracket, Rear Stabilizer Support, RH
51598 Bracket, Rear Stabilizer Support, LH
52255B Brace, Front Suspension Member
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52275 Cushion,Rear Suspension Member, Rear Upper
53605D Brace Sub-assy, Rear Suspension
57104E Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
