Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

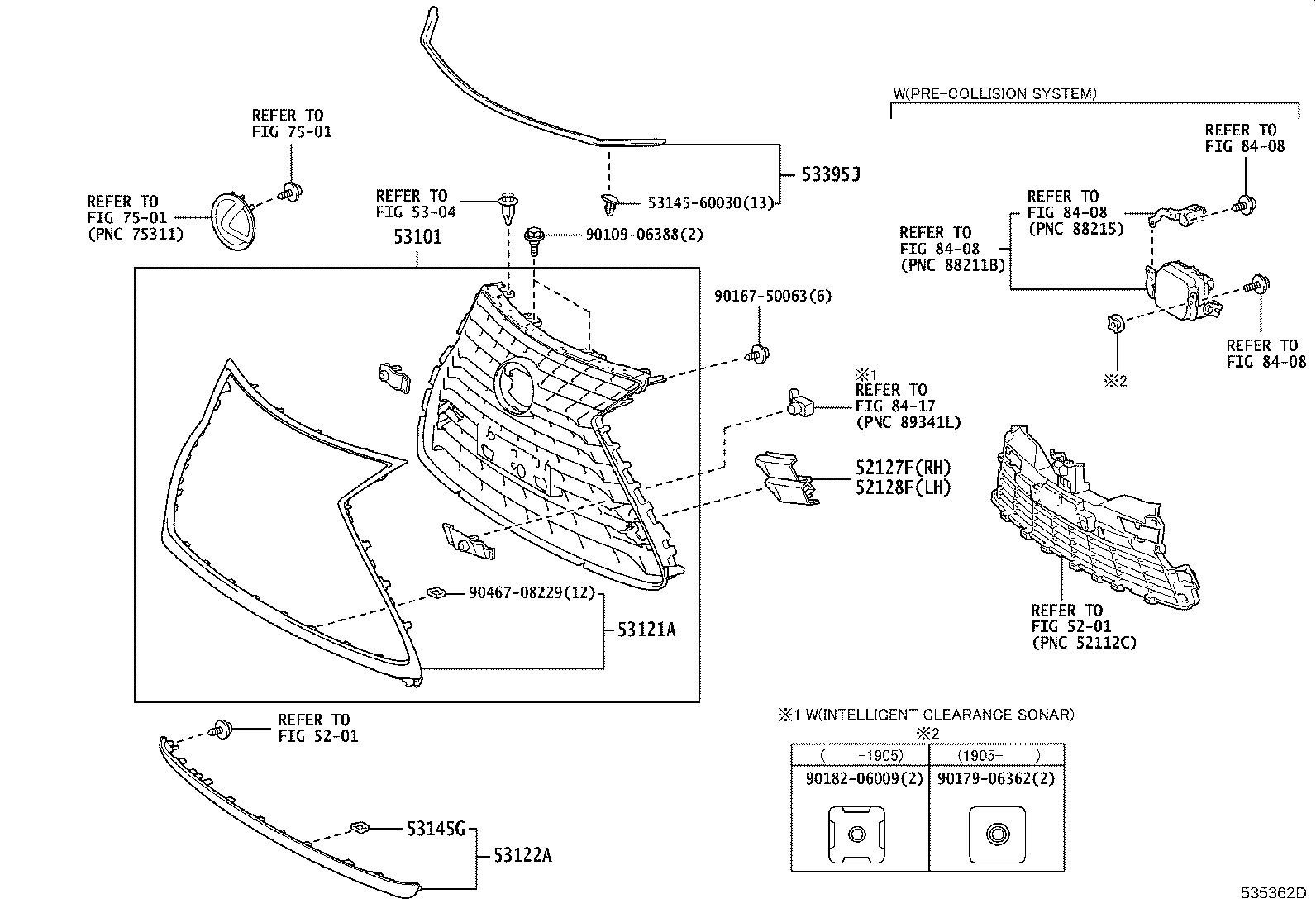

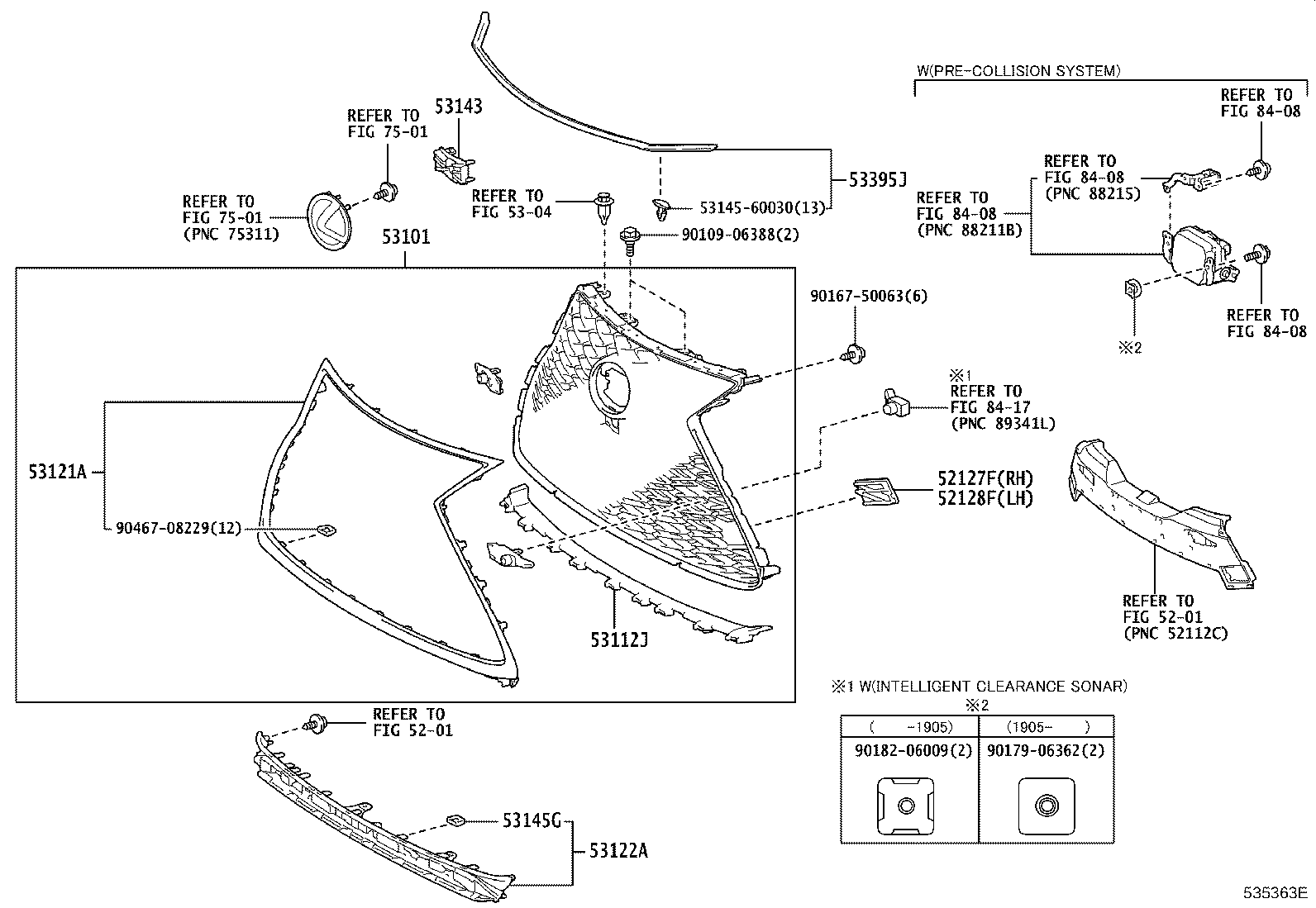

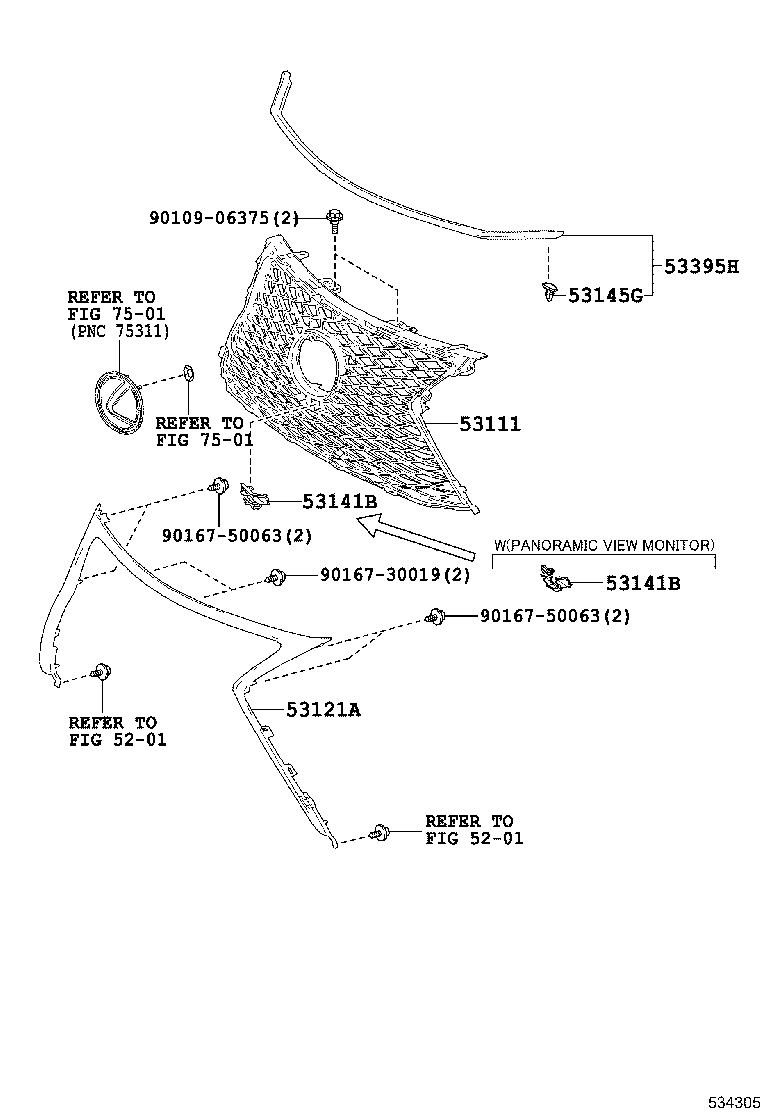

Radiator Grille
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52127F | Cover, Front Bumper Hole |
| 52128F | Cover, Front Bumper Hole, LH |
| 53101 | Grille Sub-assy, Radiator |
| 53111 | Grille, Radiator |
| 53112J | Grille, Radiator, Lower NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53122A | Moulding, Radiator Grille, Lower |
| 53141B | Garnish, Radiator Grille, NO.1 |
| 53143 | Garnish, Radiator Grille, NO.3 |
| 53145G | Clip, Radiator Grille |
| 53395H | Seal, Hood TO Radiator Grille |
| 53395J | Seal, Hood TO Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
