Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

13 part groups · 2 illustrations

Illustrations

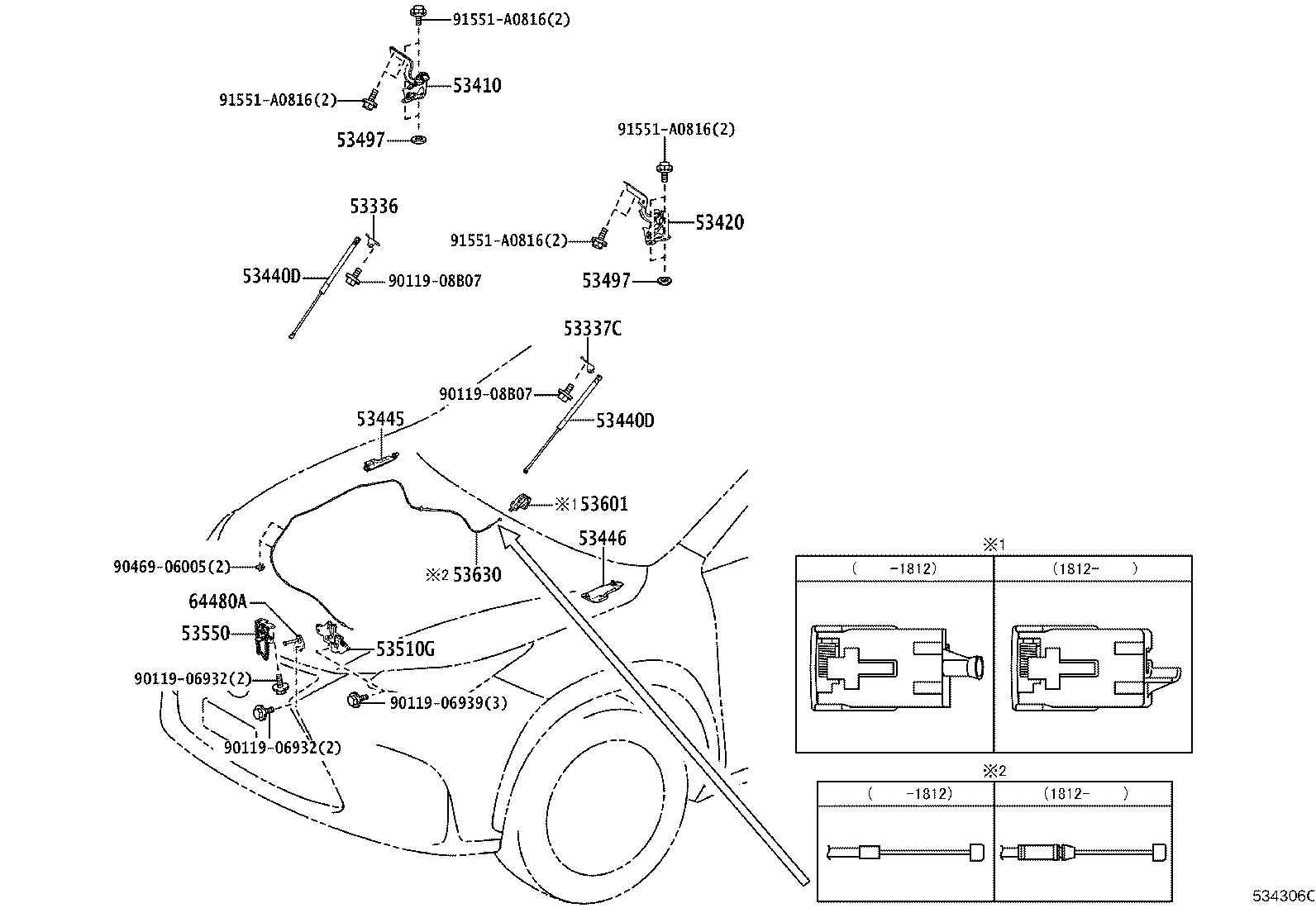

Figure 534291C 534291C 2014-07 → — Figure 534306C 534306C 2014-07 → —

Part groups

PNCDescription
53336 Bracket, Hood Stay, RH
53337C Bracket, Hood Stay, LH
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53445 Cover, Hood Hinge, RH
53446 Cover, Hood Hinge, LH
53497 Pad, Hood Hinge, NO.1
53510G Lock Assy, Hood, W/Courtesy Lamp Switch
53550 Hook Assy, Hood Auxiliary Catch
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
64480A Striker Assy, Engine Hood Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
