Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11

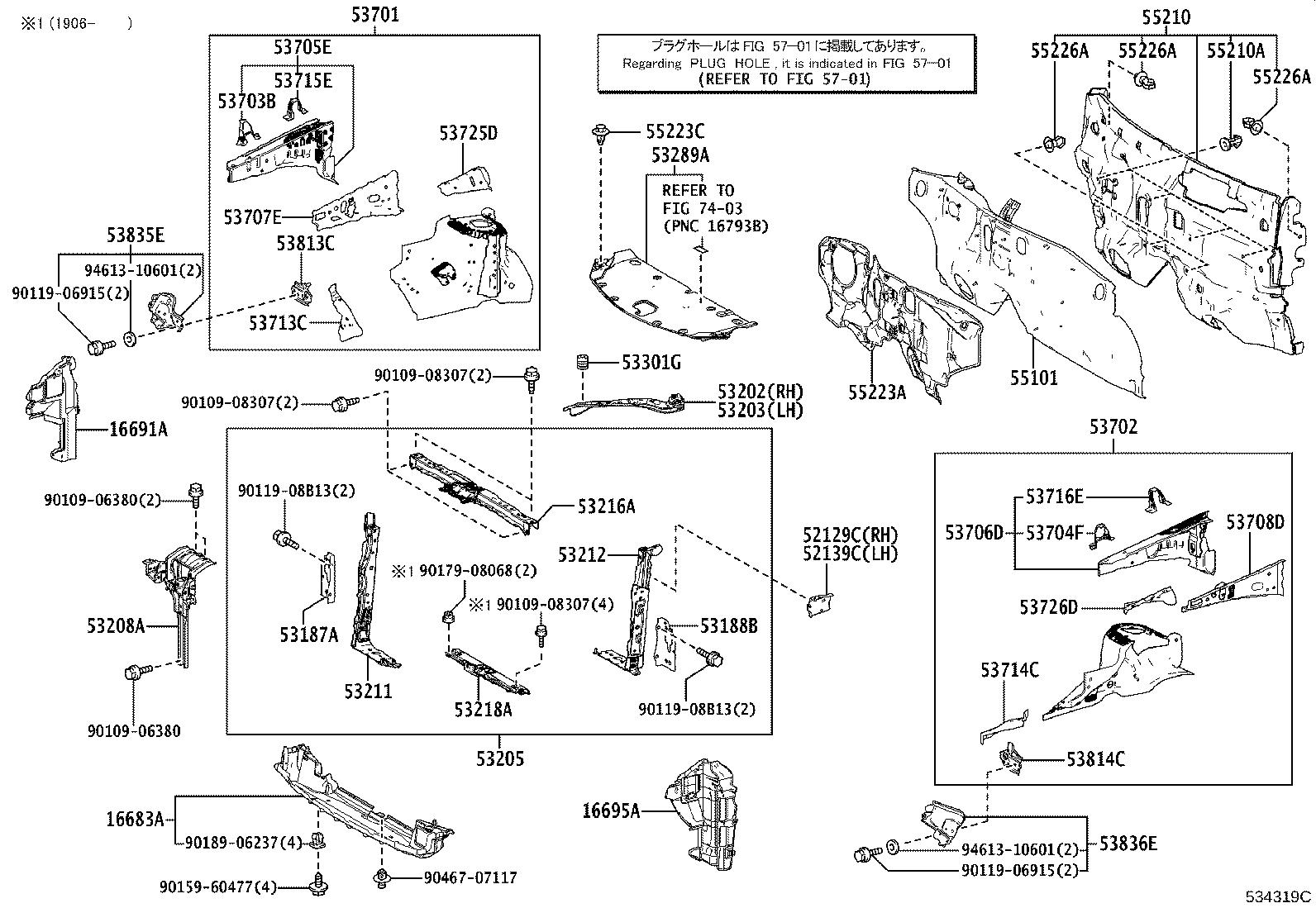

Front Fender Apron & Dash Panel

41 part groups · 2 illustrations

PNC	Description
16683A	Plate, Radiator Lower Air Guide
16691A	Plate, Radiator Side Air Guide, Front RH
16695A	Plate, Radiator Side Air Guide, Front LH
52129C	Arm, Front Bumper, Upper NO.2 RH
52139C	Arm, Front Bumper, Upper NO.2 LH
53187A	Stay, Radiator Support, RH
53188B	Stay, Radiator Support, LH
53202	Support Sub-assy, Radiator, RH
53203	Support Sub-assy, Radiator, LH
53205	Support Sub-assy, Radiator, Upper
53208A	Support Sub-assy, Hood Lock
53211	Support, Radiator, RH
53212	Support, Radiator, LH
53216A	Support, Radiator, Upper
53218A	Support, Radiator, Lower
53289A	Cover, Radiator Support Opening
53301G	Cushion, Hood Bumper
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53703B	Retainer Sub-assy, Fender Apron, RH
53704F	Retainer Sub-assy, Fender Apron, LH
53705E	Member Sub-assy, Front Apron TO Cowl Side, RH
53706D	Member Sub-assy, Front Apron TO Cowl Side, LH
53707E	Apron Sub-assy, Fender Side, RH
53708D	Apron Sub-assy, Fender Side, LH
53713C	Extension, Front Fender Apron, Front RH
53714C	Extension, Front Fender Apron, Front LH
53715E	Extension, Front Fender Apron, Rear RH
53716E	Extension, Front Fender Apron, Rear LH
53725D	Reinforcement, Front Spring Support, NO.2 RH
53726D	Apron, Front Fender NO.2 Side, LH
53813C	Extension, Front Fender, RH
53814C	Extension, Front Fender, LH
53835E	Brace, Front Fender TO Apron, RH
53836E	Brace, Front Fender TO Apron, LH
55101	Panel Sub-assy, Dash
55210	Insulator Assy, Dash Panel
55210A	Clip
55223A	Insulator, Dash Panel, Outer
55223C	Clip
55226A	Clip

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
