Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

47 part groups · 18 illustrations

Illustrations

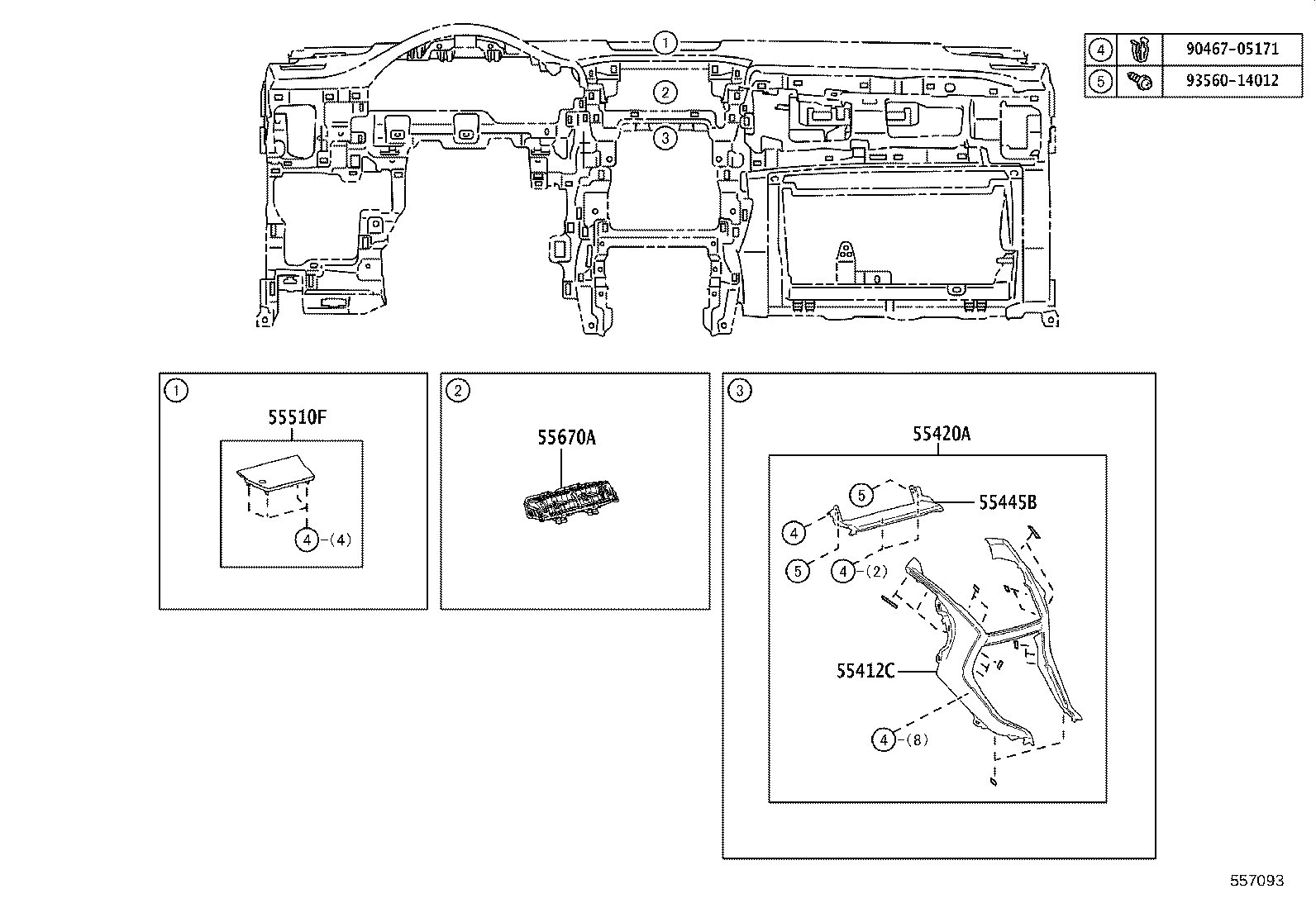

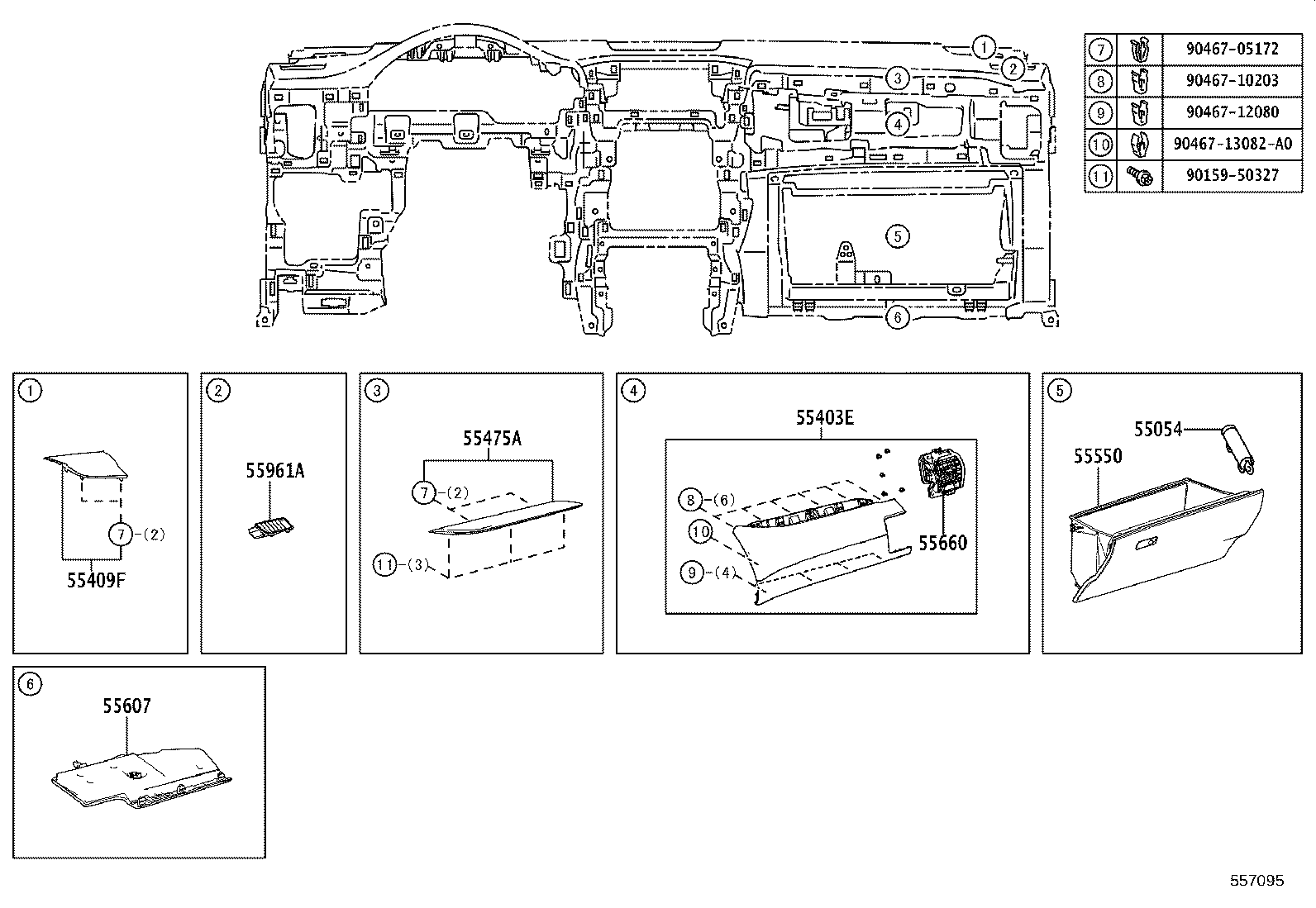

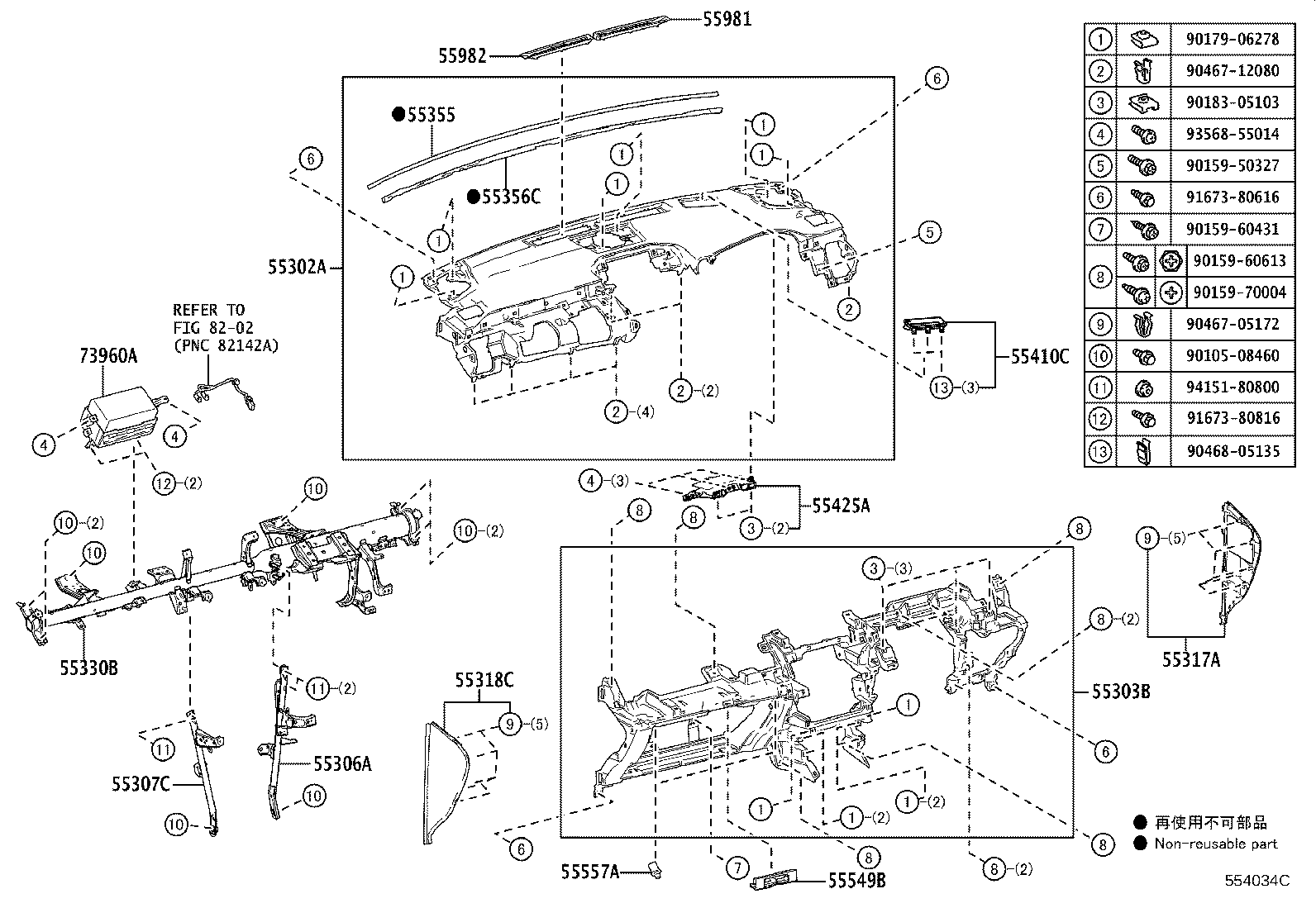

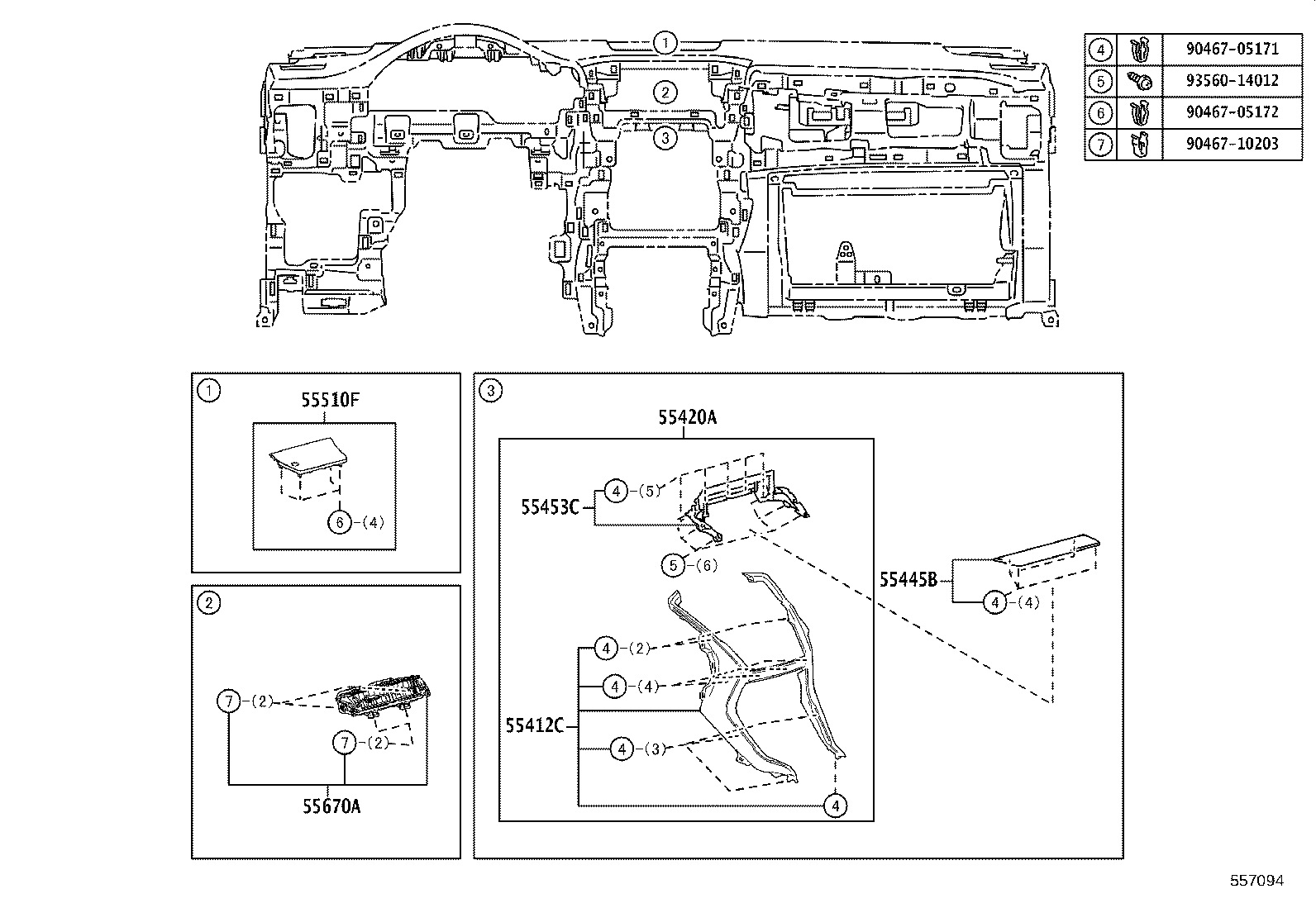

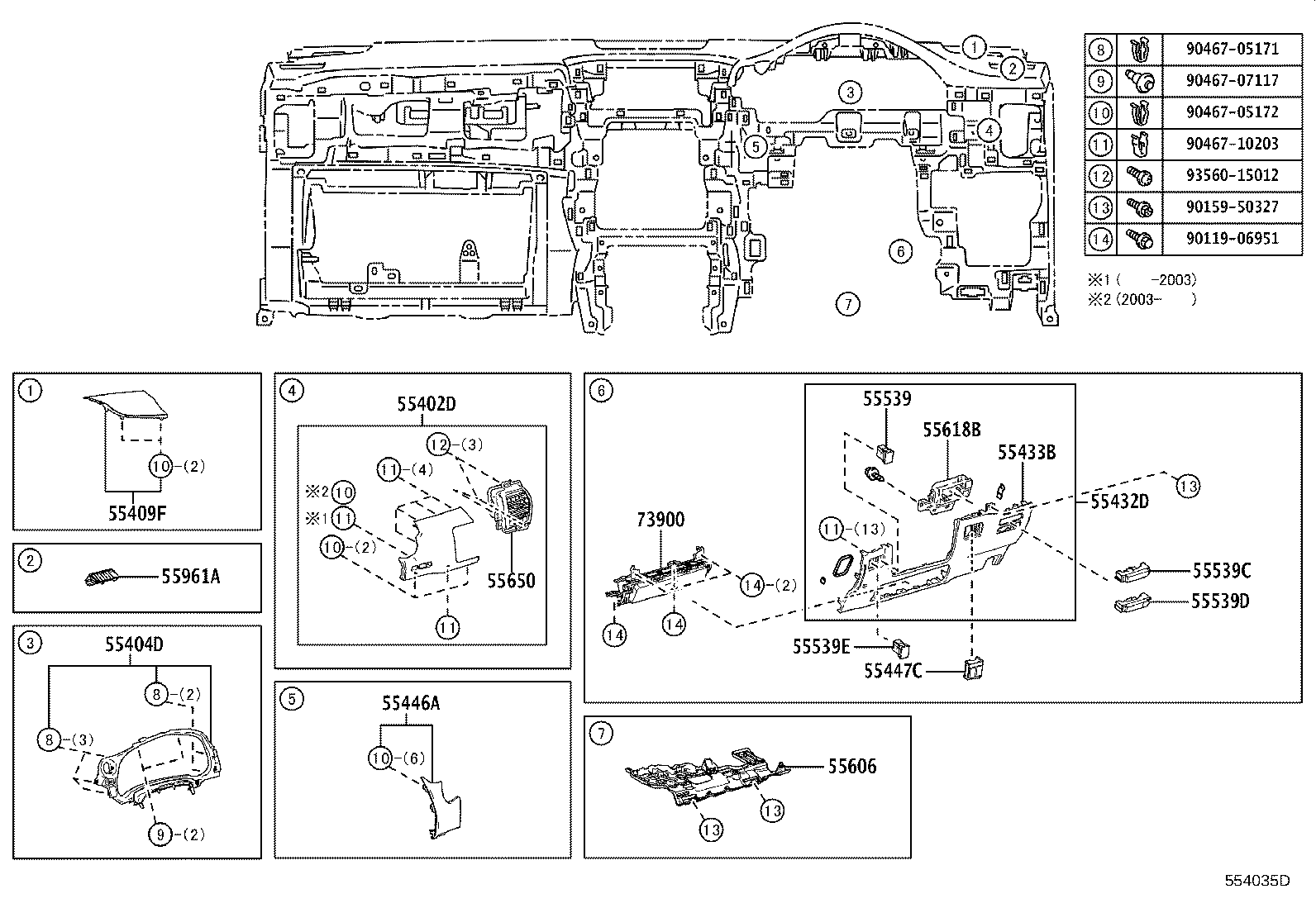

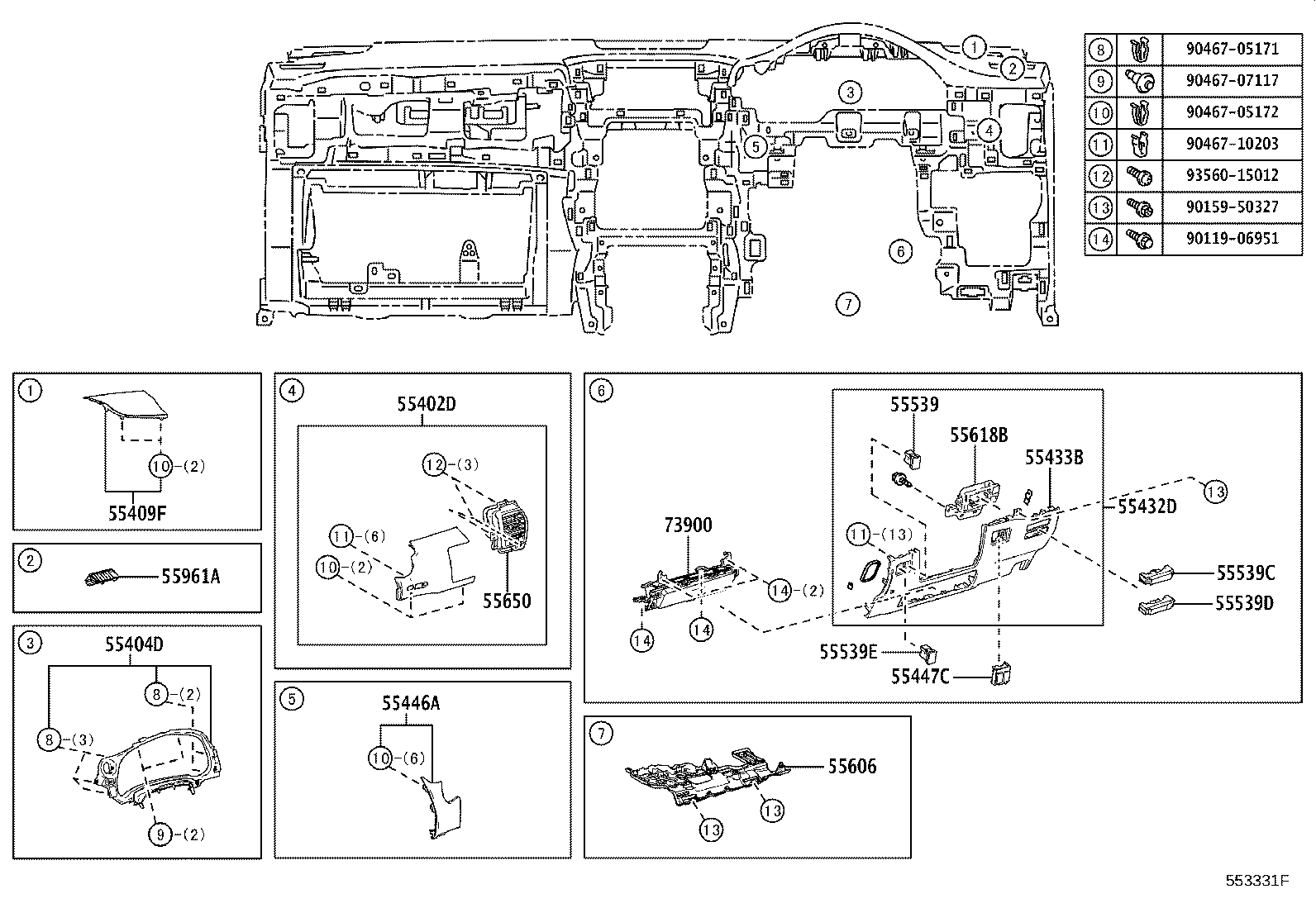

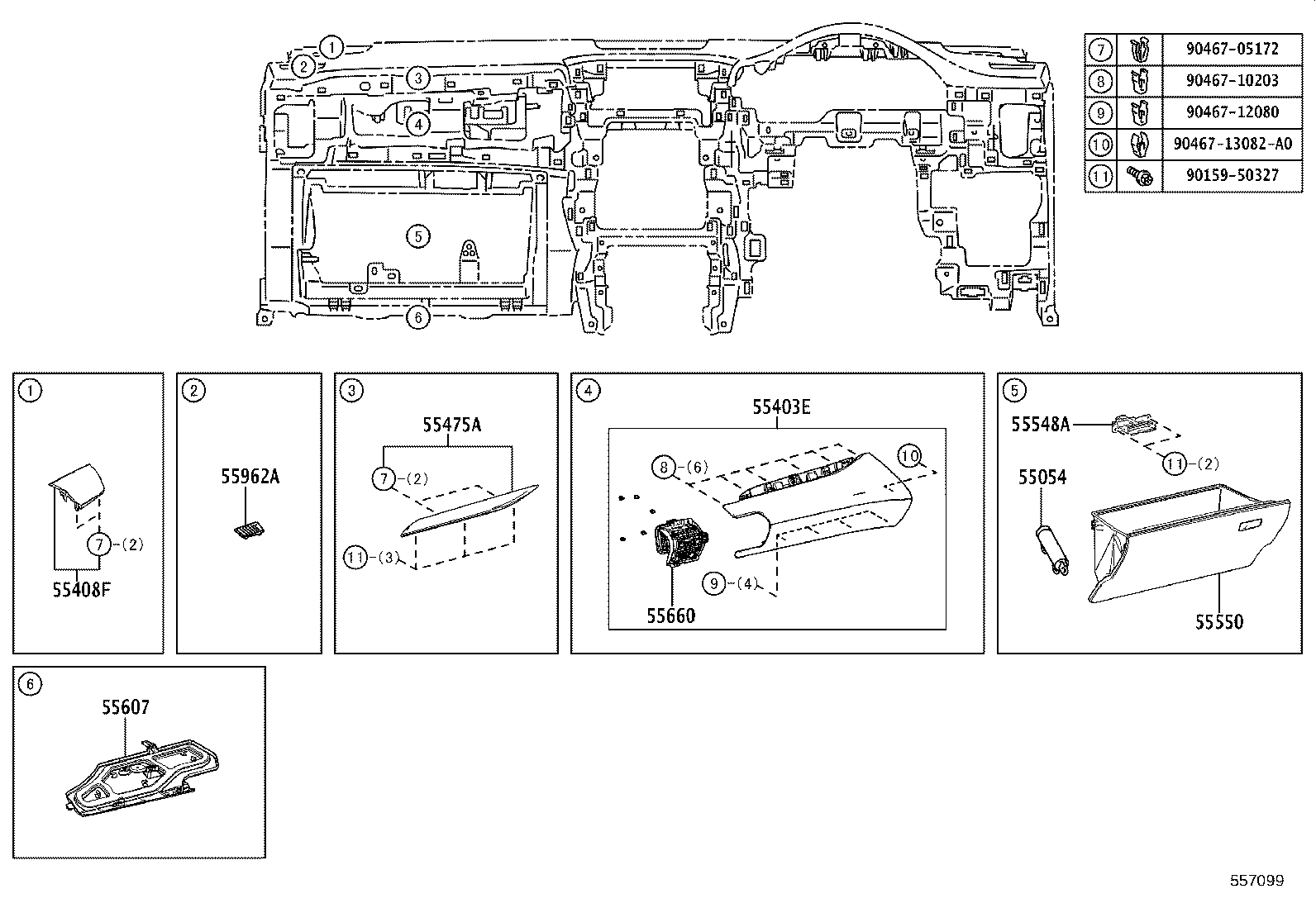

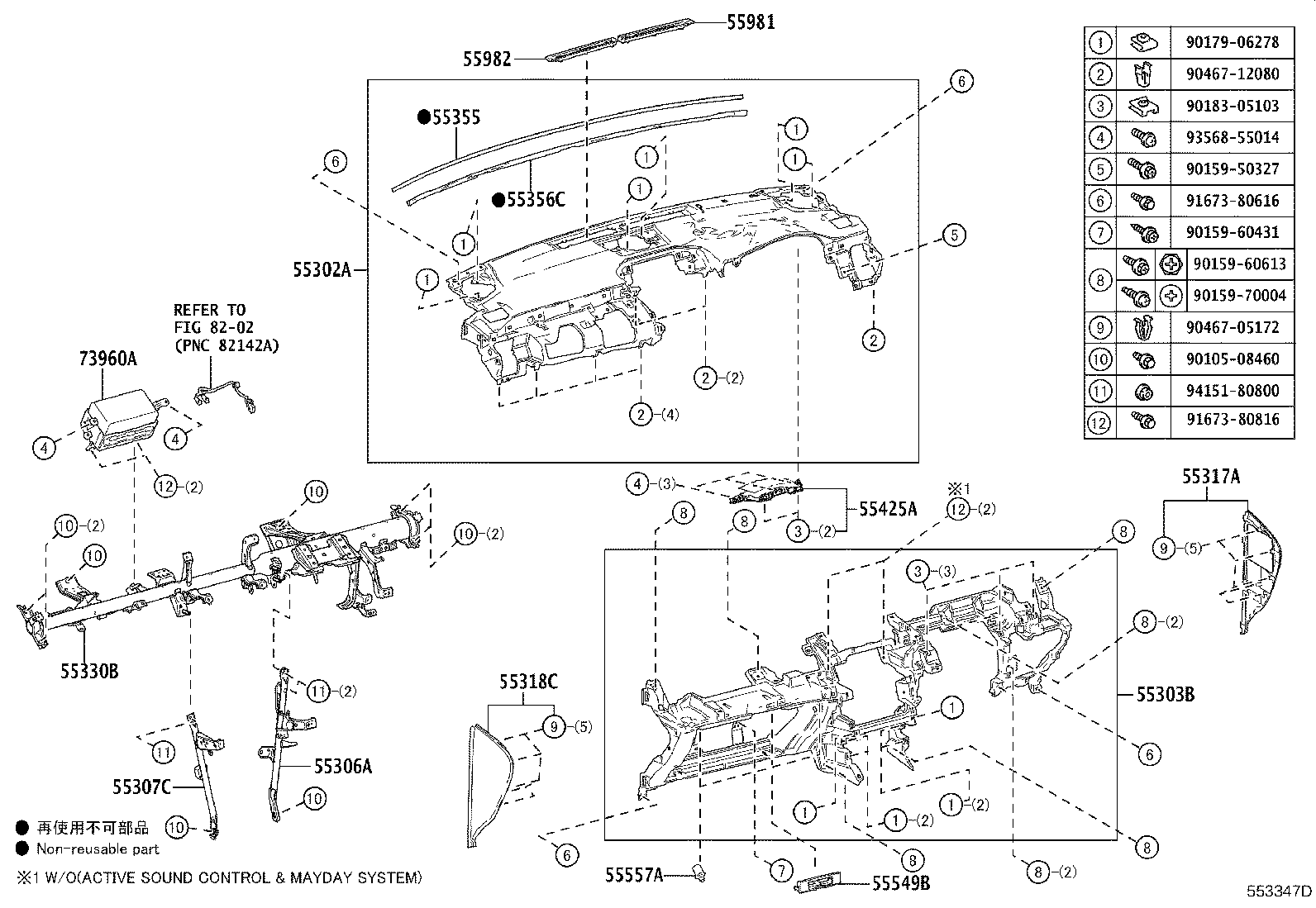

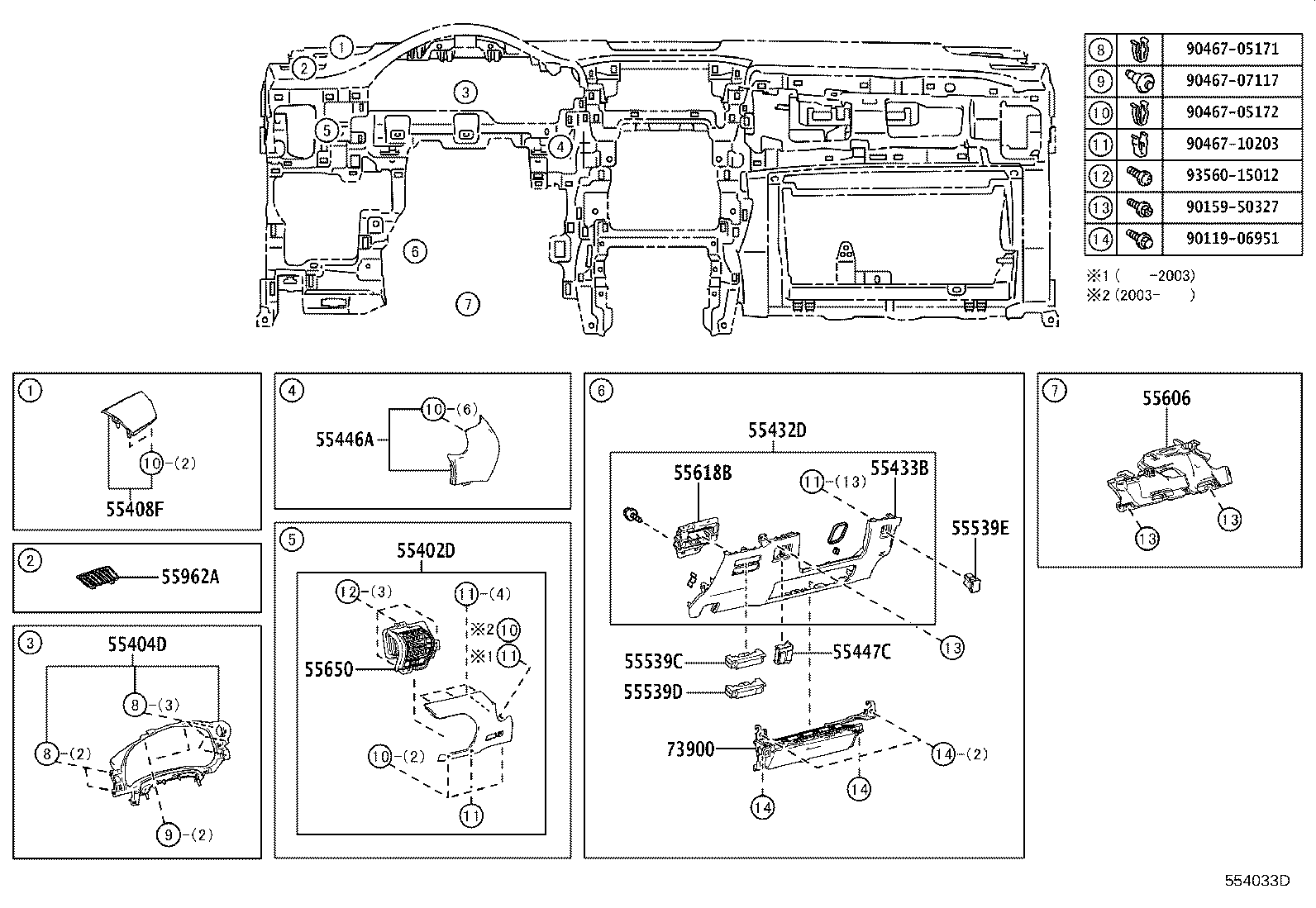

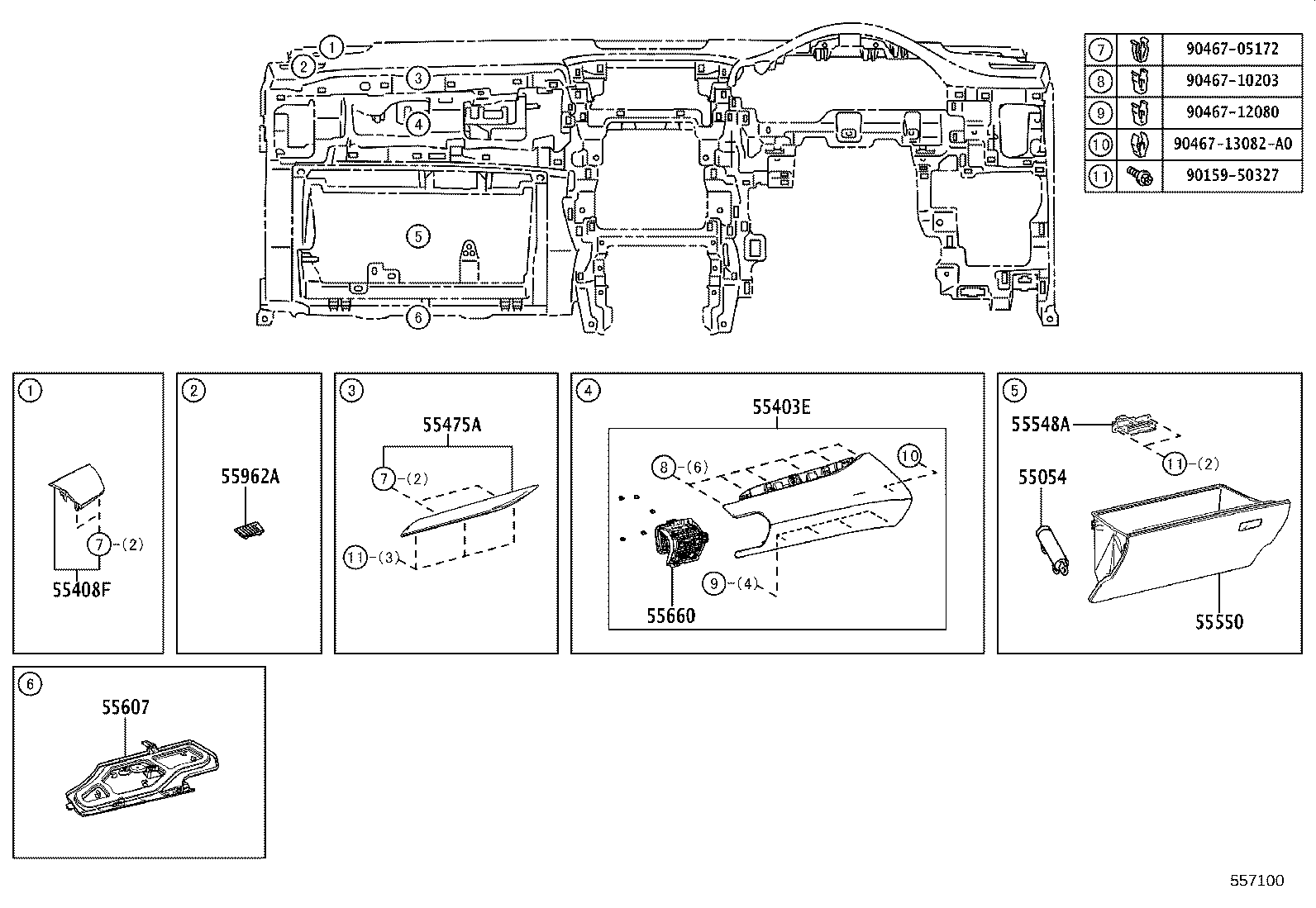

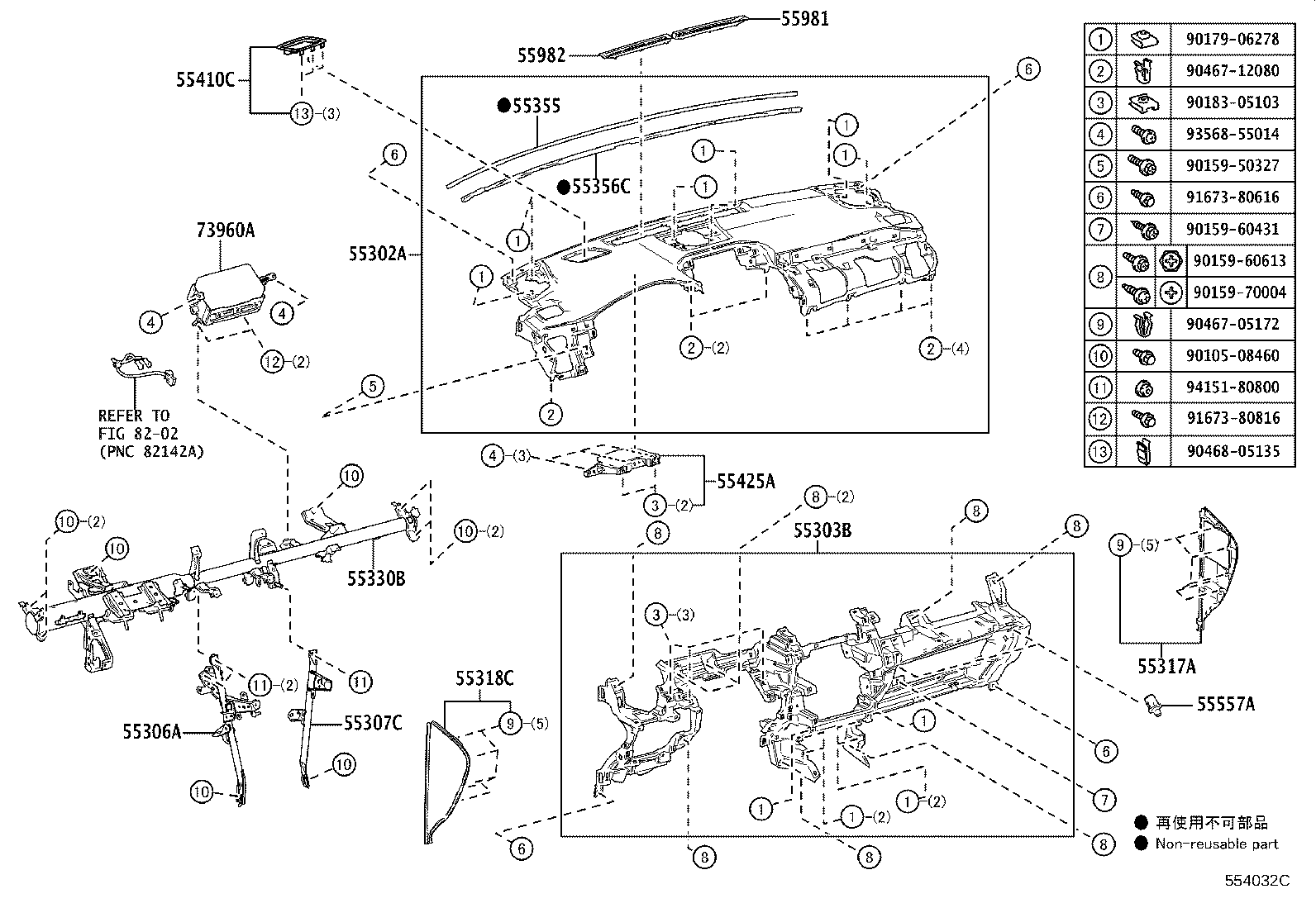

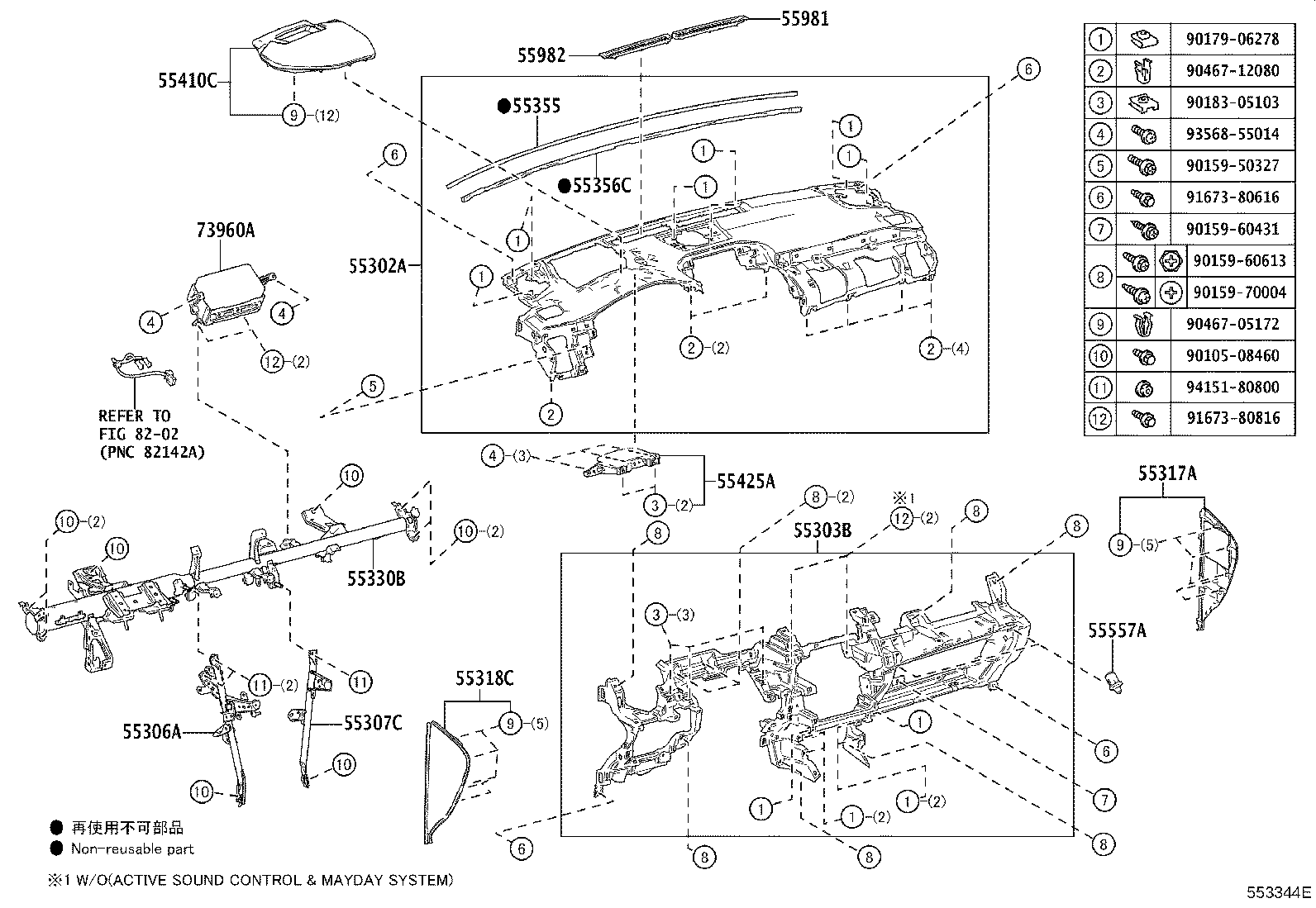

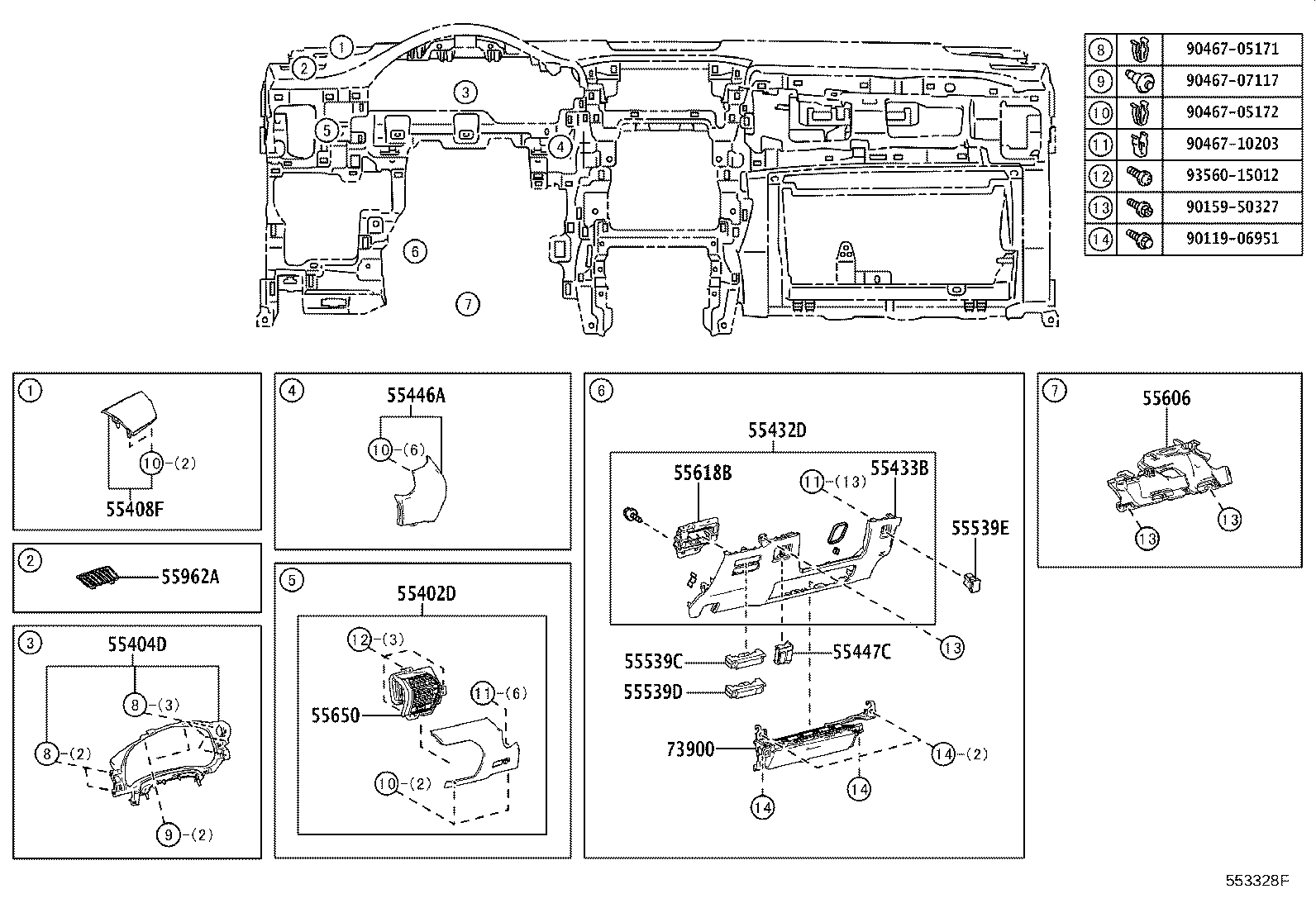

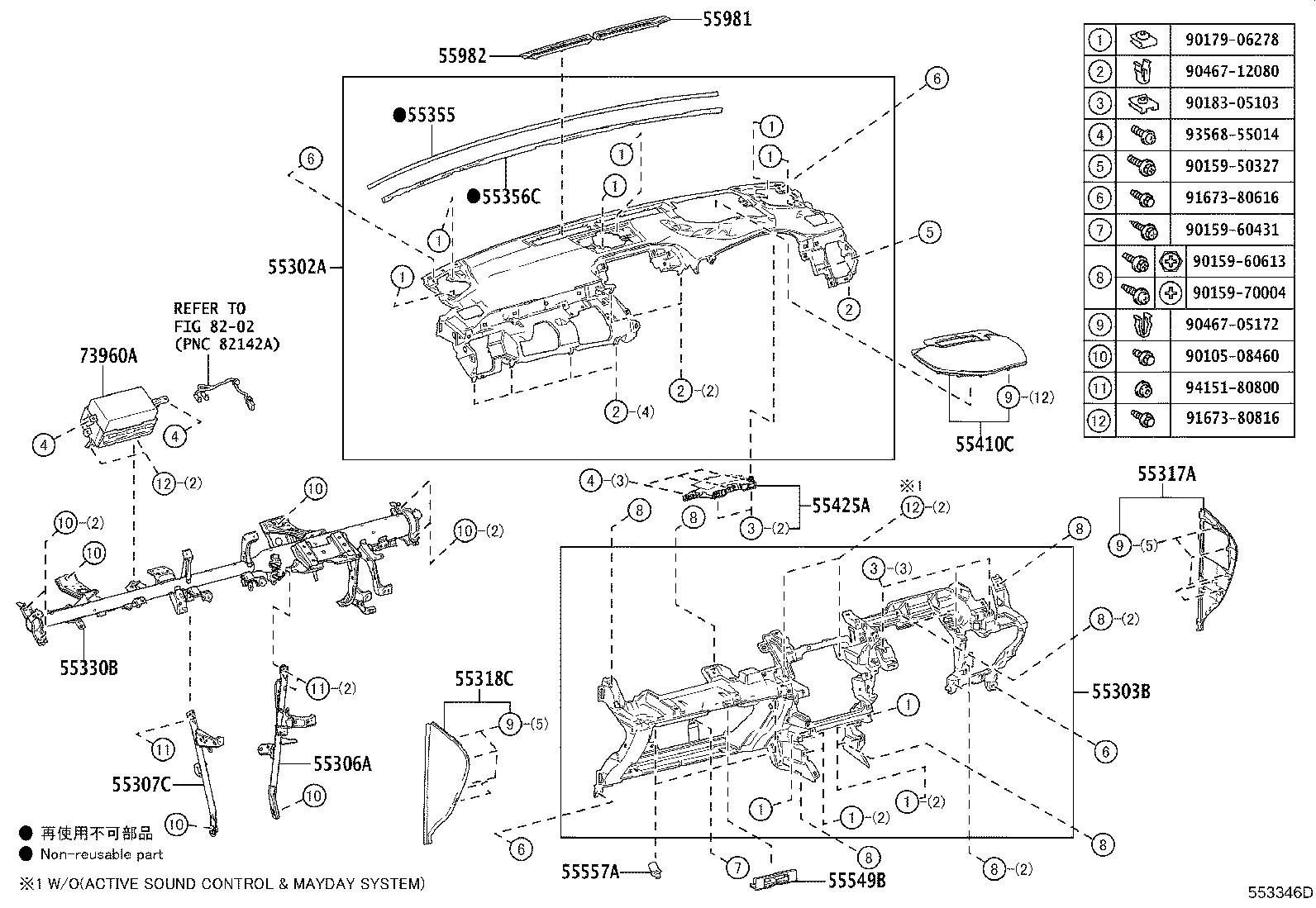

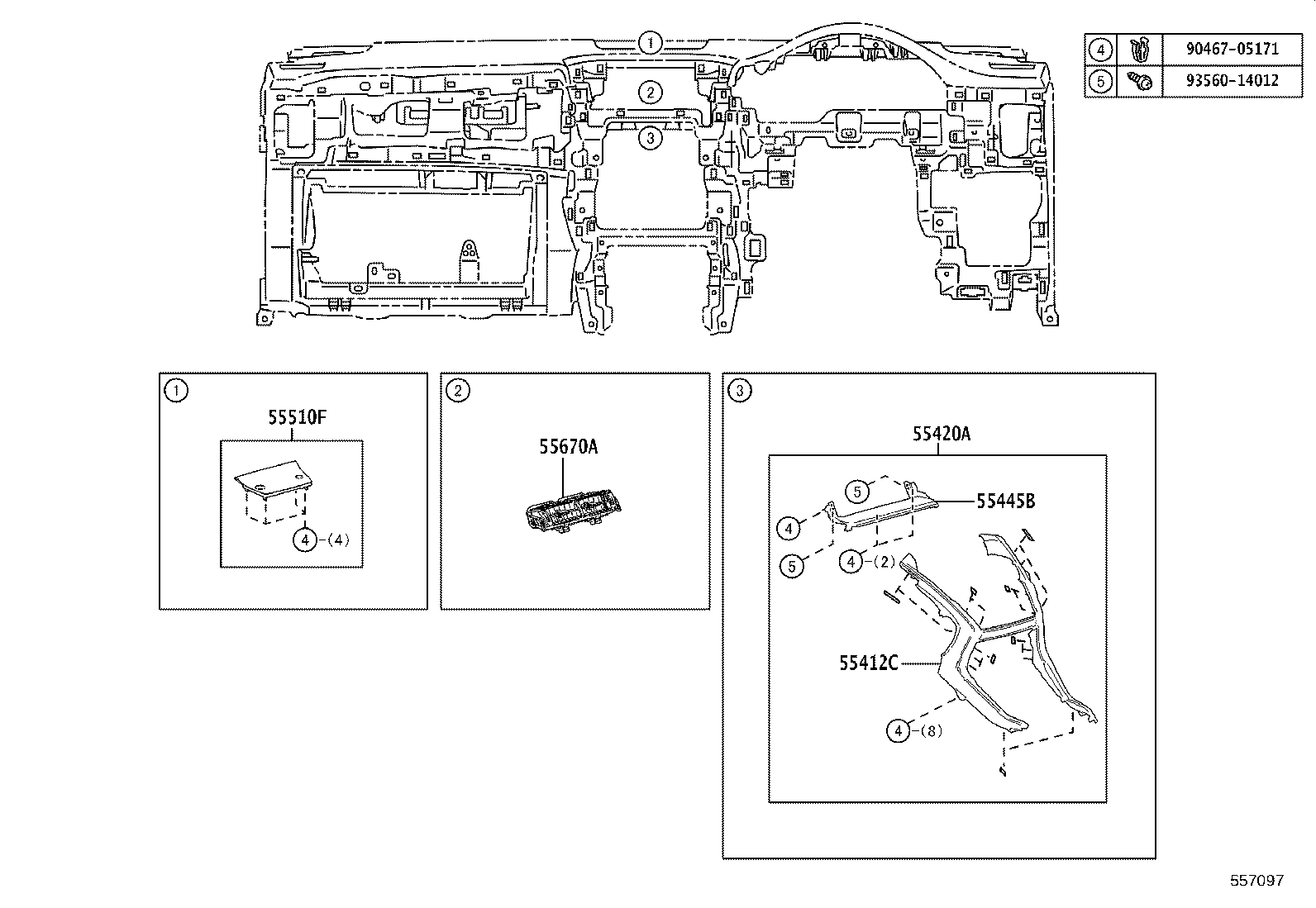

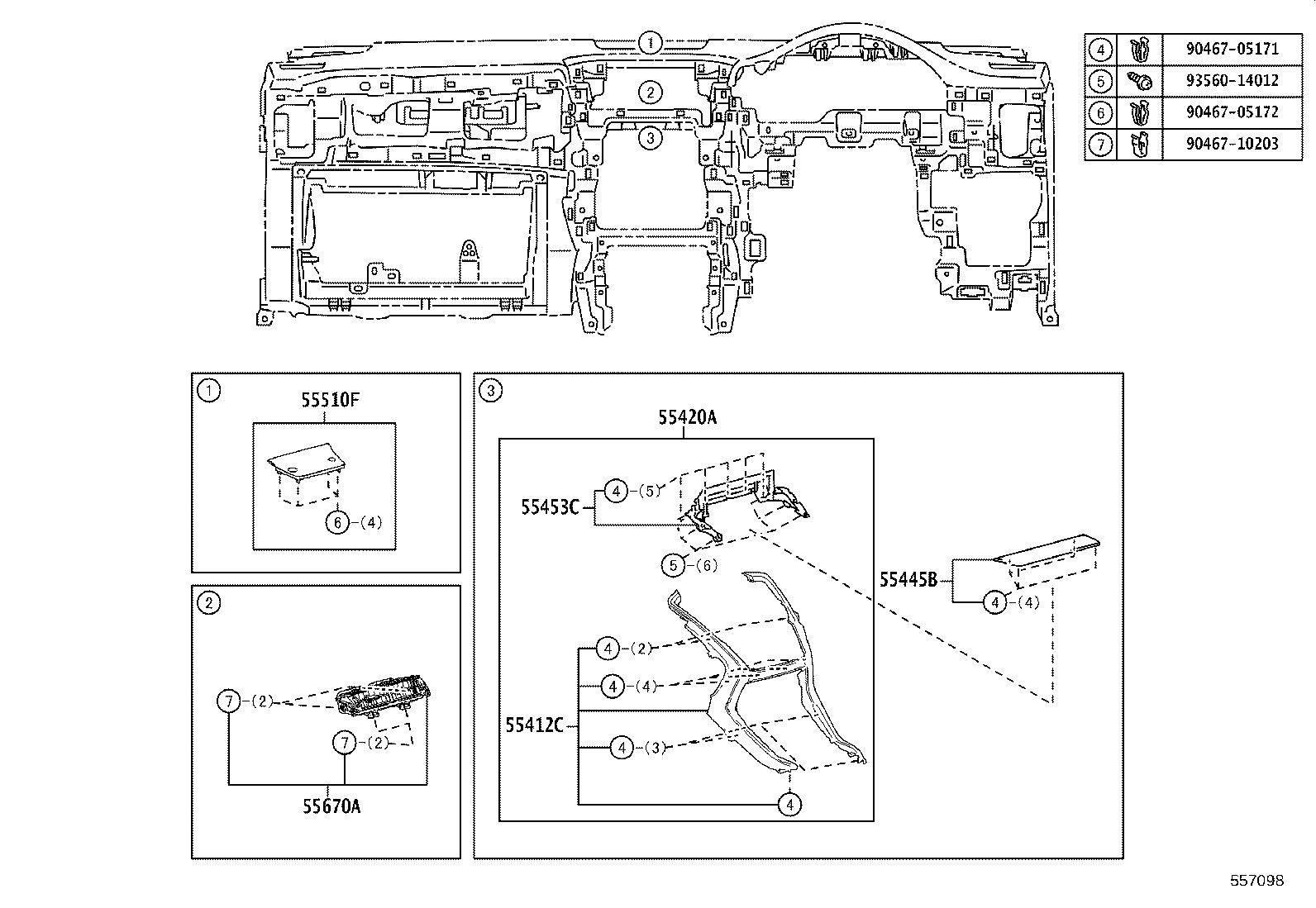

Figure 553345E 553345E 2014-07 → — Figure 553344E 553344E 2014-07 → 2017-09 Figure 554032C 554032C 2017-09 → — Figure 553328F 553328F 2014-07 → 2017-09 Figure 554033D 554033D 2017-09 → — Figure 557093 557093 2014-07 → 2017-09 Figure 557094 557094 2017-09 → — Figure 557095 557095 2014-07 → 2017-09 Figure 557096 557096 2017-09 → — Figure 553347D 553347D 2014-07 → — Figure 553346D 553346D 2014-07 → 2017-09 Figure 554034C 554034C 2017-09 → — Figure 553331F 553331F 2014-07 → 2017-09 Figure 554035D 554035D 2017-09 → — Figure 557097 557097 2014-07 → 2017-09 Figure 557098 557098 2017-09 → — Figure 557099 557099 2014-07 → 2017-09 Figure 557100 557100 2017-09 → —

Part groups

PNCDescription
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55402D Pad Sub-assy, Instrument Panel Safety, NO.1
55403E Pad Sub-assy, Instrument Panel Safety, NO.2
55404D Panel Sub-assy, Instrument Cluster Finish
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55412C Panel, Instrument Cluster Finish, Center NO.1
55420A Panel Assy, Instrument Cluster Finish, Center
55425A Bracket, Meter Hood Set
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55445B Plate, Instrument Panel Finish
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55453C Cover, Instrument Panel Safety Pad, NO.2
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55510F Cover Assy, Speaker Opening, NO.1
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55549B Cover, Instrument Panel Hole, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55618B Base, Switch Hole, NO.3
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55961A Nozzle, Side Defroster, RH
55962A Nozzle, Side Defroster, LH
55981 Garnish, Defroster Nozzle, NO.1
55982 Garnish, Defroster Nozzle, NO.2
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
