Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

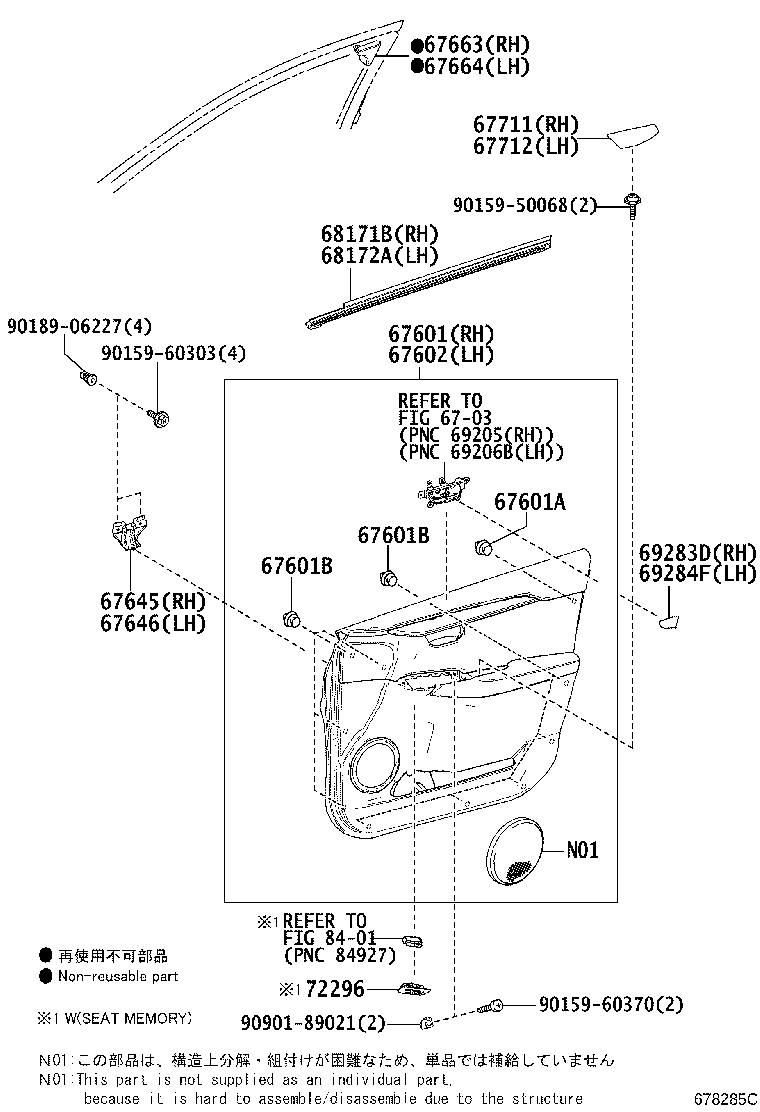

Front Door Panel & Glass
57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62351A | Seal, Front Door Window, Water Proof |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67711 | Cover, Front Door Trim, RH |
| 67712 | Cover, Front Door Trim, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837B | Seal, Front Door Dust Proof |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 67924 | Cushion, Front Door Stiffener, NO.2 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125 | Glass, Front Door Fix Window, RH |
| 68126 | Glass, Front Door Fix Window, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68215 | Weatherstrip, Front Door Fix Window, RH |
| 68216 | Weatherstrip, Front Door Fix Window, LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 69283D | Plug, Front Door Inside Handle Bezel, RH |
| 69284F | Plug, Front Door Inside Handle Bezel, LH |
| 72296 | Bezel, Front Seat Slide Switch |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
| 75923B | Tape, Black Out, NO.2 RH |
| 75924B | Tape, Black Out, NO.2 LH |
| 75925 | Tape, Black Out, NO.3 RH |
| 75926 | Tape, Black Out, NO.3 LH |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
