Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

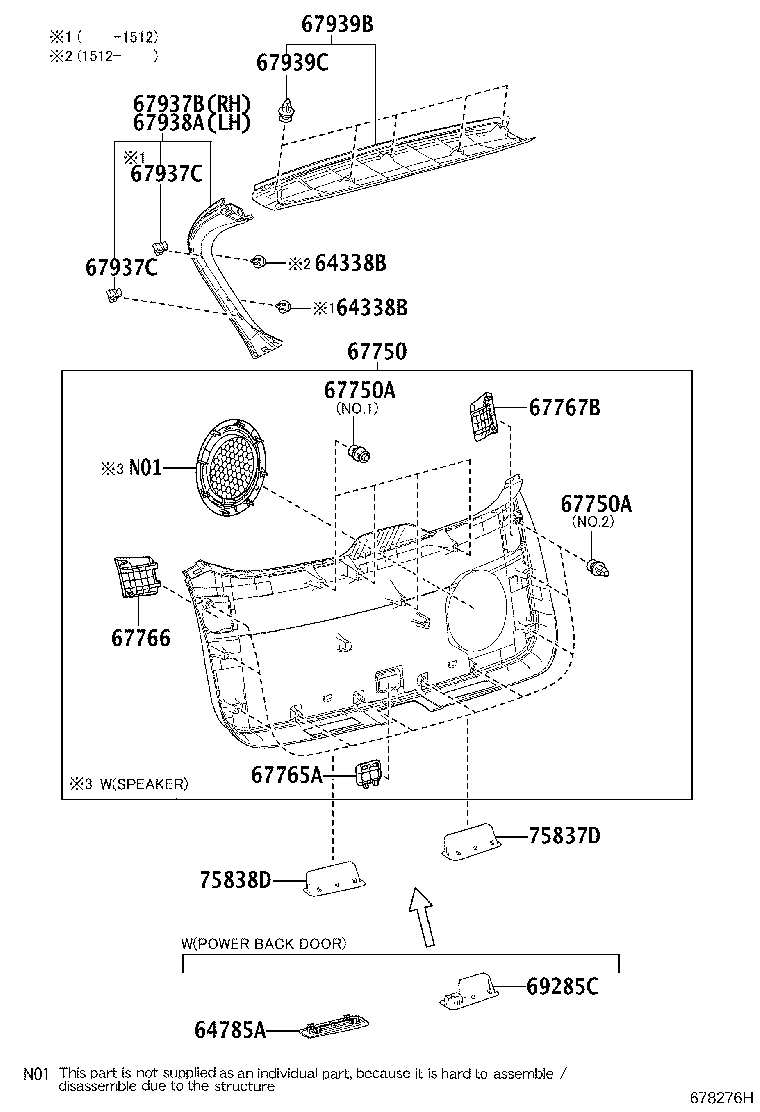

Back Door Panel & Glass
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64338B | Hook, Package Tray Trim Garnish |
| 64785A | Base, Back Door Trim |
| 64818D | Spacer, Back Window Glass, NO.3 |
| 64819D | Spacer, Back Window Glass, NO.4 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67282F | Stopper, Back Door, Lwr LH |
| 67293 | Cushion, Back Door Lower Stopper |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68695 | Pad, Back Door Window Frame |
| 69285C | Handle, Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75837D | Cover, Back Door Finish, RH |
| 75838D | Cover, Back Door Finish, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
