Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 2 illustrations

Illustrations

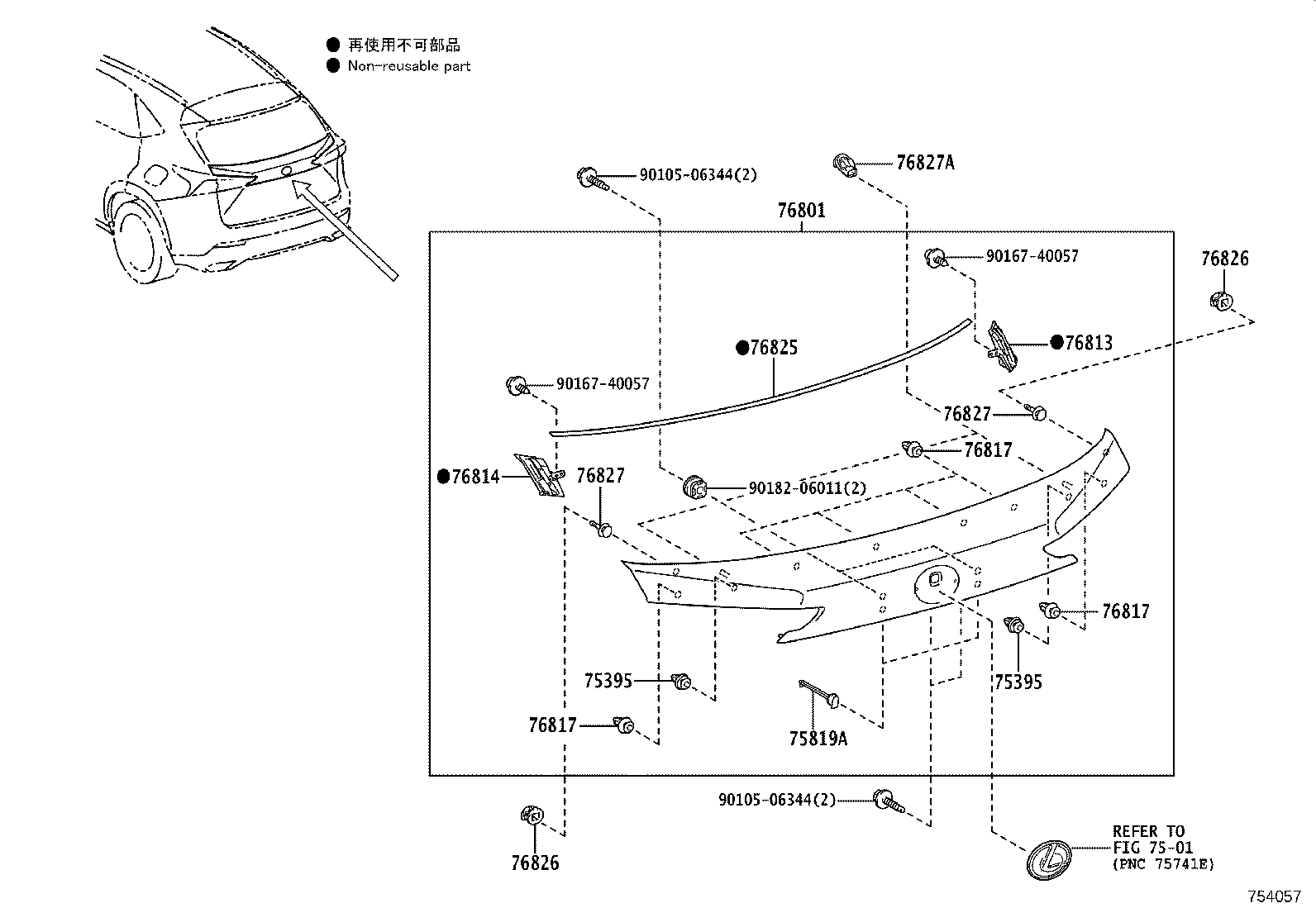

Figure 753022F 753022F 2014-07 → 2017-09 Figure 754057 754057 2017-09 → —

Part groups

PNCDescription
75395 Clip, Back Door Moulding, NO.1
75819A Clip, Back Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76813 Garnish, Back Door Outside, Upper RH
76814 Garnish, Back Door Outside, Upper LH
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
76827 Retainer, Back Door Garnish, NO.2
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
