Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

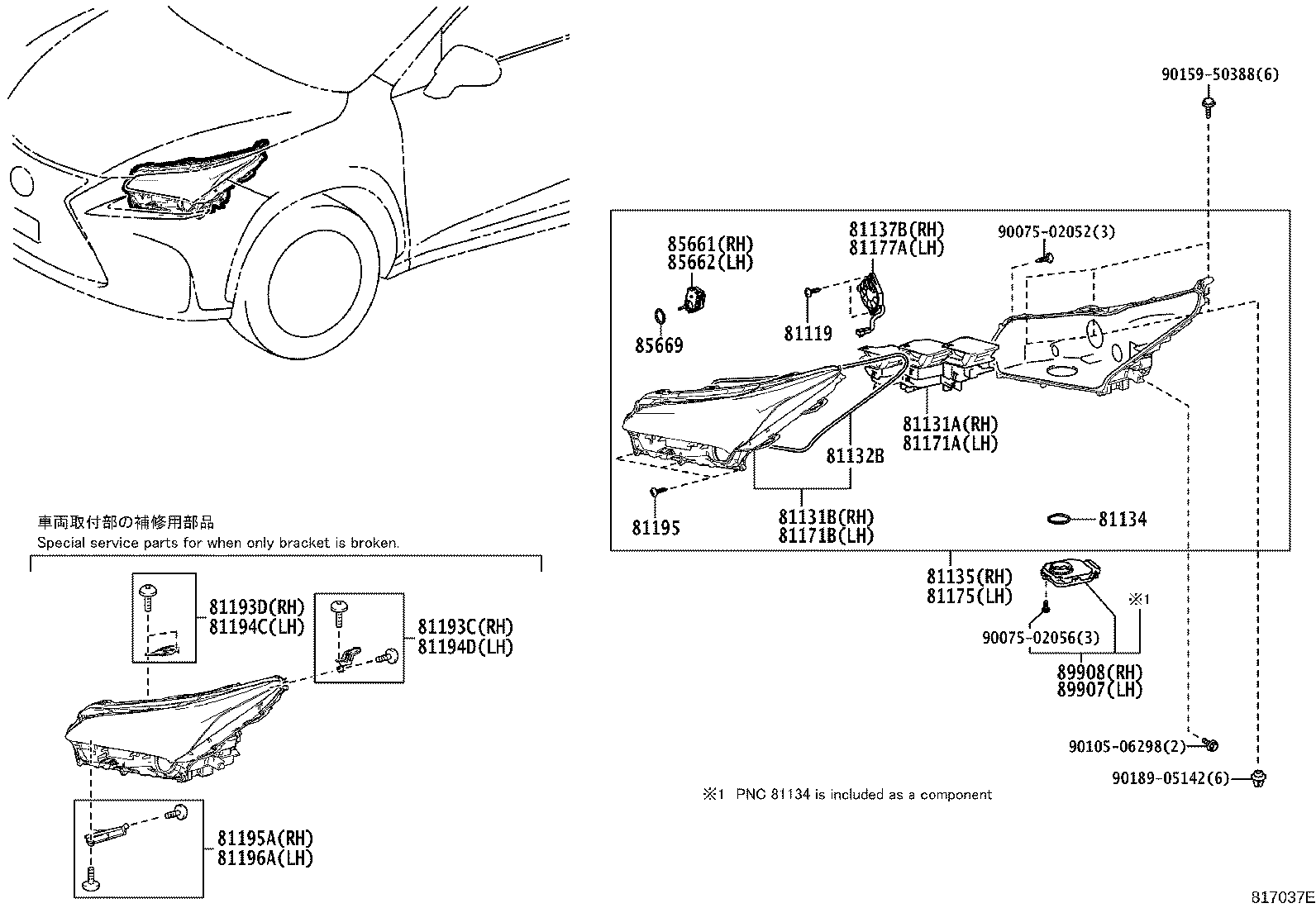

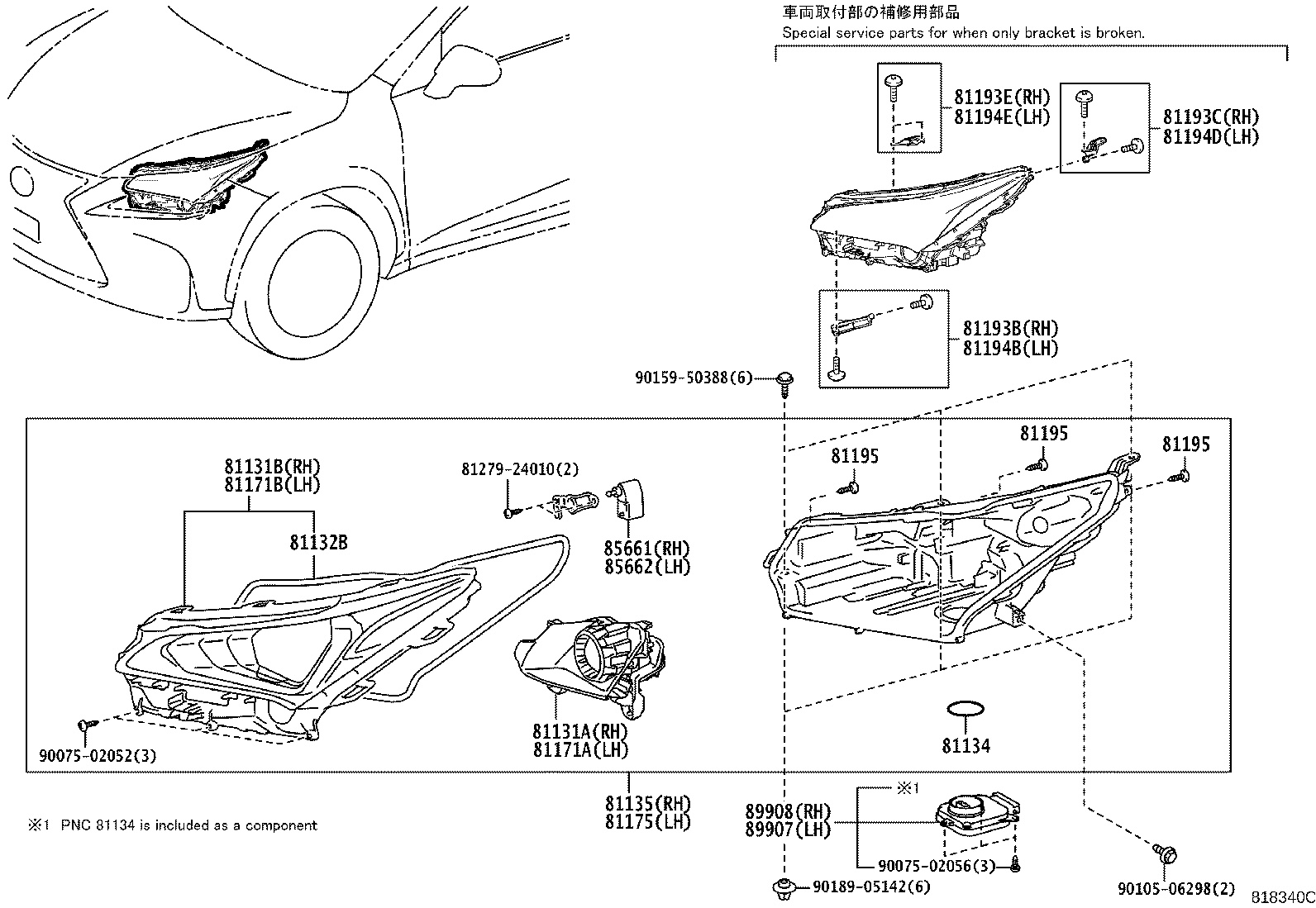

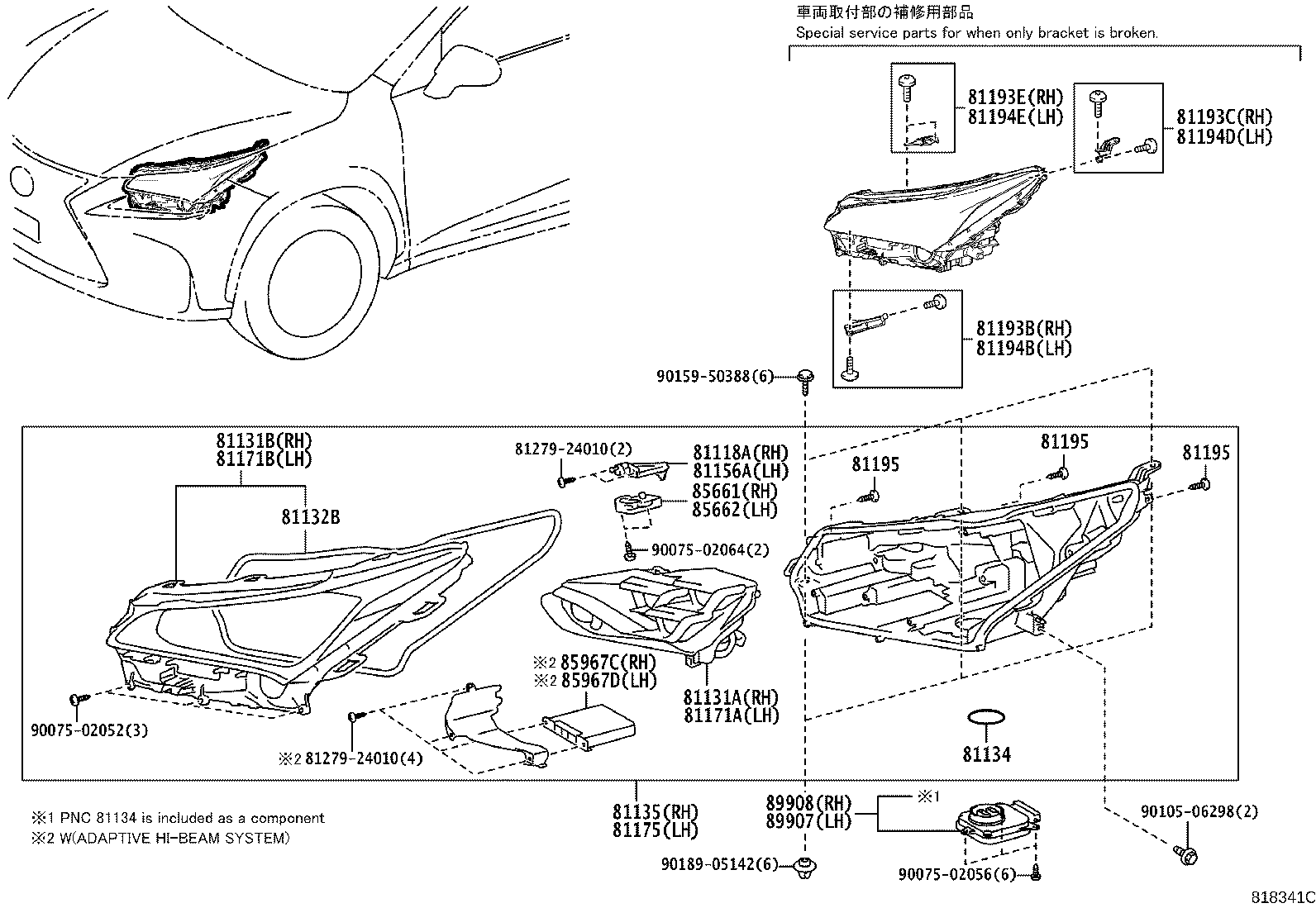

Headlamp
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81118A | Bracket, Headlamp, RH |
| 81119 | Screw, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81137B | Fan, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81156A | Bracket, Headlamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81177A | Fan, Headlamp, LH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81193D | Retainer, RH Headlamp Protector, Upper LH |
| 81193E | Retainer, Headlamp Protector, Upper RH NO.3 |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194C | Retainer, LH Headlamp Protector, Upper RH |
| 81194D | Retainer, LH Headlamp Protector, Upper LH |
| 81194E | Retainer, Headlamp Protector, Upper LH NO.3 |
| 81195 | Screw, Headlamp |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
| 89907 | Computer Sub-assy, Headlamp, LH |
| 89908 | Computer Sub-assy, Headlamp, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
