Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

Figure 816981E

816981E 2014-07 → 2017-09

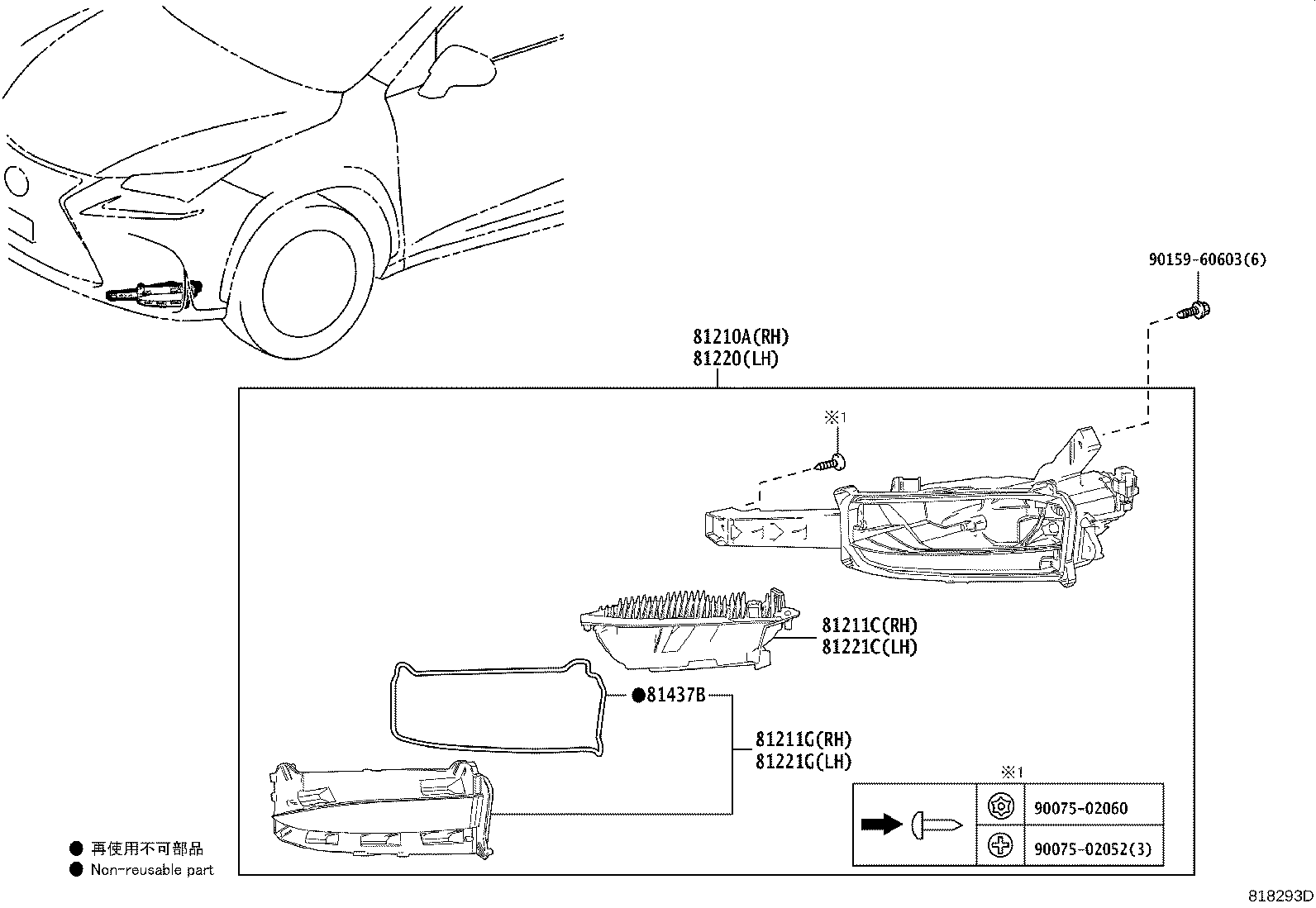

Figure 818293D

818293D 2017-09 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81211C	Lamp Unit, Fog Lamp, RH
81211G	Lens, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81221G	Lens, Fog Lamp, LH
81437B	Gasket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
