Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

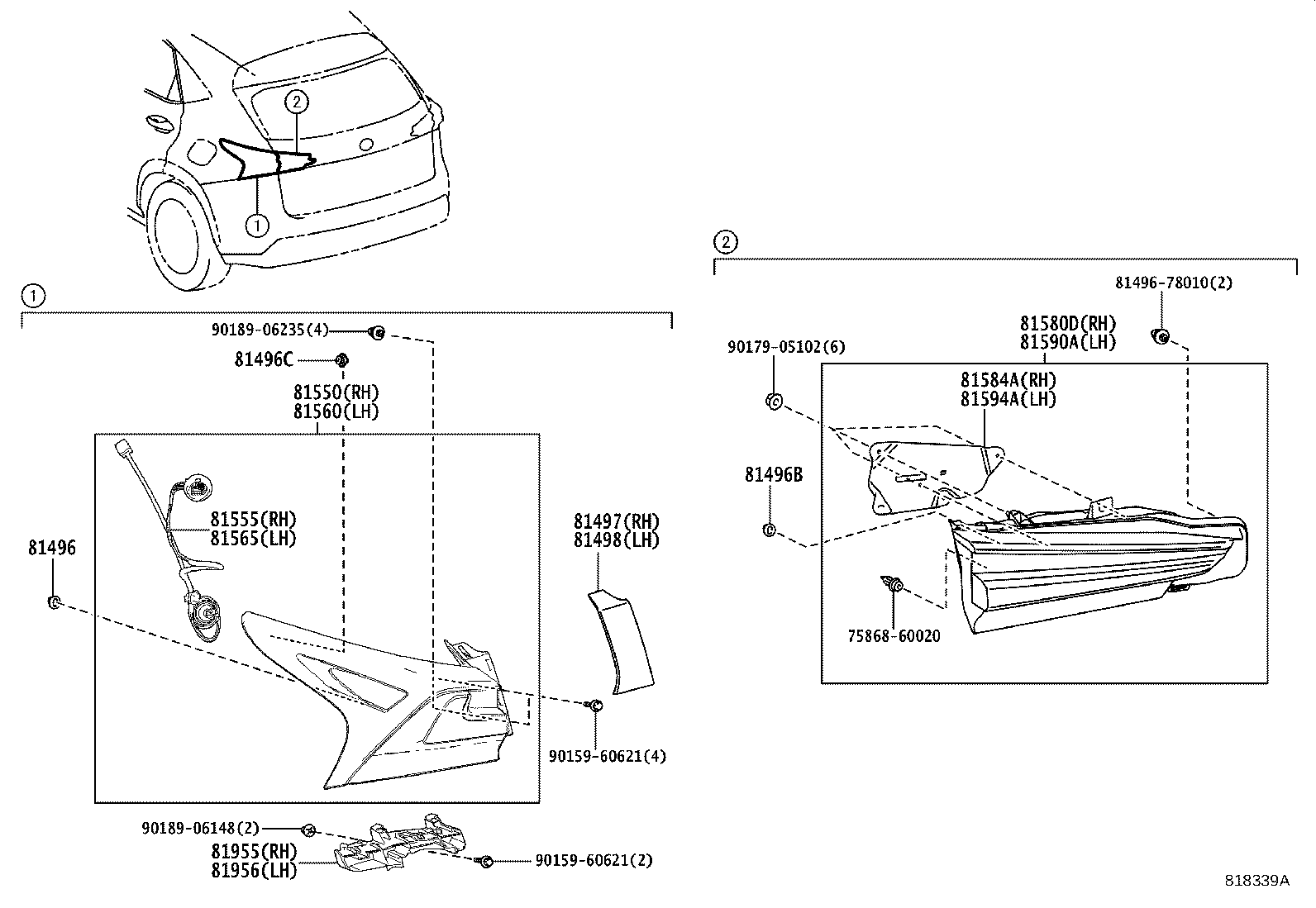

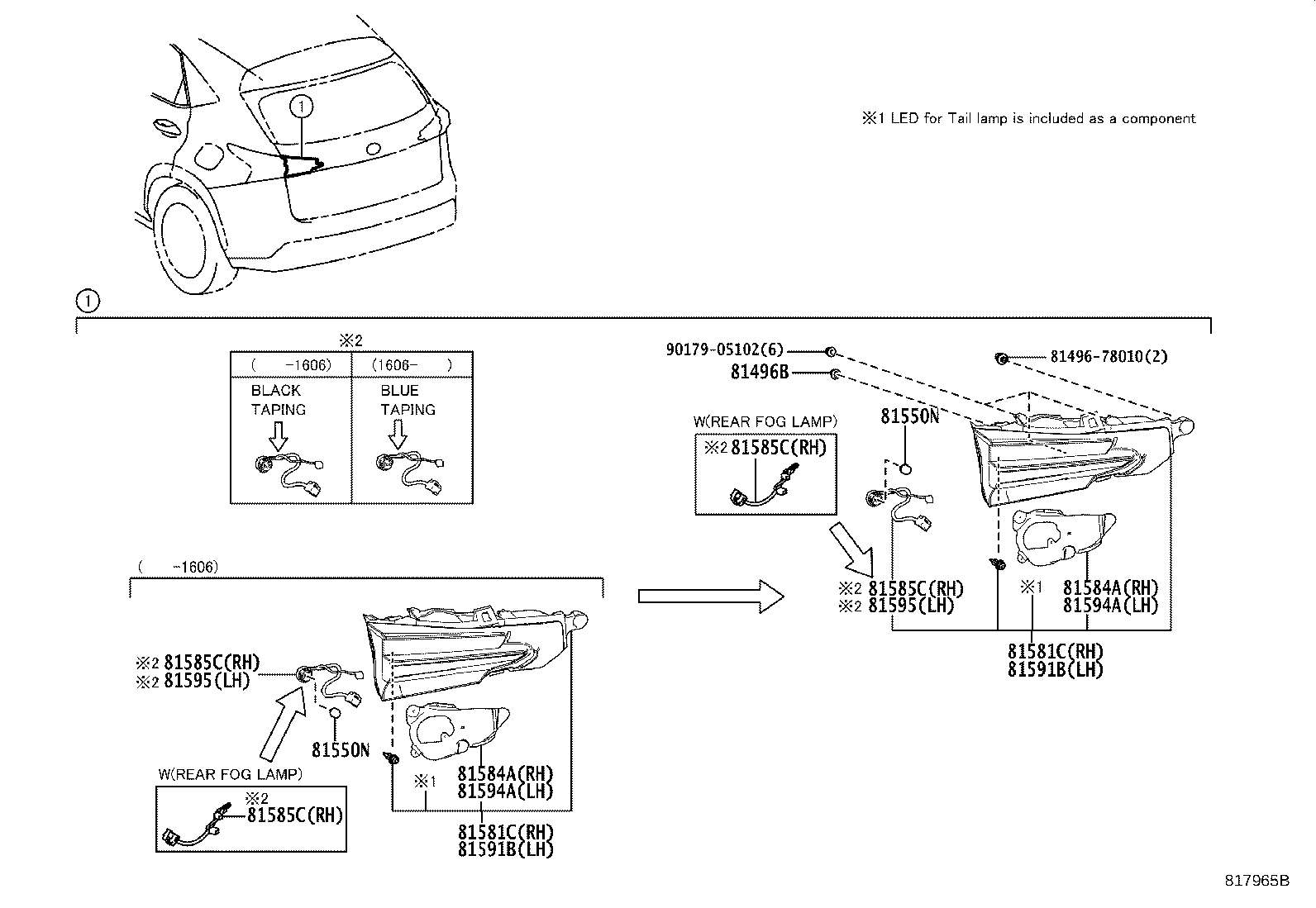

Rear Combination Lamp
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
| 81955 | Retainer, Rear Combination Lamp, RH |
| 81956 | Retainer, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
