Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11
Wiring & Clamp
87 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16364A | Wire, Cooling Fan |
| 82001 | Cable, Bond, NO.1 |
| 82090A | Wire Assy, Extension |

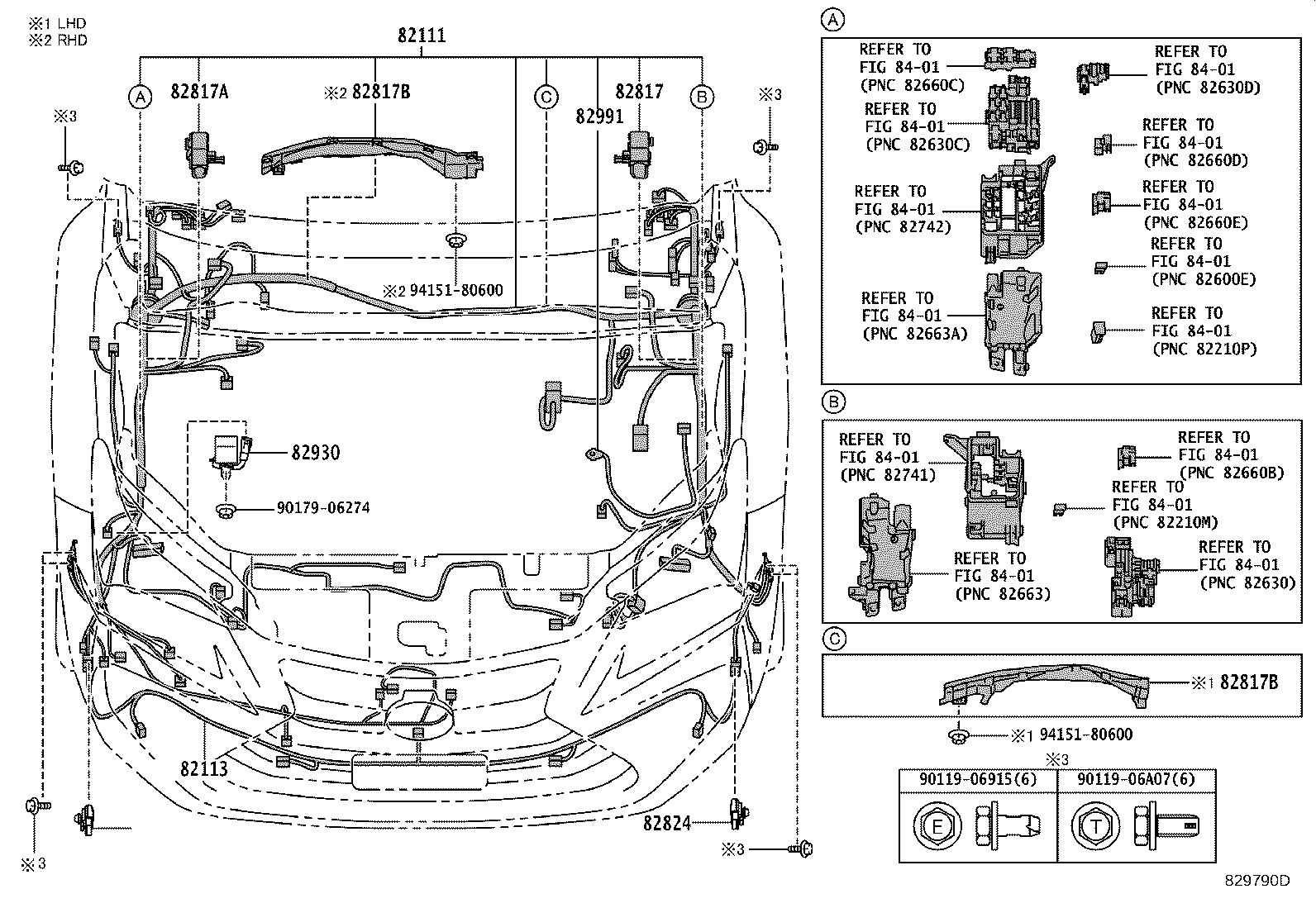

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |

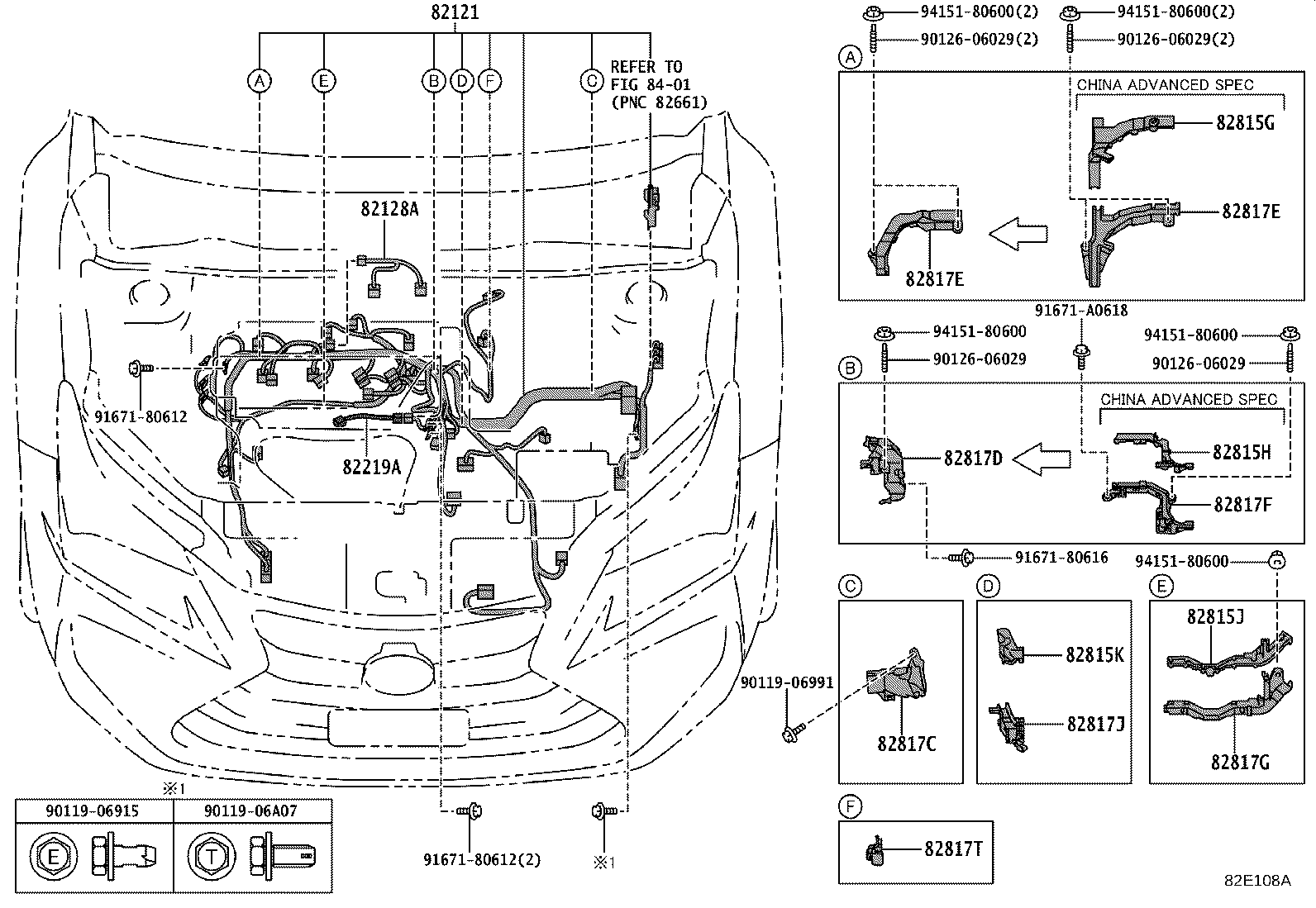

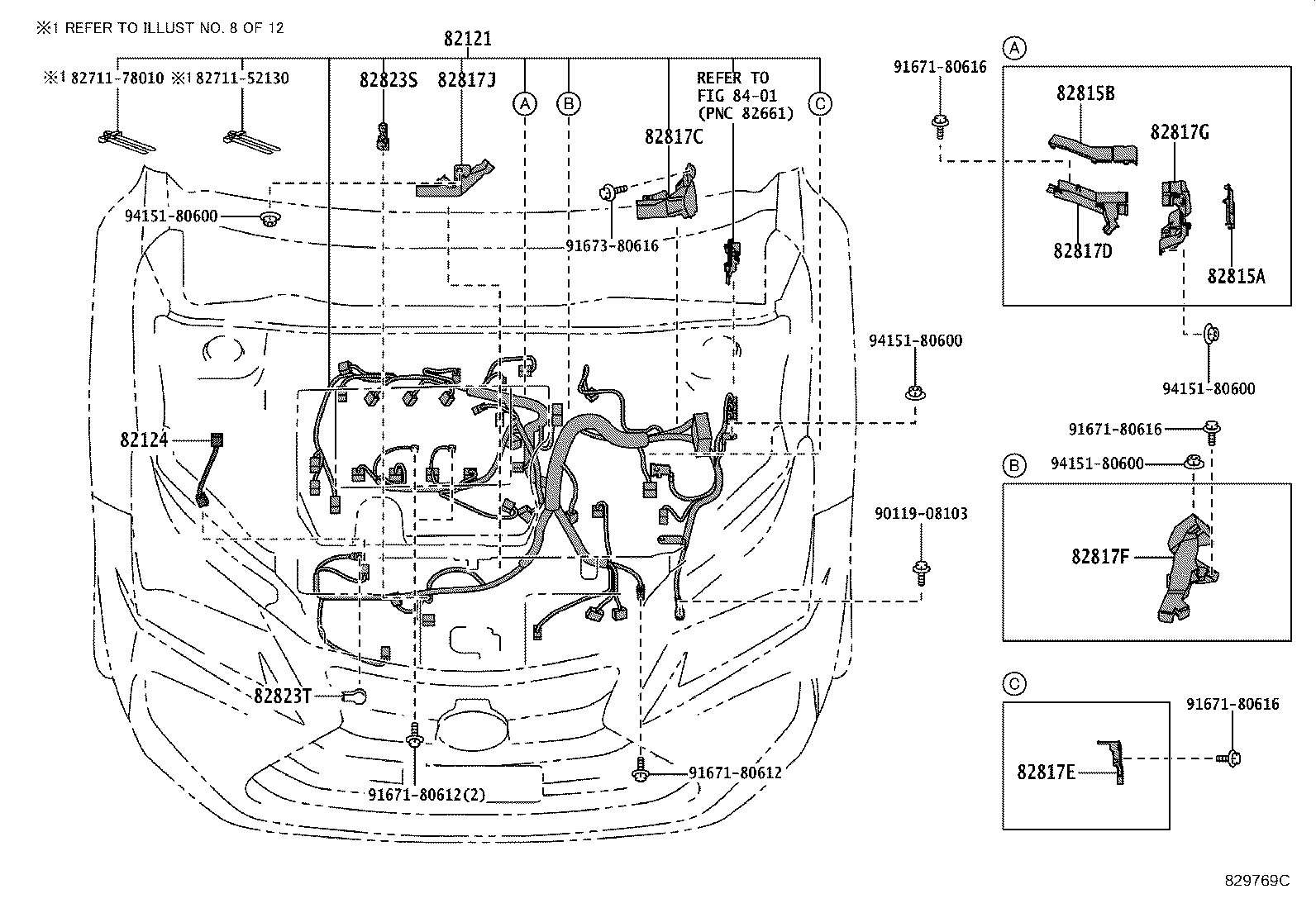

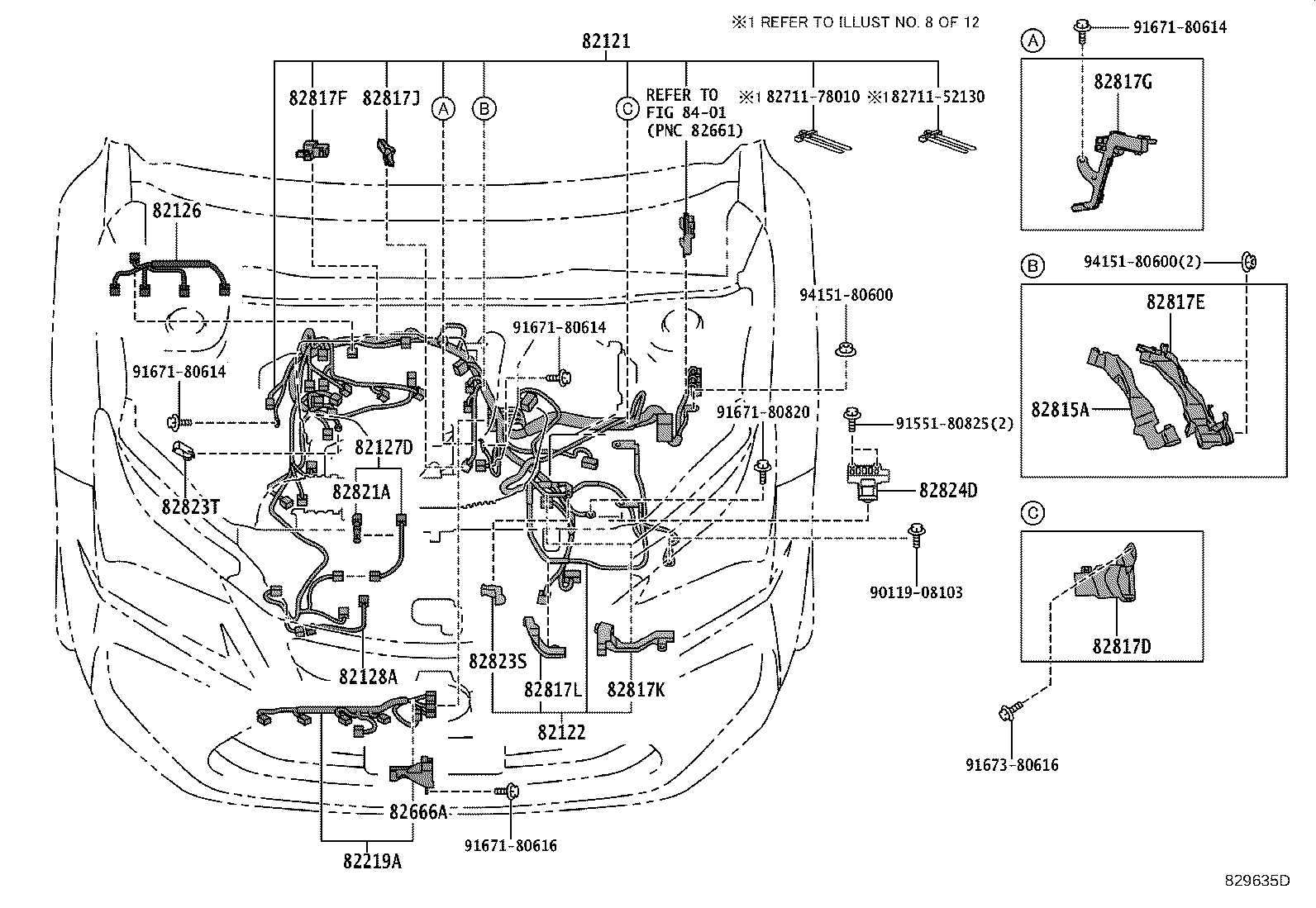

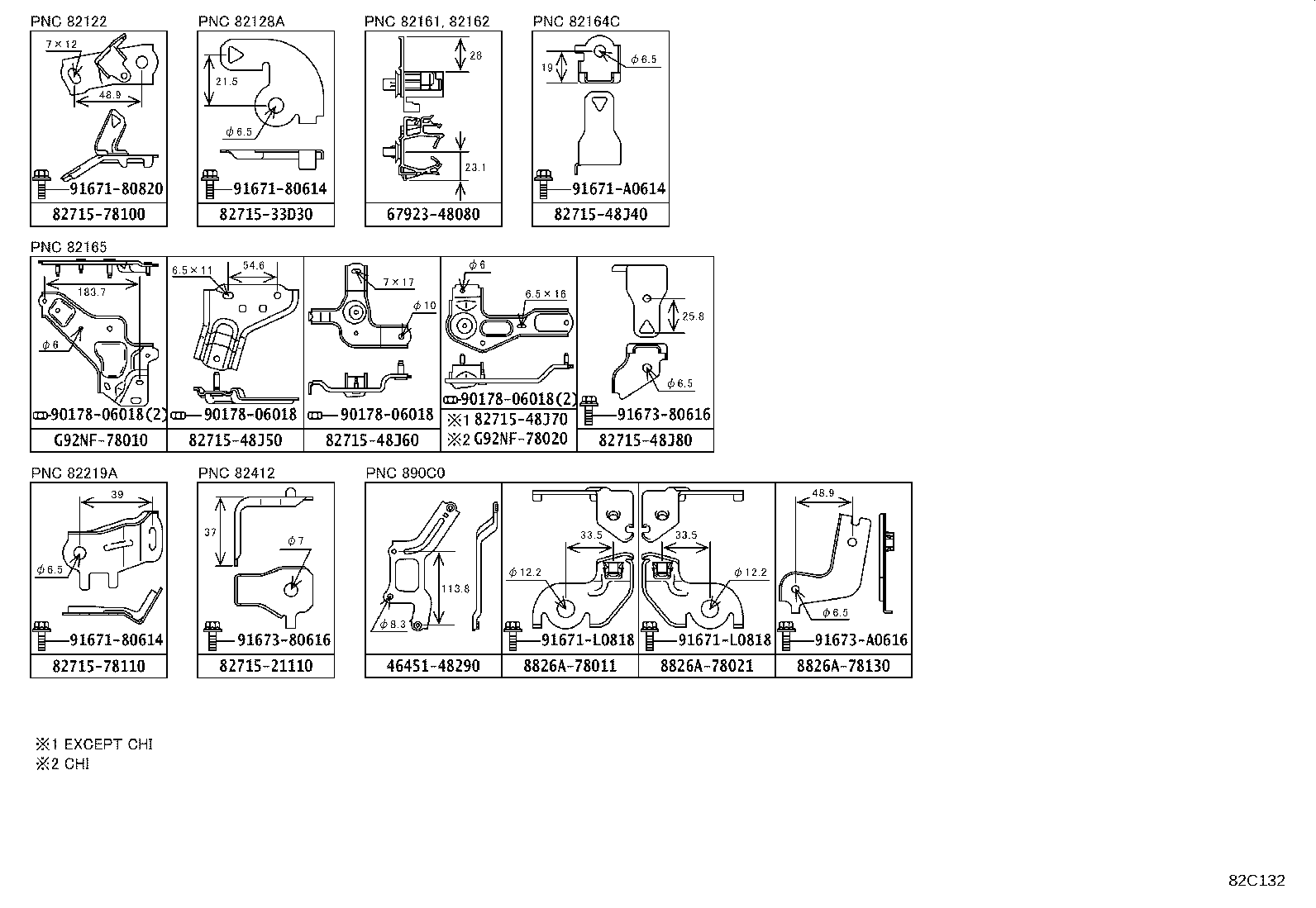

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82124 | Wire, Engine, NO.4 |
| 82126 | Wire, Engine |
| 82127D | Wire, Engine, NO.7 |
| 82128A | Wire, Engine, NO.8 |

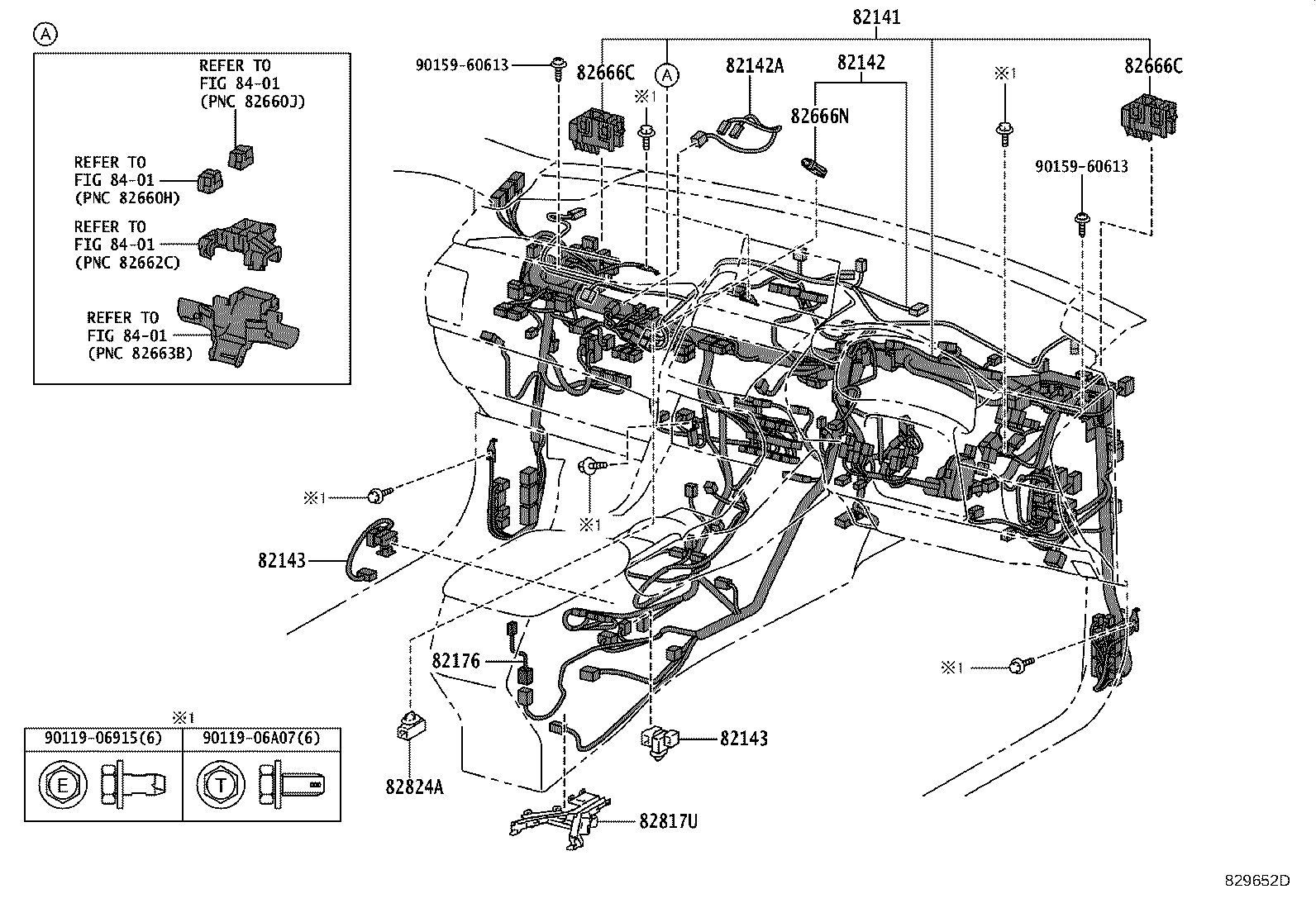

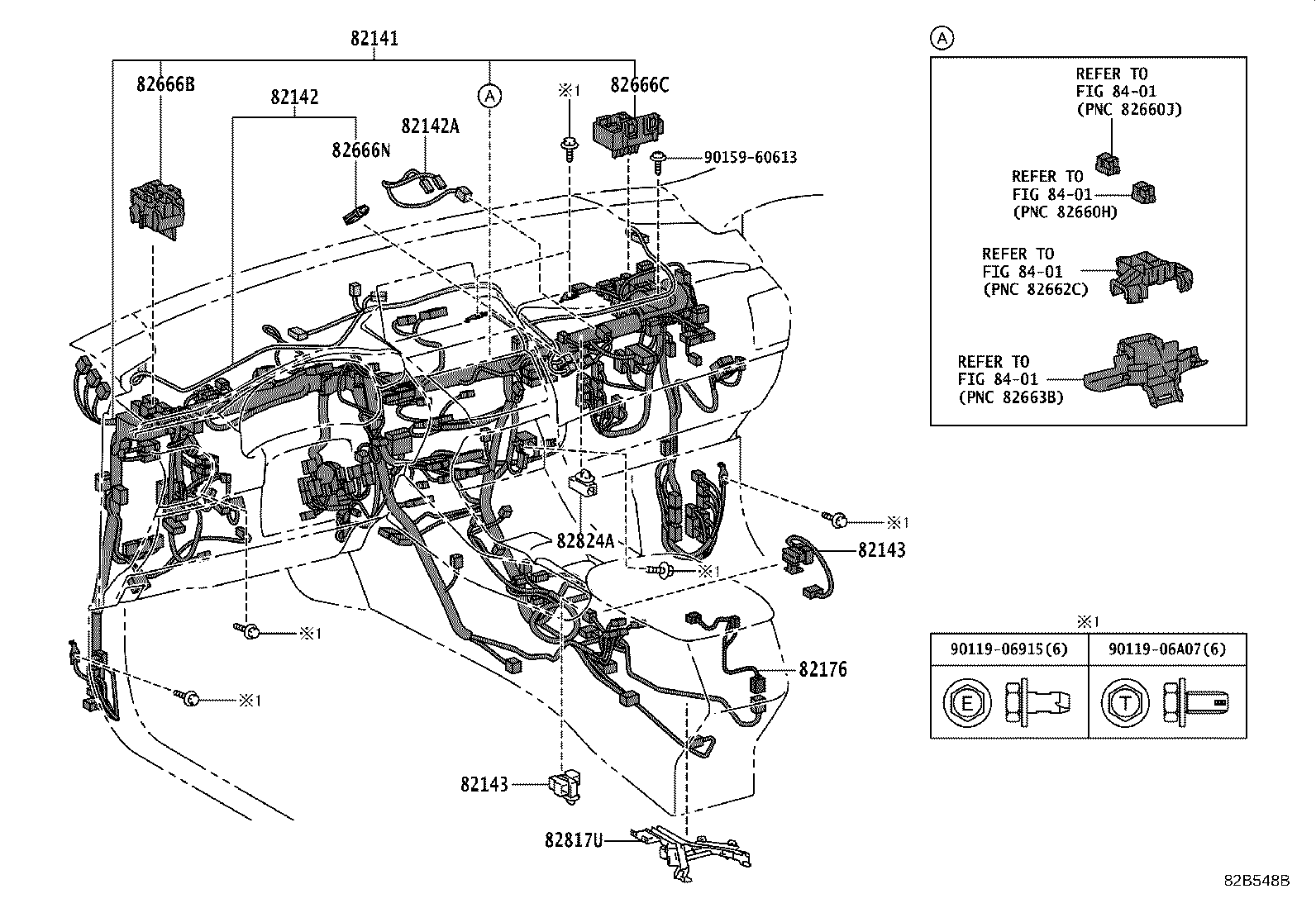

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |

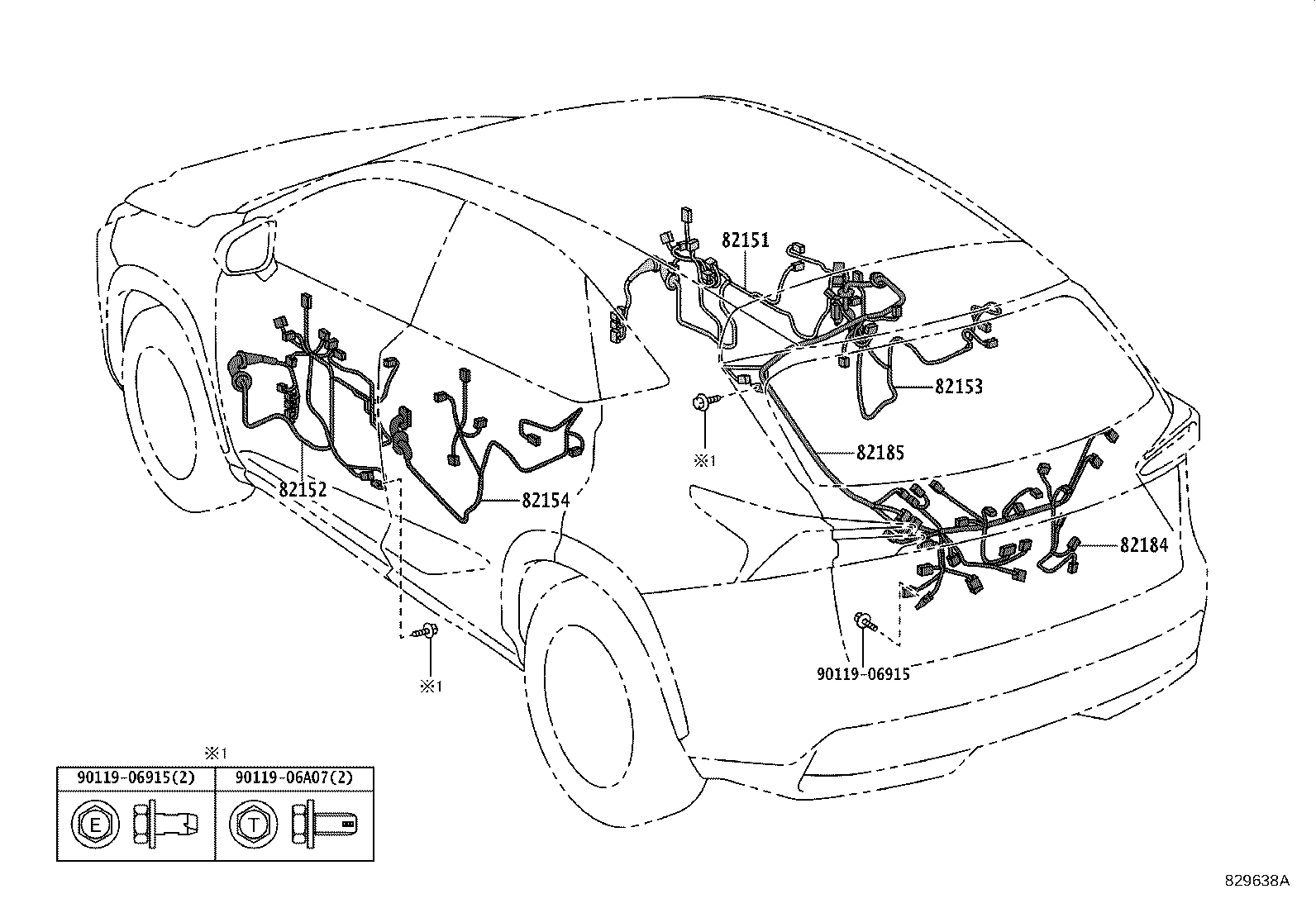

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

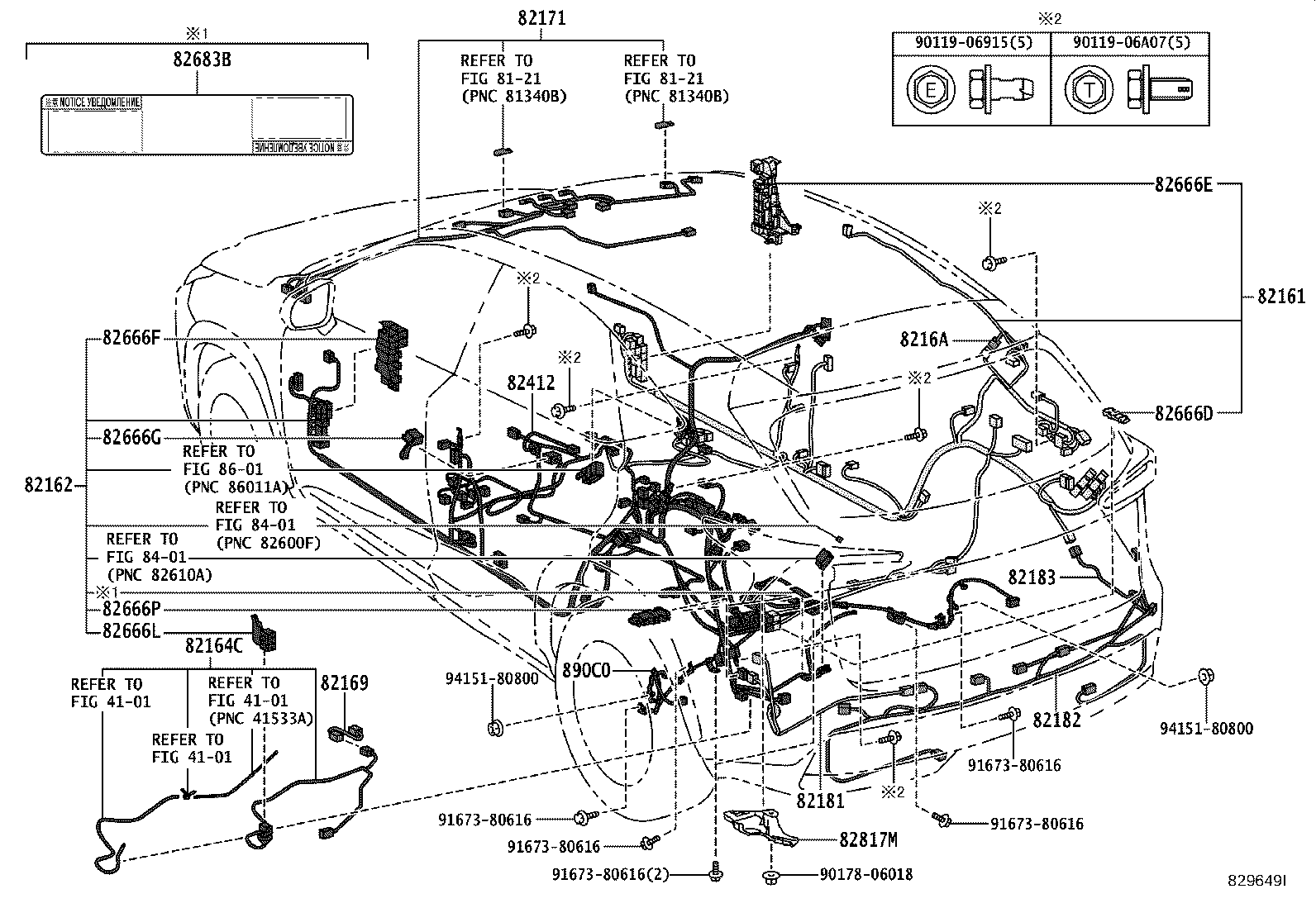

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164C | Wire, Floor, NO.4 |

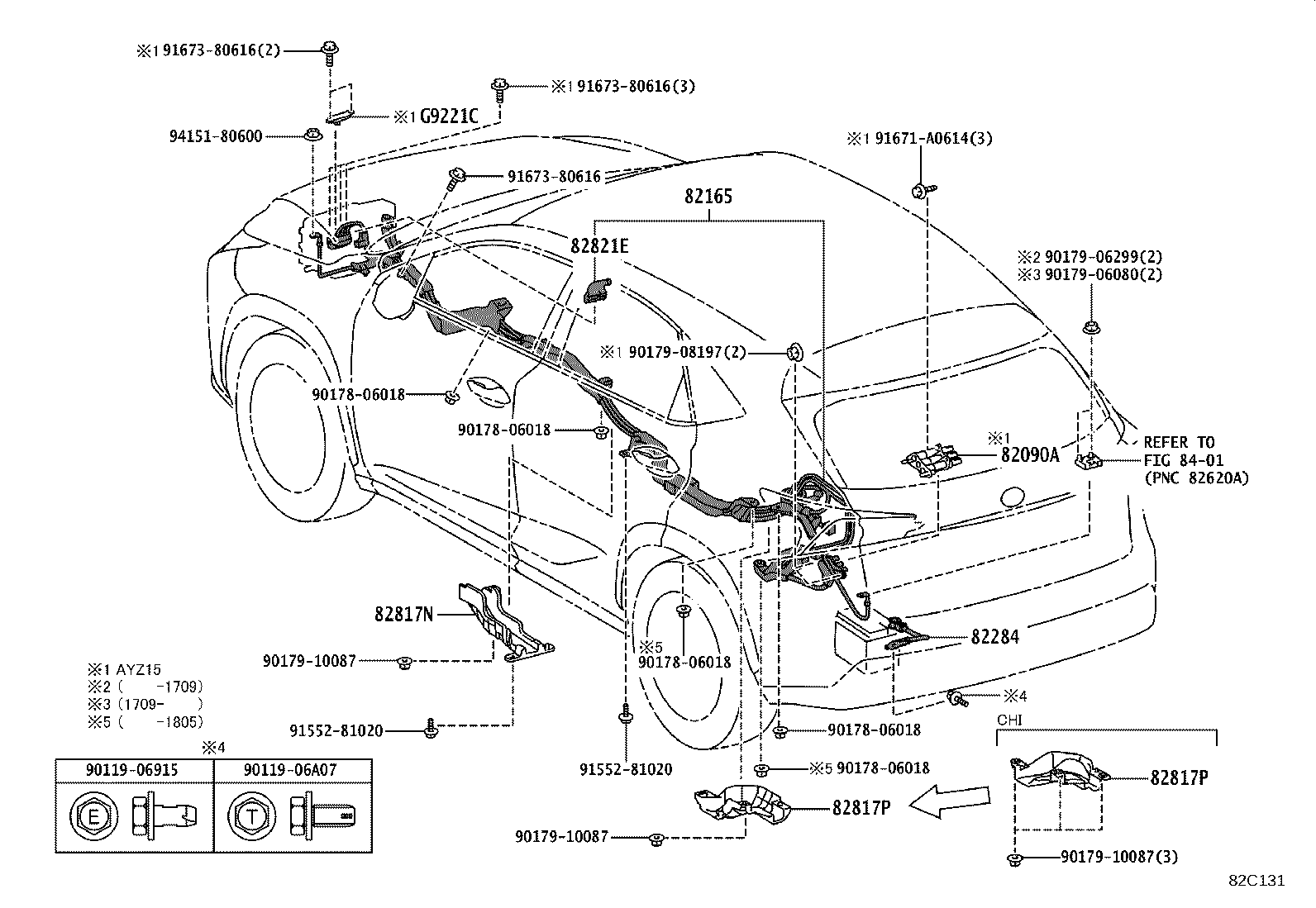

| 82165 | Wire, Frame, NO.2 |
| 82169 | Wire Frame, NO.3 |
| 8216A | Wire, Floor NO.7 |
| 82171 | Wire, Roof, NO.1 |
| 82176 | Wire, Rear Console Box |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |

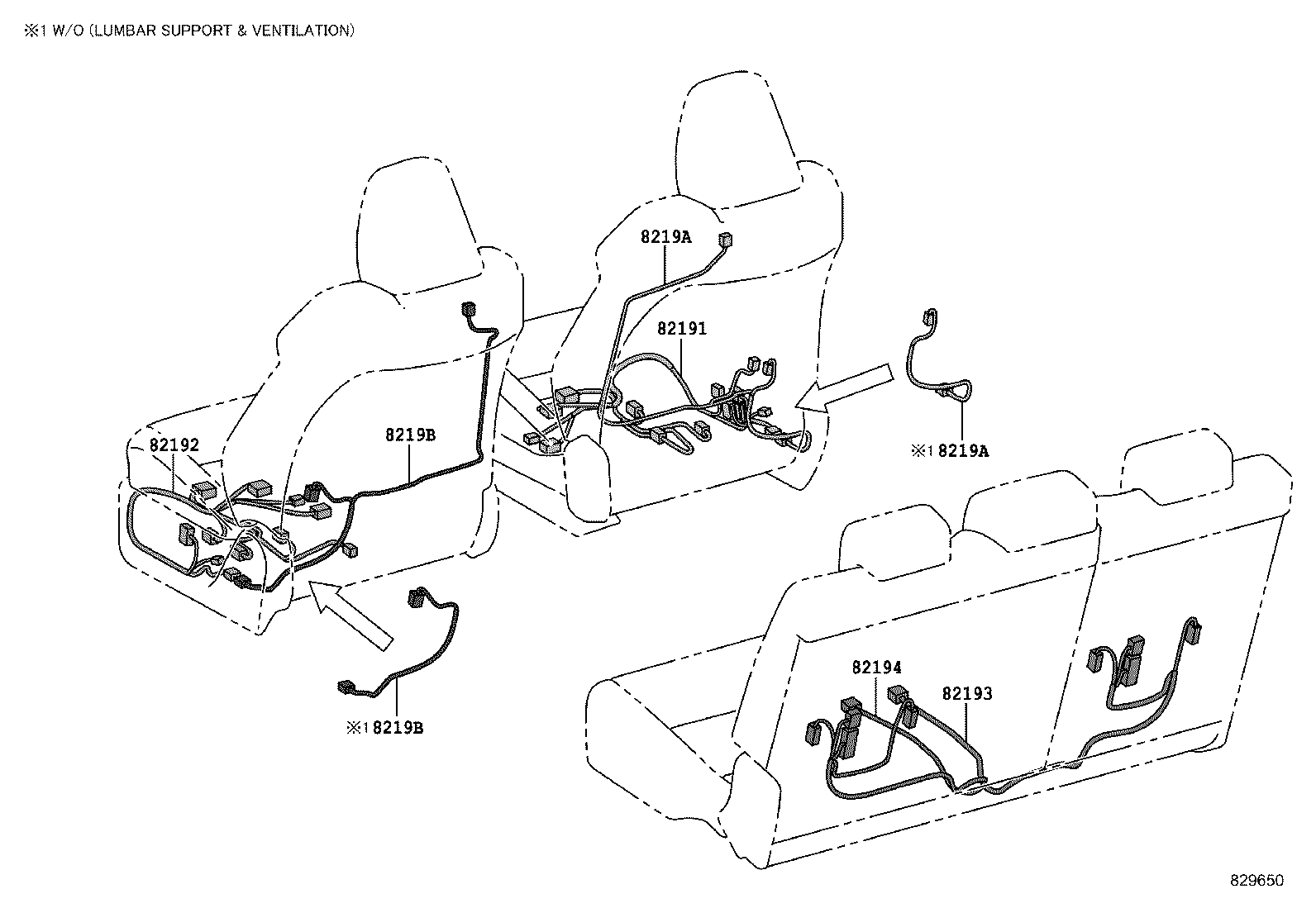

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193 | Wire, Rear Seat, RH |
| 82194 | Wire, Rear Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 82219A | Wire, Sensor |
| 82284 | Wire, Earth |
| 82412 | Wire, Fuel Gage |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82683B | Label, Fuse Block Notice |

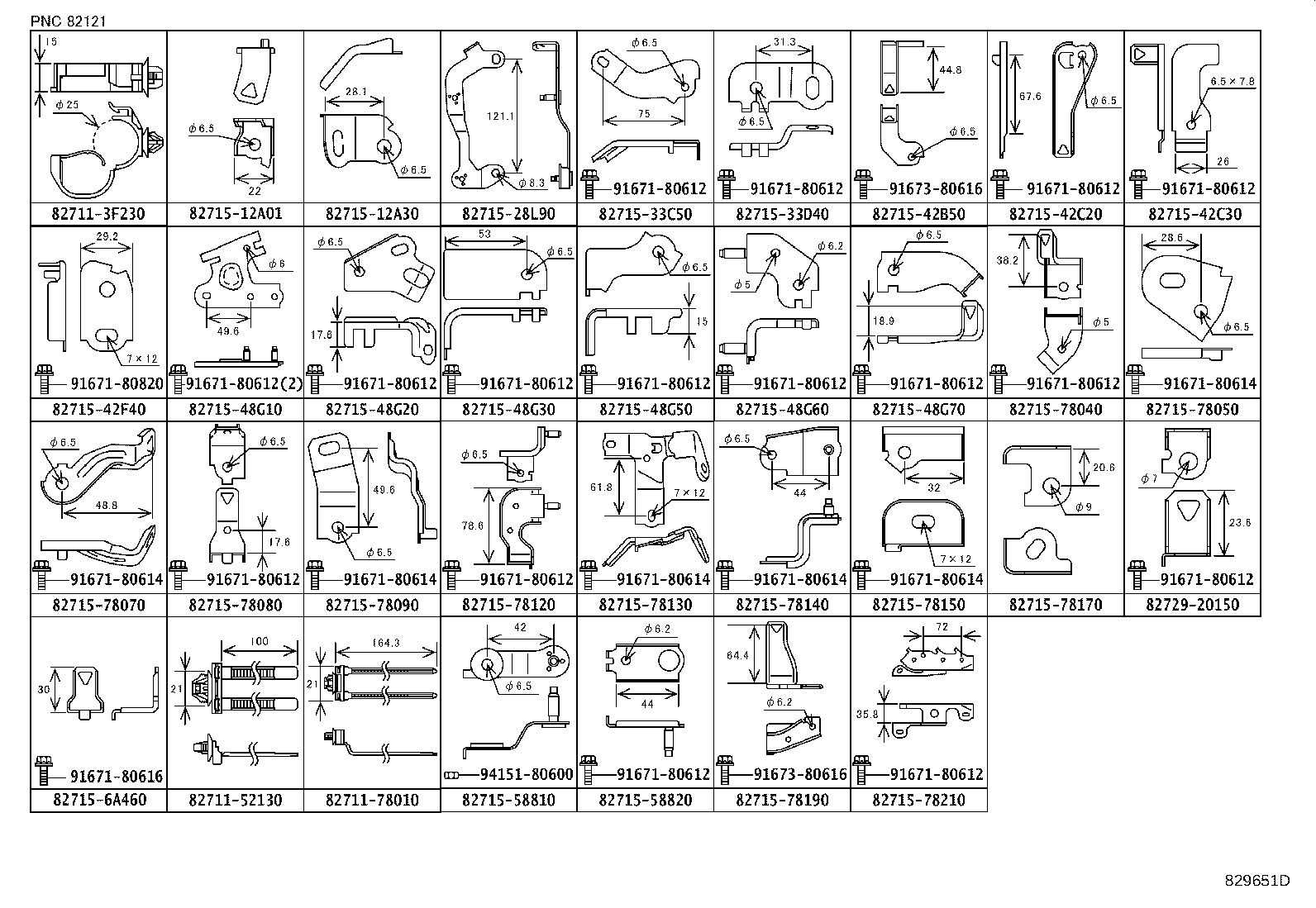

| 82712A | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |

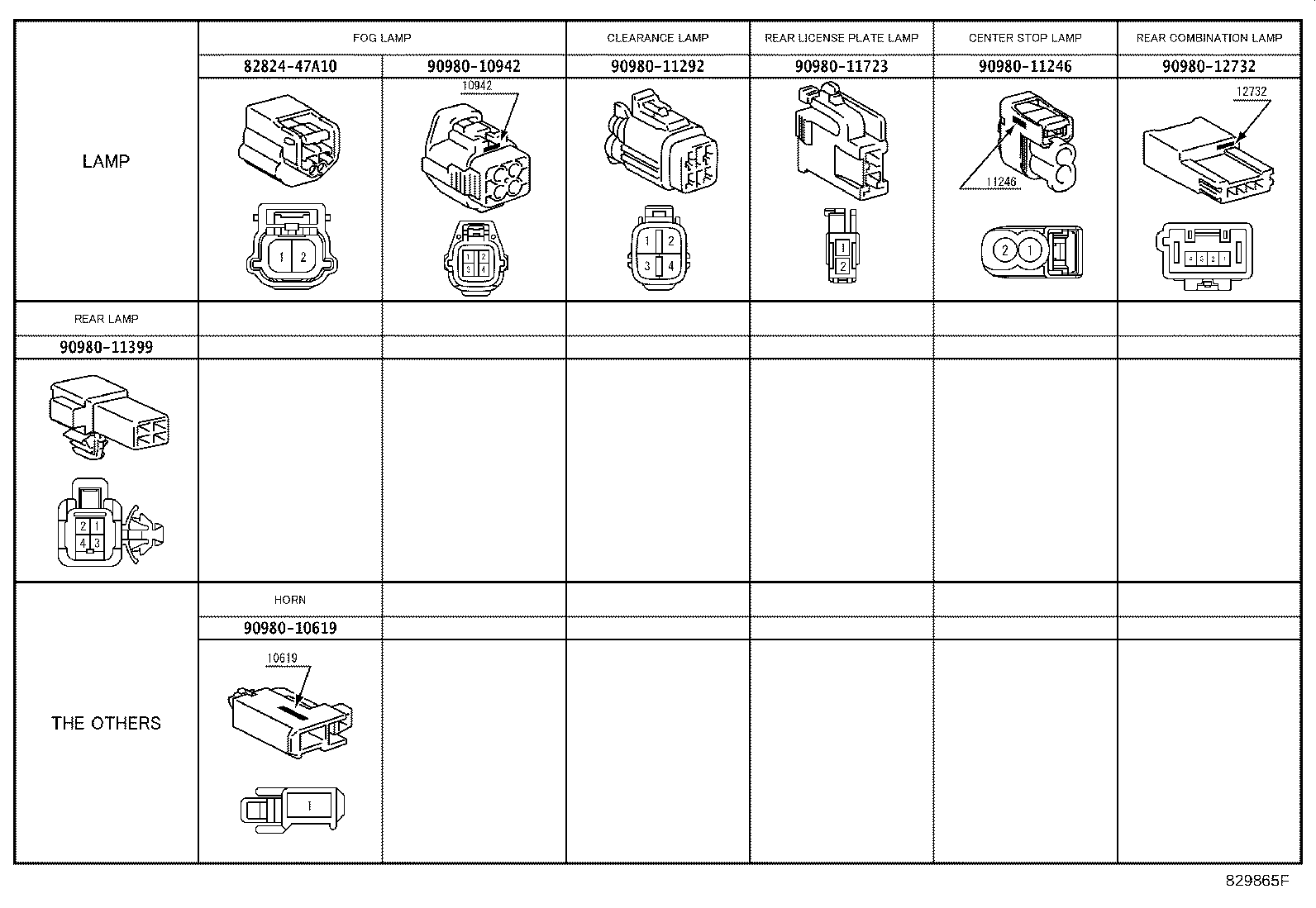

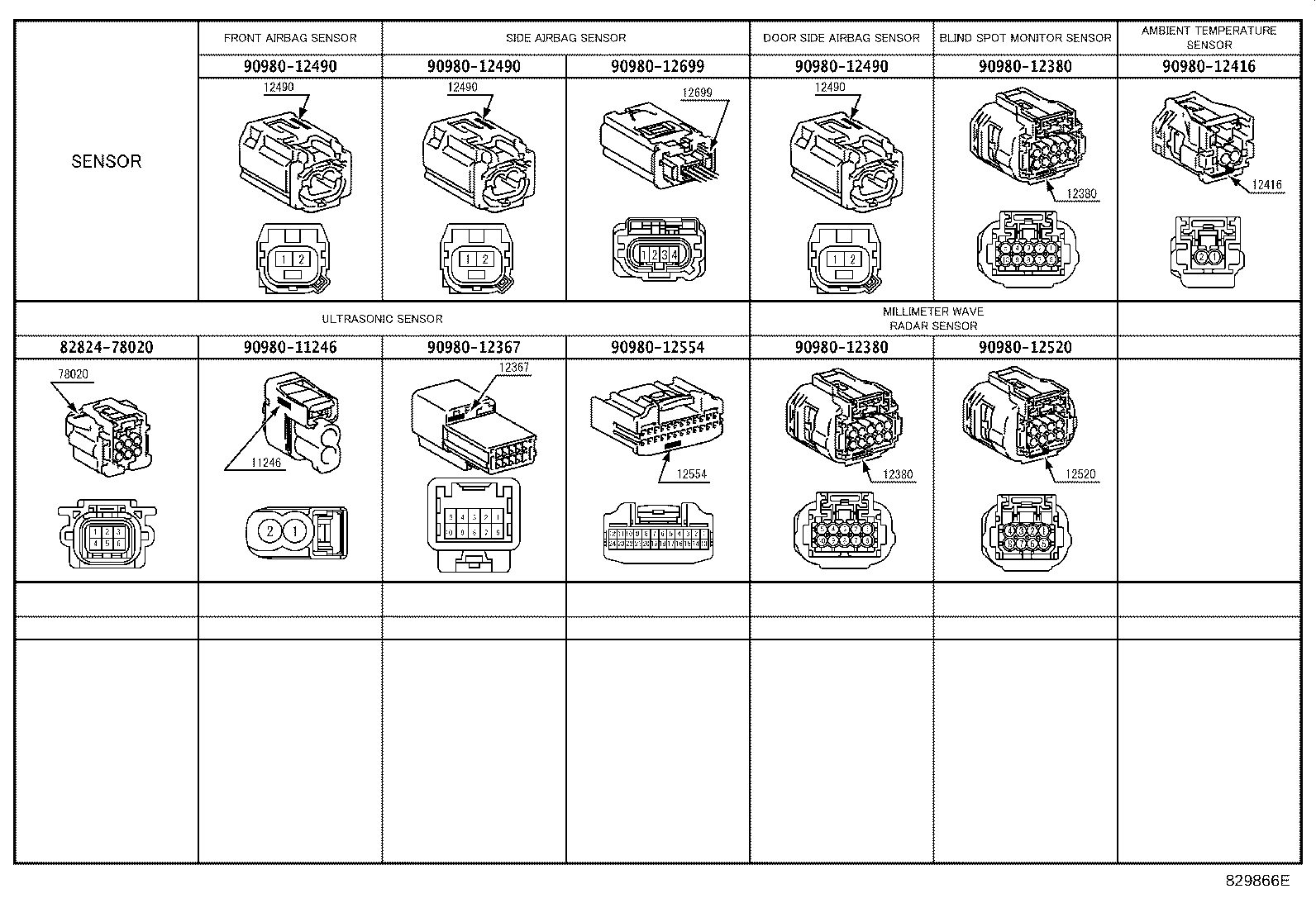

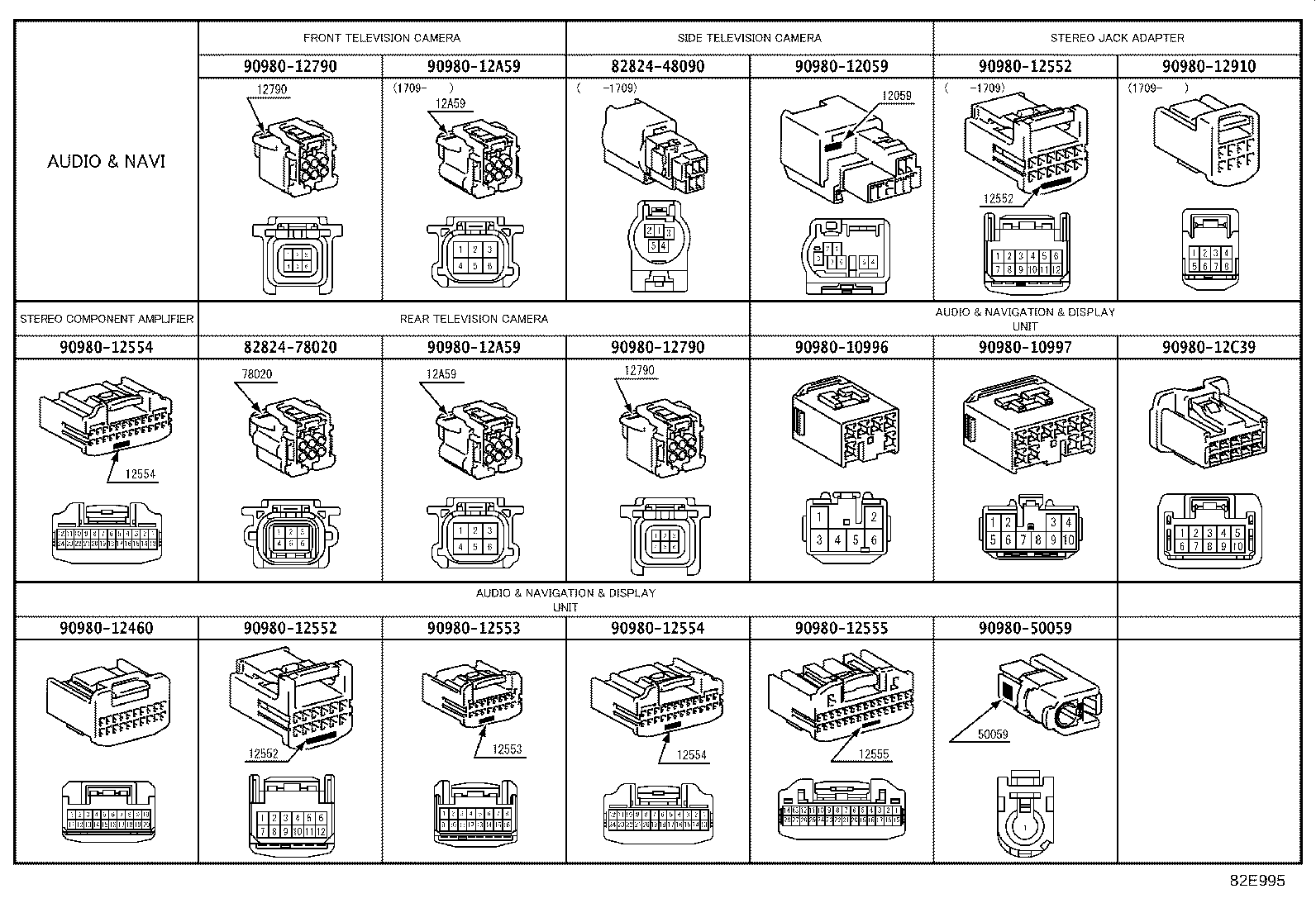

| 82824 | Connector, Wiring Harness |
| 82824A | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82930 | Condenser Assy, Wiring Harness, NO.1 |
| 82991 | Wire, Fusible Link Repair |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| G9221C | Cover, Inverter, Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
