Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

145 part groups · 24 illustrations

Illustrations

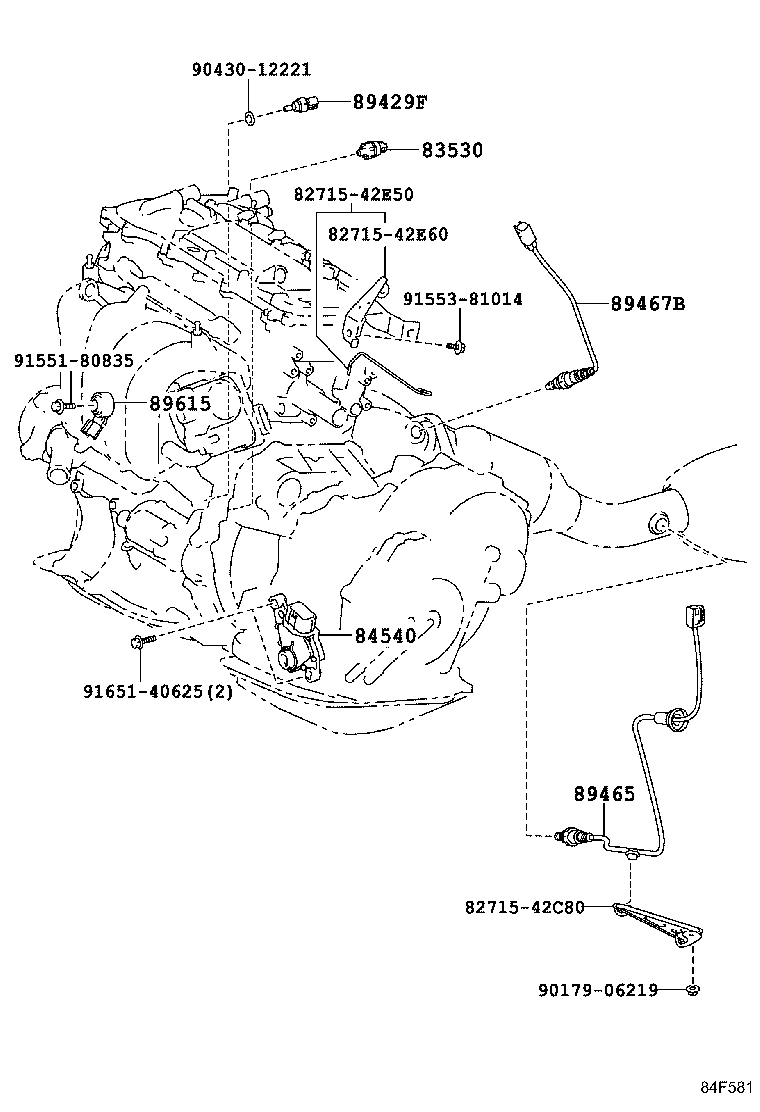

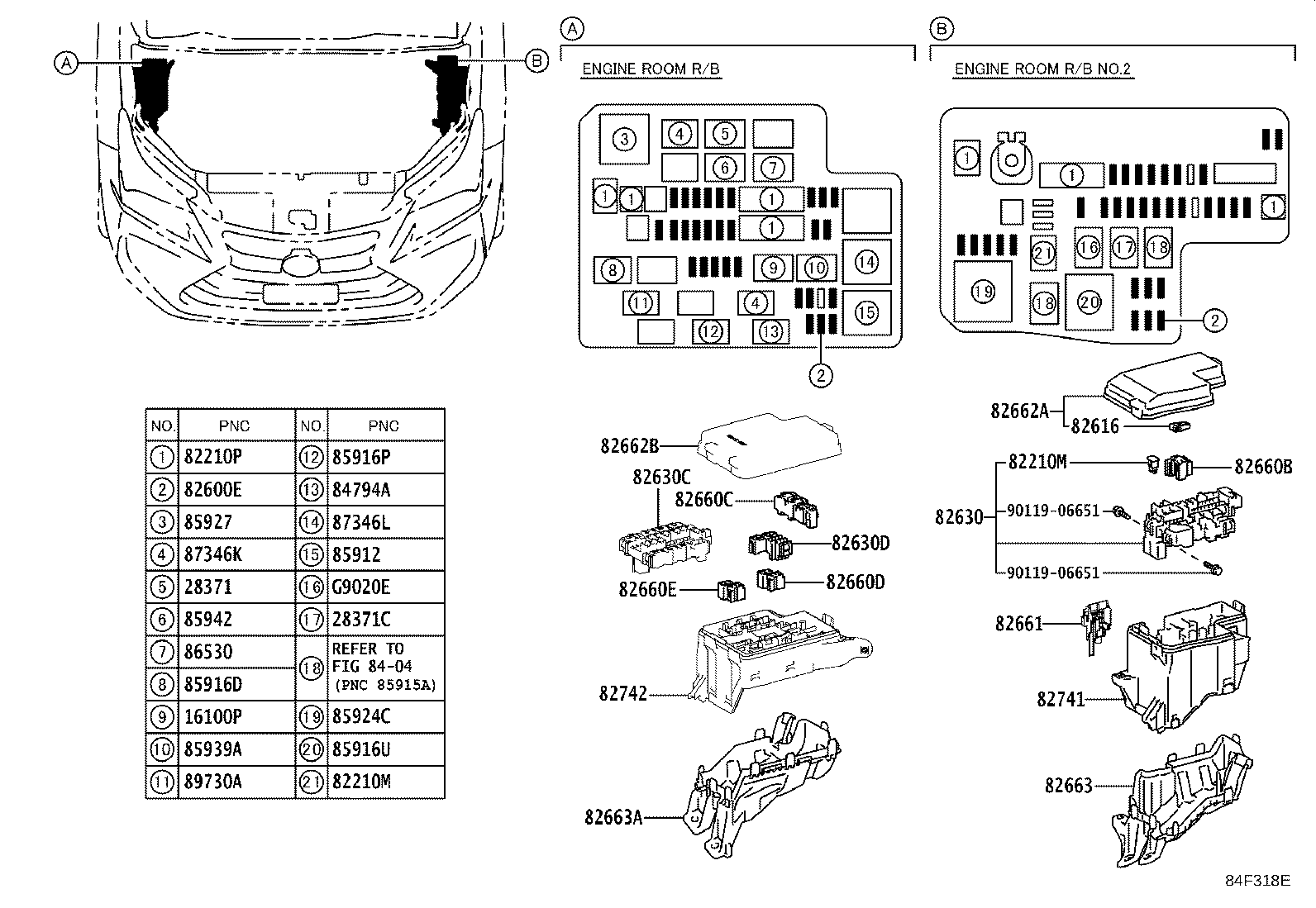

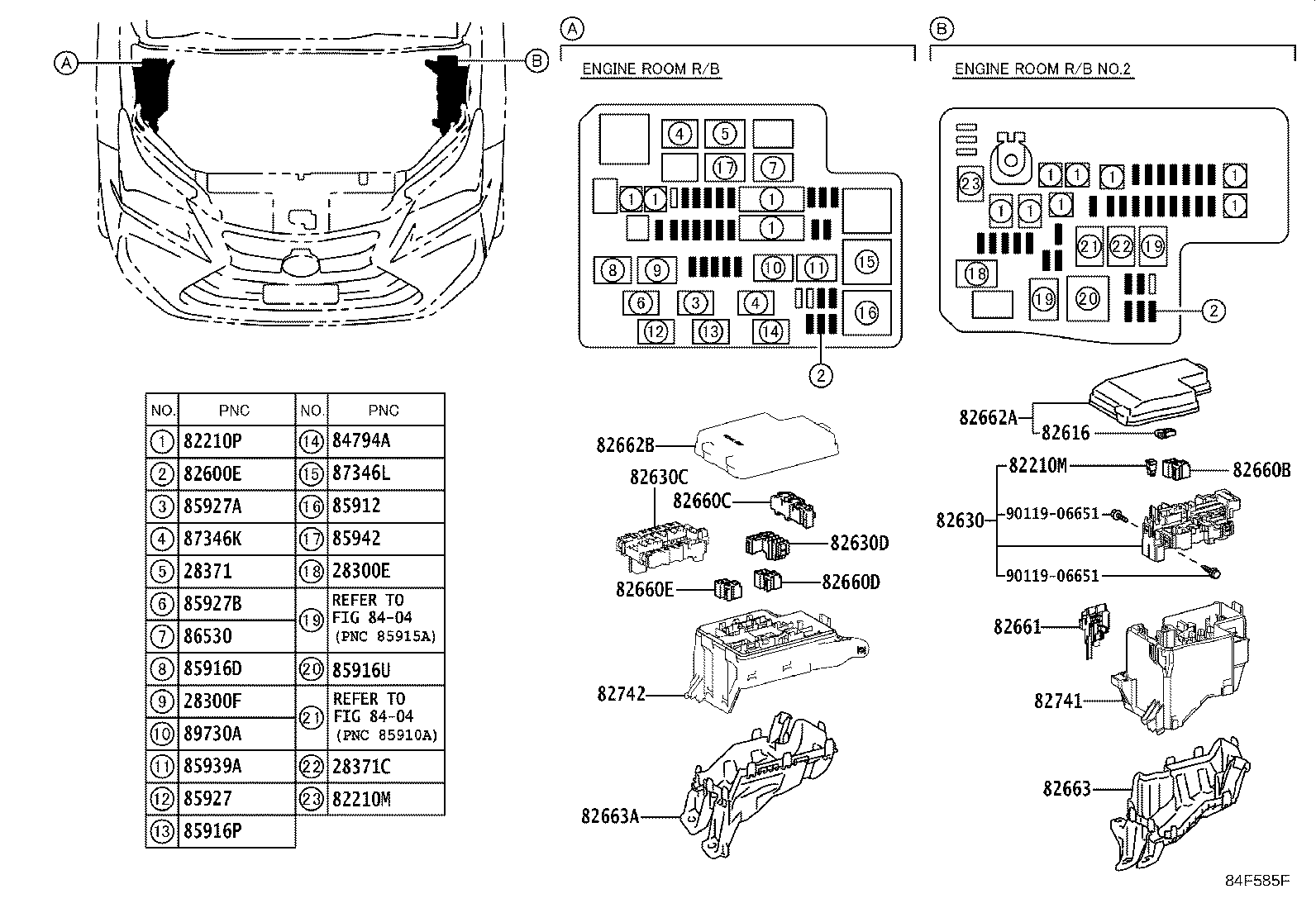

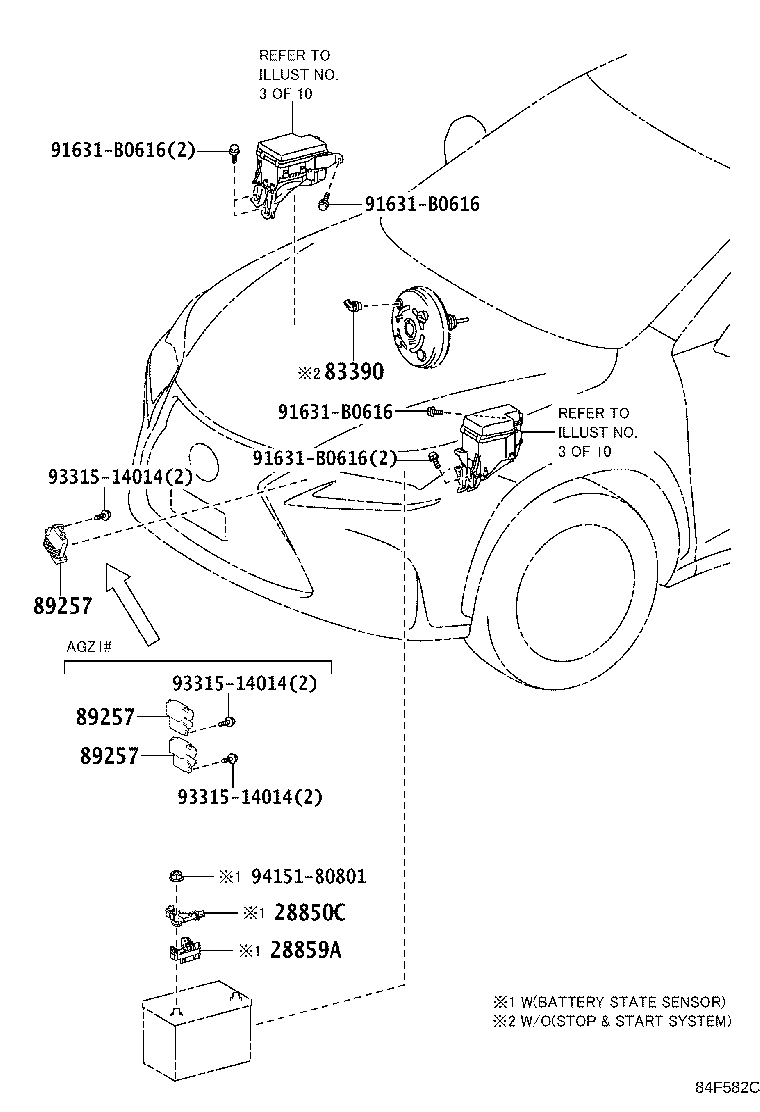

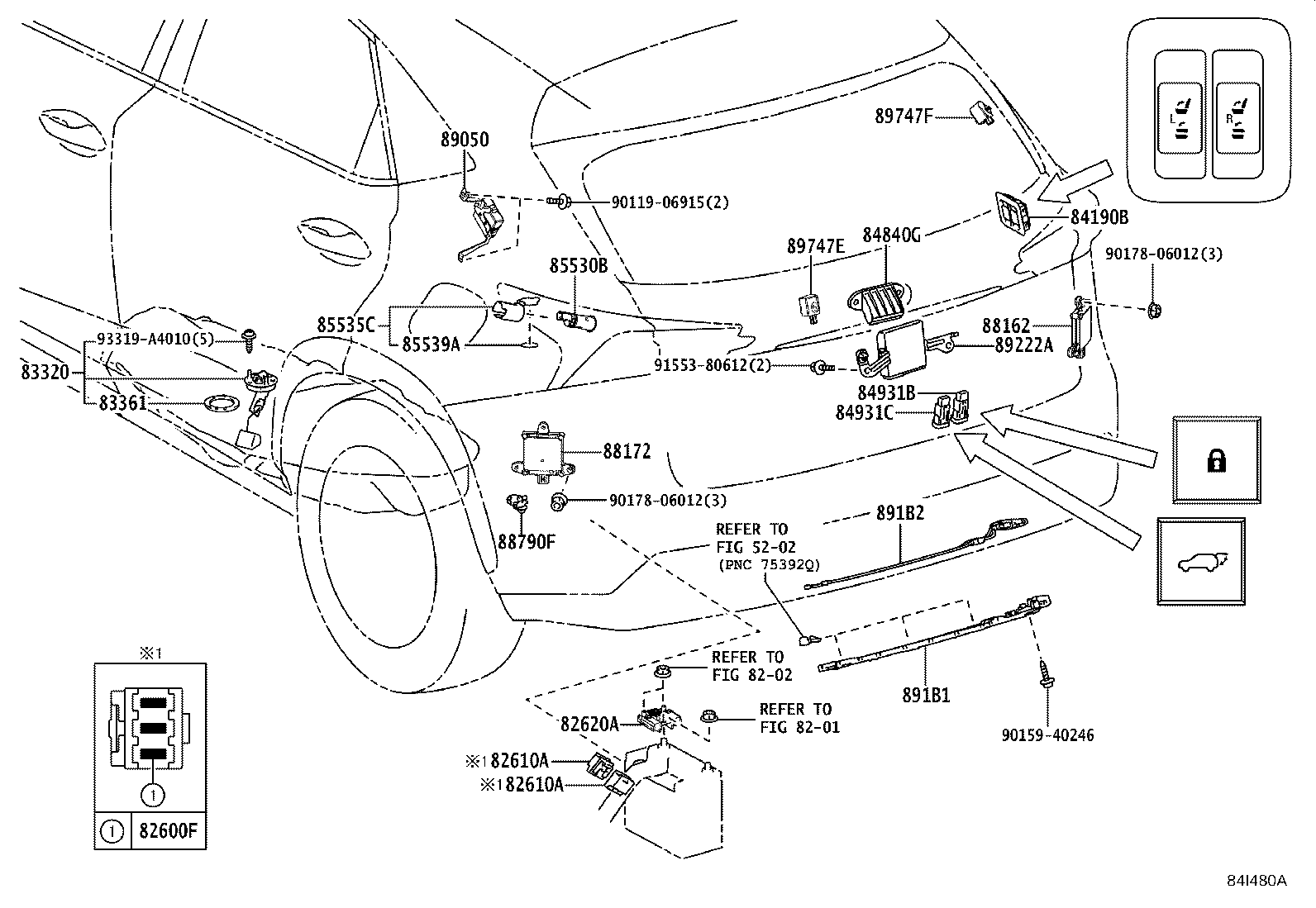

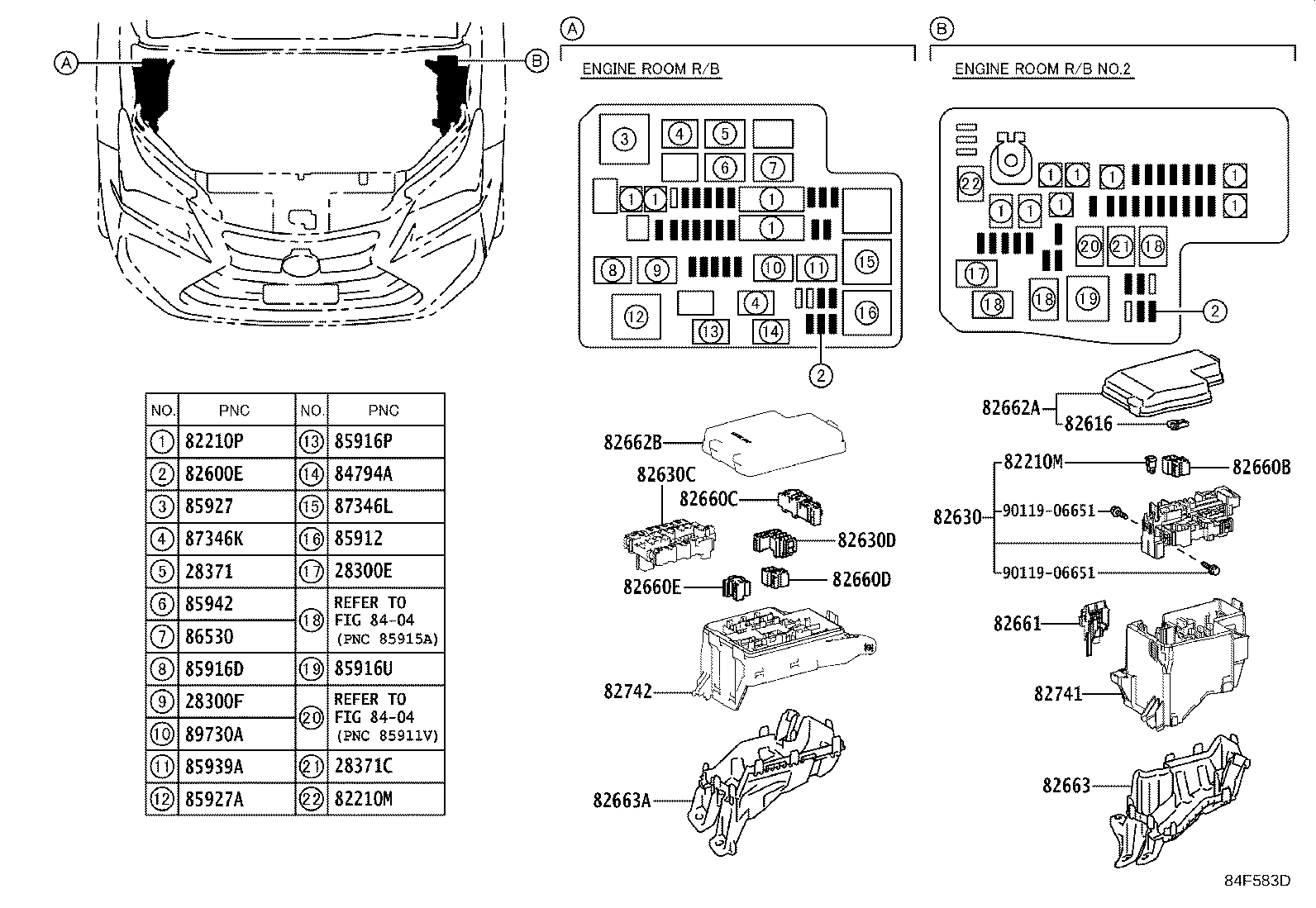

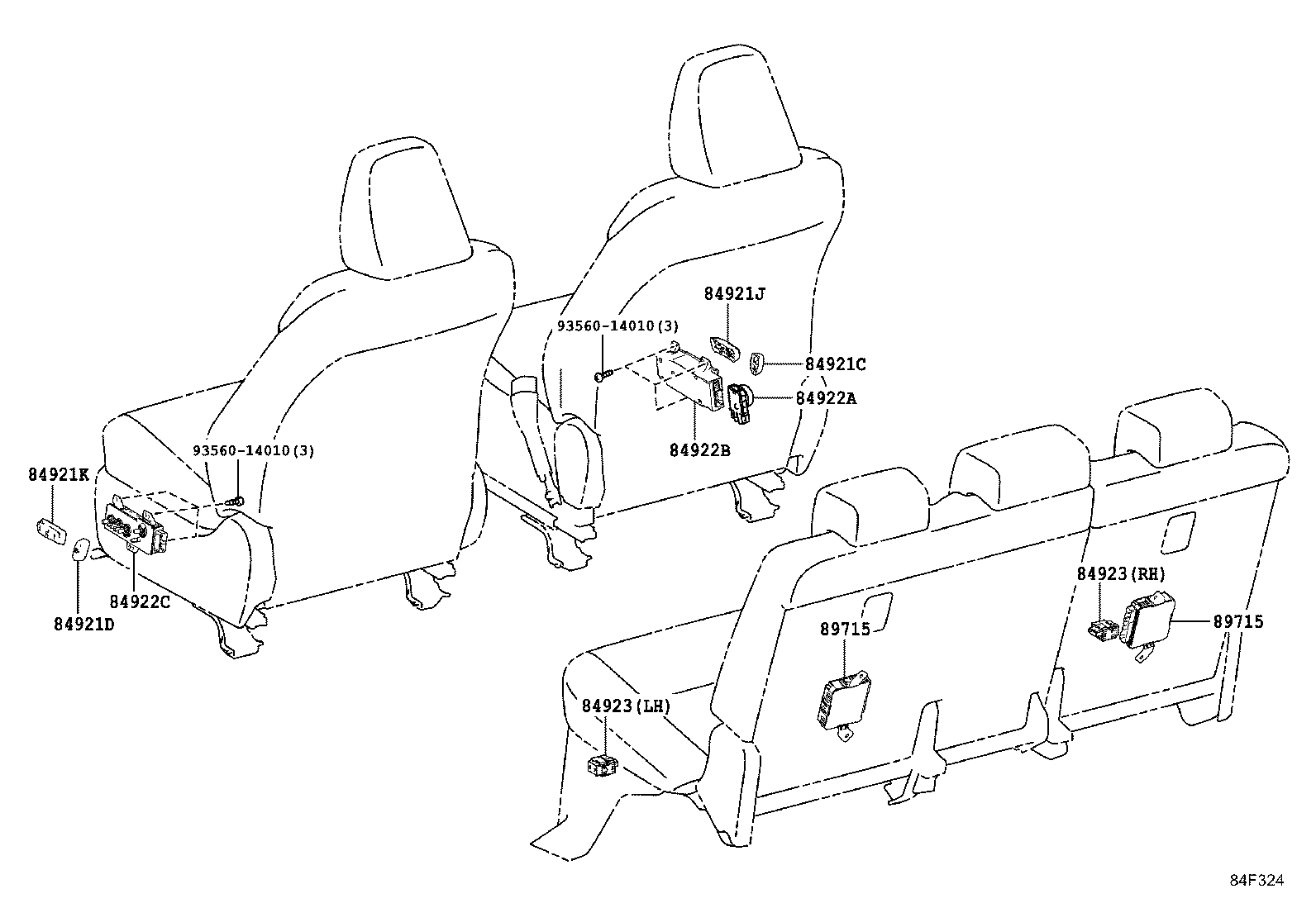

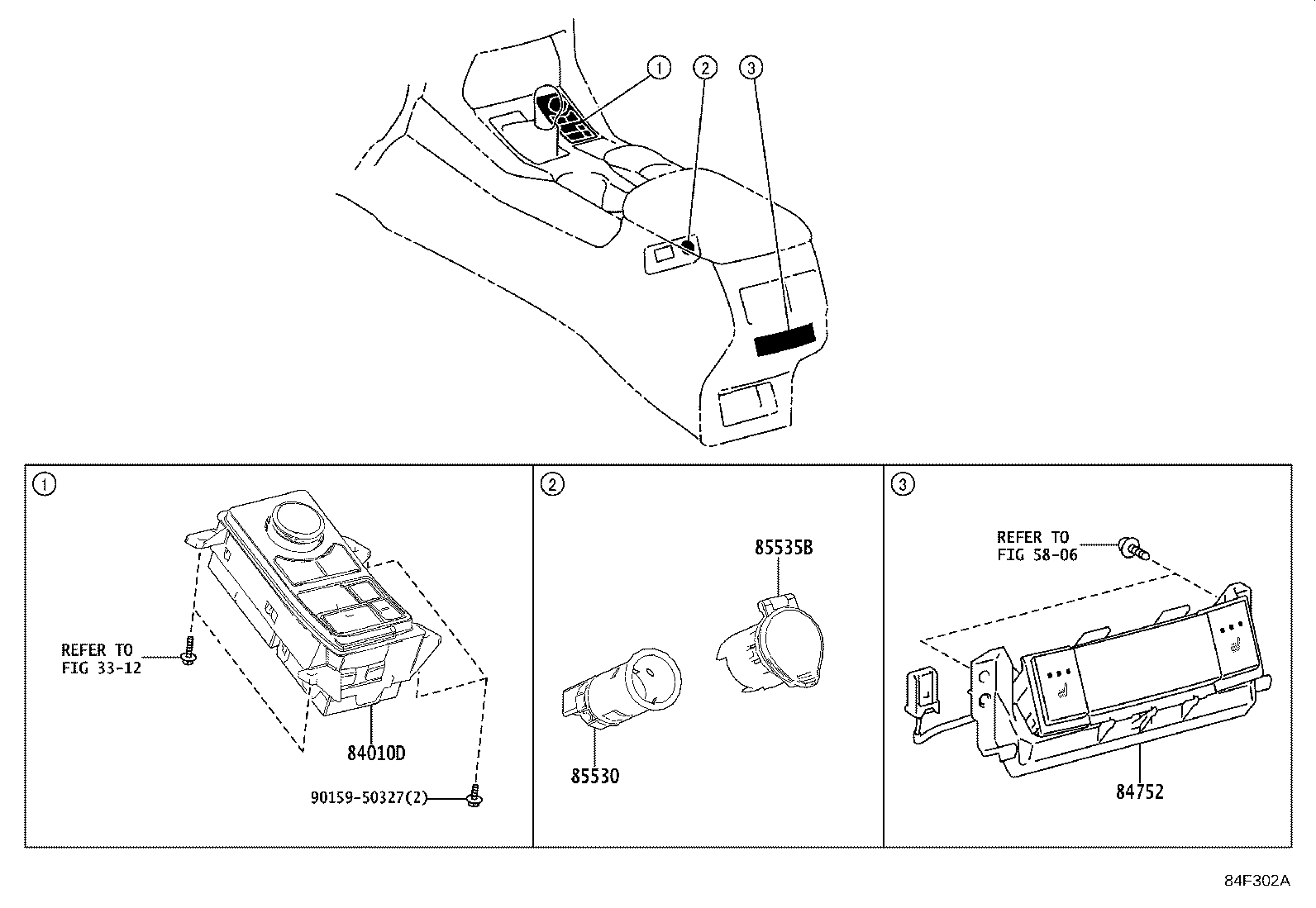

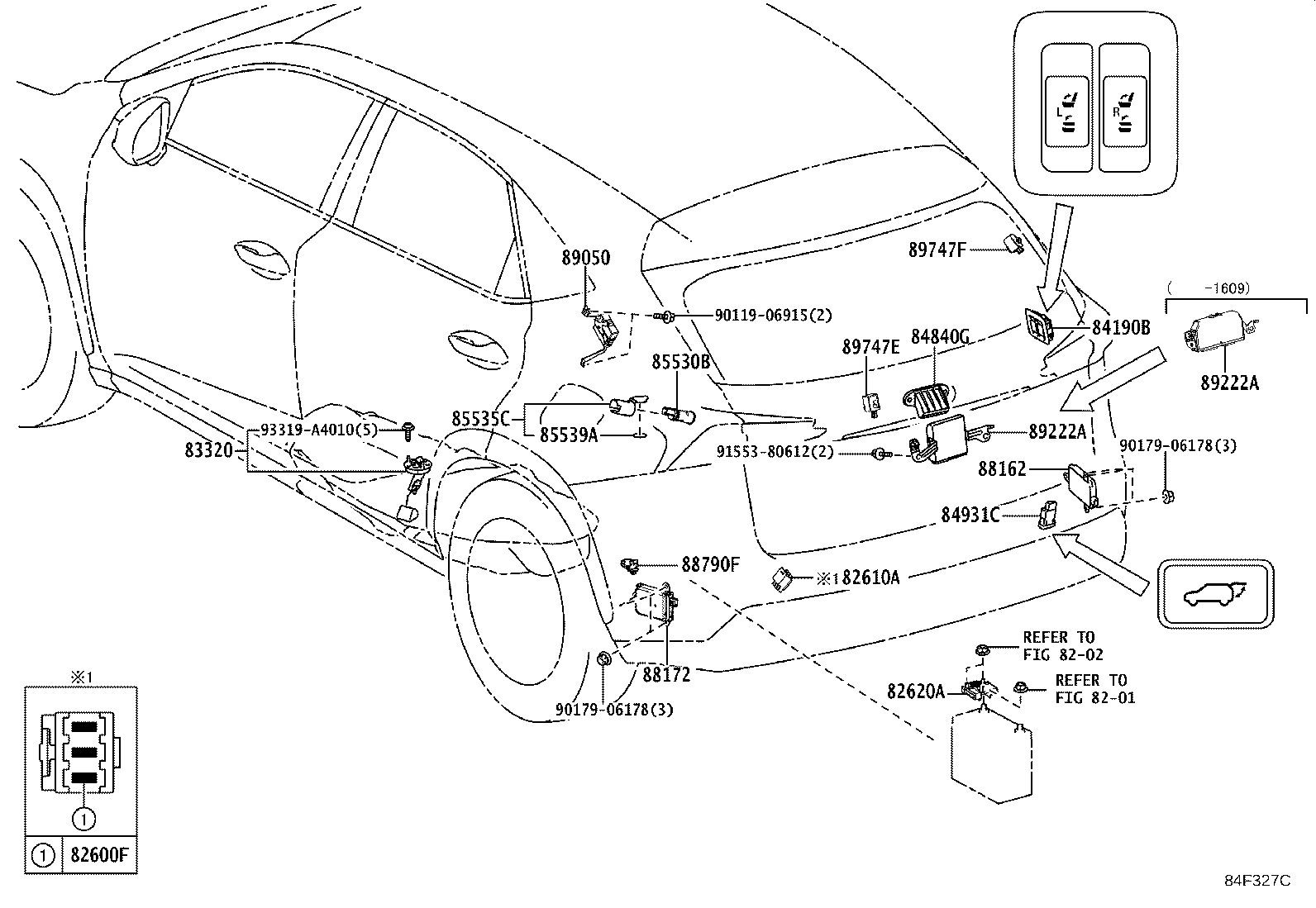

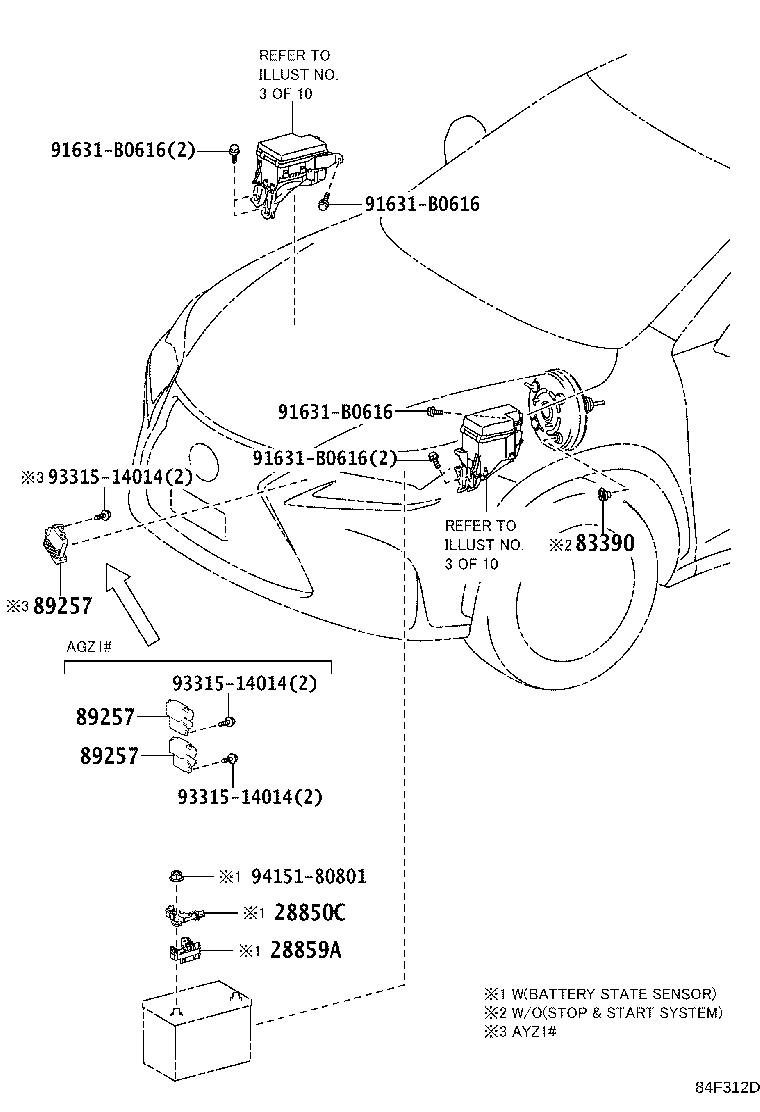

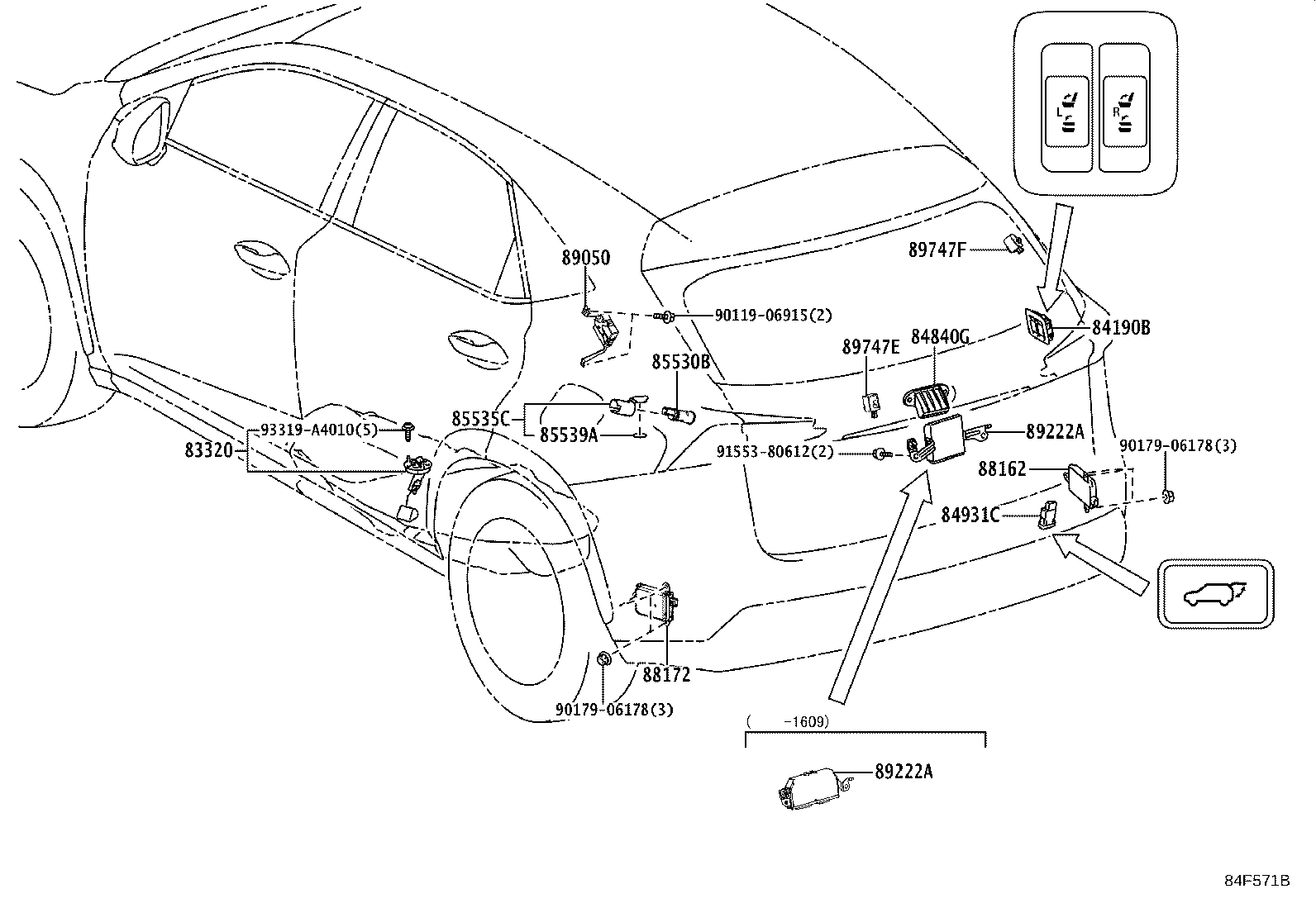

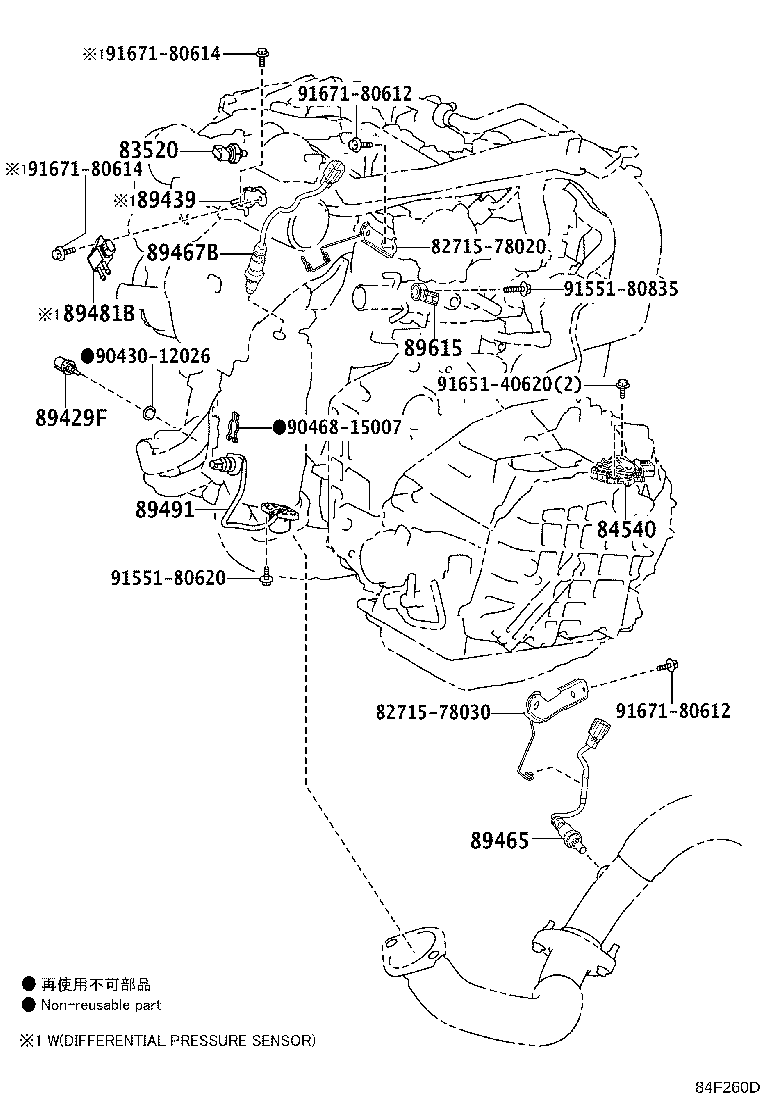

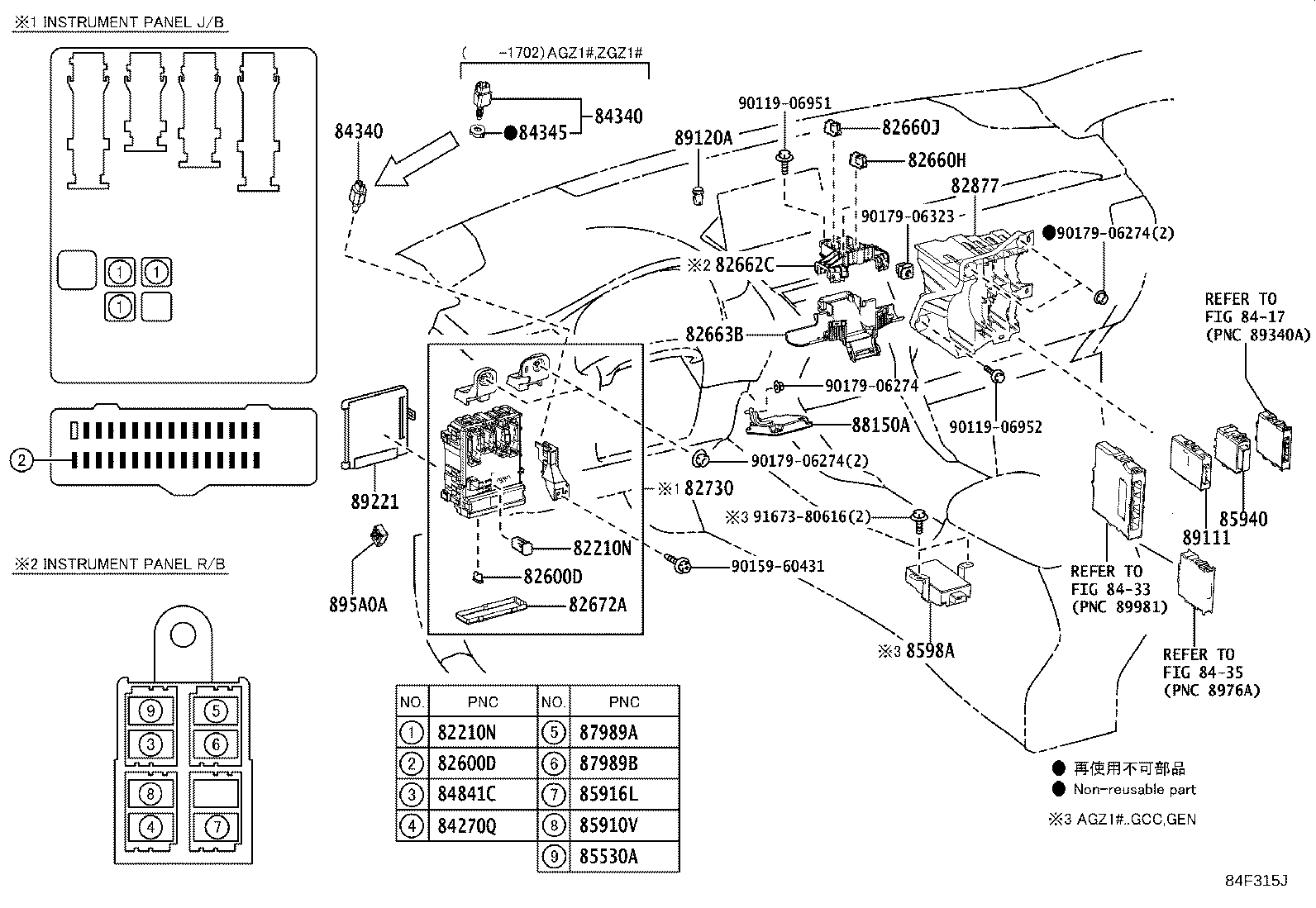

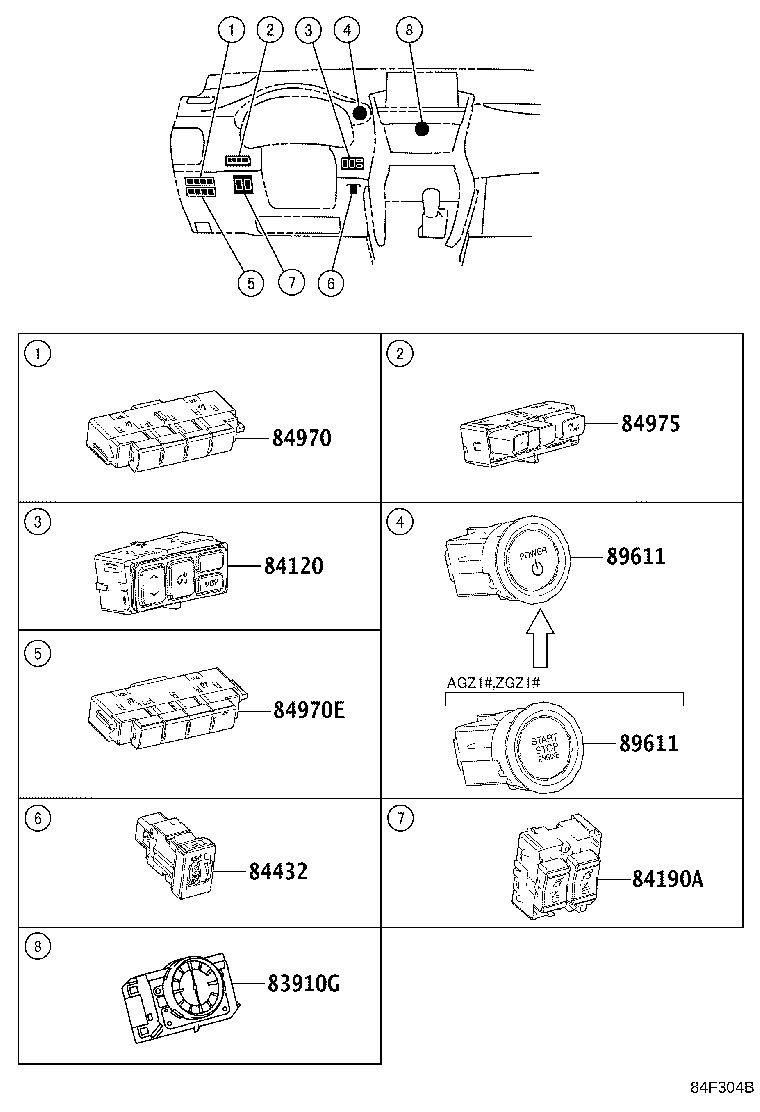

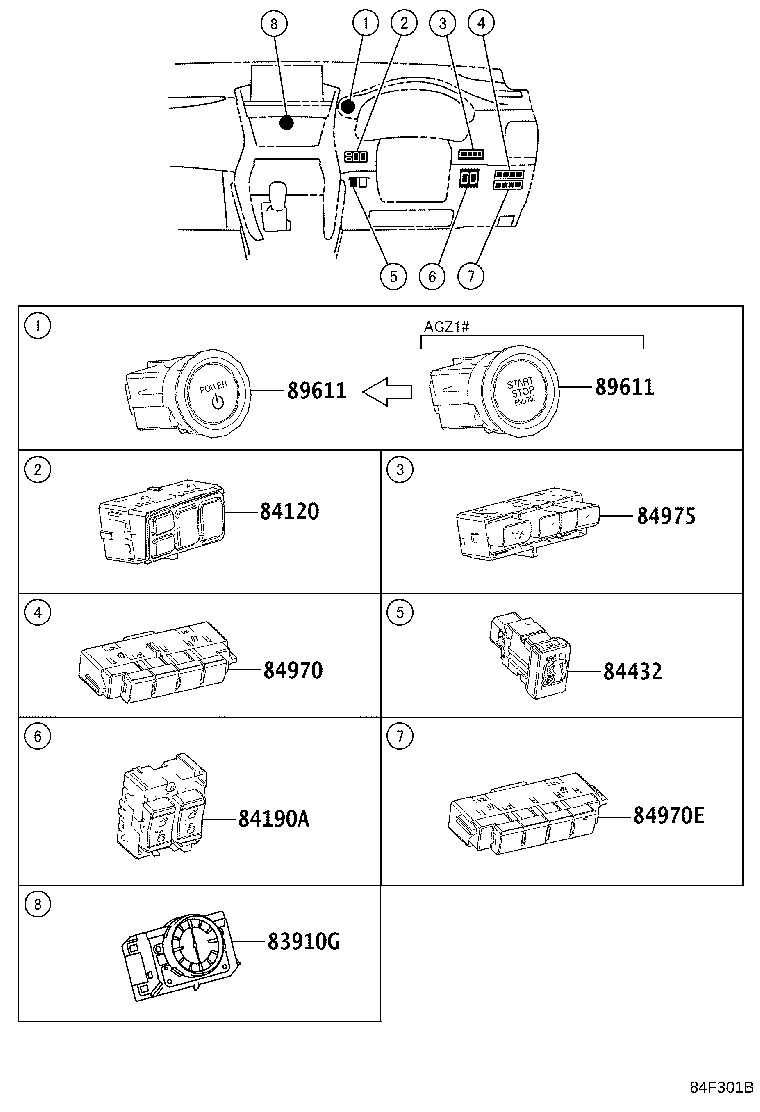

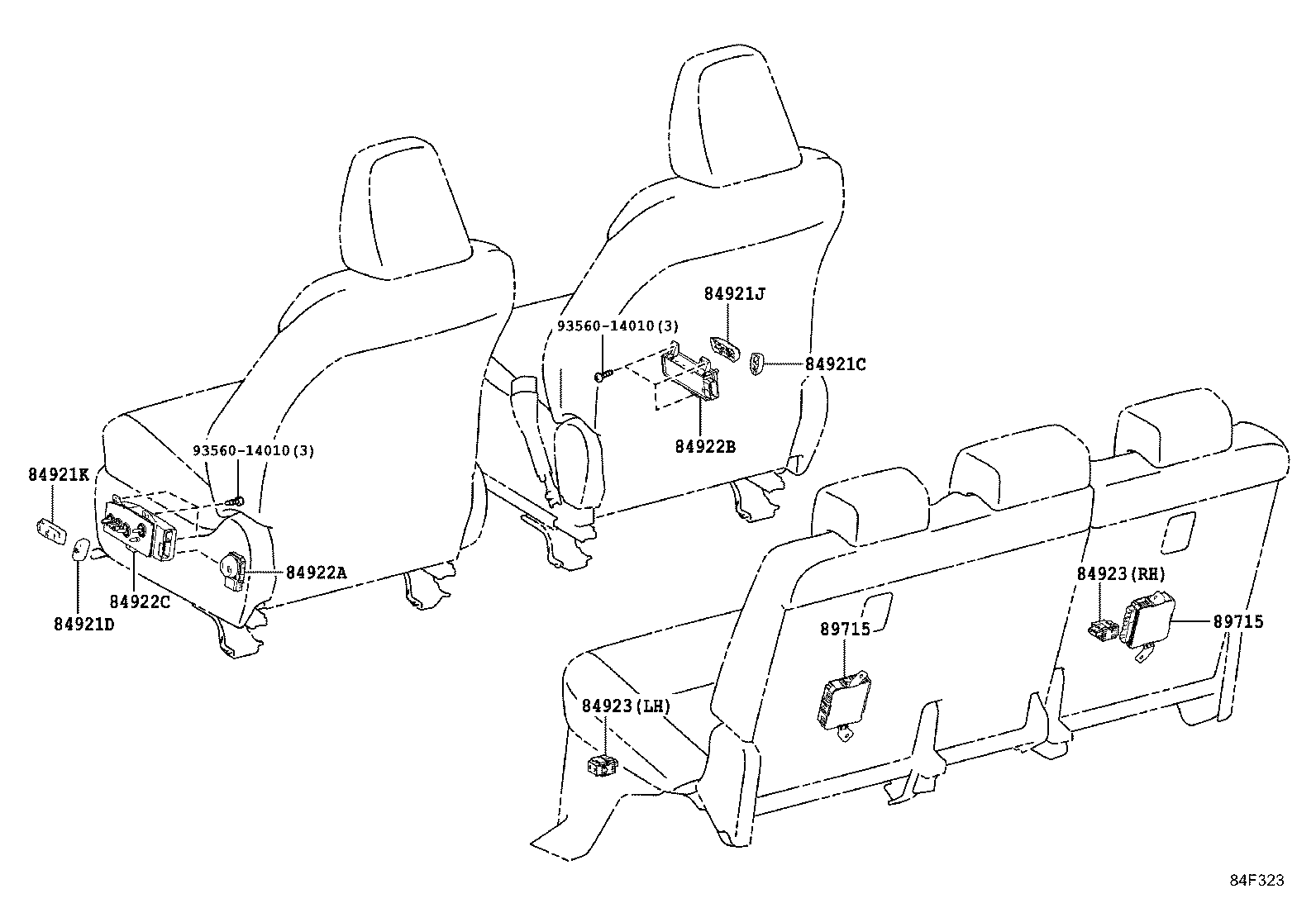

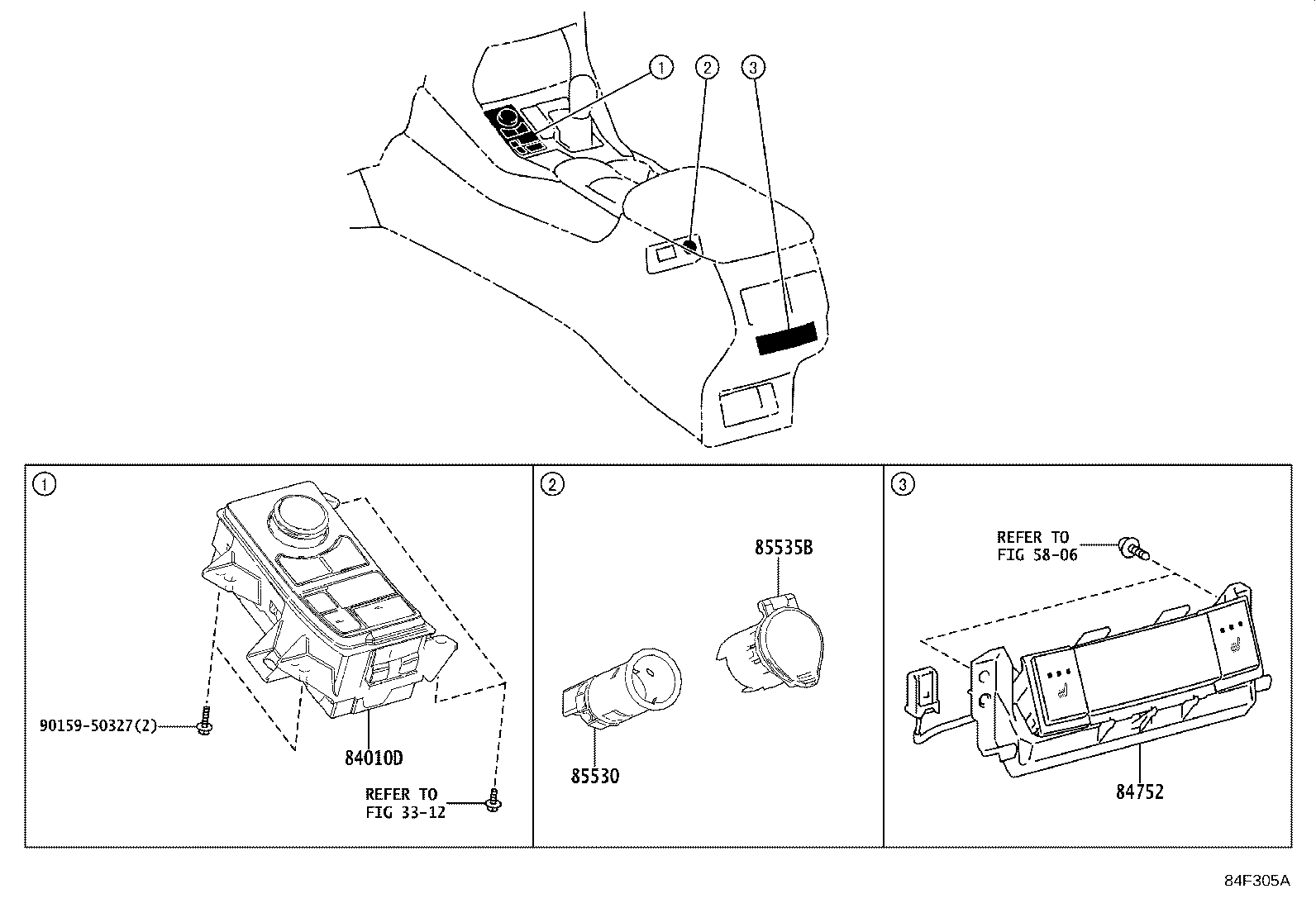

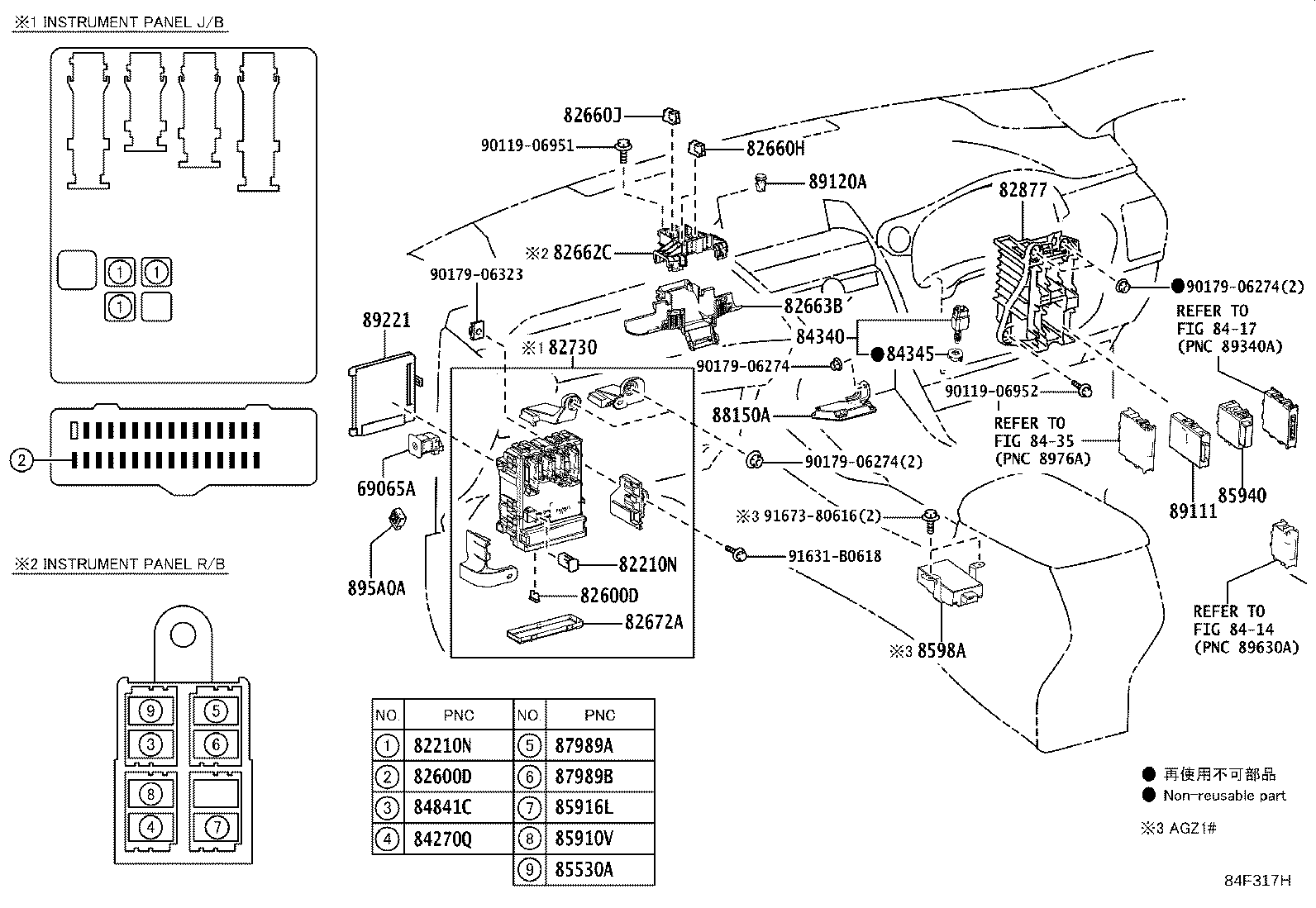

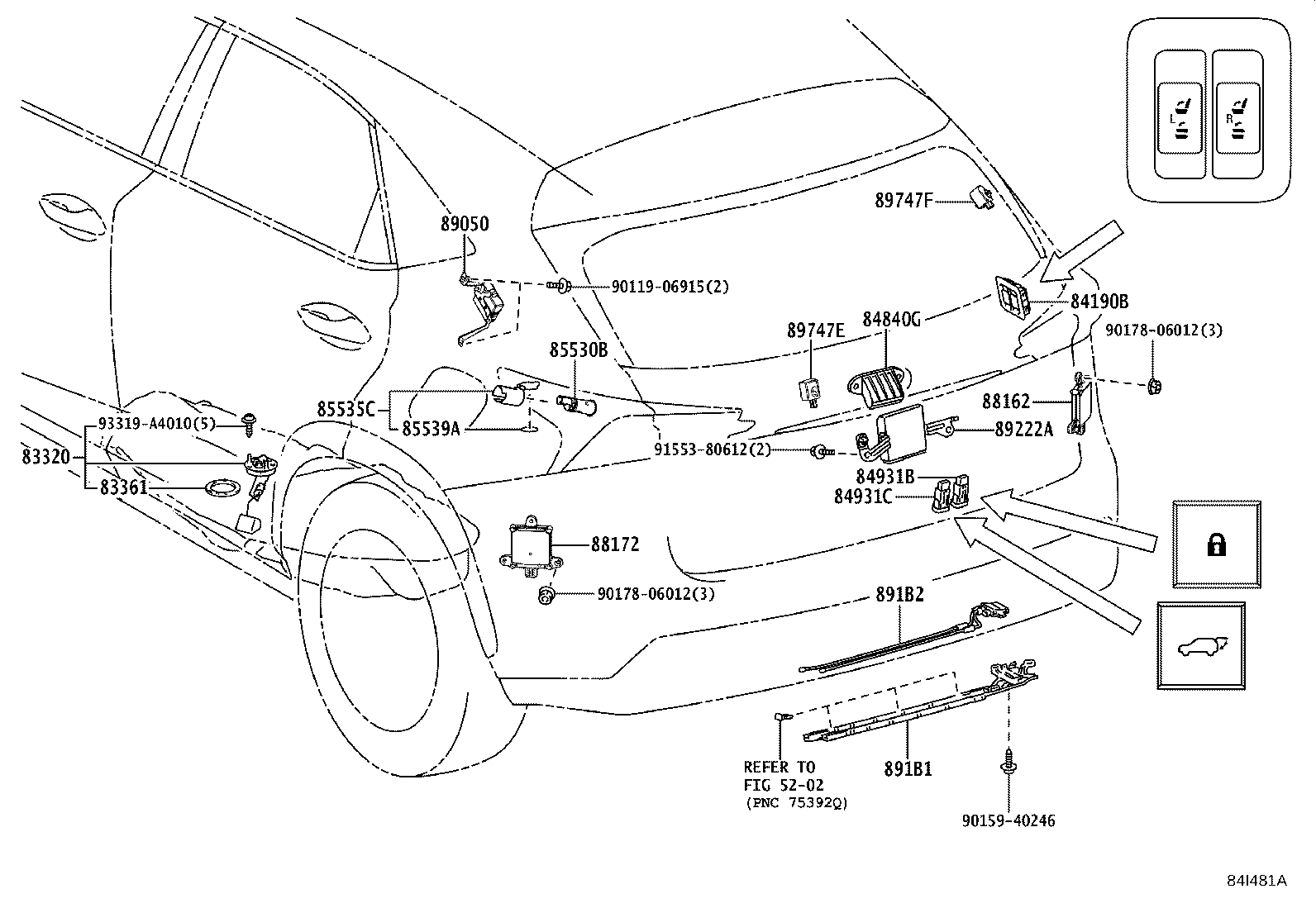

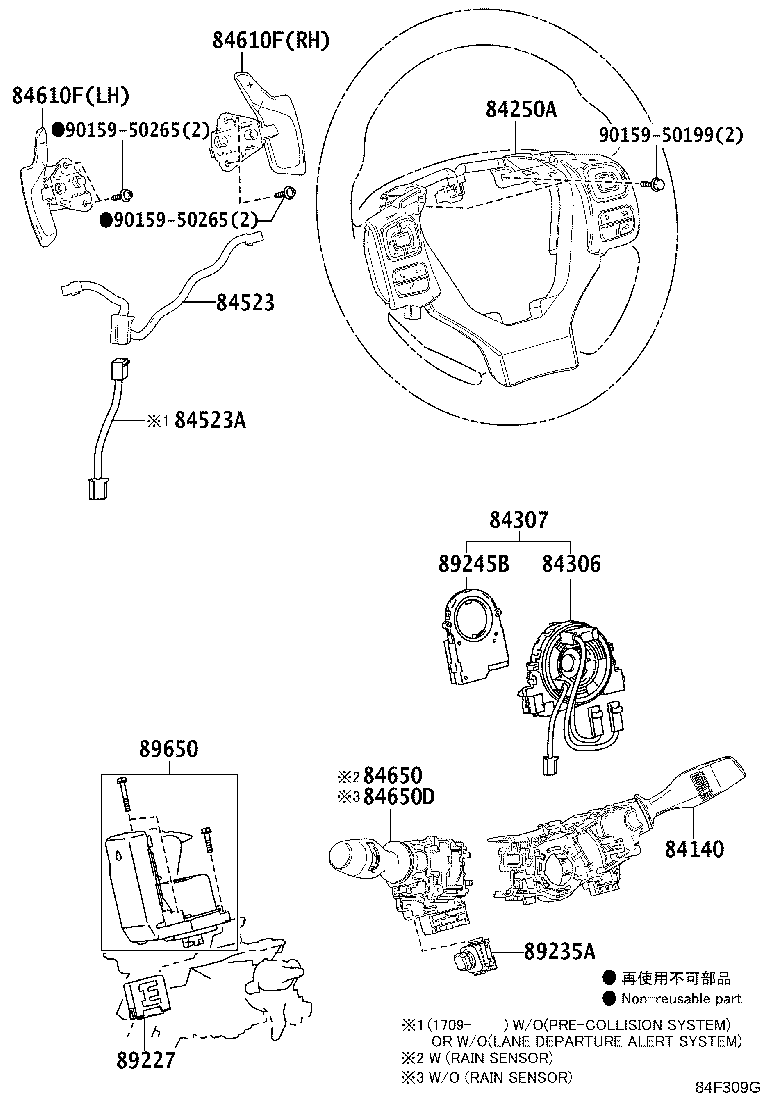

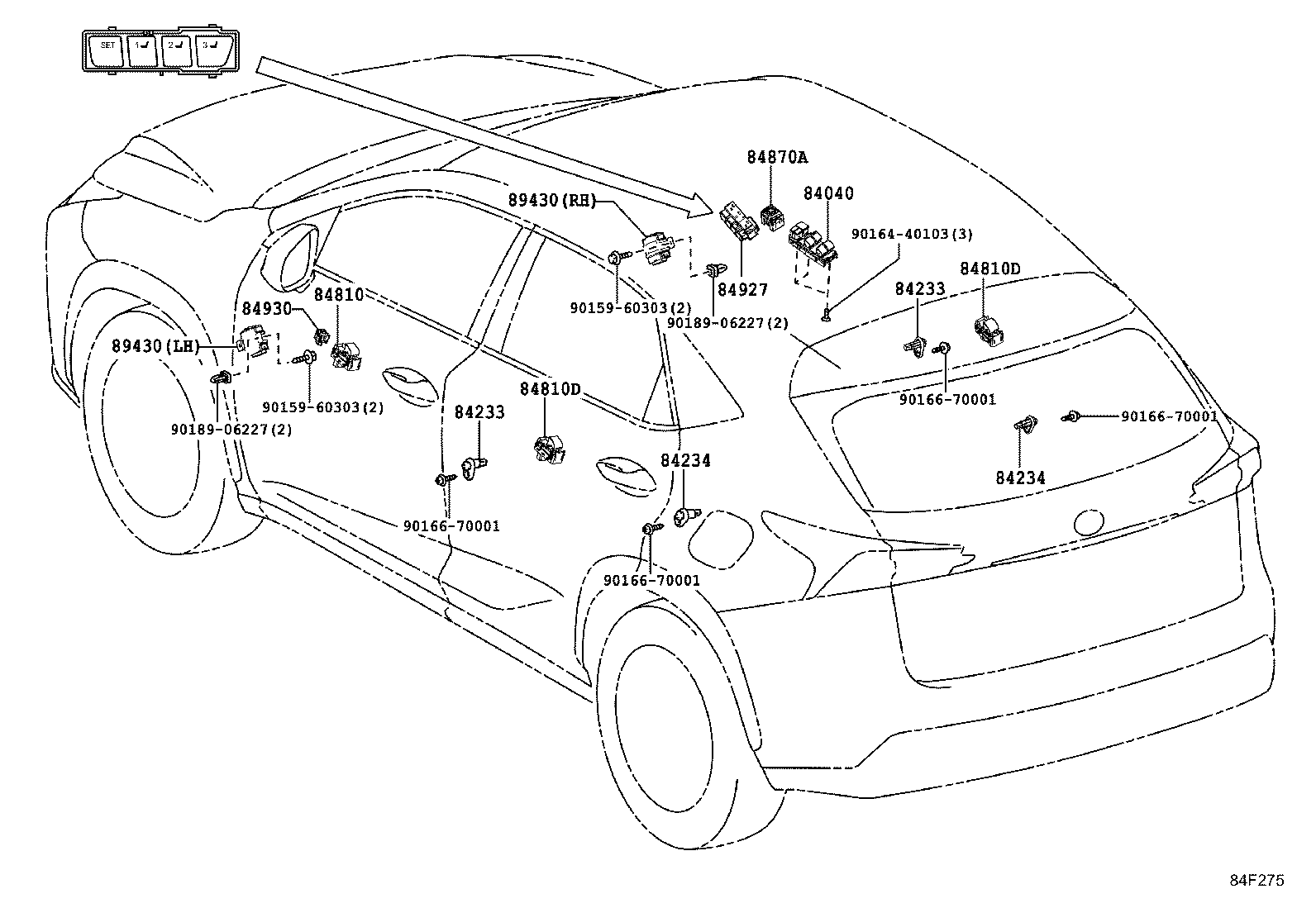

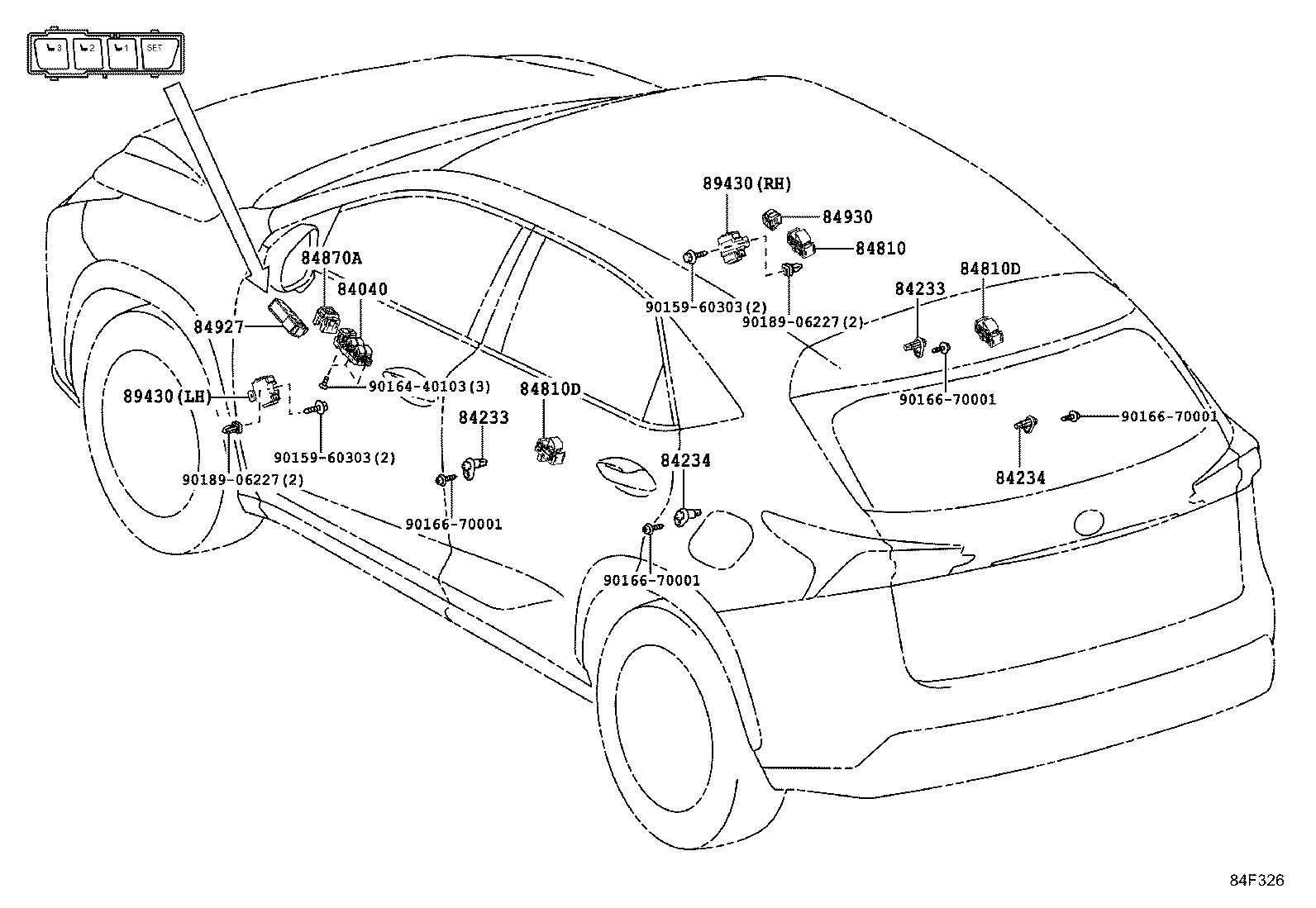

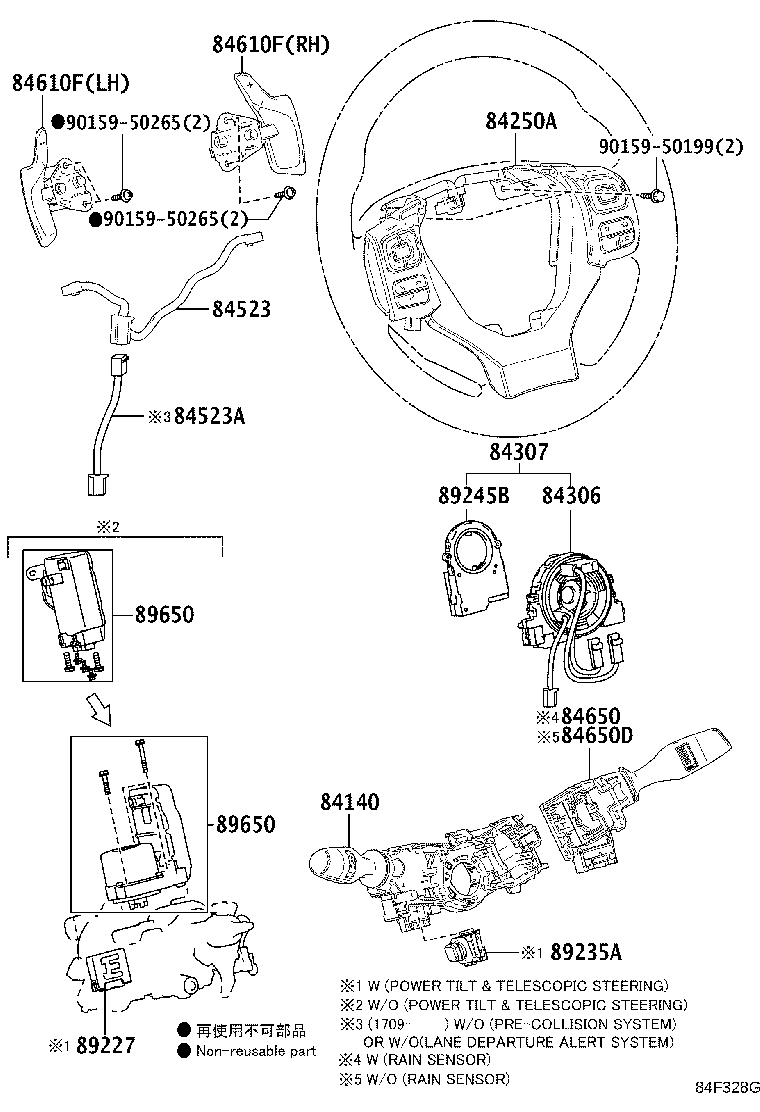

Figure 84F259A 84F259A 2014-07 → — Figure 84F260D 84F260D 2014-12 → — Figure 84F581 84F581 2014-12 → — Figure 84F312D 84F312D 2014-07 → — Figure 84F582C 84F582C 2014-07 → — Figure 84F318E 84F318E 2014-07 → — Figure 84F583D 84F583D 2014-12 → — Figure 84F585F 84F585F 2014-12 → — Figure 84F315J 84F315J 2014-07 → — Figure 84F317H 84F317H 2014-07 → — Figure 84F304B 84F304B 2014-07 → — Figure 84F301B 84F301B 2014-07 → — Figure 84F305A 84F305A 2014-07 → — Figure 84F302A 84F302A 2014-07 → — Figure 84F328G 84F328G 2014-07 → — Figure 84F309G 84F309G 2014-07 → — Figure 84F323 84F323 2014-07 → — Figure 84F324 84F324 2014-07 → — Figure 84F326 84F326 2014-07 → — Figure 84F275 84F275 2014-07 → — Figure 84F327C 84F327C 2014-07 → 2017-09 Figure 84F571B 84F571B 2014-12 → 2017-09 Figure 84I480A 84I480A 2017-09 → — Figure 84I481A 84I481A 2017-09 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300E Relay Assy, Starter, NO.1
28300F Relay Assy, Starter, NO.2
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
84010D Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84120 Switch Assy, Head UP Display
84140 Switch Assy, Headlamp Dimmer
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84432 Switch, Vehicle Sound
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2
84540 Switch Assy, Neutral Start
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84752 Switch, Refreshing Seat
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841C Relay, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931B Switch, Door Control
84931C Switch, Back Door Control
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85539A Label, Power Outlet Notice, Rear
85910V Relay, Seat Heater
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85924C Relay, Igct
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85939A Relay, Steering Heater
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
8598A Battery, Door Control
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
87989A Relay, Mirror NO.1
87989B Relay, Mirror NO.2
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B1 Bracket, Kick Door Control
891B2 Sensor, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89430 Computer Assy, Outer Mirror Control
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
8946A Bracket, Exhaust Sensor Clamp
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89715 Computer, Fold Seat Control
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
