Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

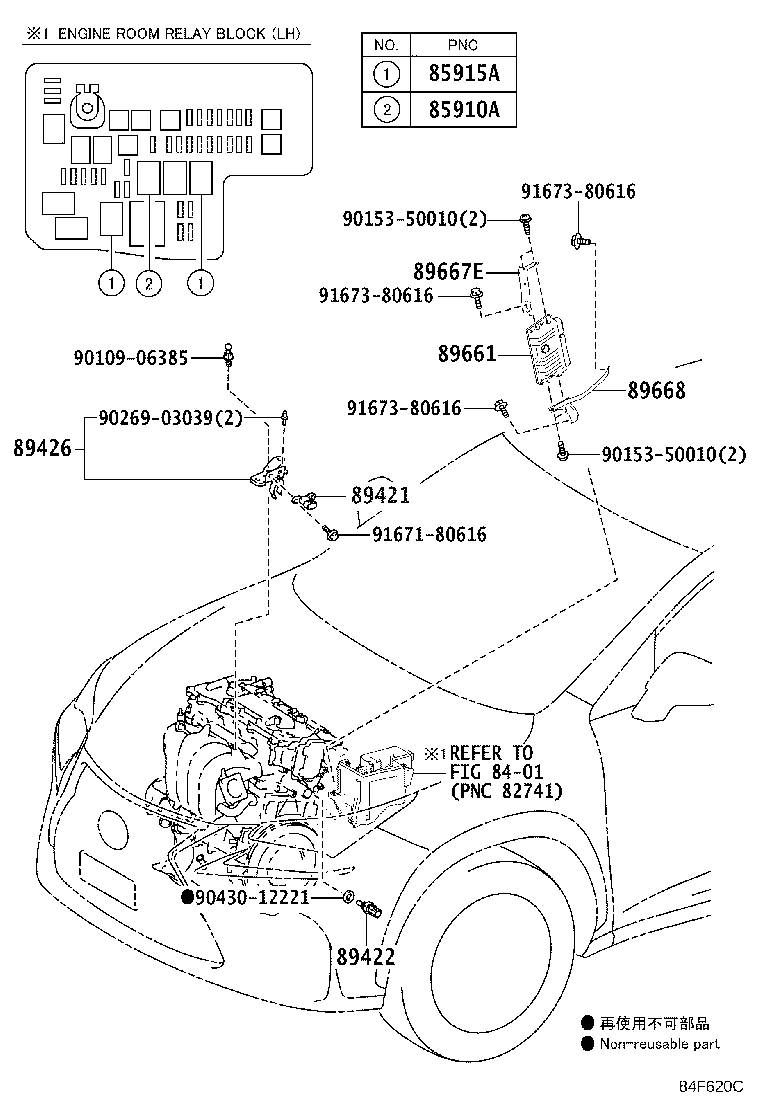

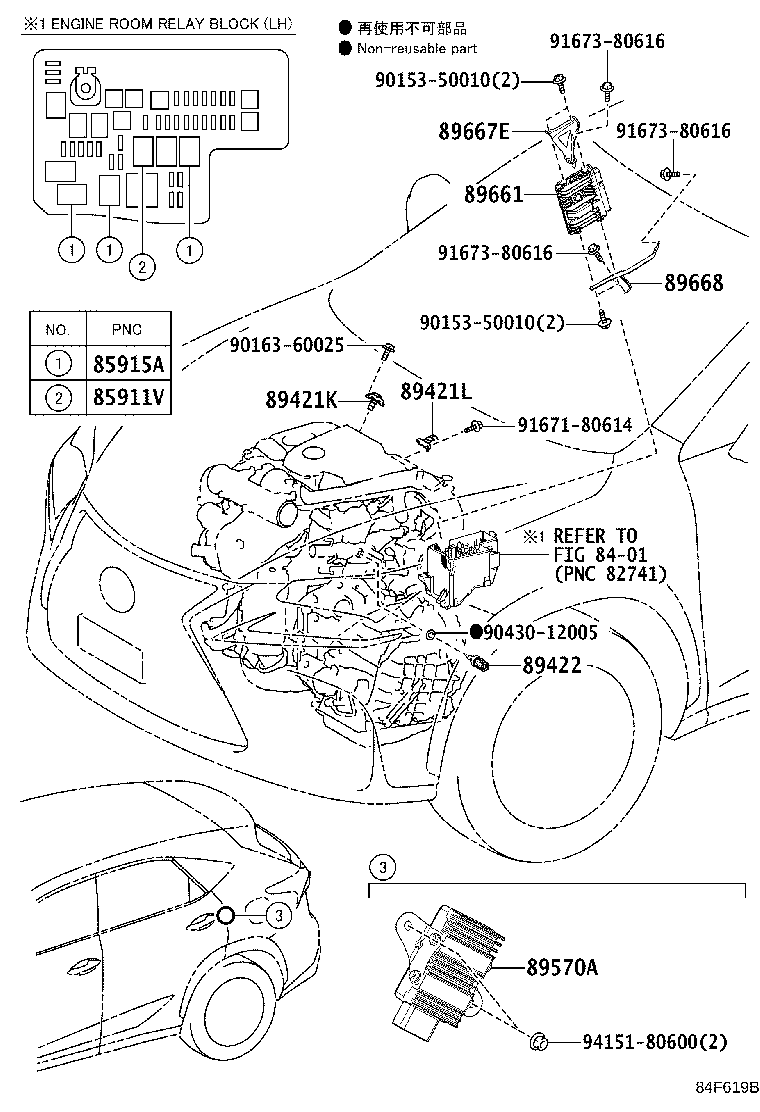

Electronic Fuel Injection System
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85911V | Relay, Electronic Driver Unit |
| 85915A | Relay, Main |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89421K | Sensor, Turbo Pressure, NO.1 |
| 89421L | Sensor, Turbo Pressure, NO.2 |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89426 | Bracket, Vacuum Sensor |
| 89570A | Computer Assy, Fuel Pump Control |
| 89661 | Computer, Engine Control |
| 89667E | Bracket, Engine Control Computer, NO.1 |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
