Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 2 illustrations

Illustrations

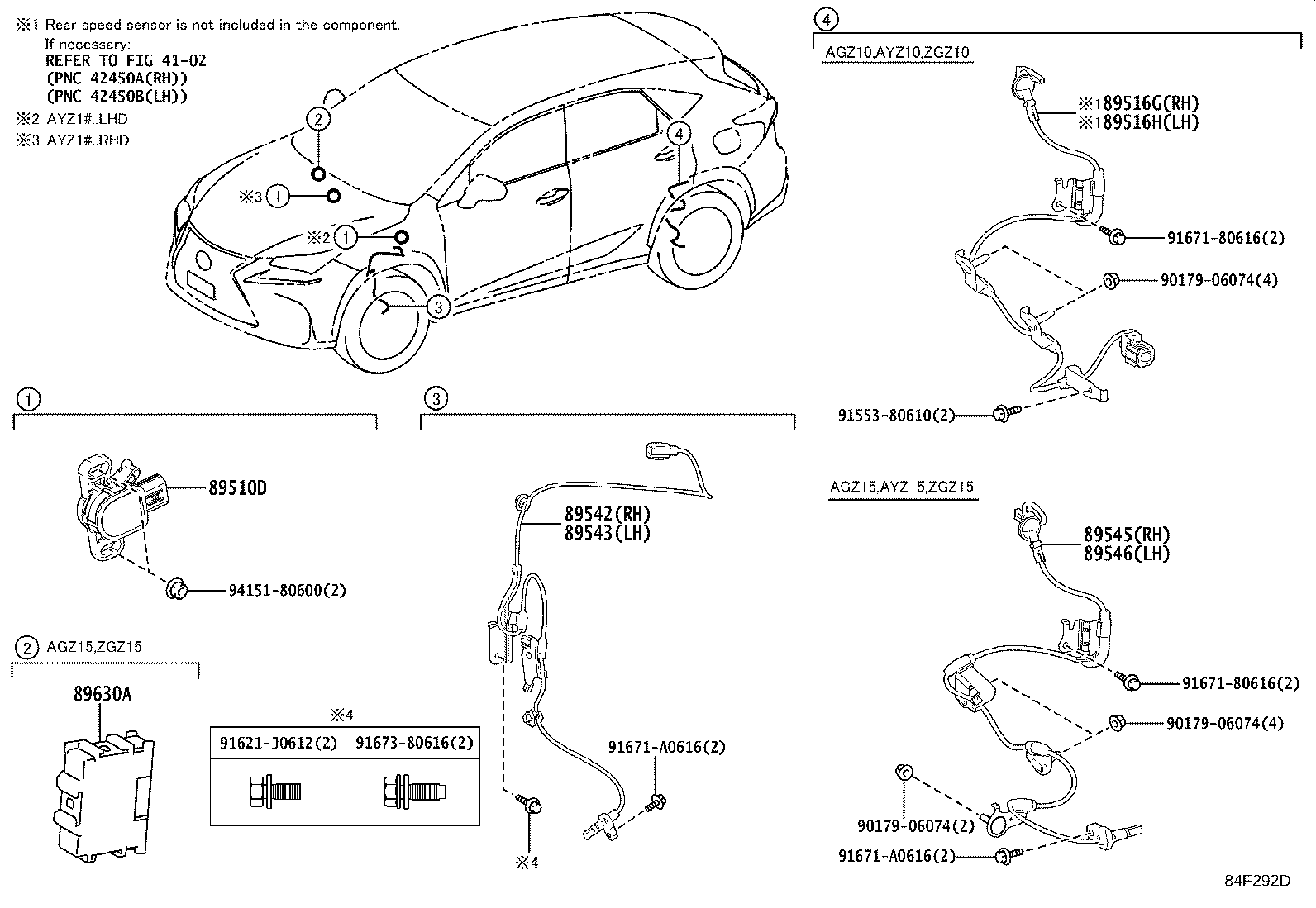

Figure 84F291G 84F291G 2014-07 → — Figure 84F292D 84F292D 2014-07 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89516G Wire, Skid Control Sensor, Rear RH NO.1
89516H Wire, Skid Control Sensor, Rear LH NO.1
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
