Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

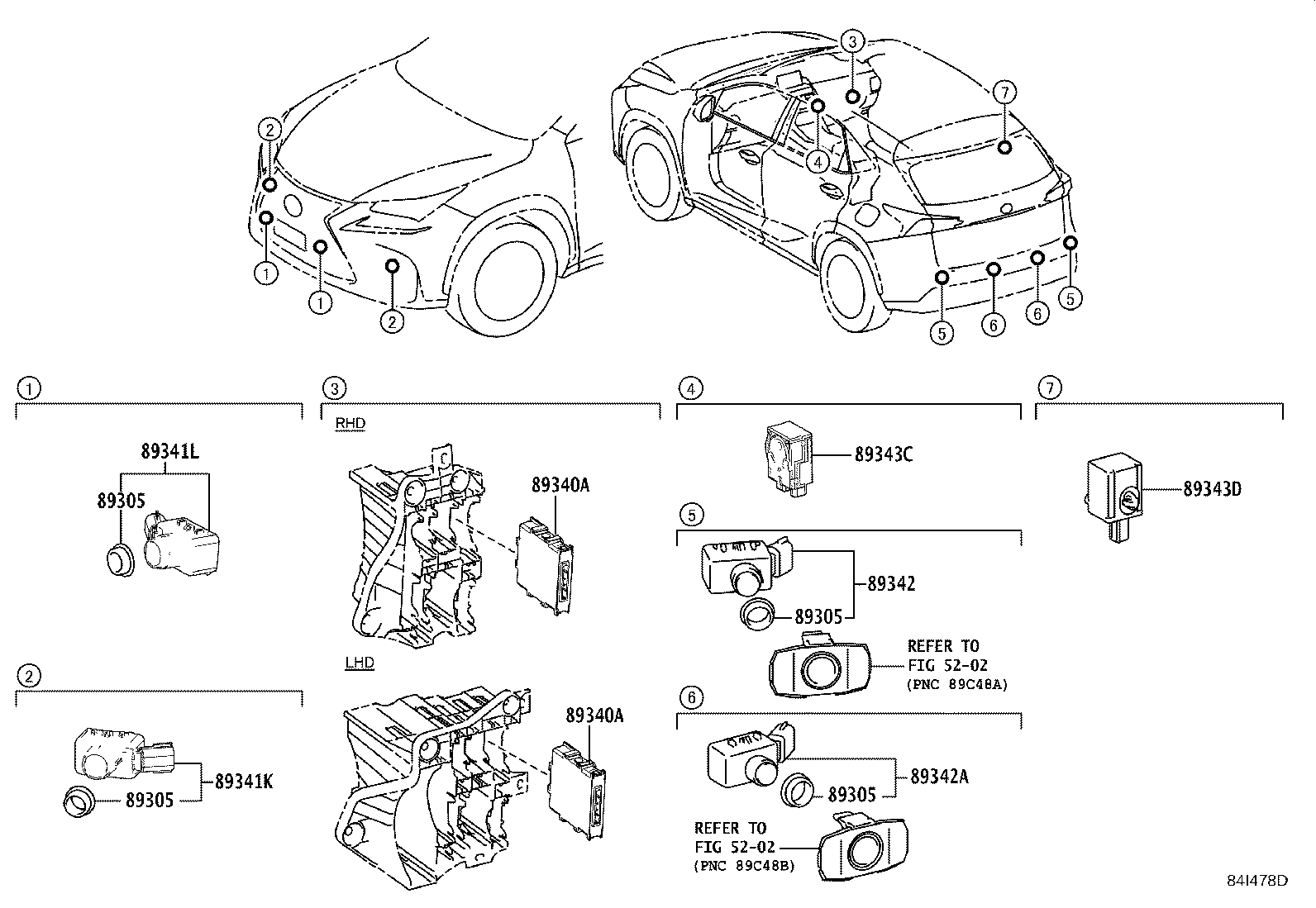

Clearance & Back Sonar
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89305 | Cushion Set, Ultrasonic Sensor |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89341C | Sensor, Ultrasonic, NO.3 |
| 89341D | Sensor, Ultrasonic, NO.4 |
| 89341K | Sensor, Ultrasonic, Front Corner |
| 89341L | Sensor, Ultrasonic, Front Center |
| 89342 | Sensor, Ultrasonic, Rear Corner |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89343D | Buzzer, Clearance Warning, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
