Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

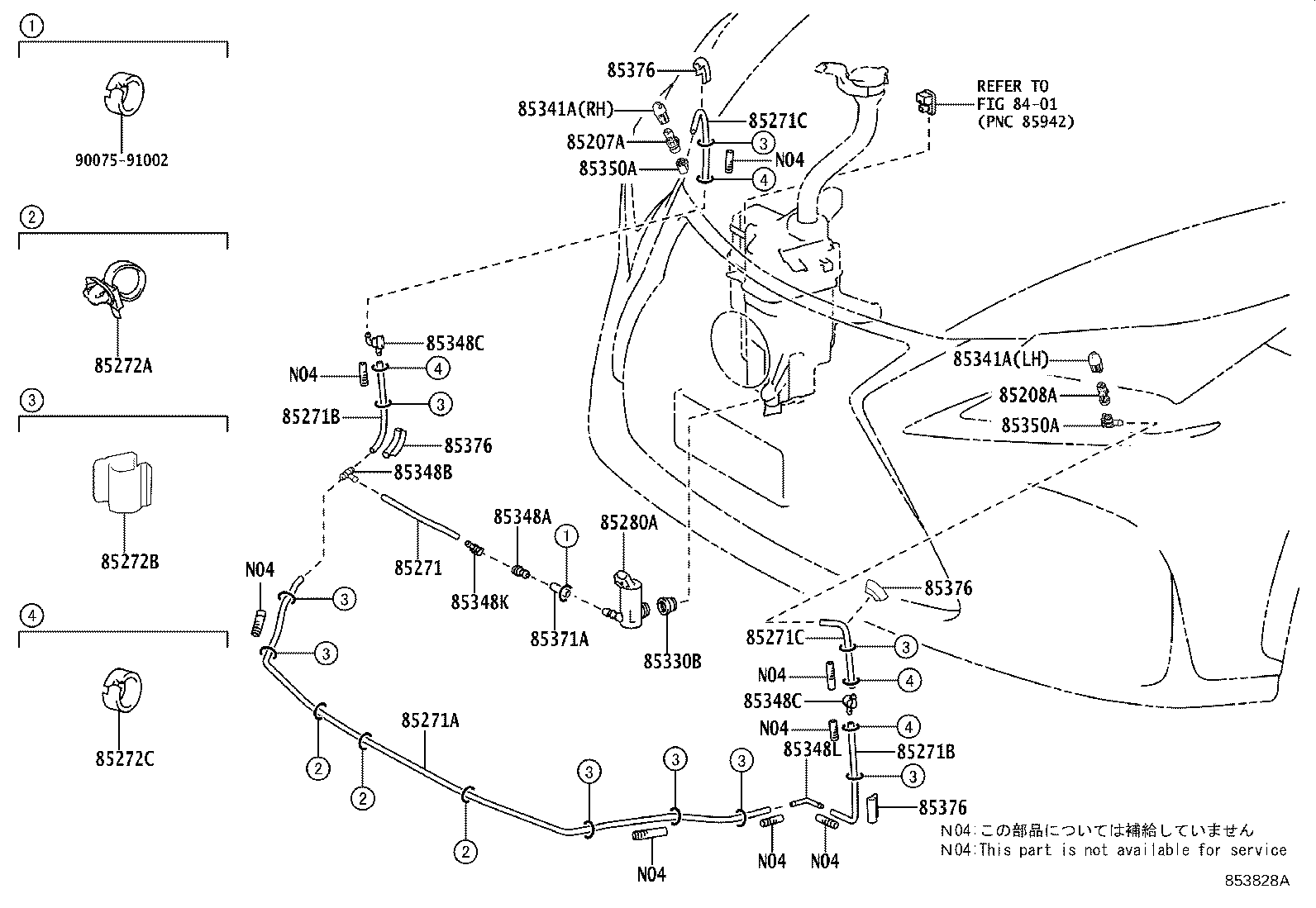

Headlamp Cleaner
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85207A | Actuator Sub-assy, Headlamp Washer, RH |
| 85208A | Actuator Sub-assy, Headlamp Washer, LH |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85272A | Clamp, Headlamp Cleaner, NO.1 |
| 85272B | Clamp, Headlamp Cleaner, NO.2 |
| 85272C | Clamp, Headlamp Cleaner, NO.3 |
| 85280A | Motor And Pump Assy, Headlamp Cleaner |
| 85283 | Bracket, Headlamp Cleaner Washer |
| 85330B | Bush, Headlamp Cleaner Washer Jar |
| 85341A | Cover,Headlamp Cleaner Washer Nozzle |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85348L | Joint, Headlamp Cleaner Elbow, NO.2 |
| 85350A | Joint, Headlamp Cleaner Elbow, NO.3 |
| 85371A | Hose, Headlamp Cleaner(FROM MOTOR TO JOINT) |
| 85376 | Protector, Headlamp Cleaner Hose, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
