Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11

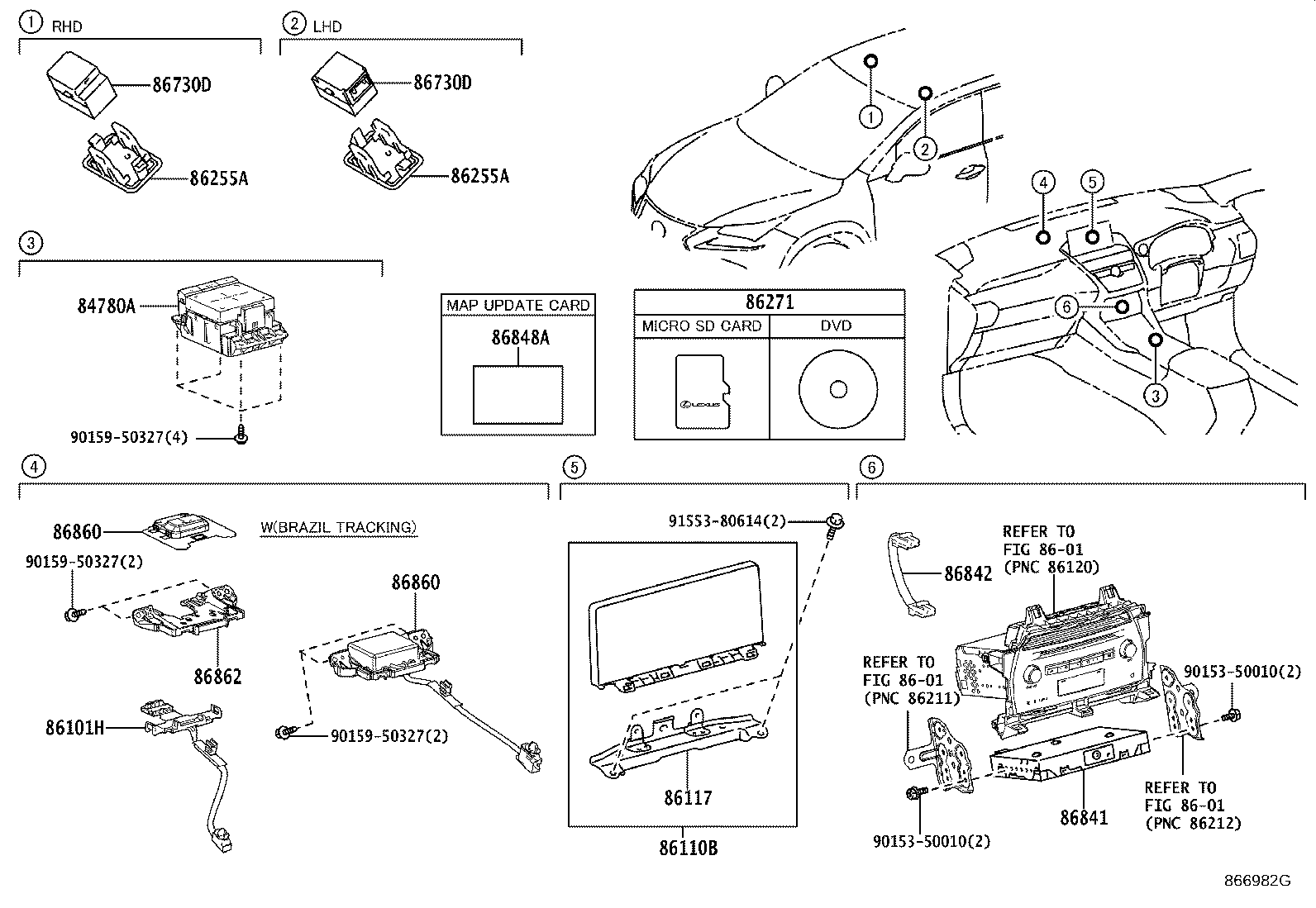

Navigation & Front Monitor Display
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84780A | Controller Assy, Remote Operation |
| 86101H | Cord Sub-assy, Antenna |
| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86134A | Parts, Multi-display |
| 86255A | Case, Microphone, NO.1 |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86730A | Microphone Assy, Telephone |
| 86730D | Microphone Assy, Telephone, NO.2 |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
