Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

5 part groups · 2 illustrations

Illustrations

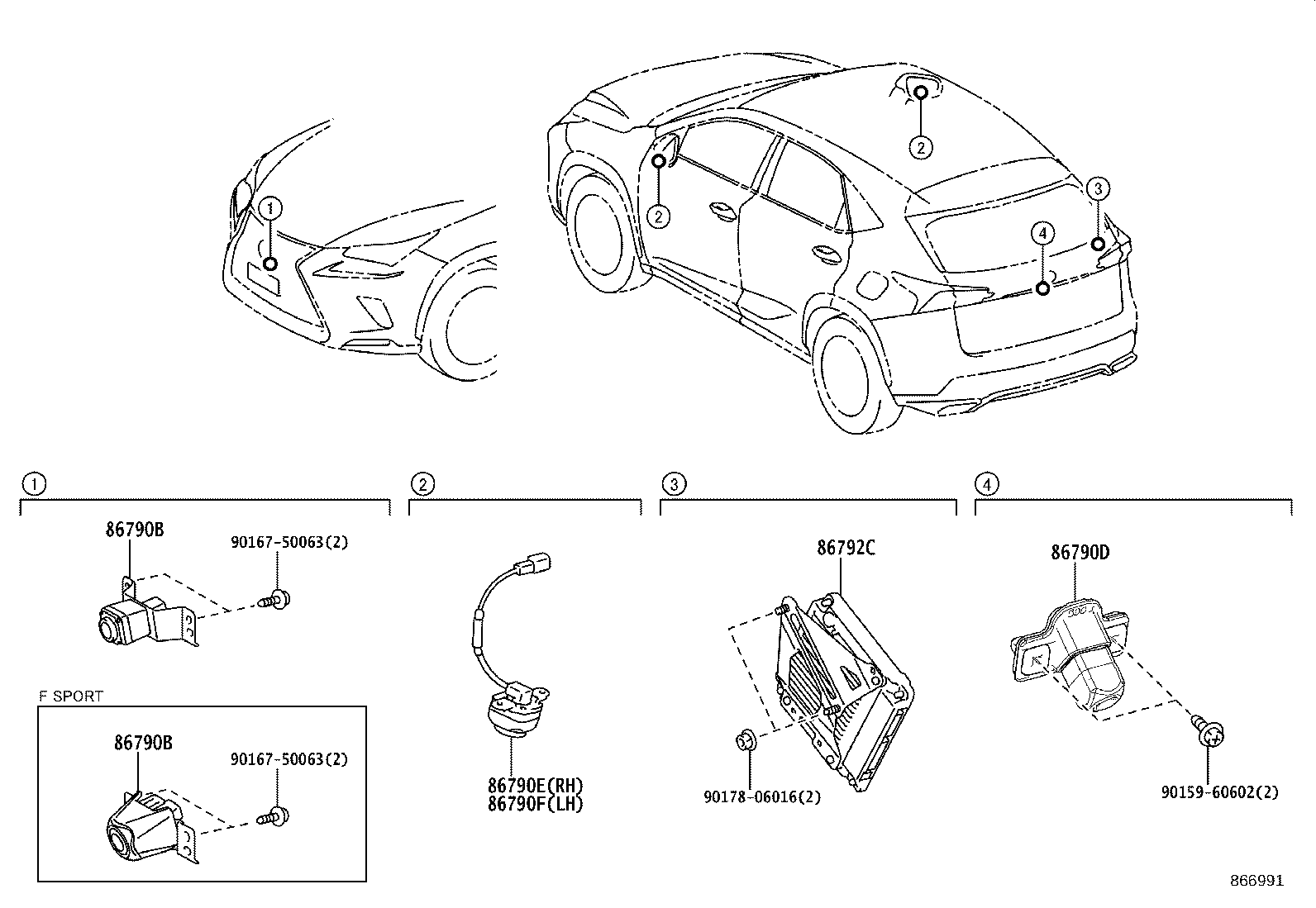

Figure 865821 865821 2014-07 → 2017-09 Figure 866991 866991 2017-09 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
