Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 6 illustrations

Illustrations

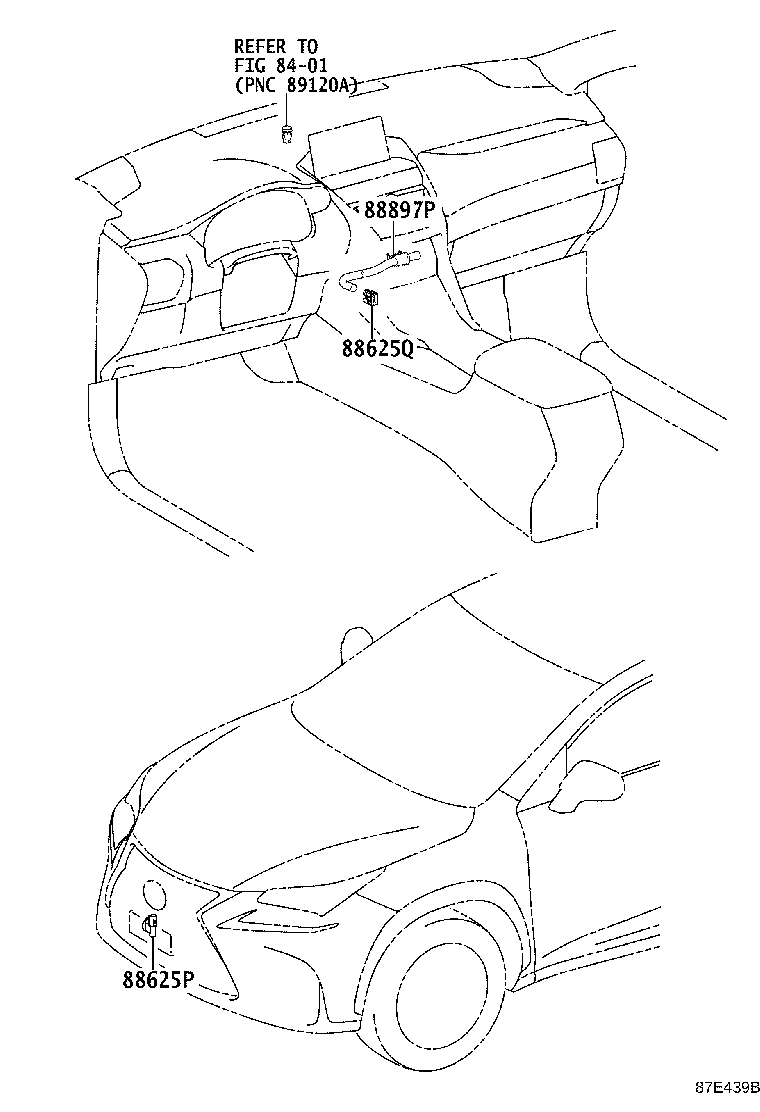

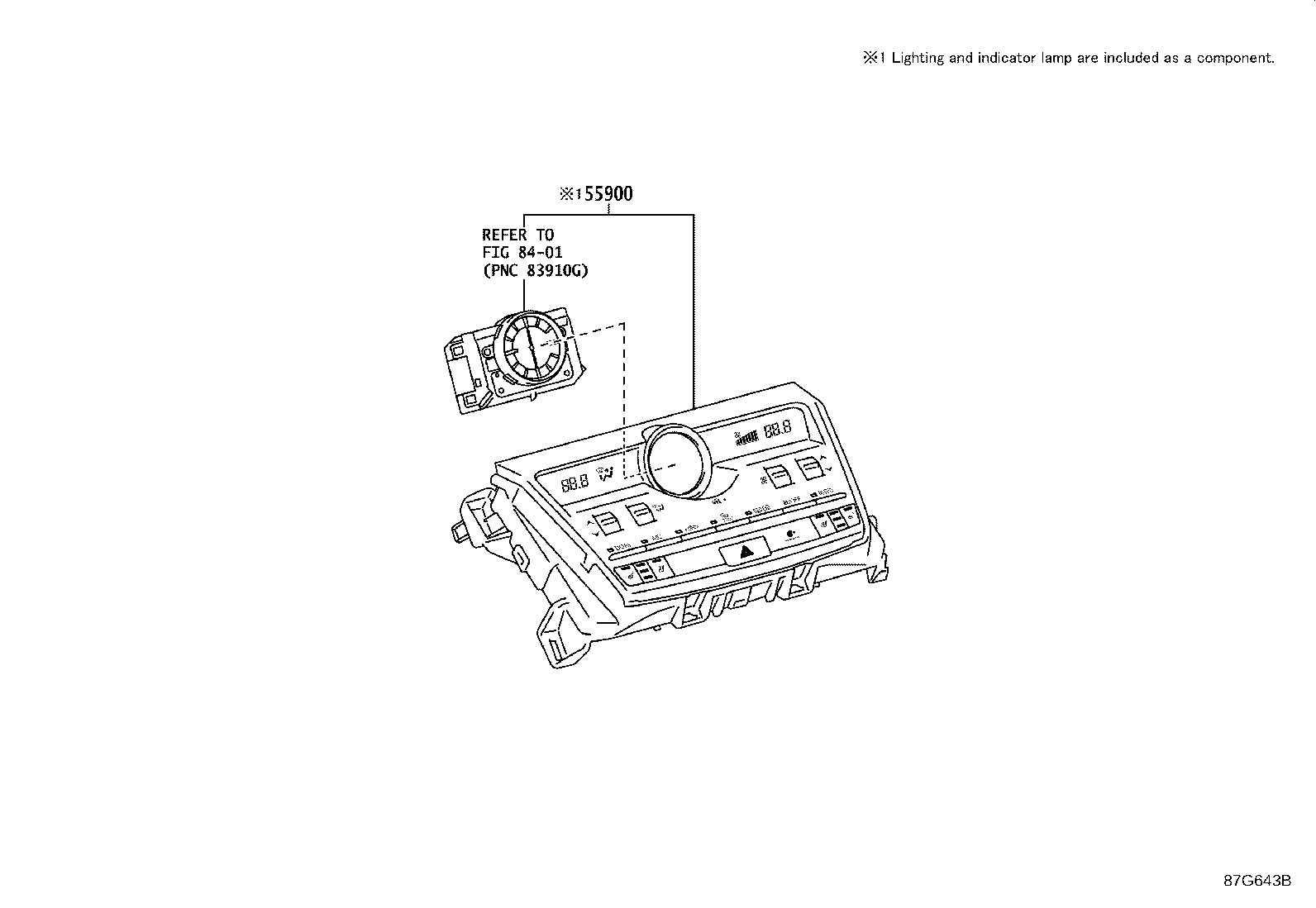

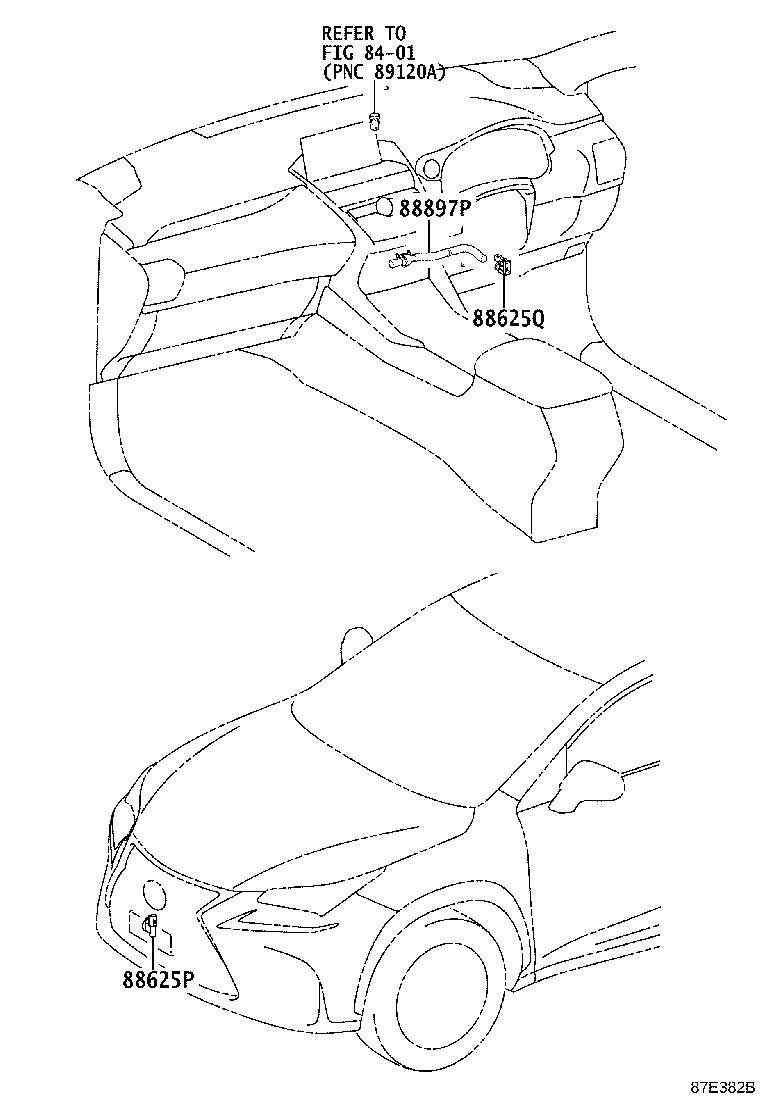

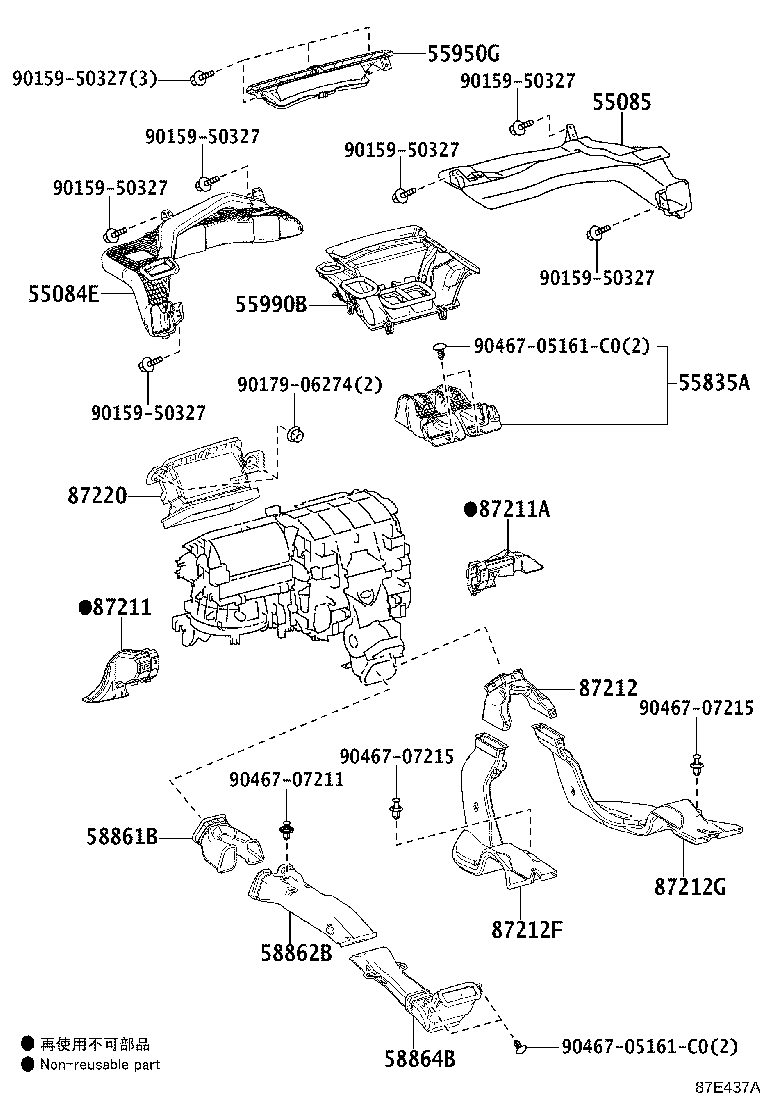

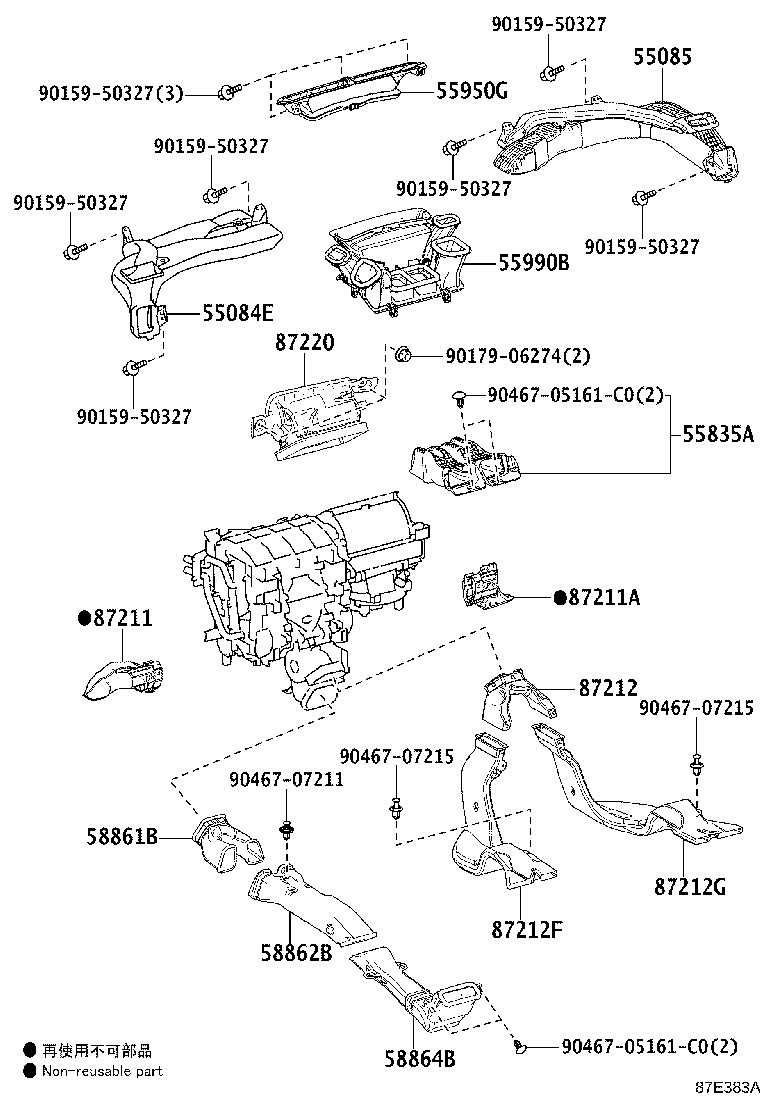

Figure 87I157C 87I157C 2014-07 → 2017-09 Figure 87G643C 87G643C 2017-09 → — Figure 87E437A 87E437A 2014-07 → — Figure 87E383A 87E383A 2014-07 → — Figure 87E382B 87E382B 2014-07 → — Figure 87E439B 87E439B 2014-07 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55835A Duct, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55905Y Cable Sub-assy, Heater Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58864B Duct, Console Box, NO.4
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87220 Duct Assy, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
