Heating & Air Conditioning - Water Piping

11 part groups · 3 illustrations

Illustrations

Figure 87E455

87E455 2014-07 → —

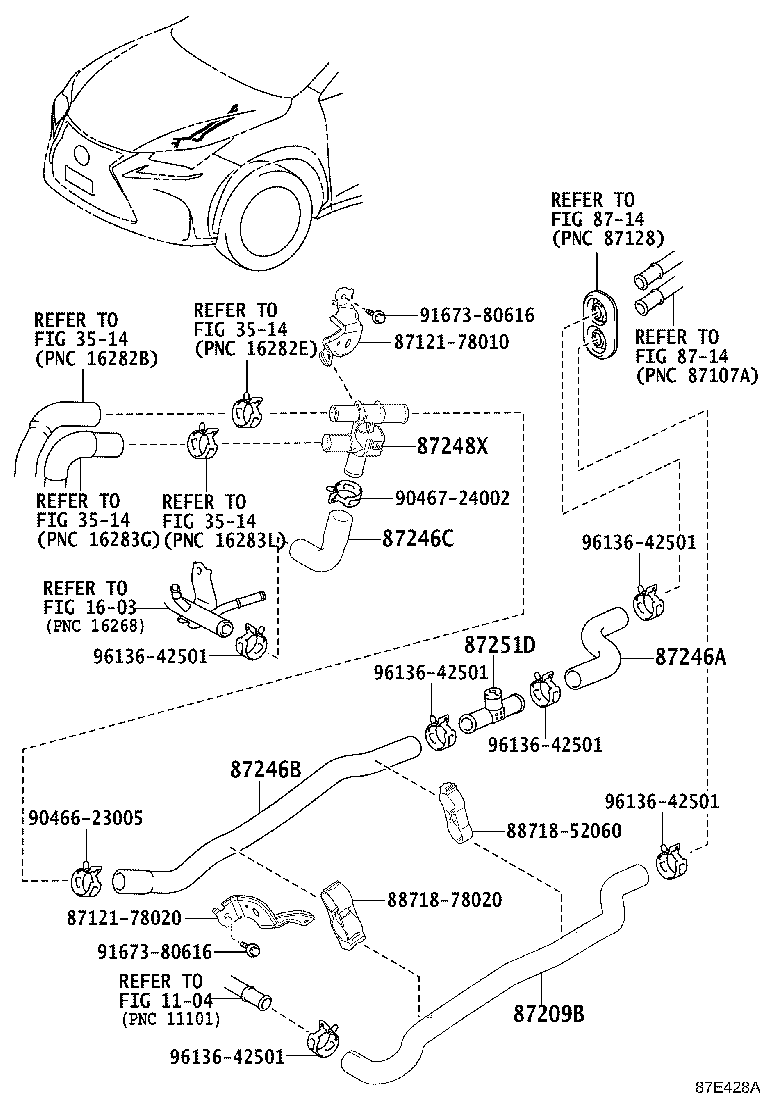

Figure 87E428A

87E428A 2014-12 → —

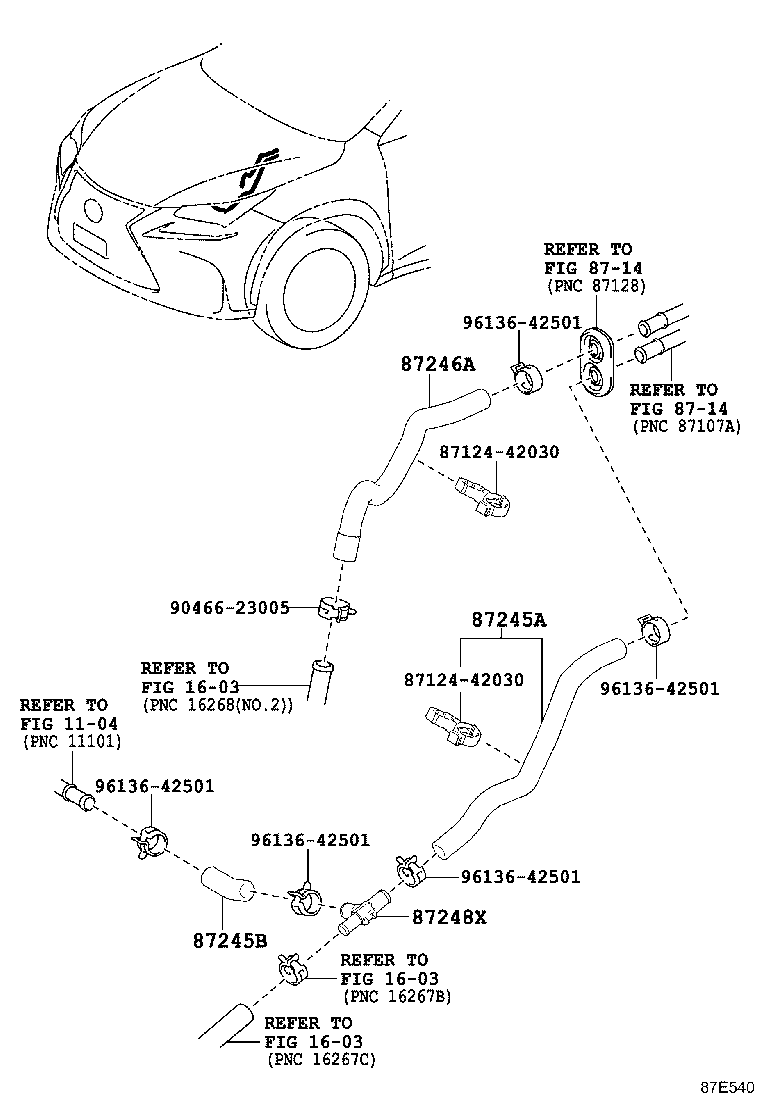

Figure 87E540

87E540 2014-12 → —

Part groups

PNC	Description
87200D	Accessory Assy, Heater
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87248X	Pipe, Heater Water
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
