Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527310 · General
Supported model
Data version 2022-11
Heating & Air Conditioning - Cooler Piping
15 part groups · 5 illustrations
Part groups

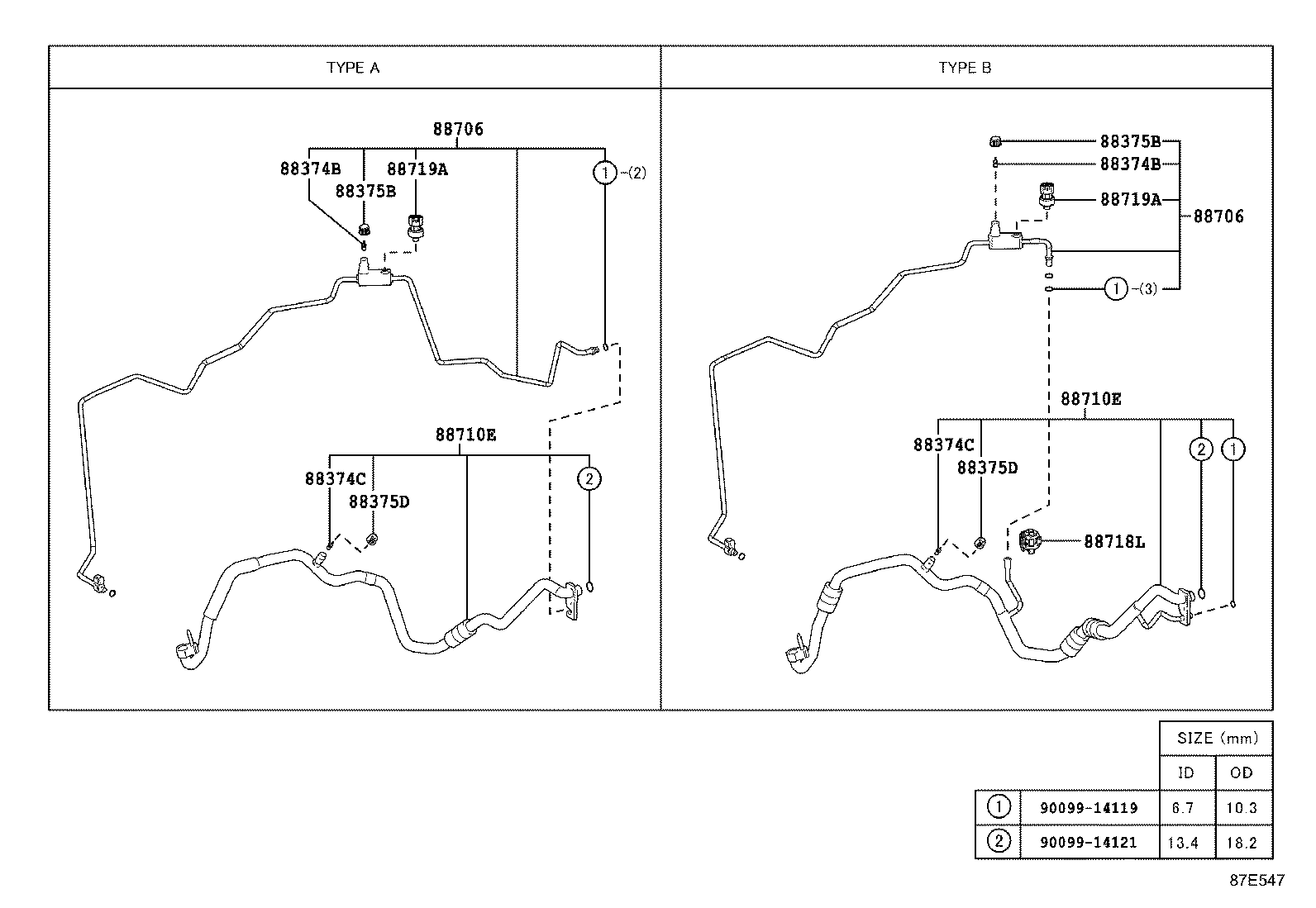

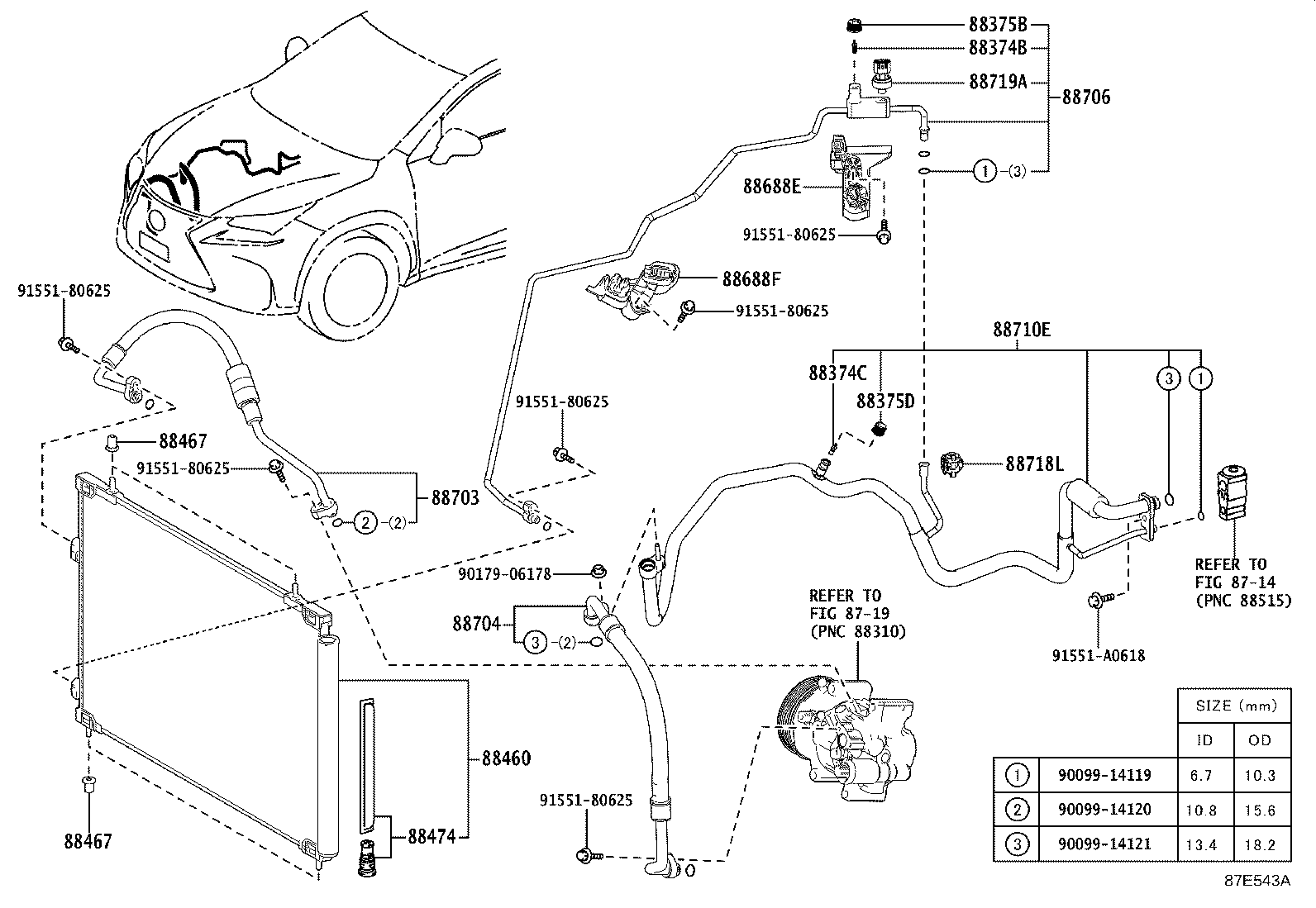

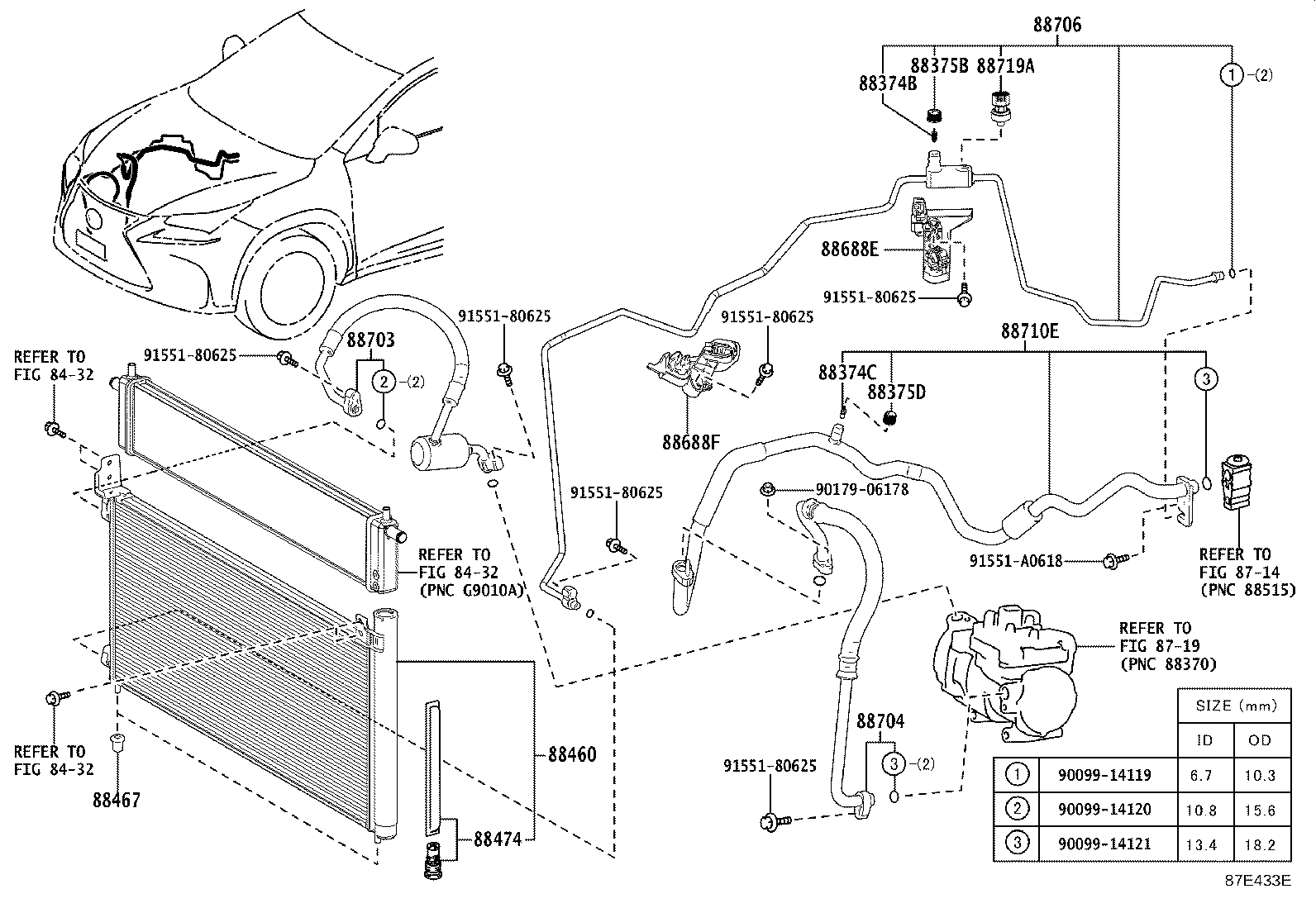

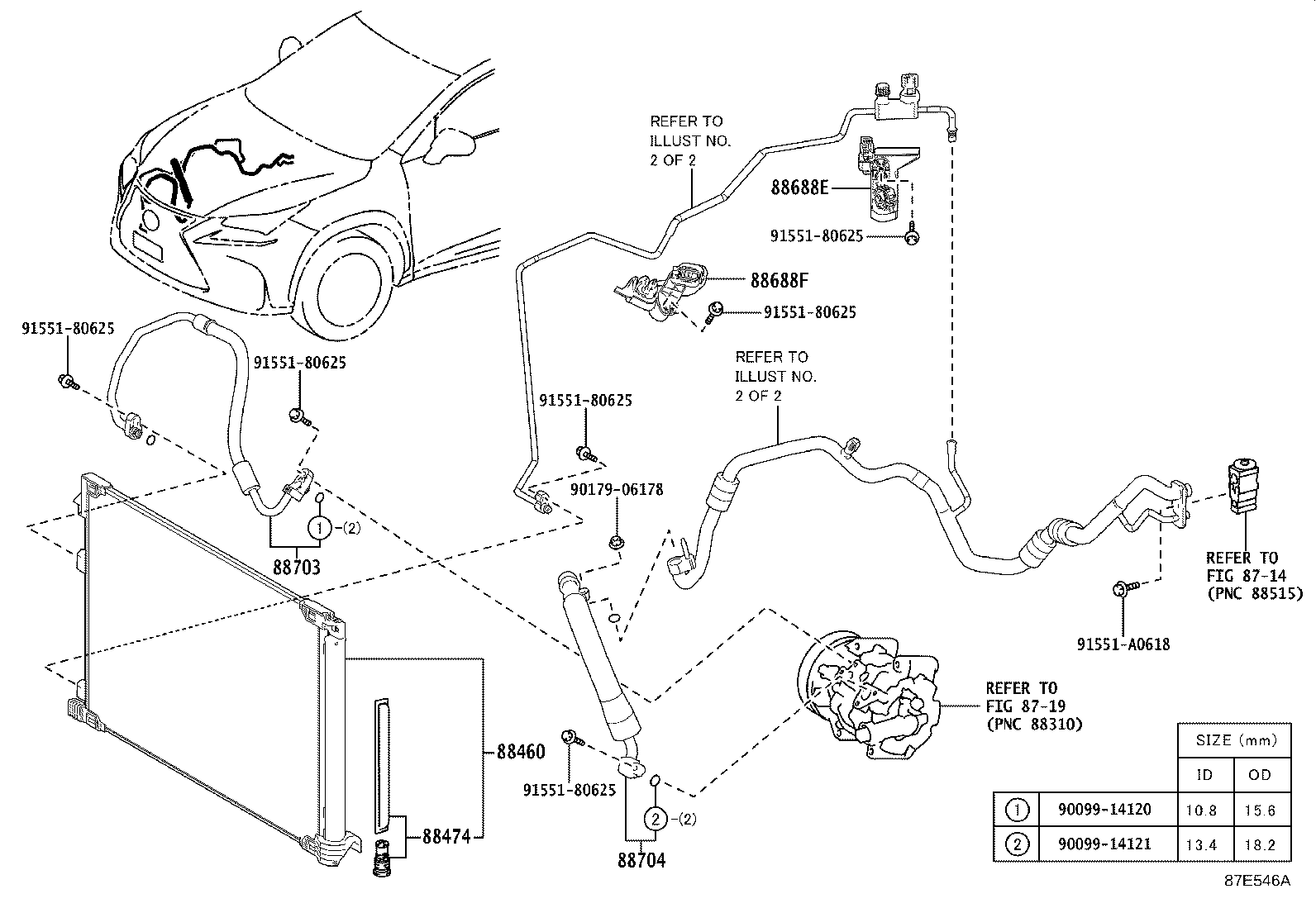

| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88688F | Bracket, Cooler Refrigerant Hose, NO.2 |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88706 | Pipe Sub-assy, Liquid |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88718L | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
