Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General
Supported model
Data version 2023-12

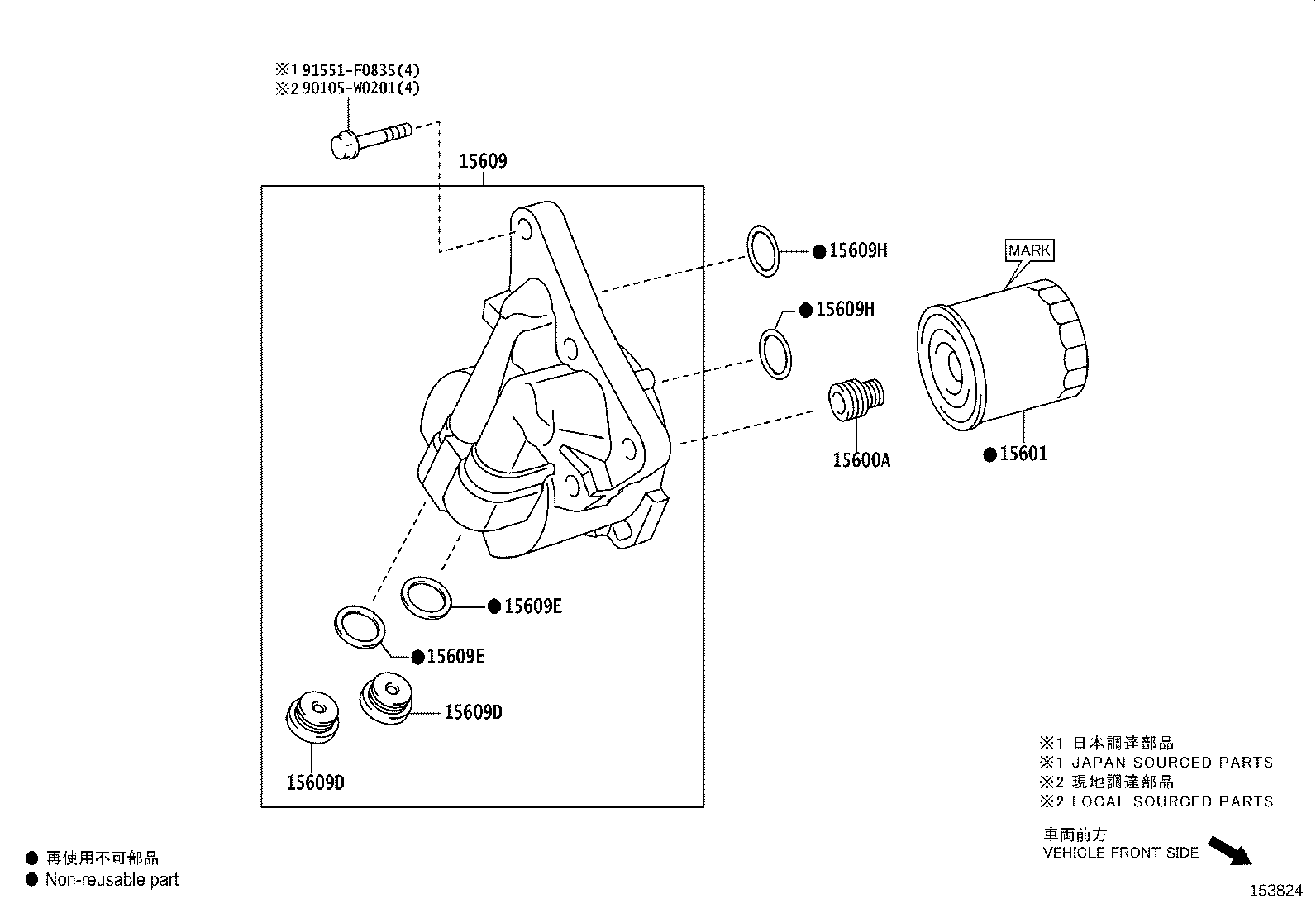

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600A — Union(FOR OIL FILTER) | ||||
| 90904-04006 |
Union(FOR OIL FILTER)
2023-10 → —
|
2ZR ZYX20 | — | |
| 90904-04006 |
Union(FOR OIL FILTER)
2023-10 → —
|
M20 MAXH2# | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-10009 note |
Filter Sub-assy, Oil
2023-10 → —
|
2ZR ZYX20 | — | |
| 90915-10009 note |
Filter Sub-assy, Oil
2023-10 → —
|
M20 MAXH2# | — | |
| 90915-CA004 note |
Filter Sub-assy, Oil
2023-10 → —
|
2ZR ZYX20 | — | |
| 90915-CA004 note |
Filter Sub-assy, Oil
2023-10 → —
|
M20 MAXH2# | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2023-10 → —
|
2ZR ZYX20 | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2023-10 → —
|
2ZR ZYX20 | — | |
| 15609D — Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2023-10 → —
|
2ZR ZYX20 | — | |
| 15609E — Gasket, W/Head Straight Screw Plug | ||||
| 90430-20018 |
Gasket, W/Head Straight Screw Plug
2023-10 → —
|
2ZR ZYX20 | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2023-10 → —
|
2ZR ZYX20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
