Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · General
Supported model
Data version 2023-12

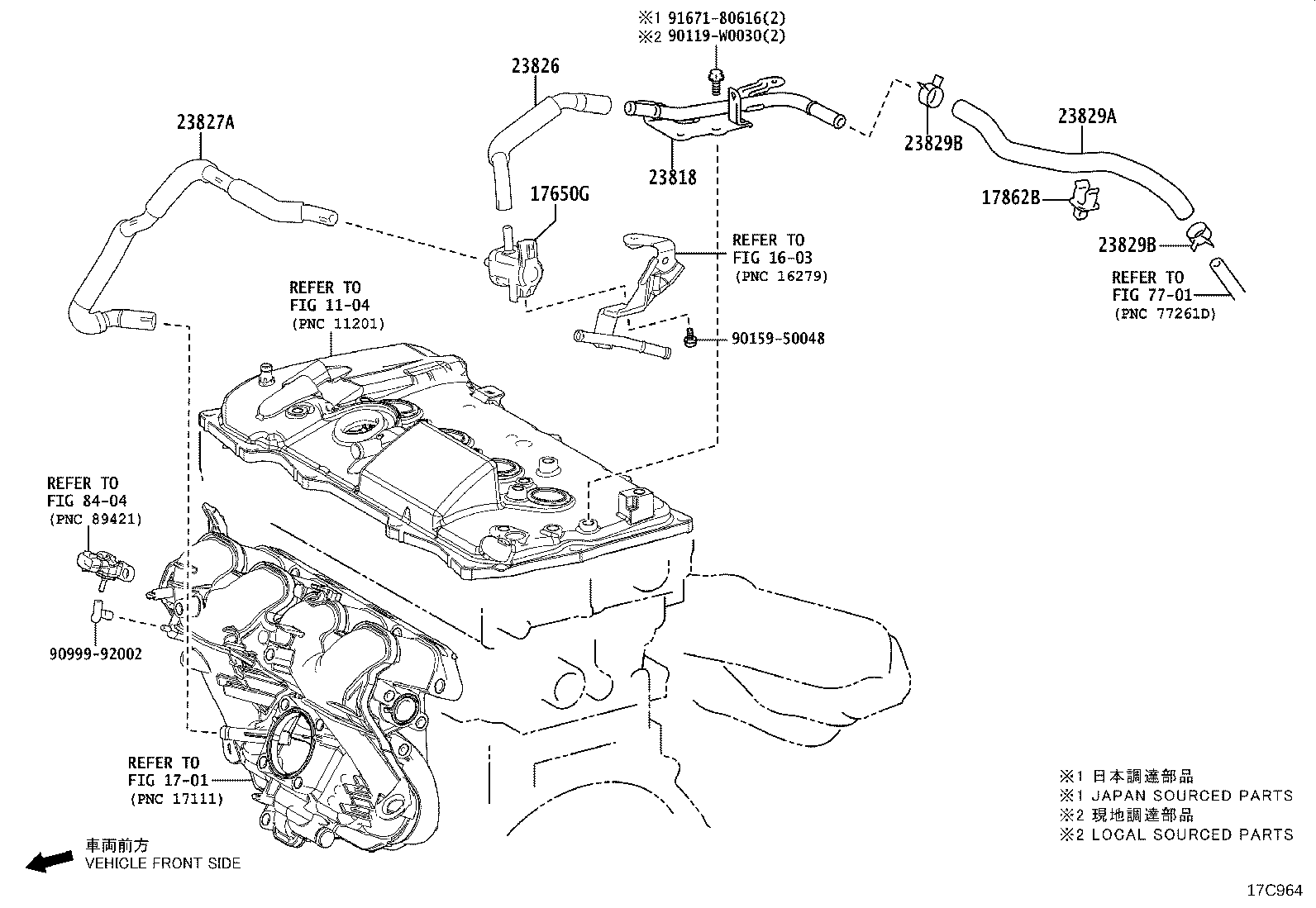

Vacuum Piping
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650G | Valve, Duty Vacuum Switching |
| 17862B | Clamp, Hose |
| 23818 | Pipe, Fuel Vapor Feed |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25715 | Bracket, Emission Control Valve |
| 25733A | Pipe, Vacuum, NO.1 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
